PHILIPS BRP 370 Street Lighting Luminaire Instruction Manual

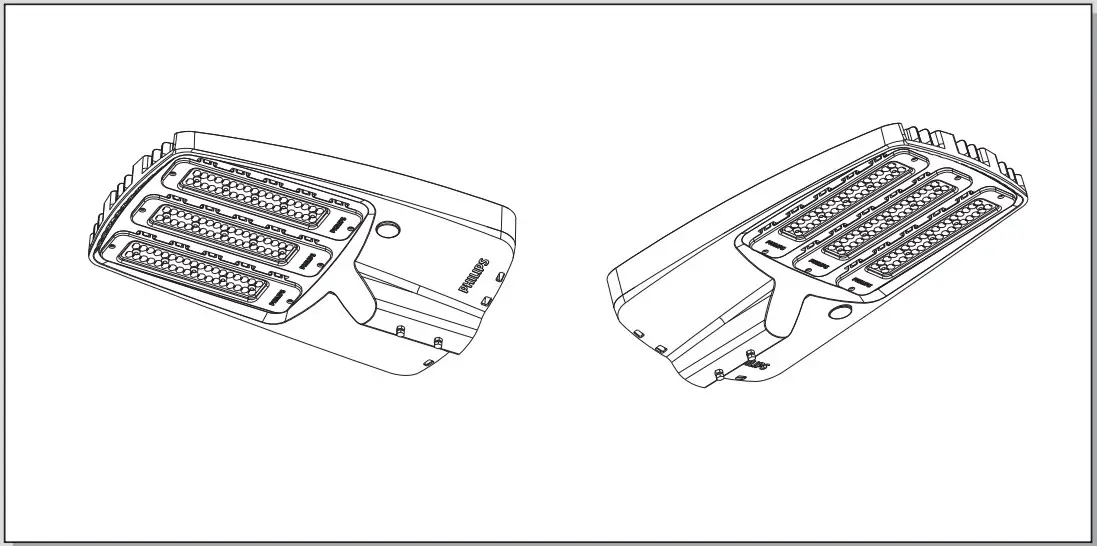

Product Overview

• Type: BRP 370
• Lamp: LED
• Voltage: 240 V, 50 Hz
• IP Classification: IP 66
• Net Weight: 8.8 kgs
• Max. Projected Area: 0.233 m²
• Application: Outdoor use only

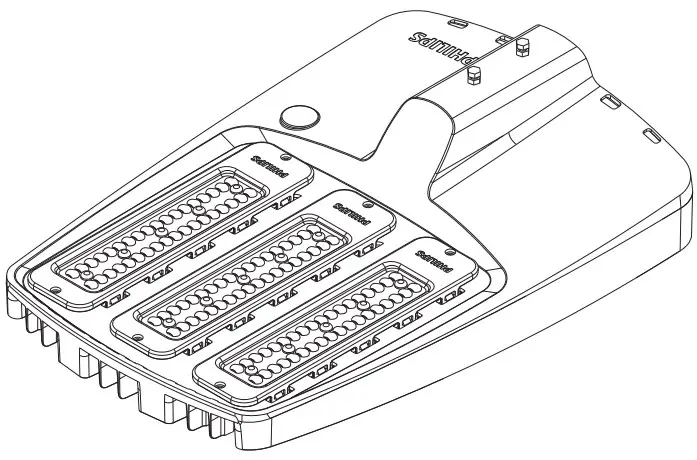

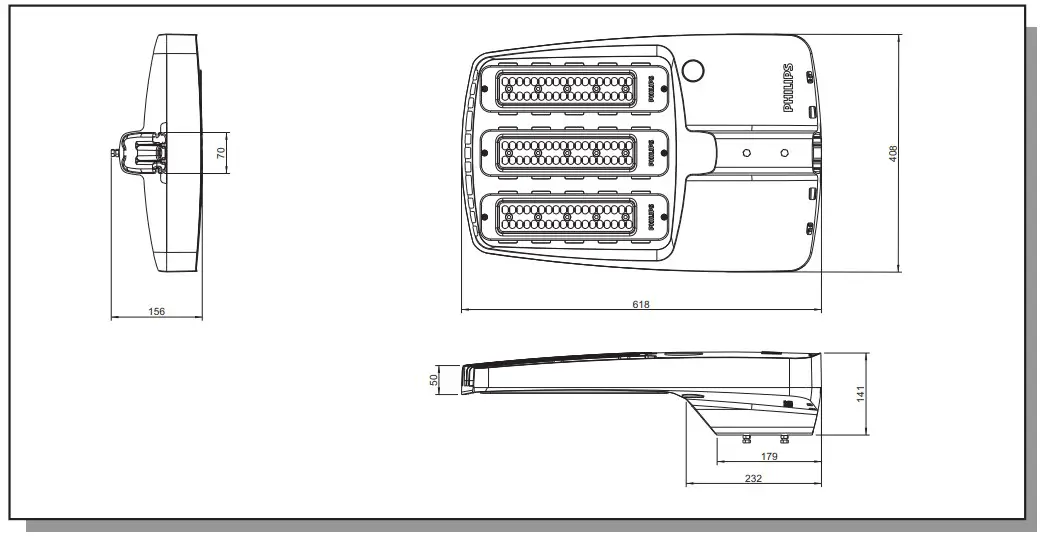

Dimensions

Installation

• Mounting Position: Horizontal

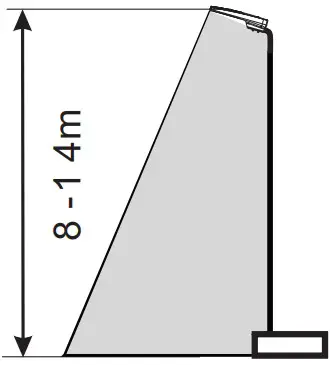

• Application height: 8-14m

• Suitable Cable Diameter: 8-12mm
• Pole Size: 48-60mm diameter


1. Take the product out of the packing box.

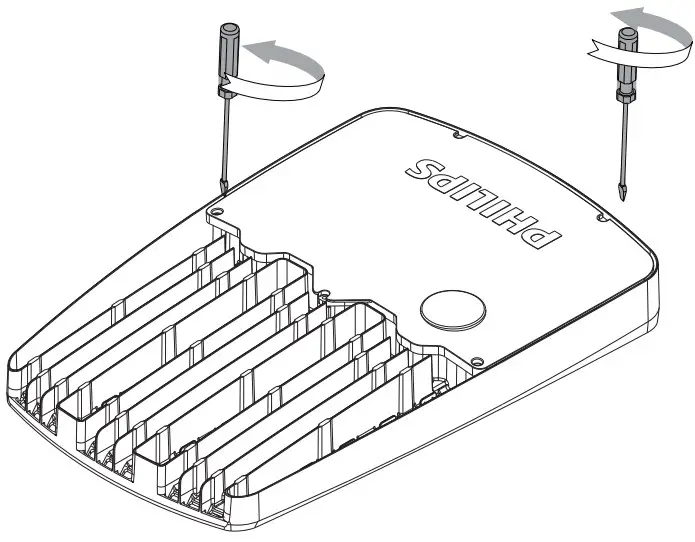

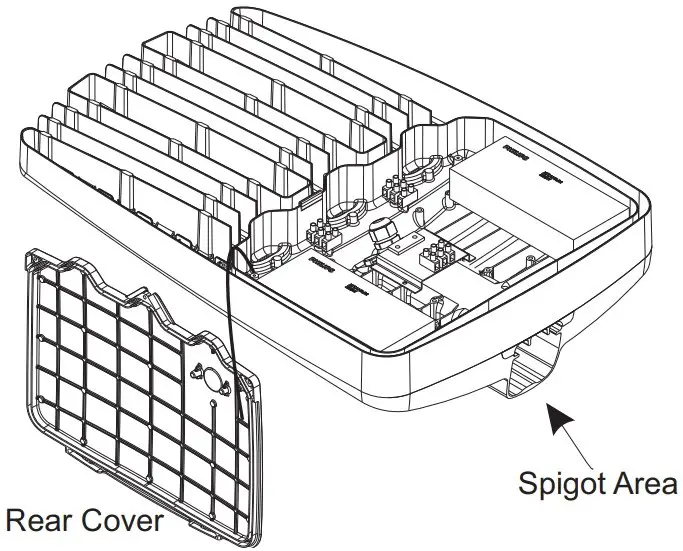

2. Open the rear cover by screw driver as shown.

3. Open the rear cover as shown.

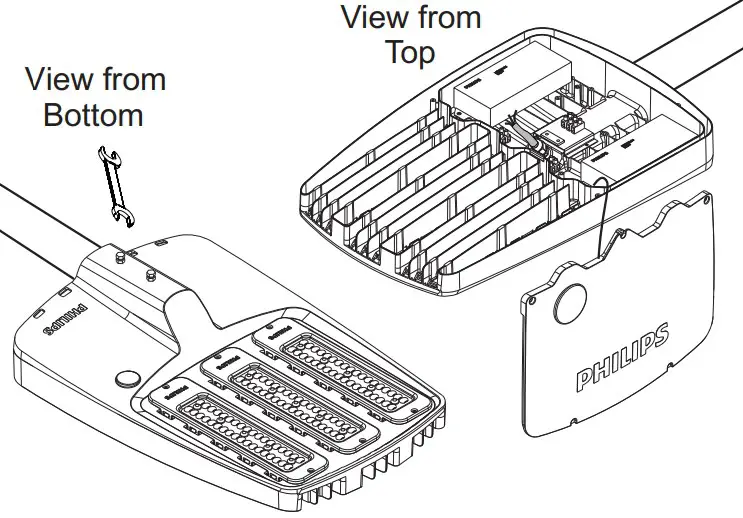

4. Allow the incoming cable to pass through the Spigot area into the gland. Then, tighten gland cap with spanner.

5. Fix the street light over the pole and tighten the bolts.
   Tightening Torque: 8Nm

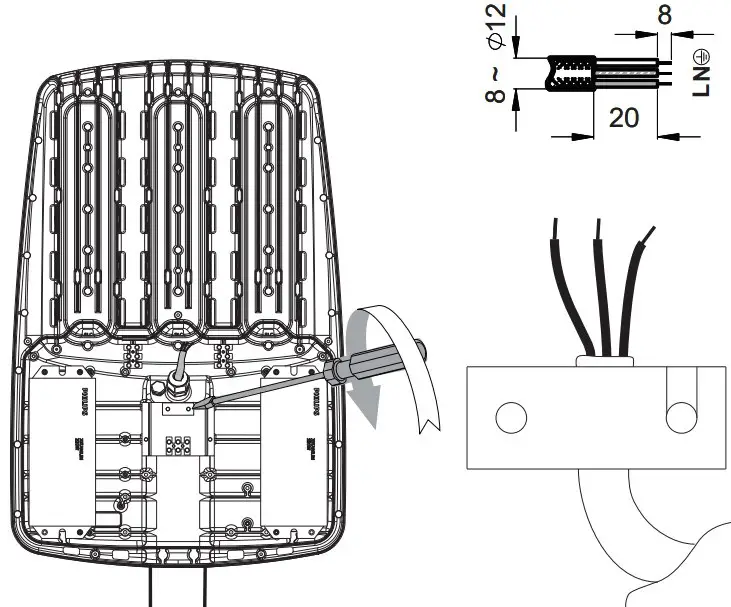

6. Cut the wire as per the size and fix it in cable grip

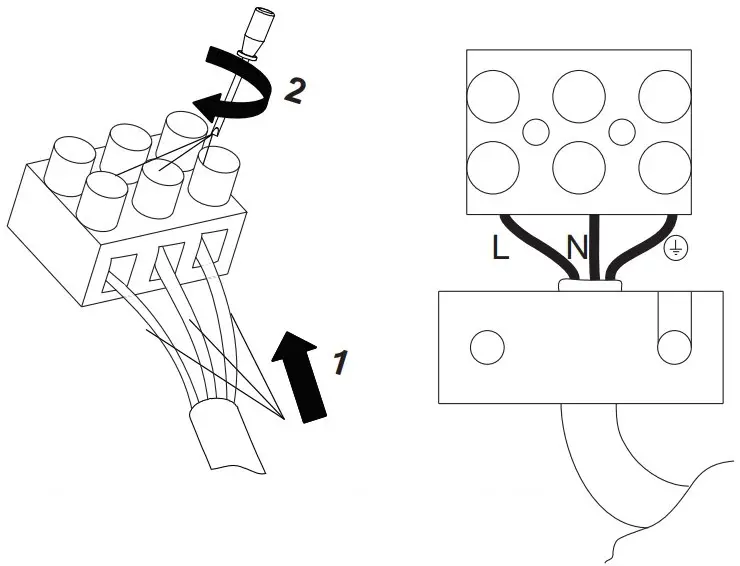

7. Make the electrical connections as per the LN marking

8. Fix the rear cover using the screw driver as shown

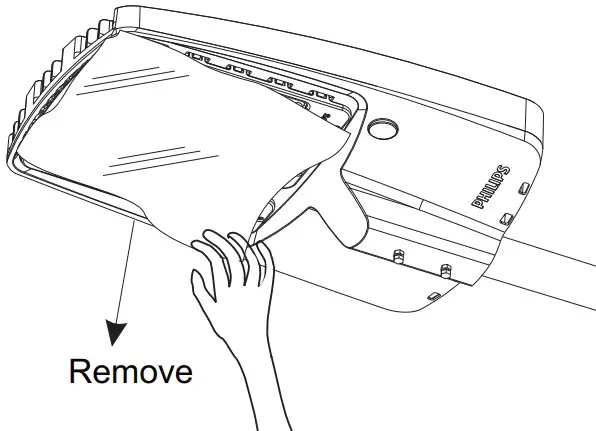

9. Remove the polythene over front diffuser.

10. Luminaire is ready for use.

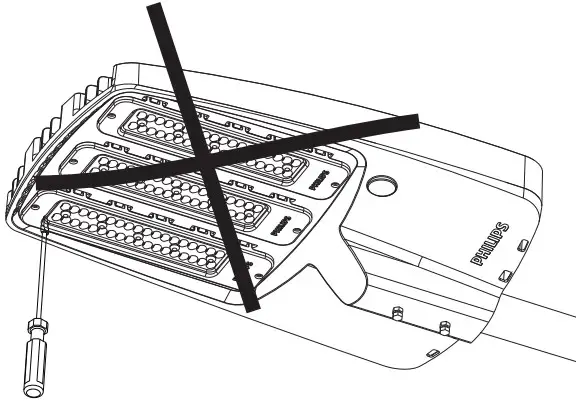

11. CAUTION:Do not open front cove.

12. CAUTION: Broken Glass/ ! front diffusers should be immediately replaced.
