D100UV UV LED Flood Light
User Manual
UV LED FLOOD LIGHT
Product Manual

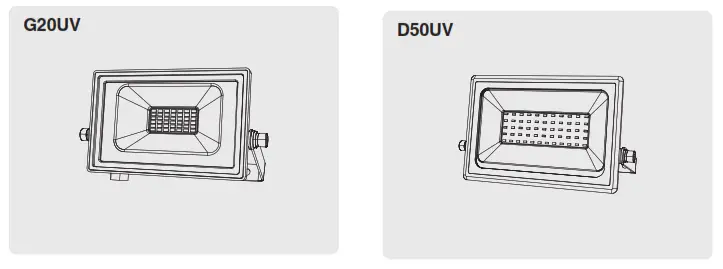

MODEL: G20UV D50UV D100UV

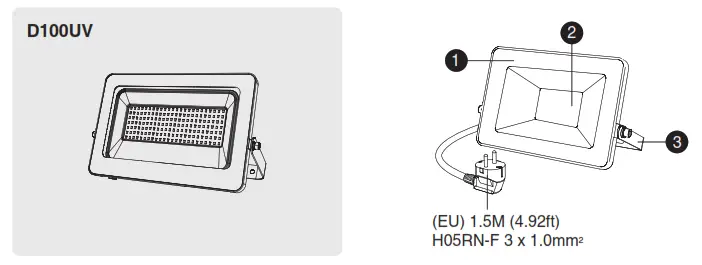

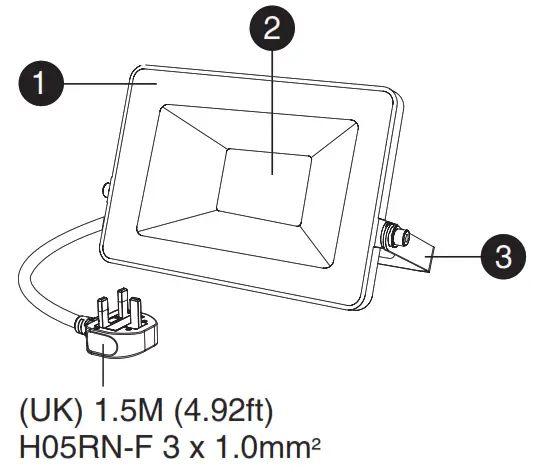

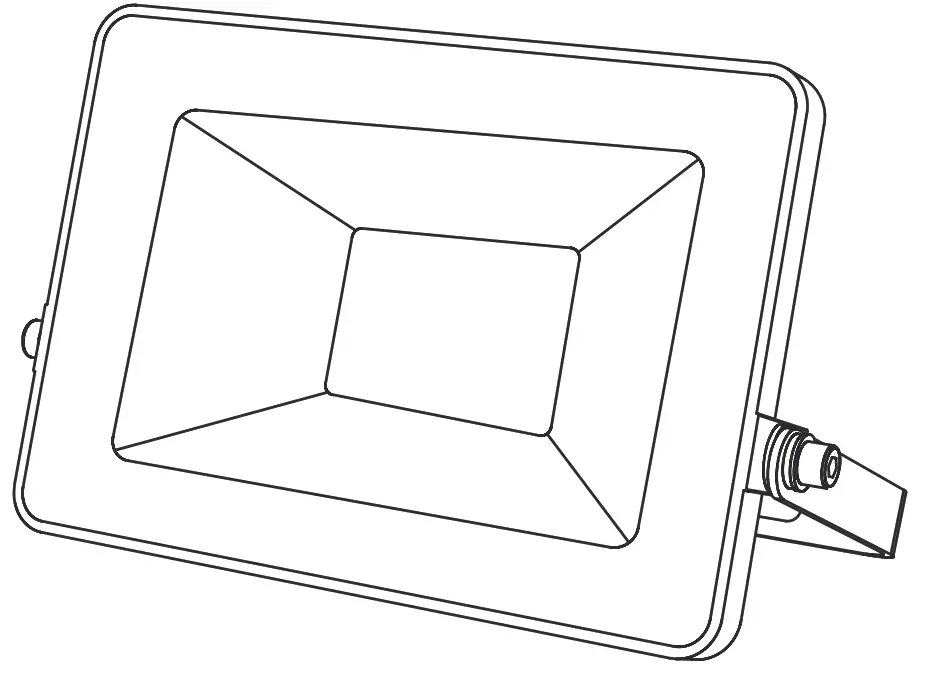

COMPONENTS AND STRUCTURE
 |  |
- Cover
- LED Light Source
- Lamp Bracket
SPECIFICATIONS
UV LED FLOOD LIGHT | |||
| Model | G20UV | D50UV | D100UV |

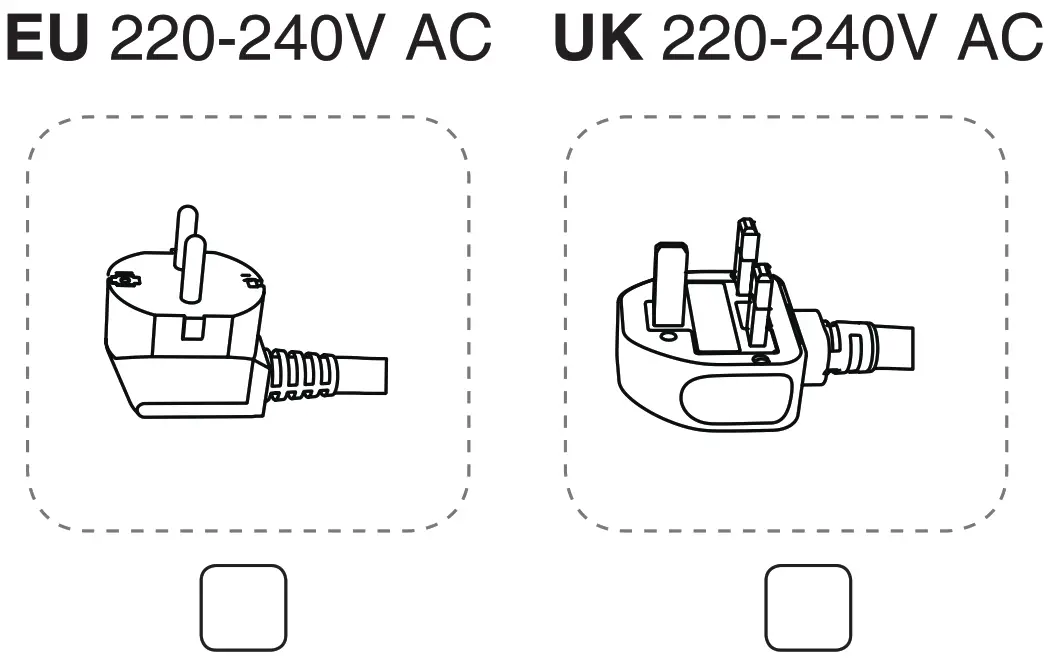

| Input Voltage | 220-240V～ 50Hz | ||
| Input Current | 0.11A | 0.22A | 0.45A |
| Rated Power | 20W | 50W | 100W |
| Wavelength | 385-400nm | ||
| Chromaticity coordinate | x=0.1763 y=0.0317 | ||
| CRI | -1.9 | ||
| Power factor | ≥0.9 | ||
| Beam Angle | 120° | ||
| IP Rating Code IP | IP66 | ||
| ta | -20-40°C | ||

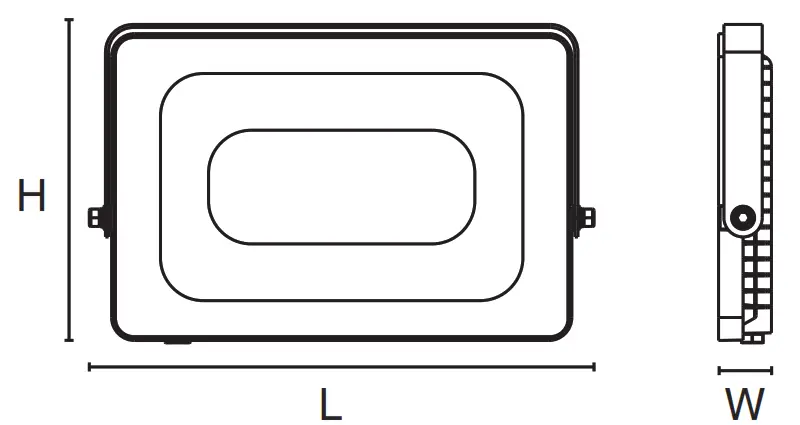

DIMENSIONS | ||
| Model | G2OUV | D5OUV |
| DIMENSIONS | 153’91’28mm | 258’168’40mm |
| Weight | 0.41KG | 0.95KG |
| Max Projected Area | 0.0105 m2 | 0.0265 m2 |
| Model | D1OOUV | |
| DIMENSIONS | 329’208’35mm | |
| Weight | 1.55KG | |
| Max Projected Area | 0.0616 m2 | |
Note | ||
The intended purpose of this special purpose product: This light is used to create an atmosphere. It is not suitable for household room illumination, the light source is not intended for use in other applications. | ||
PREPARATION
Check all components for damage, do not use the product if it is damaged.
Estimated assembly time: 10-30 minutes
Tools required (not included)
SAFETY INFORMATION
Disconnect the power supply before attempting any work on the unit!
Risk of shock-before beginning installation,turn off Electricity at the circuit breaker box or the main fuse box.
Installing these units involves work on the mains voltage supply; installation must therefore be carried out professionally In accordance with the appliance national wiring regulations And electrical operating conditions.
Be careful not to damage or cut the wire insulation (Covering) during installation. Do not let the wires touch any sharp edges.

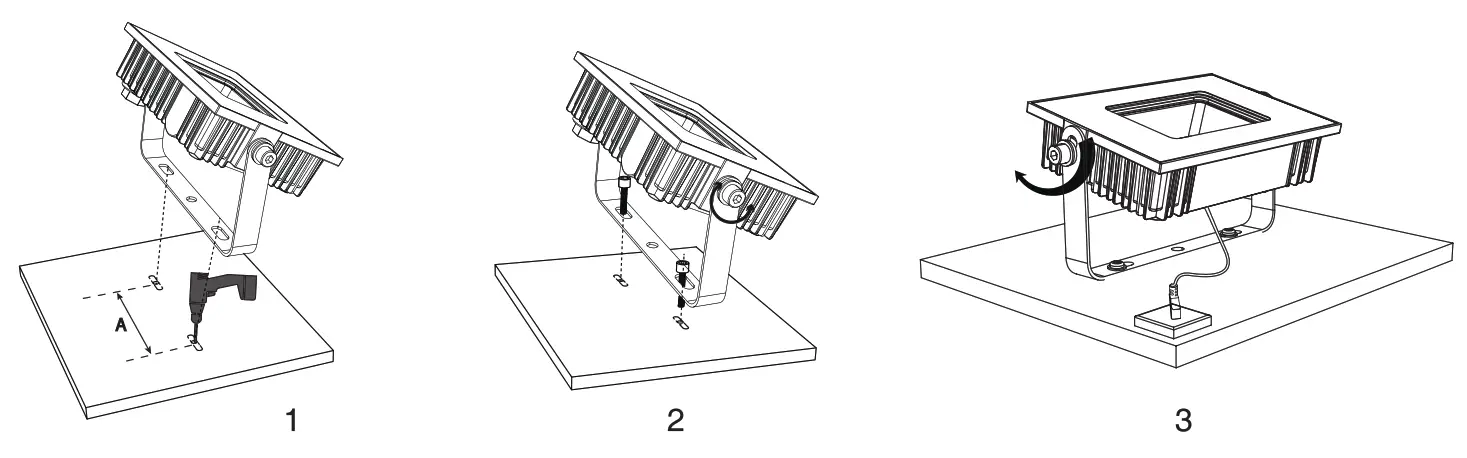

INSTALLATION STEPS
Product appearance may vary from image shown
Recommended to be installed no higher than 5m
Step 1: According to the space (see the“A”part of the picture of two screw bits on the LED Light bracket drill two mounting holes.
Step 2: Put the bracket onto the prepared mounting holes and then screw it on.
Step 3: Adjust the beam direction as you like,and then plug into the main socket.
Manufacturer / Hersteller:
Address: Dong, 518000, CN
[email protected]
www.onforuleds.com
MDH LIGHTING LTD
Suite 302, 292 Strovolos Avenue, 2048 Strovolos
Nicosia, Cyprus | [email protected]
MDH LIGHTING LTD
69 Aberdeen Avenue, Cambridge CB2 8DL,
United Kingdom | [email protected]
Made in China
