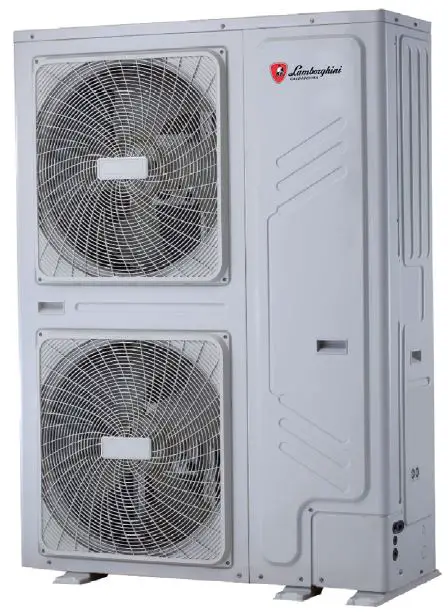

Lamborghini IDOLA M 3.2 22T- 30T Reversible Heat Pump Units Outdoor with Dc Inverter Compressor

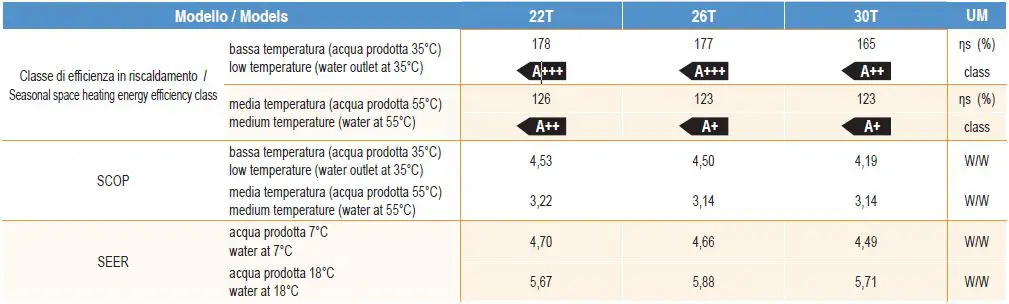

ERP Data

NOTE: Declared according to European regulation 811/2013. The values are referred to units without options and accessories.

The manufacturer declines all responsibility for any inaccuracies in this manual due to printing or typing errors. The manufacturer reserves the right to modify the contents of the product in this catalog without previous notice.

ERP TECHNICAL DATA SHEET

Heating mode – Average climate – Medium temperature (55°C)

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for medium-temperature application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	22,4	kW	Seasonal space heating energy effi- ciency		126	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7	Pdh	19,8	kW	Tj = -7	COPd	1,74	–
Tj = 2	Pdh	11,9	kW	Tj = 2	COPd	3,3	–
Tj = 7	Pdh	8	kW	Tj = 7	COPd	4,62	–
Tj = 12	Pdh	3,6	kW	Tj = 12	COPd	5,2	–
Tj = bivalent temperature	Pdh	19,8	kW	Tj = bivalent temperature	COPd	1,74	–
Tj = operating limit	Pdh	13,8	kW	Tj = operating limit	COPd	1,08	–
For air-to-water heat pumps: Tj = -15	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit tempera- ture	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	2,6	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	2,6	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdo- ors	LWA	-/73	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	14390	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesi- gnh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	22,4	kW	Seasonal space heating energy efficiency	ηs	102	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	13,5	kW	Tj = -7°C	COPd	2,07	–
Tj = 2°C	Pdh	8,6	kW	Tj = 2°C	COPd	3,70	–
Tj = 7°C	Pdh	5,2	kW	Tj = 7°C	COPd	4,49	–
Tj = 12°C	Pdh	3,7	kW	Tj = 12°C	COPd	5,76	–
Tj = bivalent temperature	Pdh	13,5	kW	Tj = bivalent temperature	COPd	2,07	–
Tj = operating limit	Pdh	13,8	kW	Tj = operating limit	COPd	1,24	–
For air-to-water heat pumps: Tj = -15°C	Pdh	13,8	kW	For air-to-water heat pumps: Tj = -15	COPd	1,24	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-15	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	50	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	8,9	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	8,9	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	– / 73	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	21067	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	22,0	kW	Seasonal space heating energy efficiency	ηs	161	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	22,1	kW	Tj = 2°C	COPd	2,12	–
Tj = 7°C	Pdh	14,1	kW	Tj = 7°C	COPd	3,50	–
Tj = 12°C	Pdh	6,4	kW	Tj = 12°C	COPd	5,34	–
Tj = bivalent temperature	Pdh	14,1	kW	Tj = bivalent temperature	COPd	3,50	–
Tj = operating limit	Pdh	22,1	kW	Tj = operating limit	COPd	2,12	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	7,9	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	7,9	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	-/73	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	7180	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	ηwh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Heating mode – Average climate – Low temperature (35°C)

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	22	kW	Seasonal space heating energy efficiency	ηs	178	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	19,73	kW	Tj = -7°C	COPd	2,74	–
Tj = 2°C	Pdh	12,04	kW	Tj = 2°C	COPd	4,4	–
Tj = 7°C	Pdh	8,02	kW	Tj = 7°C	COPd	6,24	–
Tj = 12°C	Pdh	3,81	kW	Tj = 12°C	COPd	7	–
Tj = bivalent temperature	Pdh	19,73	kW	Tj = bivalent temperature	COPd	2,74	–
Tj = operating limit	Pdh	20,34	kW	Tj = operating limit	COPd	2,35	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	2,27	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	2,27	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	/73	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	10180	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	21	kW	Seasonal space heating energy efficiency	ηs	146	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	13,3	kW	Tj = -7°C	COPd	3,12	–
Tj = 2°C	Pdh	8,25	kW	Tj = 2°C	COPd	4,42	–
Tj = 7°C	Pdh	5,45	kW	Tj = 7°C	COPd	5,87	–
Tj = 12°C	Pdh	3,98	kW	Tj = 12°C	COPd	7,19	–
Tj = bivalent temperature	Pdh	17,46	kW	Tj = bivalent temperature	COPd	2,36	–
Tj = operating limit	Pdh	13,27	kW	Tj = operating limit	COPd	1,69	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	-15	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-22	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	3,54	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	3,54	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	14179	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 22T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	22	kW	Seasonal space heating energy efficiency	ηs	234	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	21,81	kW	Tj = 2°C	COPd	3,31	–
Tj = 7°C	Pdh	14,08	kW	Tj = 7°C	COPd	5,2	–
Tj = 12°C	Pdh	6,44	kW	Tj = 12°C	COPd	7,5	–
Tj = bivalent temperature	Pdh	14,08	kW	Tj = bivalent temperature	COPd	5,2	–
Tj = operating limit	Pdh	21,81	kW	Tj = operating limit	COPd	3,31	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	7,92	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	7,92	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	4945	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	ηwh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Cooling mode – Average climate – Low temperature (7°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 22T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor-driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	20,6	kW	Seasonal space cooling energy efficiency	ηs,c	185	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	20,6	kW	Tj=+35°C	EERd	2,89	–
Tj=+30°C	Pdc	14,9	kW	Tj=+30°C	EERd	3,95	–
Tj=+25°C	Pdc	9,3	kW	Tj=+25°C	EERd	5,37	–
Tj=+20°C	Pdc	4,3	kW	Tj=+20°C	EERd	6,19	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	8950	m3/h
Sound power level, indoors / outdoors	LWA	-/73	dB		–	8950	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Low-temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

Cooling mode – Average climate – Medium temperature (18°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 22T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor-driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	22,8	kW	Seasonal space cooling energy efficiency	ηs,c	224	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	22,8	kW	Tj=+35°C	EERd	4,25	–
Tj=+30°C	Pdc	16,3	kW	Tj=+30°C	EERd	5,16	–
Tj=+25°C	Pdc	10,2	kW	Tj=+25°C	EERd	6,45	–
Tj=+20°C	Pdc	4,6	kW	Tj=+20°C	EERd	6,38	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	8950	m3/h
Sound power level, indoors / outdoors	LWA	-/73	dB		–	8950	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Medium temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

Heating mode – Average climate – Medium temperature (55°C)

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	26,1	kW	Seasonal space heating energy efficiency	ηs	123	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	20,6	kW	Tj = -7°C	COPd	1,69	–
Tj = 2°C	Pdh	14,3	kW	Tj = 2°C	COPd	3,11	–
Tj = 7°C	Pdh	9,3	kW	Tj = 7°C	COPd	4,72	–
Tj = 12°C	Pdh	3,9	kW	Tj = 12°C	COPd	5,41	–
Tj = bivalent temperature	Pdh	22,1	kW	Tj = bivalent temperature	COPd	1,88	–
Tj = operating limit	Pdh	13,8	kW	Tj = operating limit	COPd	1,08	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	-6	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	4	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	4	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/75	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	17204	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	26,3	kW	Seasonal space heating energy efficiency	ηs	101	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	15,9	kW	Tj = -7°C	COPd	2,10	–
Tj = 2°C	Pdh	10,2	kW	Tj = 2°C	COPd	3,58	–
Tj = 7°C	Pdh	6,5	kW	Tj = 7°C	COPd	4,99	–
Tj = 12°C	Pdh	3,6	kW	Tj = 12°C	COPd	5,68	–
Tj = bivalent temperature	Pdh	15,9	kW	Tj = bivalent temperature	COPd	2,10	–
Tj = operating limit	Pdh	13,4	kW	Tj = operating limit	COPd	1,20	–
For air-to-water heat pumps: Tj = -15°C	Pdh	13,4	kW	For air-to-water heat pumps: Tj = -15°C	COPd	1,20	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-15	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	50	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	10,4	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	10,4	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/75	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	24967	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	26,2	kW	Seasonal space heating energy efficiency	ηs	168	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	26,5	kW	Tj = 2°C	COPd	1,99	–
Tj = 7°C	Pdh	16,9	kW	Tj = 7°C	COPd	3,47	–
Tj = 12°C	Pdh	7,6	kW	Tj = 12°C	COPd	5,94	–
Tj = bivalent temperature	Pdh	16,9	kW	Tj = bivalent temperature	COPd	3,47	–
Tj = operating limit	Pdh	26,5	kW	Tj = operating limit	COPd	1,99	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	9,3	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	9,3	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/75	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	8218	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Heating mode – Average climate – Low temperature (35°C)

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	25	kW	Seasonal space heating energy efficiency	ηs	177	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	22,15	kW	Tj = -7°C	COPd	2,56	–
Tj = 2°C	Pdh	13,78	kW	Tj = 2°C	COPd	4,41	–
Tj = 7°C	Pdh	9,38	kW	Tj = 7°C	COPd	6,43	–
Tj = 12°C	Pdh	4,11	kW	Tj = 12°C	COPd	7,08	–
Tj = bivalent temperature	Pdh	22,15	kW	Tj = bivalent temperature	COPd	2,56	–
Tj = operating limit	Pdh	20,36	kW	Tj = operating limit	COPd	2,34	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	2,85	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	2,85	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	/75	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	11489	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	26	kW	Seasonal space heating energy efficiency	ηs	143	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	15,91	kW	Tj = -7°C	COPd	3,1	–
Tj = 2°C	Pdh	10,1	kW	Tj = 2°C	COPd	4,45	–
Tj = 7°C	Pdh	6,3	kW	Tj = 7°C	COPd	6,06	–
Tj = 12°C	Pdh	4,03	kW	Tj = 12°C	COPd	7,13	–
Tj = bivalent temperature	Pdh	18,97	kW	Tj = bivalent temperature	COPd	2,36	–
Tj = operating limit	Pdh	13,07	kW	Tj = operating limit	COPd	1,67	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	-12	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-22	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	7,03	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	7,03	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	17421	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 26T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	26	kW	Seasonal space heating energy efficiency	ηs	231	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	25,5	kW	Tj = 2°C	COPd	3	–
Tj = 7°C	Pdh	16,77	kW	Tj = 7°C	COPd	5,02	–
Tj = 12°C	Pdh	7,65	kW	Tj = 12°C	COPd	7,78	–
Tj = bivalent temperature	Pdh	16,77	kW	Tj = bivalent temperature	COPd	5,02	–
Tj = operating limit	Pdh	25,5	kW	Tj = operating limit	COPd	3	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	9,23	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	9,23	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	5959	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	ηwh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Cooling mode – Average climate – Low temperature (7°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 26T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	25,5	kW	Seasonal space cooling energy efficiency	ηs,c	183	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	25,5	kW	Tj=+35°C	EERd	2,63	–
Tj=+30°C	Pdc	18,5	kW	Tj=+30°C	EERd	3,79	–
Tj=+25°C	Pdc	11,8	kW	Tj=+25°C	EERd	5,19	–
Tj=+20°C	Pdc	5,6	kW	Tj=+20°C	EERd	6,84	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	9750	m3/h
Sound power level, indoors / outdoors	LWA	-/75	dB		–	9750	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Low temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

Cooling mode – Average climate – Medium temperature (18°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 26T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	26,8	kW	Seasonal space cooling energy efficiency	ηs,c	226	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	26,8	kW	Tj=+35°C	EERd	4,04	–
Tj=+30°C	Pdc	19,4	kW	Tj=+30°C	EERd	5,21	–
Tj=+25°C	Pdc	12,1	kW	Tj=+25°C	EERd	6,23	–
Tj=+20°C	Pdc	5,9	kW	Tj=+20°C	EERd	6,94	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	9750	m3/h
Sound power level, indoors / outdoors	LWA	-/75	dB		–	9750	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Medium temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

Heating mode – Average climate – Medium temperature (55°C)

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	29,7	kW	Seasonal space heating energy efficiency	ηs	123	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	20,1	kW	Tj = -7°C	COPd	1,63	–
Tj = 2°C	Pdh	16,5	kW	Tj = 2°C	COPd	3,09	–
Tj = 7°C	Pdh	10,5	kW	Tj = 7°C	COPd	4,73	–
Tj = 12°C	Pdh	4,7	kW	Tj = 12°C	COPd	5,85	–
Tj = bivalent temperature	Pdh	24,0	kW	Tj = bivalent temperature	COPd	2,02	–
Tj = operating limit	Pdh	13,8	kW	Tj = operating limit	COPd	1,07	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	-5	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	5,7	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	5,7	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/77	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	19316	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	30,4	kW	Seasonal space heating energy efficiency	ηs	100	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	18,4	kW	Tj = -7°C	COPd	2,10	–
Tj = 2°C	Pdh	11,2	kW	Tj = 2°C	COPd	3,51	–
Tj = 7°C	Pdh	7,4	kW	Tj = 7°C	COPd	5,18	–
Tj = 12°C	Pdh	3,6	kW	Tj = 12°C	COPd	5,73	–
Tj = bivalent temperature	Pdh	18,4	kW	Tj = bivalent temperature	COPd	2,10	–
Tj = operating limit	Pdh	13,1	kW	Tj = operating limit	COPd	1,18	–
For air-to-water heat pumps: Tj = -15°C	Pdh	13,1	kW	For air-to-water heat pumps: Tj = -15°C	COPd	1,18	–
Bivalent temperature	Tbiv	-7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-15	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	50	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	12	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	12	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/77	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	29238	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for medium-temperature (55°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	29,7	kW	Seasonal space heating energy efficiency	ηs	163	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	26,4	kW	Tj = 2°C	COPd	1,99	–
Tj = 7°C	Pdh	19,1	kW	Tj = 7°C	COPd	3,37	–
Tj = 12°C	Pdh	8,9	kW	Tj = 12°C	COPd	6,09	–
Tj = bivalent temperature	Pdh	19,1	kW	Tj = bivalent temperature	COPd	3,37	–
Tj = operating limit	Pdh	26,4	kW	Tj = operating limit	COPd	1,99	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	10,6	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	10,6	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	11200	m3/h
Sound power level, indoors/outdoors	LWA	-/77	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	9580	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Heating mode – Average climate – Low temperature (35°C)

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		AVERAGE
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	29	kW	Seasonal space heating energy efficiency	ηs	165	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	21,95	kW	Tj = -7°C	COPd	2,53	–
Tj = 2°C	Pdh	16,22	kW	Tj = 2°C	COPd	4,12	–
Tj = 7°C	Pdh	10,69	kW	Tj = 7°C	COPd	6,21	–
Tj = 12°C	Pdh	4,59	kW	Tj = 12°C	COPd	7,14	–
Tj = bivalent temperature	Pdh	23,57	kW	Tj = bivalent temperature	COPd	2,7	–
Tj = operating limit	Pdh	20,43	kW	Tj = operating limit	COPd	2,34	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15°C	COPd	–	–
Bivalent temperature	Tbiv	-5	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-10	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	5,43	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	5,43	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	/77	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	14165	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		COLDER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	29	kW	Seasonal space heating energy efficiency	ηs	138	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	18,49	kW	Tj = -7°C	COPd	3,07	–
Tj = 2°C	Pdh	11,88	kW	Tj = 2°C	COPd	4,42	–
Tj = 7°C	Pdh	7,53	kW	Tj = 7°C	COPd	6,15	–
Tj = 12°C	Pdh	4,11	kW	Tj = 12°C	COPd	6,87	–
Tj = bivalent temperature	Pdh	19,93	kW	Tj = bivalent temperature	COPd	2,44	–
Tj = operating limit	Pdh	13,17	kW	Tj = operating limit	COPd	1,67	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	-10	°C	For air-to-water heat pumps: Operation limit temperature	TOL	-22	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	9,07	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	9,07	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	20390	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	wh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Technical parameters
Model(s):		IDOLA M 3.2 30T
Air-to-water heat pump:		YES
Water-to-water heat pump:		NO
Brine-to-water heat pump:		NO
Low-temperature heat pump:		NO
Equipped with a supplementary heater:		NO
Heat pump combination heater:		NO
Declared climate condition:		WARMER
Parameters are declared for low-temperature (35°C) application.

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated heat output (*)	Prated	30	kW	Seasonal space heating energy efficiency	ηs	213	%
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj				Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = -7°C	Pdh	–	kW	Tj = -7°C	COPd	–	–
Tj = 2°C	Pdh	26,29	kW	Tj = 2°C	COPd	2,94	–
Tj = 7°C	Pdh	19,57	kW	Tj = 7°C	COPd	4,75	–
Tj = 12°C	Pdh	8,9	kW	Tj = 12°C	COPd	7,53	–
Tj = bivalent temperature	Pdh	19,57	kW	Tj = bivalent temperature	COPd	4,75	–
Tj = operating limit	Pdh	26,29	kW	Tj = operating limit	COPd	2,94	–
For air-to-water heat pumps: Tj = -15°C	Pdh	–	kW	For air-to-water heat pumps: Tj = -15	COPd	–	–
Bivalent temperature	Tbiv	7	°C	For air-to-water heat pumps: Operation limit temperature	TOL	2	°C
Cycling interval capacity for heating	Pcych	–	kW	Cycling interval efficiency	COPcyc	–	–
Degradation co-efficient (**)	Cdh	0,9	—	Heating water operating limit temperature	WTOL	60	°C
Power consumption in modes other than active mode				Supplementary heater
Off mode	Poff	0,018	kW	Rated heat output (**)	Psup	10,43	kW
Standby mode	Psb	0,018	kW	Rated heat output (**)	Psup	10,43	kW
Thermostat-off mode	Pto	0,096	kW	Type of energy input	Electrical
Crankcase heater mode	Pck	0,000	kW	Type of energy input	Electrical

Other items
Capacity control	variable			For air-to-water heat pumps: Rated air flow rate, outdoors	–	10650	m3/h
Sound power level, indoors/outdoors	LWA	–	dB	For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger	–	–	m3/h
Annual energy consumption	QHE	7540	kWh		–	–	m3/h

For heat pump combination heater:
Declared load profile	–			Water heating energy efficiency	ηwh	–	%
Daily electricity consumption	Qclec	–	kWh	Daily fuel consumption	Qfuel	–	kWh
Annual electricity consumption	AEC	–	kWh	Annual fuel consumption	AFC	–	GJ

Contact details	Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (*) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9.

Cooling mode – Average climate – Low temperature (7°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 30T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	29,5	kW	Seasonal space cooling energy efficiency	ηs,c	177	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	29,5	kW	Tj=+35°C	EERd	2,29	–
Tj=+30°C	Pdc	21,2	kW	Tj=+30°C	EERd	3,62	–
Tj=+25°C	Pdc	13,5	kW	Tj=+25°C	EERd	5,06	–
Tj=+20°C	Pdc	6,0	kW	Tj=+20°C	EERd	6,75	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	10650	m3/h
Sound power level, indoors / outdoors	LWA	-/77	dB		–	10650	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Low-temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

Cooling mode – Average climate – Medium temperature (18°C)

Information requirements for comfort chillers
Model(s):			IDOLA M 3.2 30T
Outdoor side heat exchanger of chiller:			Air to water
Indoor side heat exchanger chiller:			Water
Type:			Compressor driven vapour compression
Driver of compressor:			Electric motor

Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Rated cooling capacity	Prated,c	30,8	kW	Seasonal space cooling energy efficiency	ηs,c	225	%
Declared cooling capacity for part load at given outdoor temperature Tj				Declared energy efficiency ratio for part load at given outdoor tempera- ture Tj
Tj=+35°C	Pdc	30,8	kW	Tj=+35°C	EERd	3,79	–
Tj=+30°C	Pdc	22,1	kW	Tj=+30°C	EERd	5,06	–
Tj=+25°C	Pdc	13,9	kW	Tj=+25°C	EERd	6,33	–
Tj=+20°C	Pdc	6,3	kW	Tj=+20°C	EERd	7,01	–

Degradation co-efficient for chillers (*)	Cdc	0,9	–
Power consumption in modes other than “active mode”
Off mode	POFF	0,017	kW	Crankcase heater mode	PCK	0,000	kW
Thermosat-off mode	PTO	0,084	kW	Standby mode	PSB	0,017	kW
Other items
Capacity control	variable			For air-to-water comfort chillers: air flow rate, outdoor measured	–	10650	m3/h
Sound power level, indoors / outdoors	LWA	-/77	dB		–	10650	m3/h
Emissions of nitrogen oxides (if applicable)	NOx (**)	–	mg/kWh input GCV	For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger	–	–	m3/h
GWP of the refrigerant	–	675	kg CO₂ eq (100years)		–	–	m3/h
Standard rating conditions used		Medium temperature application
Contact details		Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com
() If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (*) From 26 September 2018.

CAPACITY TABLES HEATING MODE

IDOLA M 3.2 Mod. 22T – Heating capacity

“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP							“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%		“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
25	-25	/	12,53	11,23	8,67	6,14	3,76	/	2,37	2,40	2,46	2,54	2,68		45	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,83	13,30	10,26	7,28	4,45	/	2,63	2,67	2,79	2,85	2,97			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,44	15,64	12,08	8,56	5,25	/	2,99	3,04	3,21	3,29	3,43			-15	/	16,22	14,54	11,22	7,94	4,67	/	1,97	2,08	2,25	2,33	2,43
	-10	/	20,39	18,28	14,12	10,02	6,14	/	2,93	3,08	3,23	3,31	3,48			-10	/	18,61	16,68	12,88	9,13	5,44	/	2,12	2,26	2,42	2,49	2,64
	-7	/	22,33	20,03	15,47	10,98	6,74	/	3,23	3,42	3,55	3,67	3,84			-7	/	20,00	20,31	15,67	11,10	6,33	/	2,20	2,41	2,54	2,66	2,82
	-5	/	22,11	19,83	15,32	10,87	6,93	/	3,11	3,30	3,48	3,58	3,85			-5	20,27	19,96	17,90	13,82	9,80	6,50	2,28	2,35	2,55	2,74	2,84	3,01
	-2	22,84	22,17	19,89	15,38	10,92	7,34	3,10	3,19	3,34	3,47	3,54	3,81			-2	21,04	20,40	18,29	14,13	10,02	6,44	2,36	2,45	2,69	2,82	2,89	3,07
	0	23,13	22,43	20,13	15,56	11,05	7,61	3,42	3,49	3,66	3,77	3,84	4,12			0	21,72	21,04	18,87	14,58	10,34	6,44	2,49	2,56	2,81	2,92	2,99	3,14
	2	23,59	22,83	20,50	15,86	11,27	7,94	3,83	3,91	4,14	4,27	4,36	4,53			2	22,42	22,00	18,94	14,65	10,40	7,29	2,53	2,60	2,81	2,95	3,04	3,10
	5	24,67	23,14	20,78	16,10	11,46	9,18	4,53	4,59	4,79	4,91	4,95	5,31			5	22,70	22,21	19,94	15,44	10,98	8,32	3,04	3,09	3,30	3,42	3,46	3,69
	7	25,43	23,25	20,89	16,19	11,55	9,71	5,05	5,10	5,22	5,39	5,46	5,73			7	23,22	22,00	20,39	15,78	11,22	8,79	3,31	3,40	3,56	3,73	3,80	3,98
	10	25,86	23,44	21,06	16,34	11,65	10,56	5,54	5,62	5,76	5,91	5,98	6,00			10	23,47	22,32	20,04	15,54	11,08	9,69	3,54	3,62	3,82	3,98	4,04	4,06
	12	26,53	23,37	21,01	16,30	11,84	/	5,61	5,68	5,84	5,98	6,05	/			12	24,26	22,23	19,97	15,49	11,07	/	3,61	3,68	3,89	4,02	4,09	/
	15	27,54	23,27	20,93	16,23	12,11	/	5,71	5,77	5,97	6,07	6,15	/			15	25,45	22,10	19,86	15,40	11,07	/	3,72	3,79	3,99	4,10	4,17	/
	20	29,04	23,03	20,70	16,09	13,85	/	5,79	5,84	6,08	6,19	6,21	/			20	26,68	22,80	20,51	15,89	12,61	/	3,93	3,98	4,11	4,22	4,27	/
	25	28,38	23,31	20,95	16,29	15,80	/	5,82	5,88	6,14	6,23	6,24	/			25	25,89	22,11	19,87	15,45	14,33	/	4,17	4,23	4,33	4,42	4,44	/
	30	/	/	/	/	/	/	/	/	/	/	/	/			30	27,11	21,93	19,72	16,25	16,25	/	4,40	4,46	4,50	4,52	4,52	/
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	27,21	21,98	19,75	18,41	18,41	/	4,65	4,70	4,72	4,75	4,75	/
30	-25	/	12,55	11,25	8,68	6,14	3,71	/	2,17	2,20	2,27	2,35	2,46		50	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,84	13,30	10,26	7,27	4,39	/	2,39	2,43	2,55	2,61	2,69			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,43	15,63	12,06	8,55	5,17	/	2,68	2,73	2,90	2,98	3,11			-15		15,72	14,09	10,87	7,70	4,57		1,74	1,87	1,96	2,01	2,08
	-10	20,36	20,08	18,00	13,90	9,86	6,05	2,65	2,70	2,85	3,00	3,07	3,23			-10		18,01	16,14	12,46	8,83	5,32		1,78	1,95	2,07	2,13	2,24
	-7	22,29	21,67	19,43	15,01	10,65	6,63	2,81	2,87	3,07	3,20	3,31	3,47			-7	19,66	19,37	17,37	13,41	9,50	5,94	1,89	1,90	2,14	2,27	2,33	2,43
	-5	21,92	21,60	19,38	14,97	10,62	6,82	2,80	2,87	3,06	3,25	3,35	3,60			-5	20,06	19,76	17,72	13,68	9,70	6,10	1,95	1,98	2,21	2,35	2,46	2,61
	-2	22,63	21,96	19,70	15,23	10,81	7,22	2,88	2,97	3,13	3,26	3,33	3,58			-2	20,88	20,23	18,14	14,01	9,93	6,17	2,05	2,07	2,33	2,44	2,57	2,74
	0	22,90	22,20	19,92	15,40	10,93	7,48	3,15	3,22	3,39	3,50	3,56	3,83			0	21,73	21,04	18,87	14,57	10,34	6,38	2,16	2,21	2,46	2,60	2,70	2,84
	2	23,32	22,56	20,25	15,67	11,13	7,80	3,38	3,45	3,69	3,82	3,91	3,98			2	22,40	21,24	19,05	14,73	10,46	6,94	2,32	2,32	2,60	2,75	2,87	3,02
	5	24,21	22,70	20,39	15,79	11,24	9,02	4,10	4,15	4,35	4,47	4,51	4,86			5	22,46	21,98	19,74	15,28	10,86	8,24	2,56	2,61	2,85	2,95	3,06	3,24
	7	25,06	22,91	20,58	15,95	11,38	9,54	4,61	4,70	4,82	4,98	5,06	5,31			7	22,69	22,18	19,92	15,42	10,96	8,40	2,93	3,02	3,19	3,24	3,30	3,46
	10	25,46	23,07	20,73	16,08	11,47	10,37	4,95	5,03	5,16	5,32	5,38	5,40			10	22,90	22,34	20,06	15,55	11,08	9,01	3,17	3,21	3,43	3,48	3,54	3,64
	12	26,11	22,99	20,66	16,03	11,63	/	5,02	5,09	5,25	5,39	5,46	/			12	23,66	22,28	20,01	15,51	11,06	9,51	3,24	3,28	3,50	3,59	3,65	3,76
	15	27,09	22,86	20,57	15,94	11,88	/	5,13	5,19	5,39	5,49	5,57	/			15	24,80	22,18	19,92	15,45	11,01	10,27	3,34	3,40	3,61	3,76	3,83	3,94
	20	28,53	22,60	20,31	15,79	13,57	/	5,23	5,28	5,51	5,62	5,64	/			20	24,36	22,15	19,92	15,44	12,23	11,68	3,49	3,58	3,73	3,86	3,89	3,99
	25	27,84	22,84	20,54	15,97	15,47	/	5,26	5,32	5,59	5,67	5,68	/			25	25,12	22,33	20,06	15,60	13,88	13,25	3,57	3,62	3,86	3,99	4,01	4,01
	30	29,26	22,61	20,38	17,61	17,61	/	5,60	5,69	5,71	5,73	5,73	/			30	26,26	21,23	19,08	15,72	15,72	15,01	3,73	3,77	3,94	4,00	4,00	4,05
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	26,31	21,25	19,09	17,79	17,79	16,98	3,86	3,86	4,24	4,26	4,26	4,33
35	-25	/	12,49	11,19	8,63	6,11	3,71	/	2,01	2,04	2,11	2,19	2,30		55	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,75	13,22	10,20	7,22	4,40	/	2,18	2,23	2,35	2,41	2,49			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,30	15,51	11,97	8,48	5,17	/	2,41	2,46	2,63	2,72	2,84			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	20,19	19,91	17,85	13,78	9,77	6,04	2,45	2,50	2,66	2,81	2,88	3,04			-10	/	17,70	15,87	12,24	8,67	4,63	/	1,53	1,70	1,82	1,88	1,99
	-7	21,79	21,00	19,25	14,86	10,54	6,62	2,54	2,60	2,79	2,92	3,04	3,20			-7	/	18,00	18,56	14,31	10,13	5,06	/	1,55	1,79	1,92	1,98	2,08
	-5	21,70	21,39	19,18	14,82	10,51	6,70	2,61	2,68	2,87	3,05	3,15	3,41			-5	19,69	19,39	17,38	13,42	9,51	5,69	1,61	1,65	1,87	2,02	2,13	2,27
	-2	22,39	21,72	19,48	15,05	10,68	6,98	2,71	2,80	2,96	3,08	3,16	3,40			-2	20,09	19,46	17,45	13,48	9,55	6,00	1,72	1,73	1,99	2,11	2,24	2,40
	0	22,64	21,95	19,69	15,22	10,80	7,18	2,92	2,99	3,16	3,26	3,33	3,59			0	21,09	20,76	18,61	14,37	10,19	6,20	1,81	1,85	2,11	2,24	2,35	2,49
	2	23,02	22,00	19,98	15,46	10,98	7,65	3,03	3,10	3,33	3,47	3,56	3,63			2	22,00	22,00	20,92	16,16	11,46	6,89	1,90	1,90	2,18	2,33	2,46	2,58
	5	23,34	22,34	20,06	15,54	11,05	8,83	3,74	3,79	4,00	4,11	4,16	4,56			5	22,81	22,34	20,05	15,51	11,02	7,84	2,31	2,35	2,59	2,70	2,80	2,98
	7 *	24,14	22,00	20,24	15,68	11,19	9,33	4,32	4,40	4,52	4,69	4,76	5,06			7	22,60	22,00	19,84	15,36	10,91	8,27	2,55	2,65	2,81	2,87	2,93	3,09
	10	24,45	22,67	20,36	15,79	11,26	10,14	4,45	4,53	4,67	4,82	4,89	5,18			10	22,28	22,28	20,00	15,50	11,04	9,14	2,79	2,83	3,05	3,10	3,16	3,19
	12	25,31	22,57	20,29	15,73	11,41	/	4,57	4,63	4,79	4,93	5,00	/			12	22,74	22,23	19,96	15,47	11,03	9,65	2,87	2,91	3,13	3,22	3,28	3,32
	15	26,59	22,42	20,17	15,63	11,63	/	4,74	4,80	5,00	5,11	5,18	/			15	23,44	22,17	19,91	15,43	11,00	10,41	2,99	3,05	3,26	3,41	3,49	3,51
	20	27,97	22,13	19,89	15,46	13,28	/	4,90	4,95	5,18	5,30	5,31	/			20	23,68	22,19	19,96	15,46	11,82	/	3,16	3,25	3,40	3,53	3,56	/
	25	27,24	22,34	20,08	15,61	15,12	/	4,96	5,02	5,28	5,37	5,38	/			25	24,27	22,42	20,15	15,66	13,39	/	3,35	3,41	3,64	3,78	3,80	/
	30	28,60	22,07	19,90	17,19	17,19	/	5,20	5,28	5,30	5,32	5,32	/			30	24,95	22,08	19,91	15,42	14,90	/	3,49	3,54	3,70	3,77	3,79	/
	35	28,65	22,03	19,80	19,52	19,52	/	5,54	5,59	5,60	5,60	5,60	/			35	24,21	21,97	19,81	17,10	17,10	/	3,79	3,81	4,18	4,20	4,20	/
40	-25	/	/	/	/	/	/	/	/	/	/	/	/		60	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,04	12,58	9,71	6,87	4,01	/	1,92	1,99	2,11	2,17	2,29			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	16,45	14,75	11,38	8,06	4,71	/	2,11	2,22	2,39	2,47	2,57			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	19,00	18,73	16,80	12,97	9,19	5,50	2,32	2,32	2,47	2,62	2,69	2,84			-10	/	15,77	14,14	10,91	7,73	4,93	/	1,40	1,53	1,64	1,76	1,92
	-7	20,78	20,19	18,10	13,98	9,91	6,02	2,39	2,39	2,60	2,73	2,85	3,01			-7	/	17,18	15,41	11,89	8,43	5,22	/	1,42	1,59	1,73	1,85	2,02
	-5	20,73	20,42	18,32	14,15	10,04	6,18	2,49	2,56	2,76	2,94	3,04	3,21			-5	/	17,61	15,79	12,19	8,64	5,52	/	1,48	1,66	1,77	1,90	2,06
	-2	21,55	20,89	18,74	14,48	10,27	6,53	2,53	2,62	2,86	2,98	3,06	3,23			-2	18,20	17,88	16,04	12,39	8,78	5,81	1,59	1,59	1,76	1,87	1,99	2,15
	0	21,77	21,09	18,92	14,62	10,38	6,77	2,71	2,78	3,03	3,14	3,20	3,36			0	19,22	18,55	16,63	12,85	9,11	6,01	1,71	1,71	1,88	2,01	2,14	2,30
	2	22,86	22,09	19,83	15,34	10,90	7,15	2,84	2,91	3,12	3,26	3,35	3,42	2		20,18	19,45	17,45	13,49	9,57	6,53	1,79	1,79	2,00	2,10	2,22	2,32
	5	22,93	22,44	20,15	15,60	11,09	8,76	3,48	3,53	3,74	3,86	3,90	4,12	5		21,28	20,82	18,68	14,45	10,27	7,74	2,19	2,19	2,34	2,42	2,53	2,73
	7	23,70	22,65	20,34	15,75	11,24	9,25	3,91	3,99	4,15	4,32	4,39	4,49	7		21,45	20,96	18,82	14,56	10,34	7,89	2,44	2,44	2,54	2,59	2,69	2,89
	10	23,98	22,81	20,49	15,89	11,33	9,93	4,04	4,12	4,32	4,48	4,54	4,56	10		21,05	20,51	18,41	14,27	10,17	8,82	2,66	2,66	2,77	2,81	2,92	3,01
	12	24,81	22,74	20,43	15,85	11,34	/	4,13	4,20	4,40	4,54	4,61	/	12		21,20	20,62	18,52	14,35	10,23	9,31	2,72	2,72	2,85	2,92	3,03	3,13
	15	26,05	22,64	20,34	15,78	11,36	/	4,26	4,32	4,52	4,63	4,71	/	15		21,42	20,79	18,67	14,48	10,32	10,03	2,80	2,80	2,99	3,10	3,21	3,30
	20	27,35	22,43	20,15	15,67	12,95	/	4,51	4,56	4,69	4,80	4,84	/	20		21,67	20,25	18,58	14,39	11,37	11,37	3,01	3,01	3,12	3,21	3,35	3,59
	25	26,59	22,73	20,43	15,88	14,74	/	4,63	4,69	4,80	4,88	4,90	/	25		20,33	19,51	17,89	13,90	12,86	12,86	3,23	3,23	3,33	3,62	3,65	3,81
	30	28,17	22,59	20,30	16,74	16,74	/	4,98	5,04	5,08	5,10	5,10	/	30		19,22	19,22	17,03	14,51	14,51	14,51	3,37	3,37	3,48	3,78	3,78	3,87
	35	28,04	22,64	20,35	18,99	18,99	/	5,06	5,11	5,13	5,16	5,16	/	35		/	/	/	/	/	/	/	/	/	/	/	/

IDOLA M 3.2 Mod. 26T – Heating capacity

“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP							“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%		“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
25	-25	/	12,91	11,57	8,92	6,31	3,85	/	2,35	2,39	2,45	2,53	2,60		45	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,28	13,69	10,56	7,48	4,57	/	2,60	2,65	2,77	2,83	2,86			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,83	15,98	12,33	8,74	5,33	/	2,97	3,02	3,19	3,27	3,32			-15	/	16,60	14,88	11,47	8,12	4,75	/	1,95	2,06	2,23	2,32	2,36
	-10	/	20,84	18,69	14,42	10,23	6,24	/	2,90	3,05	3,21	3,28	3,34			-10	/	19,32	17,32	13,36	9,46	5,54	/	2,10	2,25	2,40	2,48	2,54
	-7	/	22,48	20,15	15,56	11,04	6,72	/	3,13	3,32	3,45	3,57	3,62			-7	/	21,00	20,82	16,05	11,37	6,76	/	2,15	2,36	2,49	2,61	2,67
	-5	23,11	22,82	20,46	15,80	11,21	6,91	2,96	3,03	3,22	3,41	3,51	3,62			-5	23,50	23,18	20,78	16,02	11,35	6,82	2,17	2,19	2,39	2,58	2,68	2,78
	-2	23,92	23,92	21,45	16,57	11,75	7,24	3,04	3,12	3,28	3,41	3,48	3,59			-2	23,62	23,29	20,88	16,11	11,42	6,93	2,20	2,25	2,49	2,62	2,69	2,80
	0	24,93	24,93	22,36	17,27	12,26	7,53	3,25	3,32	3,49	3,60	3,67	3,77			0	24,64	24,29	21,77	16,80	11,91	7,33	2,23	2,30	2,55	2,65	2,72	2,82
	2	26,40	26,05	23,36	18,05	12,80	8,06	3,61	3,69	3,92	4,05	4,14	4,21			2	25,08	24,00	23,42	18,08	12,81	8,08	2,28	2,35	2,56	2,70	2,79	2,85
	5	28,19	26,31	23,62	18,29	13,01	9,18	4,22	4,27	4,48	4,59	4,64	5,31			5	27,00	26,32	23,62	18,26	12,97	8,32	2,97	3,02	3,23	3,35	3,39	3,69
	7	28,84	26,77	24,04	18,62	13,24	9,71	4,73	4,78	4,90	5,07	5,14	5,73			7	27,08	26,00	23,86	18,46	13,11	8,79	3,02	3,10	3,26	3,43	3,50	3,98
	10	29,33	26,45	23,76	18,42	13,11	10,56	5,33	5,41	5,54	5,70	5,77	6,00			10	27,91	26,27	23,59	18,26	12,99	9,69	3,27	3,35	3,55	3,71	3,75	4,06
	12	30,24	26,61	23,90	18,54	13,19	11,18	5,41	5,48	5,64	5,78	5,85	6,06			12	28,47	26,21	23,53	18,23	12,98	10,24	3,37	3,44	3,65	3,79	3,83	4,11
	15	31,61	26,84	24,12	18,71	13,32	12,11	5,52	5,59	5,78	5,89	5,97	6,15			15	29,32	26,11	23,45	18,18	12,96	11,07	3,53	3,59	3,79	3,90	3,96	4,17
	20	31,44	26,58	23,91	18,54	13,85		5,61	5,66	5,90	6,01	6,21				20	30,43	26,30	23,63	18,33	13,07	12,61	3,74	3,79	3,92	4,03	4,06	4,27
	25	31,23	26,24	23,59	18,34	15,80		5,68	5,74	6,00	6,09	6,24				25	30,28	26,33	23,69	18,36	14,33	14,33	3,93	3,99	4,09	4,18	4,44	4,44
	30	/	/	/	/	/	/	/	/	/	/	/	/			30	30,34	26,09	23,45	18,23	16,25	16,25	4,17	4,24	4,28	4,30	4,52	4,52
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	30,68	26,03	23,40	18,41	18,41	18,41	4,55	4,59	4,61	4,63	4,75	4,75
30	-25	/	12,77	11,44	8,82	6,24	3,77	/	2,16	2,19	2,25	2,33	2,40		50	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,10	13,53	10,43	7,39	4,47	/	2,36	2,40	2,53	2,59	2,62			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,74	15,90	12,26	8,69	5,26	/	2,66	2,71	2,88	2,96	3,01			-15	/	16,26	14,57	11,23	7,95	4,61	/	1,72	1,85	1,94	1,99	2,03
	-10	/	20,71	18,56	14,33	10,15	6,15	/	2,67	2,82	2,97	3,04	3,11			-10	/	18,89	16,93	13,06	9,25	5,36	/	1,74	1,92	2,04	2,10	2,16
	-7	/	22,32	20,01	15,44	10,95	6,61	/	2,77	2,97	3,10	3,21	3,27			-7	/	21,34	19,12	14,75	10,44	6,11	/	1,87	2,11	2,24	2,30	2,35
	-5	/	22,64	20,30	15,67	11,11	6,80	/	2,80	2,99	3,17	3,27	3,38			-5	21,90	21,60	19,35	14,93	10,57	6,27	1,89	1,91	2,13	2,28	2,39	2,49
	-2	/	23,72	21,27	16,42	11,65	7,12	/	2,91	3,07	3,19	3,27	3,38			-2	22,75	22,43	20,10	15,51	10,99	6,61	1,99	2,01	2,27	2,38	2,52	2,65
	0	/	24,71	22,16	17,12	12,14	7,40	/	3,05	3,22	3,33	3,40	3,49			0	23,71	23,37	20,95	16,16	11,45	7,00	2,08	2,12	2,38	2,51	2,62	2,73
	2	26,16	25,80	23,14	17,88	12,68	7,92	3,16	3,23	3,47	3,60	3,69	3,76			2	24,69	24,33	21,81	16,83	11,92	7,46	2,30	2,30	2,58	2,73	2,85	2,98
	5	28,36	26,46	23,75	18,38	13,07	9,02	3,78	3,84	4,04	4,16	4,20	4,86			5	26,45	26,00	23,33	18,04	12,81	8,24	2,36	2,41	2,65	2,75	2,85	3,24
	7	28,47	26,41	23,71	18,36	13,06	9,54	4,29	4,38	4,50	4,66	4,74	5,31			7	26,80	26,31	23,61	18,26	12,97	8,40	2,73	2,82	2,99	3,05	3,10	3,46
	10	28,91	26,63	23,92	18,53	13,19	10,37	4,73	4,81	4,95	5,11	5,17	5,40			10	27,26	26,16	23,49	18,18	12,93	9,43	3,10	3,14	3,36	3,42	3,47	3,57
	12	29,77	26,54	23,84	18,48	13,16	10,97	4,82	4,89	5,05	5,19	5,25	5,47			12	27,85	26,18	23,51	18,20	12,96	9,96	3,17	3,21	3,43	3,52	3,58	3,69
	15	31,05	26,40	23,72	18,40	13,12	11,88	4,94	5,01	5,20	5,31	5,39	5,57			15	28,74	26,21	23,54	18,24	13,00	10,75	3,27	3,33	3,54	3,69	3,76	3,85
	20	31,20	26,36	23,71	18,38	13,57	/	5,05	5,10	5,33	5,44	5,64	/			20	29,62	26,32	23,64	18,33	13,07	12,23	3,39	3,48	3,64	3,77	3,79	3,89
	25	31,25	26,25	23,60	18,35	15,47	/	5,12	5,18	5,44	5,53	5,68	/			25	29,70	26,25	23,61	18,29	13,88	/	3,49	3,54	3,78	3,91	4,01	/
	30	30,93	26,51	23,83	18,53	17,61	/	5,35	5,43	5,46	5,48	5,73	/			30	29,41	26,26	23,60	18,35	15,72	/	3,67	3,72	3,88	3,95	4,00	/
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	29,68	26,31	23,64	18,38	17,79	/	3,78	3,82	4,15	4,17	4,26	/
35	-25	/	12,71	11,39	8,78	6,21	3,72	/	2,00	2,03	2,10	2,18	2,25		55	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,01	13,45	10,37	7,34	4,40	/	2,16	2,20	2,33	2,39	2,42			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,62	15,79	12,18	8,63	5,18	/	2,39	2,44	2,61	2,70	2,74			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	/	20,55	18,42	14,21	10,07	6,05	/	2,48	2,63	2,78	2,85	2,91			-10	/	18,59	16,66	12,84	9,09	5,23	/	1,50	1,67	1,79	1,85	1,91
	-7	/	22,00	20,99	16,20	11,48	6,91	/	2,50	2,69	2,82	2,94	3,00			-7	/	20,00	18,17	14,01	9,92	5,71	/	1,52	1,76	1,89	1,95	2,00
	-5	/	22,74	20,38	15,73	11,15	6,69	/	2,61	2,80	2,98	3,08	3,19			-5	/	21,11	18,92	14,58	10,33	5,98	/	1,57	1,79	1,94	2,05	2,16
	-2	/	23,49	21,06	16,26	11,53	7,00	/	2,74	2,89	3,02	3,10	3,21			-2	/	22,56	20,22	15,59	11,04	6,38	/	1,68	1,93	2,05	2,18	2,31
	0	/	24,05	21,56	16,65	11,81	7,12	/	2,82	2,99	3,10	3,16	3,26			0	/	23,84	21,36	16,47	11,67	6,75	/	1,77	2,03	2,16	2,27	2,37
	2	25,59	24,00	22,63	17,48	12,40	7,61	2,81	2,88	3,11	3,25	3,34	3,41			2	/	24,00	23,44	18,08	12,80	7,49	/	1,88	2,16	2,31	2,44	2,56
	5	27,72	25,84	23,19	17,95	12,76	8,83	3,42	3,48	3,68	3,80	3,84	4,56			5	26,58	26,13	23,44	18,11	12,86	7,84	2,10	2,15	2,39	2,49	2,59	2,98
	7 *	27,90	26,00	23,68	18,33	13,03	9,33	3,99	4,08	4,20	4,37	4,41	5,06			7	26,61	26,00	23,45	18,13	12,87	8,27	2,35	2,45	2,61	2,67	2,73	3,09
	10	28,45	26,76	24,03	18,61	13,25	10,14	4,24	4,32	4,45	4,61	4,64	5,18			10	26,76	26,22	23,53	18,20	12,94	9,14	2,72	2,76	2,98	3,03	3,09	3,19

	12	29,30	26,69	23,98	18,58	13,23	10,73	4,37	4,43	4,59	4,73	4,78	5,18			12	27,25	26,17	23,49	18,17	12,92	9,65	2,80	2,84	3,06	3,15	3,21	3,32
	15	30,58	26,59	23,89	18,53	13,21	11,63	4,56	4,62	4,82	4,93	5,00	5,18			15	27,99	26,09	23,43	18,13	12,90	10,41	2,92	2,98	3,19	3,34	3,42	3,51
	20	30,96	26,38	23,70	18,39	13,28	/	4,72	4,77	5,00	5,12	5,31	/			20	29,00	26,03	23,38	18,13	12,92	11,82	3,06	3,15	3,31	3,44	3,47	3,56
	25	30,91	26,11	23,47	18,25	15,12	/	4,82	4,88	5,14	5,23	5,38	/			25	29,45	26,02	23,40	18,13	13,39	/	3,27	3,33	3,56	3,67	3,80	/
	30	30,94	26,20	23,55	18,31	17,19	/	4,94	5,03	5,05	5,07	5,32	/			30	28,38	25,34	22,76	17,70	14,90	/	3,44	3,48	3,65	3,80	3,79	/
35	30,76	26,32	23,66	19,52	19,52	/	5,38	5,41	5,43	5,60	5,60	/	35			28,59	25,32	22,75	17,69	17,10	/	3,72	3,76	4,09	4,13	4,20	/
40	-25	/	/	/	/	/	/	/	/	/	/	/	/		60	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,06	12,60	9,72	6,88	4,04	/	1,88	1,95	2,08	2,14	2,17			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	16,49	14,78	11,40	8,07	4,74	/	2,10	2,21	2,38	2,46	2,51			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	/	19,21	17,22	13,29	9,42	5,54	/	2,31	2,45	2,61	2,68	2,74			-10	/	17,74	15,90	12,26	8,68	4,93	/	1,37	1,50	1,61	1,72	1,86
	-7	/	21,00	18,83	14,53	10,30	6,06	/	2,34	2,55	2,68	2,80	2,86			-7	19,13	18,86	16,90	13,03	9,23	5,32	1,39	1,39	1,56	1,70	1,82	1,96
	-5	21,57	21,28	19,08	14,73	10,44	6,23	2,36	2,39	2,59	2,78	2,88	2,99			-5	19,89	19,60	17,57	13,55	9,59	5,63	1,40	1,41	1,59	1,69	1,82	1,98
	-2	22,45	22,45	20,13	15,54	11,02	6,59	2,40	2,42	2,66	2,78	2,86	2,97			-2	20,61	20,31	18,20	14,04	9,94	5,93	1,52	1,54	1,70	1,81	1,93	2,06
	0	23,75	23,75	21,30	16,44	11,66	6,98	2,44	2,51	2,76	2,87	2,94	3,04			0	20,96	20,65	18,51	14,28	10,11	6,12	1,58	1,63	1,79	1,93	2,06	2,19
	2	25,12	24,77	22,21	17,15	12,16	7,44	2,59	2,66	2,87	3,01	3,10	3,17	2		21,78	21,45	19,23	14,84	10,50	6,51	1,71	1,77	1,98	2,08	2,20	2,31
	5	27,07	25,65	23,03	17,82	12,66	8,76	3,40	3,46	3,67	3,78	3,83	4,12	5		25,63	25,19	22,60	17,46	12,39	7,74	1,91	1,99	2,14	2,22	2,33	2,73
	7	26,89	26,39	23,69	18,33	13,03	9,25	3,61	3,69	3,85	4,02	4,09	4,49	7		25,86	25,38	22,77	17,60	12,49	7,89	2,21	2,24	2,34	2,39	2,49	2,89
	10	27,94	26,26	23,59	18,26	12,99	9,93	3,78	3,86	4,06	4,22	4,28	4,56	10		25,76	25,24	22,65	17,52	12,45	8,82	2,55	2,60	2,70	2,74	2,85	3,01
	12	28,88	26,31	23,63	18,31	13,04	10,50	3,89	3,96	4,16	4,30	4,37	4,62	12		25,98	25,18	22,60	17,49	12,43	9,31	2,61	2,65	2,78	2,85	2,96	3,13
	15	30,30	26,38	23,70	18,38	13,10	11,36	4,06	4,12	4,33	4,44	4,51	4,71	15		26,30	25,10	22,54	17,46	12,40	10,03	2,69	2,73	2,92	3,03	3,14	3,30
	20	31,17	26,18	23,52	18,25	12,95	/	4,32	4,37	4,49	4,61	4,84	/	20		27,04	25,65	23,04	17,85	12,73	11,37	2,87	2,92	3,03	3,12	3,19	3,59
	25	30,20	26,36	23,71	18,38	14,74	/	4,39	4,45	4,56	4,64	4,90	/	25		25,79	24,98	22,47	17,40	12,86	/	3,12	3,15	3,25	3,45	3,81	/
	30	30,17	26,32	23,66	18,40	16,74	/	4,75	4,82	4,86	4,88	5,10	/	30		/	25,40	22,85	17,76	14,51	/	/	3,24	3,36	3,60	3,87	/
	35	30,43	26,23	23,57	18,99	18,99	/	4,95	5,00	5,02	5,16	5,16	/	35		/	/	/	/	/	/	/	/	/	/	/	/

IDOLA M 3.2 Mod. 30T – Heating capacity


“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP							“Tw_out °C”	“DB/WB °C”	Heating Capacity [W]						COP
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%		“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
25	-25	/	12,91	11,57	8,92	6,31	3,85	/	2,32	2,35	2,42	2,50	2,60		45	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,28	13,69	10,56	7,48	4,57	/	2,53	2,57	2,70	2,75	2,86			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,83	15,98	12,33	8,74	5,33	/	2,92	2,97	3,14	3,22	3,32			-15	16,60	16,60	14,88	11,47	8,12	4,75	1,90	1,90	2,01	2,18	2,27	2,36
	-10	/	20,84	18,69	14,42	10,23	6,24	/	2,85	3,00	3,15	3,22	3,34			-10	19,32	19,32	17,32	13,36	9,46	5,54	2,05	2,05	2,19	2,35	2,42	2,54
	-7	/	22,48	20,15	15,56	11,04	6,72	/	3,08	3,27	3,40	3,52	3,62			-7	22,00	22,00	20,49	15,80	11,19	6,76	2,10	2,10	2,31	2,44	2,56	2,67
	-5	/	23,11	20,72	16,00	11,35	6,91	/	2,96	3,15	3,33	3,43	3,62			-5	22,22	22,22	19,91	15,36	10,88	6,82	2,15	2,15	2,35	2,53	2,63	2,78
	-2	/	24,23	21,73	16,78	11,91	7,24	/	3,01	3,17	3,30	3,37	3,59			-2	23,42	23,42	20,99	16,19	11,47	6,93	2,19	2,19	2,43	2,56	2,63	2,80
	0	/	25,26	22,66	17,50	12,42	7,53	/	3,23	3,40	3,50	3,57	3,77			0	24,36	24,36	21,84	16,85	11,94	7,33	2,20	2,20	2,45	2,56	2,63	2,82
	2	/	26,59	23,85	18,42	13,07	7,92	/	3,61	3,84	3,97	4,06	4,13			2	26,00	26,00	25,37	19,57	13,87	8,25	2,25	2,25	2,46	2,60	2,69	2,75
	5	30,47	29,12	26,13	20,22	14,37	9,18	4,12	4,17	4,37	4,49	4,53	5,31			5	28,77	28,77	25,02	19,34	13,74	8,32	2,75	2,75	3,01	3,13	3,17	3,69
	7	30,49	29,98	26,92	20,83	14,81	9,71	4,56	4,61	4,73	4,90	4,97	5,73			7	30,00	30,00	26,78	20,70	14,70	8,79	2,90	2,90	3,06	3,23	3,30	3,98
	10	31,31	30,16	27,08	20,97	14,93	10,56	5,22	5,30	5,44	5,59	5,66	6,00			10	30,36	29,82	26,76	20,70	14,72	9,69	3,16	3,24	3,44	3,60	3,66	4,06
	12	31,79	30,05	26,99	20,92	14,90	11,18	5,25	5,32	5,48	5,62	5,69	6,06			12	30,29	29,70	26,66	20,63	14,67	10,24	3,26	3,33	3,53	3,67	3,74	4,11
	15	32,50	29,89	26,85	20,83	14,86	12,11	5,29	5,36	5,55	5,66	5,74	6,15			15	30,18	29,53	26,51	20,53	14,60	11,07	3,42	3,48	3,68	3,79	3,87	4,17
	20	33,71	30,08	27,03	20,97	14,96	13,85	5,44	5,49	5,73	5,84	5,86	6,21			20	31,69	29,58	26,57	20,60	14,69	12,61	3,61	3,66	3,79	3,90	3,95	4,27
	25	34,27	29,53	26,56	20,60	15,80	/	5,53	5,59	5,85	5,94	6,24	/			25	32,42	29,42	26,43	20,50	14,62	14,33	3,83	3,89	4,00	4,08	4,10	4,44
	30	/	/	/	/	/	/	/	/	/	/	/	/			30	33,32	29,34	26,39	20,45	16,25	/	4,08	4,15	4,19	4,22	4,52	/
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	32,78	29,50	26,51	20,61	18,41	/	4,30	4,42	4,46	4,48	4,75	/
30	-25	/	12,77	11,44	8,82	6,24	3,77	/	2,12	2,15	2,22	2,30	2,40		50	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,10	13,53	10,43	7,39	4,47	/	2,29	2,33	2,46	2,51	2,62			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,74	15,90	12,26	8,69	5,26	/	2,62	2,67	2,84	2,92	3,01			-15	/	16,26	14,57	11,23	7,95	4,61	/	1,69	1,82	1,91	1,96	2,03
	-10	/	20,71	18,56	14,33	10,15	6,15	/	2,61	2,76	2,92	2,99	3,11			-10	/	18,89	16,93	13,06	9,25	5,36	/	1,73	1,91	2,02	2,09	2,16
	-7	/	22,32	20,01	15,44	10,95	6,61	/	2,72	2,92	3,05	3,16	3,27			-7	/	21,34	19,12	14,75	10,44	6,11	/	1,85	2,09	2,22	2,28	2,35
	-5	/	22,94	20,57	15,88	11,26	6,80	/	2,73	2,92	3,10	3,20	3,38			-5	/	21,90	19,62	15,13	10,72	6,27	/	1,87	2,09	2,24	2,35	2,49
	-2	/	24,04	21,55	16,64	11,80	7,12	/	2,80	2,96	3,09	3,16	3,38			-2	/	23,06	20,67	15,94	11,29	6,61	/	1,97	2,23	2,35	2,48	2,65
	0	/	25,04	22,46	17,34	12,30	7,40	/	2,96	3,12	3,23	3,30	3,49			0	/	23,97	21,48	16,57	11,74	7,00	/	2,07	2,33	2,46	2,57	2,73
	2	/	26,35	23,63	18,25	12,95	7,79	/	3,15	3,39	3,52	3,61	3,68			2	/	25,75	23,08	17,80	12,61	7,40	/	2,27	2,55	2,70	2,82	2,95
	5	30,12	30,12	26,23	20,29	14,42	9,02	3,68	3,68	3,94	4,05	4,10	4,86			5	28,20	27,33	24,52	18,95	13,45	8,24	2,30	2,35	2,59	2,69	2,79	3,24
	7	30,11	30,11	27,02	20,91	14,86	9,54	4,12	4,21	4,33	4,49	4,57	5,31			7	29,71	29,71	26,65	20,59	14,62	8,40	2,58	2,67	2,84	2,90	2,95	3,46
	10	30,88	30,02	26,96	20,87	14,85	10,37	4,63	4,71	4,84	5,00	5,06	5,40			10	29,69	29,69	26,64	20,60	14,65	9,43	3,02	3,06	3,28	3,34	3,39	3,57
	12	31,33	30,00	26,94	20,87	14,87	10,97	4,66	4,73	4,89	5,03	5,10	5,47			12	29,84	29,59	26,56	20,54	14,61	9,96	3,08	3,13	3,35	3,44	3,50	3,69
	15	32,01	29,97	26,92	20,87	14,89	11,88	4,71	4,78	4,97	5,08	5,16	5,57			15	30,07	29,44	26,43	20,45	14,55	10,75	3,19	3,24	3,46	3,61	3,68	3,85
	20	33,14	29,96	26,92	20,88	14,90	13,57	4,87	4,92	5,09	5,20	5,22	5,64			20	31,00	29,53	26,51	20,55	14,65	12,23	3,31	3,40	3,56	3,68	3,71	3,89
	25	33,83	29,72	26,73	20,72	15,47	/	4,97	5,03	5,17	5,25	5,68	/			25	31,91	29,41	26,41	20,48	14,61	13,88	3,38	3,43	3,67	3,80	3,84	4,01
	30	34,82	29,26	26,30	20,45	17,61	/	5,24	5,32	5,35	5,37	5,73	/			30	32,79	29,41	26,45	20,49	15,72	/	3,59	3,63	3,80	3,87	4,00	/
	35	/	/	/	/	/	/	/	/	/	/	/	/			35	31,72	29,13	26,17	20,35	17,79	/	3,67	3,75	4,12	4,14	4,26	/
35	-25	/	12,71	11,39	8,78	6,21	3,72	/	1,97	2,00	2,06	2,14	2,25		55	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	15,01	13,45	10,37	7,34	4,40	/	2,09	2,13	2,26	2,31	2,42			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	17,62	15,79	12,18	8,63	5,18	/	2,35	2,40	2,57	2,65	2,74			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	/	20,55	18,42	14,21	10,07	6,05	/	2,42	2,57	2,72	2,80	2,91			-10	/	18,59	16,66	12,84	9,09	5,23	/	1,48	1,66	1,78	1,84	1,91
	-7	/	23,00	20,94	16,16	11,45	6,91	/	2,45	2,64	2,77	2,89	3,00			-7	/	21,00	18,68	14,39	10,19	5,71	/	1,50	1,74	1,87	1,93	2,00
	-5	/	22,74	20,38	15,73	11,15	6,69	/	2,53	2,72	2,91	3,01	3,19			-5	/	21,52	19,28	14,87	10,52	5,98	/	1,53	1,75	1,90	2,01	2,16
	-2	/	23,81	21,34	16,47	11,68	7,00	/	2,63	2,79	2,91	2,99	3,21			-2	/	22,65	20,29	15,65	11,08	6,38	/	1,64	1,90	2,01	2,14	2,31
	0	/	24,79	22,23	17,16	12,17	7,12	/	2,72	2,89	3,00	3,07	3,26			0	/	23,52	21,08	16,25	11,51	6,75	/	1,71	1,97	2,10	2,21	2,37
	2	/	26,00	23,38	18,05	12,79	7,61	/	2,80	3,03	3,17	3,26	3,41			2	/	26,00	22,63	17,45	12,36	7,19	/	1,85	2,13	2,28	2,41	2,55
	5	29,72	29,72	25,87	20,01	14,21	8,83	3,32	3,32	3,58	3,70	3,74	4,56			5	28,09	28,09	24,41	18,86	13,38	7,84	2,04	2,04	2,33	2,43	2,53	2,98
	7 *	/	30,10	26,98	20,87	14,83	9,33	/	3,91	4,03	4,20	4,27	5,06			7	/	30,00	26,71	20,63	14,64	8,27	/	2,30	2,46	2,52	2,58	3,09

	10	/	29,83	26,78	20,73	14,75	10,14	/	4,21	4,35	4,50	4,57	5,18			10	/	29,46	26,43	20,44	14,52	9,14	/	2,68	2,90	2,95	3,01	3,19
	12	/	29,95	26,89	20,82	14,81	10,73	/	4,28	4,44	4,58	4,65	5,18			12	/	29,37	26,36	20,38	14,49	9,65	/	2,76	2,98	3,07	3,14	3,32
	15	/	30,12	27,05	20,95	14,91	11,63	/	4,39	4,59	4,70	4,77	5,18			15	/	29,24	26,24	20,30	14,44	10,41	/	2,90	3,11	3,26	3,35	3,51
	20	/	30,18	27,11	21,03	15,00	13,28	/	4,60	4,83	4,94	4,96	5,31			20	30,07	29,35	26,35	20,42	14,56	11,82	2,98	3,07	3,23	3,36	3,40	3,56
	25	/	30,00	26,96	20,92	15,12	/	/	4,73	5,00	5,08	5,38	/			25	30,88	29,27	26,28	20,38	14,53	13,39	3,16	3,22	3,45	3,59	3,62	3,80
	30	/	30,20	27,16	21,12	17,19	/	/	4,92	4,94	4,96	5,32	/			30	32,12	29,32	26,37	20,43	14,90	/	3,36	3,40	3,57	3,74	3,79	/
35	/	30,09	27,04	21,03	19,52	/	/	5,23	5,26	5,28	5,60	/	35			30,57	28,05	25,20	19,59	17,10	/	3,65	3,70	4,07	4,11	4,20	/
40	-25	/	/	/	/	/	/	/	/	/	/	/	/		60	-25	/	/	/	/	/	/	/	/	/	/	/	/
	-20	/	14,06	12,60	9,72	6,88	4,04	/	1,87	1,94	2,07	2,13	2,17			-20	/	/	/	/	/	/	/	/	/	/	/	/
	-15	/	16,49	14,78	11,40	8,07	4,74	/	2,05	2,16	2,33	2,41	2,51			-15	/	/	/	/	/	/	/	/	/	/	/	/
	-10	/	19,21	17,22	13,29	9,42	5,54	/	2,25	2,40	2,55	2,62	2,74			-10	/	17,74	15,90	12,26	8,68	4,93	/	1,36	1,49	1,60	1,71	1,86
	-7	/	21,00	18,83	14,53	10,30	6,06	/	2,29	2,50	2,63	2,75	2,86			-7	/	19,69	17,64	13,60	9,63	5,32	/	1,37	1,54	1,68	1,80	1,96
	-5	/	22,50	20,17	15,56	11,03	6,23	/	2,35	2,55	2,74	2,84	2,99			-5	/	21,09	18,89	14,56	10,30	5,63	/	1,37	1,55	1,65	1,78	1,98
	-2	/	23,54	21,10	16,28	11,54	6,59	/	2,36	2,60	2,73	2,80	2,97			-2	/	22,17	19,86	15,31	10,83	5,93	/	1,50	1,66	1,77	1,90	2,06
	0	/	24,50	21,96	16,95	12,02	6,98	/	2,42	2,67	2,77	2,84	3,04			0	/	23,00	20,61	15,89	11,25	6,12	/	1,57	1,74	1,88	2,00	2,19
	2	/	25,75	23,08	17,82	12,63	7,48	/	2,56	2,77	2,91	3,00	3,07	2		/	24,69	22,12	17,05	12,07	6,96	/	1,74	1,95	2,05	2,17	2,29
	5	29,27	28,38	25,47	19,69	13,99	8,76	3,19	3,24	3,45	3,57	3,61	4,12	5		27,36	27,36	23,77	18,36	13,02	7,74	1,90	1,90	2,08	2,16	2,27	2,73
	7	29,83	29,83	26,77	20,70	14,71	9,25	3,41	3,49	3,65	3,82	3,89	4,49	7		/	28,53	25,59	19,76	14,02	7,89	/	2,09	2,19	2,24	2,34	2,89
	10	30,42	29,86	26,81	20,74	14,75	9,93	3,66	3,74	3,94	4,10	4,16	4,56	10		/	28,61	25,67	19,84	14,09	8,82	/	2,52	2,62	2,66	2,77	3,01
	12	30,59	29,73	26,69	20,67	14,70	10,50	3,77	3,85	4,05	4,19	4,26	4,62	12		/	28,49	25,56	19,76	14,04	9,31	/	2,57	2,70	2,77	2,88	3,13
	15	30,85	29,53	26,52	20,55	14,61	11,36	3,95	4,01	4,22	4,33	4,40	4,71	15		/	28,31	25,41	19,65	13,97	10,03	/	2,64	2,83	2,94	3,05	3,30
	20	31,84	29,62	26,52	20,57	14,67	12,95	4,19	4,24	4,37	4,48	4,52	4,84	20		/	29,04	26,07	20,20	14,39	11,37	/	2,84	2,95	3,04	3,14	3,59
	25	33,00	29,31	26,36	20,43	14,74	/	4,30	4,36	4,46	4,55	4,90	/	25		/	28,97	26,01	20,16	14,37	12,86	/	3,04	3,14	3,43	3,53	3,81
	30	33,74	29,65	26,67	20,74	16,74	/	4,66	4,73	4,77	4,79	5,10	/	30		/	29,25	26,27	20,37	14,51	/	/	3,23	3,35	3,65	3,87	/
	35	33,59	29,61	26,61	20,69	18,99	/	4,82	4,87	4,89	4,92	5,16	/	35		/	/	/	/	/	/	/	/	/	/	/	/

CAPACITY TABLES COOLING MODE

IDOLA M 3.2 Mod. 22T – Cooling capacity

“Tw_out °C”	“DB/WB °C”	Cooling Capacity [W]						EER
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
5	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	/	/	/	/	/	/	/	/	/	/	/	/
	15	/	/	/	/	/	/	/	/	/	/	/	/
	20	19,25	19,25	17,46	13,78	9,97	8,54	4,10	4,10	4,20	4,62	4,95	5,15
	25	21,19	20,67	18,77	14,86	10,80	8,25	3,53	3,59	3,70	4,13	4,45	4,70
	30	22,33	20,37	18,51	14,67	10,68	7,96	2,88	3,11	3,23	3,64	4,01	4,24
	35	21,39	20,92	19,04	15,13	11,05	7,65	2,47	2,52	2,66	3,08	3,44	3,72
	40	19,08	19,08	17,36	13,80	10,08	7,34	2,31	2,31	2,38	2,78	3,15	3,38
	43	15,99	15,99	14,54	11,54	8,41	7,00	2,05	2,05	2,18	2,59	2,95	3,20
7	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	/	/	/	/	/	/	/	/	/	/	/	/
	15	19,75	19,75	17,91	14,09	10,18	10,18	4,90	4,90	5,08	5,37	5,65	5,65
	20	20,19	20,19	18,31	14,47	10,47	9,03	4,42	4,42	4,56	4,97	5,27	5,49
	25	22,21	21,12	19,18	15,18	11,04	8,72	3,88	3,95	4,14	4,55	4,84	5,04
	30	23,40	20,82	18,92	15,00	10,92	8,42	3,27	3,50	3,70	4,11	4,41	4,65
	35	22,40	21,00	19,05	15,14	11,05	8,09	2,79	2,95	3,20	3,62	3,89	4,18
	40	19,52	19,52	17,76	14,13	10,31	7,75	2,70	2,70	2,89	3,31	3,64	3,95
	43	16,76	16,76	15,24	12,11	8,83	7,45	2,37	2,37	2,59	2,99	3,36	3,62
10	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	18,40	18,40	16,67	13,06	11,63	11,63	5,95	5,95	6,08	6,24	6,50	6,50
	15	20,67	20,67	18,74	14,74	10,97	10,97	5,45	5,45	5,56	5,92	6,25	6,35
	20	22,57	20,62	18,70	14,78	10,69	10,72	4,77	4,89	5,02	5,37	5,68	5,81
	25	24,80	21,13	19,18	15,18	11,00	10,35	4,27	4,49	4,62	5,04	5,34	5,48
	30	26,08	20,90	18,99	15,05	10,95	9,99	3,75	3,98	4,10	4,47	4,73	4,95
	35	24,42	21,15	19,24	15,28	11,15	9,55	3,23	3,50	3,64	4,03	4,31	4,53
	40	22,26	20,71	18,86	15,02	10,97	9,15	2,97	3,08	3,22	3,58	3,86	4,09
	43	19,68	19,68	17,94	14,30	10,47	8,73	2,82	2,82	2,98	3,32	3,64	3,85
15	-5	19,99	19,99	18,12	14,17	13,86	13,86	7,65	7,65	7,72	7,97	8,20	8,30
	0	19,61	19,61	17,77	13,89	13,59	13,59	7,25	7,25	7,30	7,55	7,80	7,90
	5	19,17	19,17	17,35	13,59	13,29	13,29	6,88	6,88	6,94	7,19	7,43	7,53
	10	20,22	20,22	18,32	14,36	12,88	12,88	6,51	6,51	6,58	6,86	7,10	7,20
	15	21,13	21,13	19,17	15,14	12,48	12,48	6,01	6,01	6,11	6,52	6,75	6,85
	20	22,76	22,01	19,97	15,79	12,13	12,13	5,47	5,52	5,63	6,04	6,32	6,42
	25	26,14	21,93	19,92	15,76	11,71	11,71	4,83	5,03	5,16	5,64	5,92	6,02
	30	27,49	21,77	19,78	15,68	11,41	11,31	4,23	4,49	4,61	5,06	5,26	5,47
	35	27,67	22,14	20,15	16,01	11,68	10,86	3,73	4,05	4,22	4,71	4,93	5,16
	40	24,66	21,73	19,80	15,77	11,53	10,41	3,36	3,58	3,80	4,29	4,50	4,72
	43	21,20	21,20	19,34	15,45	11,32	9,93	3,30	3,30	3,51	3,96	4,18	4,39
18	-5	22,03	22,03	19,99	15,63	13,82	13,82	7,85	7,85	7,92	8,17	8,44	8,54
	0	21,64	21,64	19,61	15,34	13,55	13,55	7,70	7,70	7,79	8,05	8,26	8,36
	5	21,16	21,16	19,17	15,02	13,25	13,25	7,32	7,32	7,40	7,65	7,87	7,97
	10	21,40	21,40	19,40	15,21	12,85	12,85	6,92	6,92	7,03	7,29	7,56	7,66

	15	22,44	22,44	20,36	15,98	12,91	12,91	6,45	6,45	6,60	6,92	7,17	7,27
	20	25,07	23,43	21,27	16,83	12,56	12,56	5,90	6,05	6,20	6,50	6,76	6,86
	25	26,46	23,37	21,23	16,82	12,12	12,12	5,18	5,48	5,69	6,11	6,39	6,49
	30	28,98	23,21	21,10	16,75	11,64	11,64	4,62	4,95	5,10	5,52	5,85	5,95
	35 *	28,37	23,00	20,88	16,60	12,12	11,18	4,23	4,60	4,75	5,15	5,51	5,65
	40	23,86	23,21	21,16	16,88	12,35	10,71	3,99	4,04	4,19	4,60	4,92	5,12
43	22,03	22,03	20,10	16,07	11,78	10,22	3,65	3,65	3,81	4,22	4,55	4,75
20	-5	23,68	22,64	20,55	16,06	15,06	15,06	8,05	8,13	8,23	8,47	8,70	8,80
	0	23,28	23,28	21,11	16,51	14,78	14,78	7,91	7,91	8,04	8,29	8,50	8,60
	5	22,77	22,77	20,64	16,17	14,47	14,47	7,65	7,65	7,77	8,02	8,26	8,36
	10	23,99	23,03	20,88	16,38	14,03	14,03	7,30	7,35	7,45	7,73	7,95	8,05
	15	24,12	23,20	21,05	16,52	13,58	13,58	6,90	6,96	7,10	7,41	7,65	7,75
	20	26,93	23,41	21,25	16,74	13,21	13,21	6,39	6,61	6,81	7,16	7,38	7,48
	25	28,56	22,56	20,48	16,15	12,75	12,75	5,80	6,05	6,24	6,57	6,87	6,97
	30	29,40	23,31	21,19	16,82	12,31	12,31	5,15	5,50	5,70	6,15	6,49	6,59
	35	29,04	23,10	21,02	16,71	11,83	11,83	4,79	5,05	5,20	5,68	6,00	6,10
	40	25,56	22,76	20,74	16,53	11,33	11,33	4,26	4,48	4,62	5,14	5,46	5,56
	43	22,94	22,94	20,94	16,76	12,30	10,81	4,03	4,03	4,19	4,65	4,91	5,08
25	-5	25,32	22,99	20,55	17,98	17,36	17,36	8,25	8,37	8,37	8,57	8,82	8,92
	0	24,91	22,60	20,25	17,68	17,07	17,07	8,02	8,13	8,13	8,33	8,57	8,67
	5	25,50	23,24	21,06	17,33	16,73	16,73	7,83	7,92	7,92	8,12	8,35	8,45
	10	25,77	22,51	20,41	16,79	16,21	16,21	7,42	7,57	7,69	7,95	8,17	8,27
	15	25,94	22,83	20,71	16,25	15,69	15,69	7,22	7,35	7,49	7,78	7,99	8,09
	20	29,10	23,17	21,02	16,56	15,27	15,27	6,70	6,95	7,00	7,26	7,48	7,58
	25	29,48	23,30	21,16	16,68	14,73	14,73	6,10	6,38	6,57	6,91	7,16	7,26
	30	29,41	23,31	21,19	16,80	14,24	14,24	5,65	5,90	5,96	6,33	6,56	6,66
	35	28,85	22,94	20,87	16,58	13,67	13,67	5,24	5,54	5,59	5,89	6,14	6,24
	40	27,63	22,14	20,16	16,04	13,08	13,08	4,69	4,94	5,07	5,34	5,63	5,73
	43	24,75	22,55	20,58	16,44	12,47	12,47	4,29	4,45	4,61	4,92	5,17	5,27

IDOLA M 3.2 Mod. 26T – Cooling capacity

“Tw_out °C”	“DB/WB °C”	Cooling Capacity [W]						EER
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
5	-5
	0
	5
	10
	15
	20	23,12	23,12	21,00	16,64	12,10	8,54	3,79	3,79	3,94	4,36	4,69	5,15
	25	26,91	24,87	22,63	17,99	13,13	8,25	3,20	3,25	3,39	3,82	4,15	4,70
	30	27,51	25,17	22,95	18,32	13,43	8,40	2,52	2,75	2,88	3,30	3,67	3,90
	35	26,29	24,97	22,80	18,25	13,41	8,29	2,12	2,17	2,32	2,74	3,10	3,38
	40	21,65	21,65	19,76	15,79	11,58	7,74	2,09	2,09	2,21	2,61	2,98	3,21
	43	18,04	18,04	16,45	13,11	9,60	7,39	1,87	1,87	2,00	2,41	2,77	3,02
7	-5
	0
	5
	10
	15	20,41	20,41	18,51	14,57	10,52	10,18	4,79	4,79	4,98	5,31	5,59	5,65
	20	23,94	23,94	21,75	17,23	12,54	9,03	4,22	4,22	4,36	4,77	5,07	5,49
	25	27,97	25,81	23,49	18,69	13,65	8,72	3,62	3,75	3,94	4,35	4,64	5,04
	30	28,61	26,14	23,85	19,05	13,97	8,93	3,00	3,26	3,46	3,87	4,17	4,41
	35	27,34	26,00	23,71	18,99	13,97	8,64	2,54	2,70	2,95	3,37	3,64	3,93
	40	22,91	22,91	20,92	16,75	12,30	8,23	2,50	2,50	2,68	3,10	3,43	3,75
	43	19,11	19,11	17,43	13,91	10,20	7,85	2,15	2,15	2,37	2,77	3,15	3,40
10	-5
	0
	5
	10	20,60	20,60	18,60	14,68	11,63	11,63	5,70	5,70	5,89	6,12	6,50	6,50
	15	22,15	22,15	20,09	15,82	11,43	10,97	5,22	5,22	5,33	5,69	6,22	6,35
	20	25,39	25,39	23,07	18,30	13,33	10,72	4,68	4,68	4,81	5,16	5,47	5,81
	25	29,33	26,92	24,50	19,50	14,25	10,35	4,03	4,25	4,38	4,80	5,09	5,48
	30	30,12	26,80	24,45	19,53	14,33	10,02	3,45	3,70	3,82	4,19	4,45	4,67
	35	28,26	26,70	24,39	19,54	14,37	9,63	3,02	3,23	3,37	3,76	4,04	4,26
	40	23,91	23,91	21,85	17,50	12,86	9,22	2,84	2,84	2,98	3,35	3,62	3,85
	43	20,24	20,24	18,47	14,76	10,83	8,80	2,59	2,59	2,75	3,09	3,41	3,63
15	-5	21,90	21,90	19,87	15,53	14,21	13,86	7,40	7,40	7,49	7,83	8,06	8,30
	0	21,51	21,51	19,49	15,25	13,94	13,59	7,05	7,05	7,13	7,45	7,71	7,90
	5	21,03	21,03	19,05	14,93	13,64	13,29	6,65	6,65	6,73	7,06	7,30	7,53
	10	22,09	22,09	20,03	15,71	13,22	12,88	6,30	6,30	6,39	6,75	6,99	7,20
	15	23,93	23,93	21,61	17,10	12,80	12,48	5,80	5,80	5,90	6,30	6,54	6,85
	20	27,71	26,95	24,50	19,45	14,13	12,13	5,20	5,25	5,36	5,77	6,04	6,42
	25	30,89	27,38	24,92	19,83	14,49	11,71	4,64	4,84	4,98	5,46	5,73	6,02
	30	31,93	27,44	25,03	19,99	14,66	11,61	4,01	4,28	4,40	4,85	5,05	5,26
	35	29,90	26,87	24,54	19,65	14,44	11,15	3,45	3,77	3,94	4,43	4,65	4,88
	40	25,59	25,59	23,40	18,77	13,82	10,68	3,35	3,35	3,57	4,06	4,26	4,49
	43	22,03	22,03	20,13	16,12	11,89	10,19	3,10	3,10	3,31	3,76	3,98	4,19
18	-5	23,77	23,77	21,57	16,87	15,44	13,82	7,55	7,55	7,63	7,96	8,24	8,54
	0	23,37	23,37	21,19	16,58	15,16	13,55	7,41	7,41	7,50	7,86	8,07	8,36
	5	23,82	23,82	21,59	16,93	14,84	13,25	7,05	7,05	7,14	7,49	7,71	7,97
	10	23,99	23,99	21,76	17,08	14,38	12,85	6,70	6,70	6,81	7,15	7,42	7,66

	15	25,10	25,10	22,66	17,95	13,93	12,91	6,25	6,25	6,40	6,72	6,97	7,27
	20	29,21	26,74	24,31	19,28	14,00	12,56	5,67	5,82	5,97	6,27	6,53	6,86
	25	32,67	27,33	24,87	19,78	14,39	12,12	4,94	5,24	5,45	5,87	6,15	6,49
	30	33,11	27,52	25,10	20,04	14,75	12,63	4,36	4,70	4,84	5,26	5,59	5,79
	35	30,97	27,00	24,67	19,74	14,51	12,14	3,93	4,30	4,45	4,85	5,21	5,42
	40	26,99	26,99	24,70	19,85	14,63	11,62	3,82	3,82	3,96	4,38	4,69	4,89
43	23,68	23,68	21,67	17,40	12,83	10,45	3,41	3,41	3,57	3,98	4,31	4,51
20	-5	25,10	25,10	22,80	17,83	16,32	15,06	7,90	7,90	8,01	8,35	8,58	8,80
	0	24,69	24,69	22,40	17,53	16,04	14,78	7,62	7,62	7,75	8,08	8,30	8,60
	5	25,18	25,18	22,83	17,91	15,70	14,47	7,39	7,39	7,51	7,82	8,06	8,36
	10	25,35	25,35	23,01	18,06	15,22	14,03	7,08	7,08	7,19	7,54	7,76	8,05
	15	26,51	26,51	23,94	18,98	14,73	13,58	6,71	6,71	6,85	7,16	7,40	7,75
	20	30,82	27,36	24,87	19,73	14,33	13,21	6,12	6,35	6,55	6,89	7,12	7,48
	25	34,41	27,17	24,72	19,65	14,30	12,75	5,55	5,80	5,99	6,32	6,63	6,97
	30	34,82	27,47	25,05	20,00	14,71	13,37	4,95	5,29	5,49	5,94	6,29	6,43
	35	32,56	27,01	24,66	19,73	14,55	12,84	4,58	4,83	4,99	5,46	5,78	5,96
	40	28,39	27,08	24,78	19,90	14,67	12,29	4,10	4,25	4,39	4,91	5,23	5,43
	43	25,02	25,02	22,91	18,43	13,66	11,73	3,79	3,79	3,96	4,42	4,68	4,89
25	-5	27,21	27,21	24,72	19,33	18,49	17,36	8,15	8,15	8,20	8,55	8,79	8,92
	0	26,79	26,79	24,31	19,03	18,19	17,07	7,95	7,95	8,01	8,32	8,57	8,67
	5	27,37	27,37	24,84	19,49	17,83	16,73	7,70	7,70	7,75	8,08	8,32	8,45
	10	27,59	26,49	24,05	18,88	17,27	16,21	7,27	7,35	7,48	7,81	8,03	8,27
	15	29,98	26,66	24,22	19,04	16,72	15,69	7,00	7,13	7,27	7,64	7,85	8,09
	20	33,79	26,90	24,44	19,29	16,28	15,27	6,42	6,72	6,81	7,08	7,30	7,58
	25	34,99	27,82	25,32	20,13	15,70	14,73	5,80	6,15	6,34	6,68	6,93	7,26
	30	34,30	27,42	25,00	19,94	15,18	15,18	5,40	5,68	5,76	6,11	6,34	6,44
	35	33,72	27,08	24,72	19,77	14,57	14,57	5,08	5,37	5,44	5,80	6,05	6,15
	40	30,31	26,58	24,30	19,49	14,41	13,94	4,44	4,72	4,86	5,19	5,48	5,60
	43	27,29	26,60	24,38	19,66	14,60	13,29	4,18	4,25	4,40	4,75	5,00	5,15

IDOLA M 3.2 Mod. 30T – Cooling capacity

“Tw_out °C”	“DB/WB °C”	Cooling Capacity [W]						EER
“Tw_out °C”	“DB/WB °C”	130%	100%	90%	70%	50%	30%	130%	100%	90%	70%	50%	30%
5	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	/	/	/	/	/	/	/	/	/	/	/	/
	15	/	/	/	/	/	/	/	/	/	/	/	/
	20	26,31	26,31	23,93	19,01	13,87	8,54	3,55	3,55	3,70	4,12	4,45	5,15
	25	31,02	30,01	27,38	21,88	16,06	9,87	2,95	3,00	3,14	3,57	3,90	4,65
	30	30,32	30,32	27,80	22,44	16,62	10,42	2,45	2,45	2,58	3,00	3,37	3,72
	35	28,91	28,91	26,55	21,48	15,94	10,02	1,80	1,80	1,96	2,37	2,74	3,25
	40	22,58	22,58	20,65	16,59	12,23	7,74	1,78	1,78	1,90	2,30	2,68	3,21
	43	18,92	18,92	17,28	13,84	10,17	7,39	1,56	1,56	1,68	2,09	2,46	3,02
7	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	/	/	/	/	/	/	/	/	/	/	/	/
	15	24,25	24,25	22,02	17,37	12,66	10,18	4,45	4,45	4,60	5,10	5,27	5,65
	20	26,79	26,79	24,37	19,36	14,13	9,03	4,00	4,00	4,14	4,55	4,85	5,49
	25	31,72	30,14	27,49	21,97	16,11	9,91	3,30	3,45	3,64	4,05	4,34	5,01
	30	31,45	30,08	27,57	22,24	16,46	10,31	2,82	2,98	3,18	3,60	3,89	4,30
	35	30,00	30,00	27,56	22,33	16,59	10,44	2,35	2,35	2,60	3,02	3,29	3,78
	40	23,44	23,44	21,46	17,26	12,74	8,23	2,18	2,18	2,37	2,79	3,12	3,75
	43	19,66	19,66	17,97	14,41	10,60	7,85	1,95	1,95	2,17	2,57	2,94	3,40
10	-5	/	/	/	/	/	/	/	/	/	/	/	/
	0	/	/	/	/	/	/	/	/	/	/	/	/
	5	/	/	/	/	/	/	/	/	/	/	/	/
	10	22,54	22,54	20,44	16,09	11,63	11,63	5,45	5,45	5,68	5,92	6,50	6,50
	15	26,08	26,08	23,69	18,69	13,53	10,97	4,95	4,95	5,06	5,42	5,94	6,35
	20	29,22	29,22	26,60	21,16	15,46	10,72	4,42	4,42	4,54	4,90	5,21	5,81
	25	33,65	29,99	27,34	21,82	15,99	10,35	3,67	3,95	4,08	4,50	4,79	5,48
	30	33,44	30,29	27,75	22,35	16,53	10,02	3,12	3,40	3,51	3,89	4,14	4,67
	35	31,86	30,41	27,93	22,61	16,79	10,56	2,70	2,90	3,04	3,43	3,71	4,22
	40	25,03	25,03	22,93	18,47	13,65	9,22	2,56	2,56	2,69	3,06	3,33	3,85
	43	21,29	21,29	19,49	15,66	11,55	8,80	2,32	2,32	2,48	2,82	3,14	3,63
15	-5	23,85	23,85	21,65	16,93	13,86	13,86	7,16	7,16	7,24	7,58	8,20	8,30
	0	23,45	23,45	21,27	16,64	13,59	13,59	6,75	6,75	6,83	7,15	7,80	7,90
	5	23,86	23,86	21,63	16,97	13,29	13,29	6,37	6,37	6,45	6,78	7,43	7,53
	10	25,00	25,00	22,57	17,85	12,88	12,88	6,02	6,02	6,11	6,47	7,10	7,20
	15	28,37	28,37	25,79	20,36	13,75	12,48	5,52	5,52	5,62	6,02	6,45	6,85
	20	32,03	30,50	27,77	22,10	16,16	12,13	4,86	4,98	5,09	5,50	5,77	6,42
	25	35,04	30,79	28,07	22,40	16,42	11,71	4,30	4,58	4,72	5,20	5,47	6,02
	30	35,61	30,75	28,17	22,68	16,77	11,61	3,65	3,99	4,11	4,56	4,76	5,26
	35	33,91	30,54	28,04	22,67	16,82	11,15	3,15	3,45	3,63	4,11	4,34	4,88
	40	26,78	26,78	24,56	19,83	14,68	10,68	3,08	3,08	3,30	3,79	3,99	4,49
	43	23,15	23,15	21,22	17,10	12,64	10,19	2,82	2,82	3,03	3,48	3,70	4,19
18	-5	25,88	25,88	23,51	18,39	13,82	13,82	7,28	7,28	7,36	7,69	8,44	8,54
	0	25,47	25,47	23,11	18,09	13,55	13,55	7,17	7,17	7,26	7,62	8,26	8,36
	5	25,93	25,93	23,52	18,45	13,25	13,25	6,79	6,79	6,88	7,23	7,87	7,97
	10	27,15	27,15	24,52	19,42	12,85	12,85	6,48	6,48	6,59	6,93	7,56	7,66

	15	28,98	28,98	26,34	20,80	13,17	12,91	6,02	6,02	6,17	6,49	7,12	7,27
	20	33,85	30,52	27,78	22,11	16,09	12,56	5,40	5,56	5,71	6,01	6,27	6,86
	25	36,36	30,96	28,22	22,52	16,50	12,12	4,68	4,98	5,19	5,61	5,89	6,49
	30	37,02	31,09	28,48	22,93	16,95	12,63	4,09	4,42	4,56	4,98	5,31	5,79
	35 *	35,23	31,00	28,44	22,99	17,06	12,14	3,65	4,00	4,15	4,55	4,91	5,42
	40	28,21	28,21	25,91	20,96	15,55	11,62	3,58	3,58	3,72	4,14	4,45	4,89
43	25,51	25,51	23,44	18,97	14,08	10,45	3,16	3,16	3,32	3,73	4,06	4,51
20	-5	28,00	28,00	25,45	19,91	15,06	15,06	7,66	7,66	7,76	8,11	8,70	8,80
	0	27,58	27,58	25,04	19,61	14,78	14,78	7,36	7,36	7,49	7,82	8,50	8,60
	5	28,09	28,09	25,50	20,01	14,47	14,47	7,15	7,15	7,27	7,58	8,26	8,36
	10	29,41	29,41	26,56	21,06	14,03	14,03	6,84	6,84	6,95	7,29	7,95	8,05
	15	30,72	30,38	27,63	21,82	13,58	13,58	6,42	6,47	6,61	6,92	7,65	7,75
	20	35,66	30,23	27,51	21,88	13,72	13,21	5,85	6,09	6,29	6,64	7,34	7,48
	25	37,56	30,84	28,10	22,41	16,35	12,75	5,30	5,57	5,76	6,09	6,39	6,97
	30	38,33	31,19	28,57	22,99	16,99	13,37	4,73	5,08	5,28	5,73	6,08	6,43
	35	36,30	31,05	28,50	23,04	17,09	12,84	4,26	4,55	4,70	5,18	5,50	5,96
	40	30,13	30,13	27,72	22,49	16,74	12,29	3,99	3,99	4,13	4,64	4,97	5,43
	43	26,63	26,63	24,49	19,86	14,77	11,73	3,55	3,55	3,72	4,17	4,44	4,89
25	-5	29,95	29,95	27,23	21,30	17,36	17,36	7,85	7,85	7,91	8,25	8,82	8,92
	0	29,52	29,52	26,82	21,00	17,07	17,07	7,70	7,70	7,75	8,07	8,57	8,67
	5	30,12	30,12	27,35	21,48	16,73	16,73	7,48	7,48	7,52	7,86	8,35	8,45
	10	30,28	30,28	27,52	21,64	16,21	16,21	7,12	7,12	7,24	7,57	8,17	8,27
	15	33,80	31,64	28,59	22,74	15,69	15,69	6,73	6,88	7,03	7,39	7,99	8,09
	20	38,57	31,55	28,72	22,86	15,27	15,27	6,18	6,50	6,59	6,86	7,48	7,58
	25	39,21	31,32	28,55	22,77	14,73	14,73	5,50	5,90	6,09	6,43	7,16	7,26
	30	38,34	31,06	28,43	22,87	17,12	15,18	5,02	5,42	5,50	5,85	6,08	6,44
	35	37,87	31,26	28,69	23,18	17,44	14,57	4,80	5,10	5,17	5,54	5,78	6,15
	40	31,83	31,13	28,66	23,29	17,35	13,94	4,45	4,49	4,62	4,96	5,24	5,60
	43	28,03	28,03	25,81	20,99	15,88	13,29	4,02	4,02	4,17	4,52	4,77	5,15

Performance values are useful for accessing the incentives provided in Italy.

Lamborghini Caloreclima – www.lamborghinicalor.it
è un marchio commerciale di FERROLI S.p.A. – Via Ritonda 78/a
37047 San Bonifacio (Verona) Italy – tel. +39.045.6139411 – fax. +39.045.6100933
www.ferroli.com

Fabbricato in Cina – Made in China.
