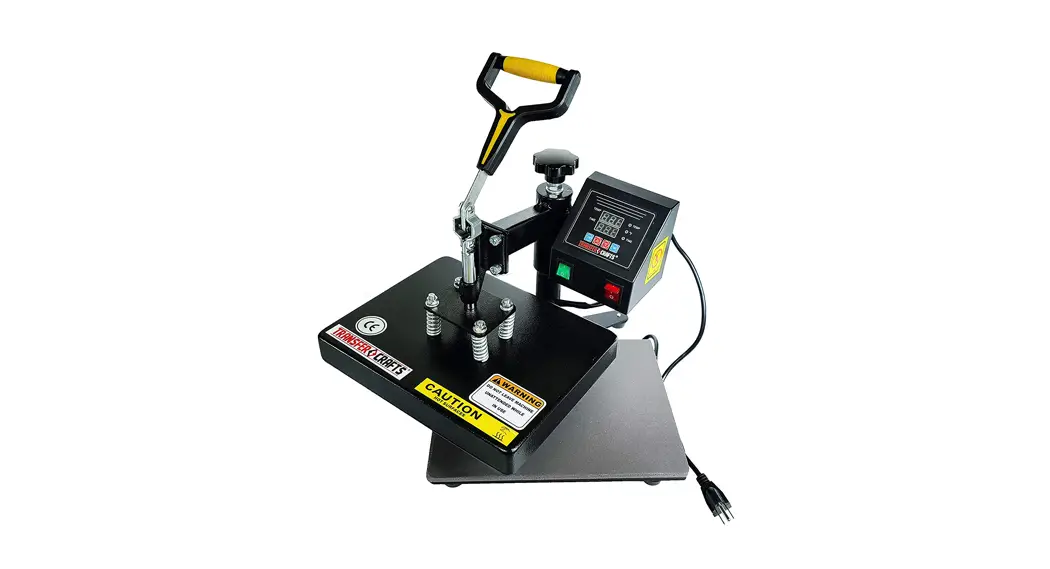

Product Information: Heat Press Machine CK220-4

The Heat Press Machine CK220-4 is a versatile machine that
provides double-sided heating, high pressure, and timing. It can be
used for pressing oil, printing textiles, and other materials on
flat surfaces such as food items, t-shirts, mouse pads, puzzles,
and ceramic tiles. The machine is compatible with flex, flocking,
transfer printing paper, sublimation, and other materials.

Usage Instructions:

Set Temperature & Time
1. Press the on/off switch located on the side of the heat press
  to turn on the machine.
2. Press the SET button once and use the ↑ or ↓ button to set the
  desired temperature.
3. Press SET again and use the ↑ or ↓ button to set the desired
  time.
4. Press SET again to exit the setting mode.
5. Place the object to be pressed on the machine when it has
  reached the desired temperature. Close the heating plate and press
  the TIME button.
6. When the time is up, open the heating plate and remove the
  object.

Common Problems:

Problem	Cause	Handling Methods
Fails to heat up	Heating plate or relay broken	Check the heating plate or relay
Power on but controller screen is out	Controller broken or connection line of controller is loose	Check connection line or change a new controller
No action after turning on power	Plug not touching well or fuse burnt	Check the plug and fuse
The real temperature passes over the setting temperature	Relay broken	Replace the relay

View Fullscreen

INSTRUCTION MANUAL
HEAT PRESS MAHCINE CK220-4

The press can provid double sides heating.hight pressuer and timing Using for prssing oil, printing textiles and other materials may be used on food, t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc.
COMPLY WITH THESE INSTRUCTIONS
1. Do not put the wire on heating plates cover. 2. Do not touch heating plates when it is energized.Caution: Risk of burns. 3. Do not open the machine box and make changes to the device. 4. Do not allow liquid or metal objects inside the hot press. 5.Make ensure the machine is connected with a plug connected to the mass. 6. Don’t pull the cable to disconnect the plug. 7.Power off he machine when finish using. 8. Use extreme caution when using near children. 9.Make sure that the device is used in an environment.

1.SET TEMPERATURE &TIME
2.1.Press on the on / off switch located on the side of the heat press to be energized. 2.2.Press once on the “SET”, Press “”or “” to the desired temperature. 2.3.Press once again on “SET”, Press “”or “” to the desired time. 2.3.Press “SET” again after finish all setting to come out setting mode. 2.4.Put objects when the machine has reached the desired temperature, twist down heating plate, Press TIME button. 2.5.When time is out, twist up heating plate.take out objects

2.Common Problem

Problem

Cause

Handling methods

Fails to heat up,but display Heating plate or Relay broken

well

Check the heating plate or Relay

Power on but controller Screen Controller brocken or

Check connection line or change a

out

new controller

Connection line of controller loosen
