INSTRUCTION MANUAL

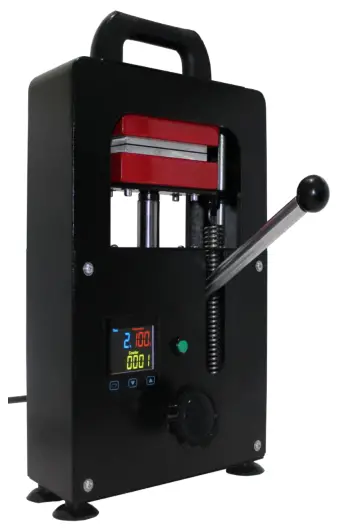

HEAT PRESS MAHCINE
The press can provid double sides heating.hight pressuer and timing
Using for prssing oil, printing textiles and other materials may be used on food, t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc.
COMPLY WITH THESE INSTRUCTIONS
- Do not put the wire on heating plates cover.
- Do not touch heating plates when it is energized.Caution: Risk of burns.
- Do not open the machine box and make changes to the device.
- Do not allow liquid or metal objects inside the hot press.
- Make ensure the machine is connected with a plug connected to the mass.
- Don’t pull the cable to disconnect the plug.
- Power off he machine when finish using.
- Use extreme caution when using near children.
- Make sure that the device is used in an environment.

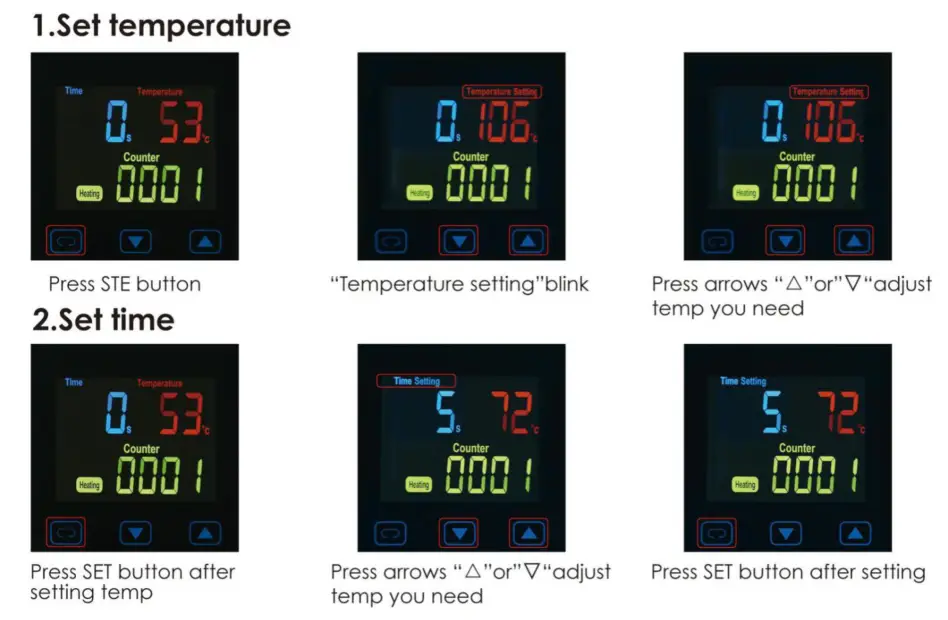

SET TEMPERATURE &TIME
1.1. Press on the on / off switch located on the side of the heat press to be energized.
1.2.Put objects when the machine has reached the desired temperature, shake up heating plate, Press TIME button.
1.3.When time is out, Counterclockwise rotate knob to make heating plate fall down.take out objects
Common Problem：
| Problem | Cause | Handling methods | |
| 1 | Fails to heat up,but display well | Heating plate or Relay broken | Check the heating plate or Relay |
| 2 | Power on but controller Screen out | Controller brocken or Connection line of controller loosen | Check connection line or change a new controller |
| 3 | No action after turn on power | Plug whether touch well Fuse whether burn | Check the plug and fuse |
| 4 | The real temp pass over setting temp | Relay broken | Replace the relay |
