VERTEX VX-2100 VHF-UHF Mobile Radios
VHF/UHF Mobile Radios
- 128 CHANNEL CAPACITY /VX-2200
- 8 CHANNEL CAPACITY /VX-2100
- POWER OUTPUT : 50 W (VHF)/ 45 W (UHF)
- WIDE BAND COVERAGE VHF 134-174 MHz/ UHF 450-512 MHz
- LOUD FRONT SPEAKER AUDIO
- CTCSS / DCS ENCODE/DECODE
- DTMF ANI
- 2-TONE ENCODE/DECODE
- 5-TONE SIGNALING BUILT-IN
- EMERGENCY FEATURE
- D-SUB-15 PIN ACCESSORY CONNECTOR
- ARTS™ (AUTO-RANGE TRANSPOND SYSTEM)
- DTMF PAGING ( OPTION )
- ENCRYPTION ( OPTION ) VOICE INVERSION/ROLLING CODE
- MDC-1200® / GE-STAR® ANI ENCODE ( OPTION )
- MIL-STD 810 C/D/E/F
VX-2100/2200 Series VHF/UHF Mobile Radios

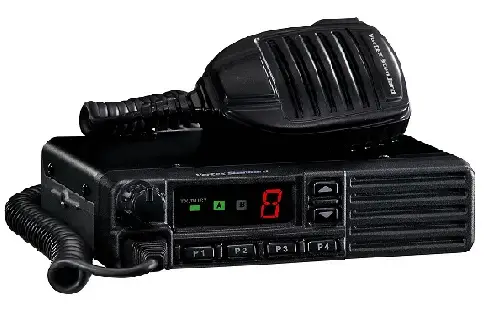

The VX-2100 (8-channel) and VX-2200 (128-channel) series mobiles are full featured FM transceivers designed for flexible mobile business communications in the VHF or UHF Land mobile radio bands. These transceivers are designed for reliable business communications in a wide variety of applications with a wide range of operating capability provided by their leading-edge design with high output power (50 Watts VHF/45 Watts UHF). The VX-2200 mobiles have an eight character alpha-numeric display to manage the 128 channel capacity. 128 Channel Capacity VX-2200 / 8 Channel Capacity VX-2100 For easy of operation the a-channel VX-2100 is your workhorse radio. For larger systems, the VX-2200 gives you 128 channels to get the job done.
Power Output: 50 watts (VHF) / 45 watts UHF
With 50 watts output on VHF and 45 Watts output on UHF, the new VX-2100 and VX-2200 have the power to get your message through.
Wide Band Coverage (VHF 134-174 MHz / UHF 450-512 MHz)
The new VX-2100 and VX-2200 continue with our efforts to give you the maximum flexibility possible with ultra-wide band coverage.
Loud Front Speaker Audio
The front facing speaker and 4 Watts of audio power gives you plenty of receiver audio even in noisy environments.
Signaling Features
The VX-2100 and VX-2200 mobiles have plenty of built-in signaling to offer. Besides the standard CTCSS and DCS subaudible signaling, these mobiles also include 2-tone encode and decode, DTMF ANI and 5-tone encode and decode.
Emergency Feature
Excellent for school bus drivers, delivery vans, or any other application where you do not want the driver to be “on their own”. With the built-in Emergency feature, a silent alarm can be sent and transmit live audio to the dispatcher.
Specifications
| VX-2100/2200 VHF I VX-2100/2200 UHF | |
| General Specifications | |
| Frequency Range | 134- 174MHz I 450- 512MHz |
| Number of Groups | 1/8 |
| Number of Channels | 8/128 |
| Power Supply Voltage | 13.6V DC ±15% |
| Channel Spacing | 12.5/20/25kHz |
| Current Consumption (Approx.) | TX: 11A, RX: 2.5A, Standby: 250mA |
| Operating Temperature Range | – 22° F – 140° F |
| Frequency Stability | Better than ±2.5ppm |
| R F Input-Output Impedance | 500hm |
| Dimension (W x Hx D) | 6.5″ X 1.8″ X 6.1″ |
| Weight (Approx ). | 2.87lbs . |
| VX-2100/2200 VHF I VX-2100/2200 UHF | |
| Receiver Soeclflcatlons Measured by TIA /EIA -60 3A- | |
| Sensitivity ( 12dB SINAD) | 0 .25µV II 0.25µV |
| Adjacent Channel Selectivity | 75/65dB 73/65dB |
| Intermodulation | 73/70dB |
| Spurious and Image Rejection | 90dB I 8 0dB |
| Audio Output | Internal: 4W@ 18 n, 5% THO External: 12W@ 4n, 5% THO |
| Transmitter Specifications Measured by TIA /EIA -60 3A- Output Power 50 / 25/ 10W I 45/ 25/ 10W | |
| Modulation | 16K0F 3E, 11K0F 3E |
| Maximum Deviation | ±5.0 kHz /±2.5kHz |
| Audio Distortion | <3%@1kHz |
| Conducted Spurious Emission | 70dB below carrier |
D-SUB 15 pin Accessory Connector
Connecting outboard devices is easy using the rear mounted 15 pin accessory connector.
Optional Signaling Features
DTMF decode paging is available with the FVP-25. The FVP-25 also includes a simple inversion scrambler. The FVP-35 offers rolling code type encryption. The VME-100 board gives you MDC-1200® (and GE-Star®) encode feature to operate in existing systems.
Rugged, Die-cast Construction
The VX-2100/2200’s circuitry is housed within a die-cast aluminum enclosure, which doubles as a heat sink. This extraordinarily durable construction ensures many years of reliable operation, even in highvibration installations.
MIL-Spec Rated (MIL 810 C/D/E/F)
The ultra-rugged design of the VX-2100/2200 enables it to be fully compliant with the exacting specifications of MIL 81 0 C/D/E/F, pursuant to the test procedures documented below.
APPLICABLE MIL-STD (Pending)
| Standard | MIL810C Methods,!>rocedu,es | Ill 81111) Melh-,es | MIL810EMethods/P,oced111S | MIL810Fllelh-m |
| High Temperature Low Temperature Blowing Sand & Dust Vibration Shock | 501.1/Procedure TI 502.1/Procedure I
514.2/Procedure VIII, X 516.2/Procedure I,V |
514.3/Procedure I,Cat.10 516.3/Procedure l,IV |
510.3/Procedure I 514.4/Procedure I,Cat.1O 516.4/Procedure I,rv |
514.5’1’roceclure I,Cat.20,24 516.5/Procedure I,IV,Vl |

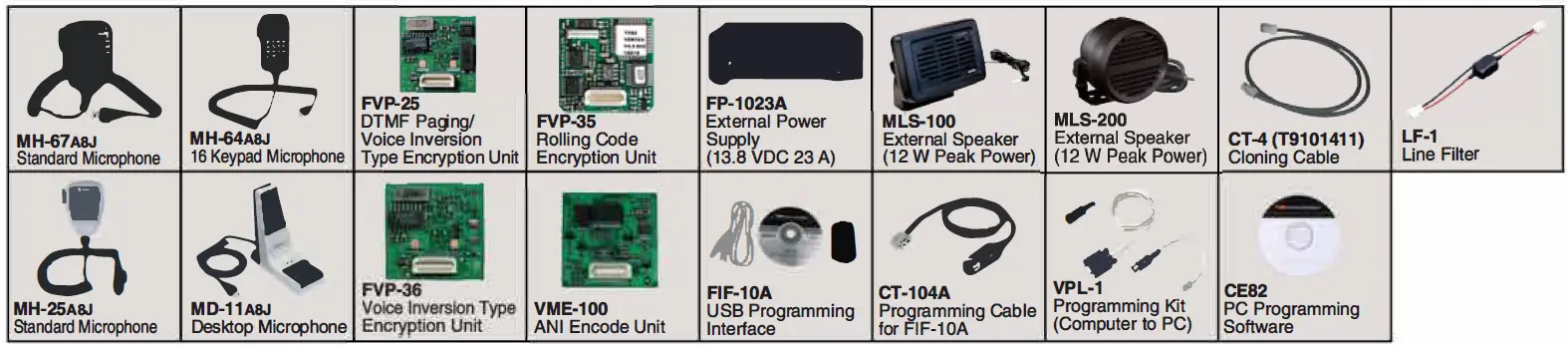

Accessories & Options
The VX·2100/2200 UHF Model has not been approved by the FCC. This device may not be sold or leased, or offered for sale or lease, until FCC approval has been obtained .
Vertex Standard US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
- Phone 714/827-7600; Fax 714/827-8100
- http://www.vertexstandard.com
