motorola VX-2100 Mobile Analogue Radios

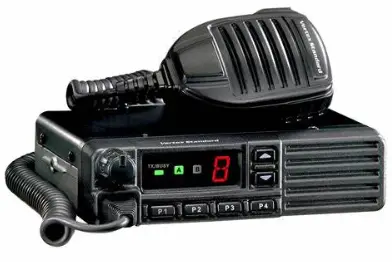

VX-2100/2200 SERIES
COMPACT, FULL-FEATURED PERFORMANCE

MOBILE ANALOGUE RADIOS

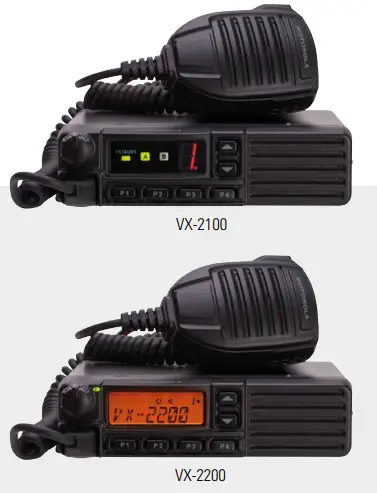

For basic mobile communications, look to the VX-2100/2200 Series. Choose from two mobile analogue radios: the VX-2100 (without display) and VX-2200 (with display). They install easily in small spaces, and their die-cast aluminium construction helps dissipate heat and absorb vibration for added durability. The channel capacity is 8 channels for easy operation on the VX-2100 or 128 channels for large group communications on the VX-2200. And optimise your operations with multiple scanning options.

GENERAL FEATURES

Compact, Durable Construction
Broad Channel Capacity:
- 128 Channels (VX-2200)
- 8 Channels (VX-2100)
6 Programmable Buttons
Display:
- 1-Character Numeric (VX-2100)
- 8-Character Alphanumeric (VX-2200)
Safety Features:
- Emergency Alert
- Lone Worker Alert
Scan Options:
- Basic
- Priority
- Dual Watch
- Follow-Me
- Follow-Me Dual Watch
- Talk Around
Busy Channel Lock Out (BCLO)
Busy Tone Lock Out (BTLO)
Time Out Timer (TOT)
Remote Listen
Programmable Minimum Volume
D-Sub 15 Pin Accessory Connector
Public Address/Horn Alert
Radio-to-Radio Cloning
Auto Range Transponding System (ARTS™)

SIGNALLING FEATURES

CTCSS/DCS Encode and Decode
2-Tone Encode/Decode
5-Tone Signalling
DTMF Paging
DTMF Speed Dial
Stun/Kill/Revive (5-Tone)
RSSI Signal Strength Indicator

GENERAL SPECIFICATIONS

GENERAL SPECIFICATIONS
	VHF	UHF
Frequency Range	134 – 174 MHz	400 – 470 MHz
Number of Channels and Groups	8 Channels/ 1 Group (VX-2100) 128 Channels/ 8 Groups (VX-2200)
Power Supply Voltage	10.8 – 15.6 V DC
Channel Spacing	12.5/20/25 kHz
PLL Steps	2.5/5/6.25 kHz	5/6.25 kHz
Current Consumption	TX: 11 A (50 W, 45 W), 6 A (25 W) RX: 2.5 A, Standby: 200 mA
Operating Temperature Range	-30ºC to +60ºC (-22ºF to +140ºF)
Frequency Stability	Better Than ±2.5 ppm
RF Input-Output Impedance	50 Ohm
Dimension (H x W x D)	45 x 165 x 155mm (1.8 x 6.5 x 6.1 Inches)
Weight (Approx.)	1.3 kg (2.87 lbs)
RECEIVER SPECIFICATIONS	measured by EN 300 086
Sensitivity	20 dB SINAD (W/N): –4 dB μV / –2 dB μV
Adjacent Channel Selectivity	75 dB/68 dB	75 dB/65 dB
Intermodulation	68 dB
Spurious and Image Rejection	80 dB
Audio Output	Internal: 4 W @ 18 Ohms, 5% THD External: 12 W @ 4 Ohms, 5% THD
TRANSMITTER SPECIFICATIONS	measured by EN 300 086
Output Power	50/25/10 W (50 W) 25/12.5/5/1 W (25 W)	45/25/10 W (45 W) 25/12.5/5/1 W (25 W)
Modulation	16K0F3E / 14K0F3E / 11K0F3E
Maximum Deviation	± 5.0 kHz / ±4 kHz / ± 2.5 kHz
Audio Distortion	< 3 % @1 kHz
Conducted Spurious Emission	–36 dBm < 1 GHz / –30 dBm > 1 GHz

APPLICABLE MIL-STD

	Methods/Procedures
Standard	MIL 810C	MIL 810D	MIL 810E	MIL 810F
High Temperature	501.1 proc 2	–	–	–
Low Temperature	502.1 proc 1	–	–	–
Blowing Sand and Dust	–	–	510.3 proc 1	–
Vibration	514.2 proc 8/X	514.3 proc 1/Cat 10	514.4 proc 1/Cat 10	514.5 proc 1/Cat 20/24
Shock	516.2 proc 1/5	516.3 proc 1/4	516.4 proc 1/4	516.5 proc 1/4/6

ACCESSORIES

Audio Accessories

MH-67A8J: Standard Microphone
MH-75A8J: Keypad Microphone (16 Keys)
MD-12A8J: Desktop Microphone
MLS-100: External Speaker, 12 W
MLS-200: Waterproof External Speaker, 12 W

Motorola Solutions Ltd. Nova South, 160 Victoria Street, London, SW1E 5LB, UK. www.motorolasolutions.com
Availability is subject to individual country law and regulations. All specifications shown are typical unless otherwise stated and are subject to change without notice. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and
are used under license. All other trademarks are the property of their respective owners. © 2017 Motorola Solutions, Inc. All rights reserved. 11-2017
