Qtx V-series Vhf Wireless Systems User Manual

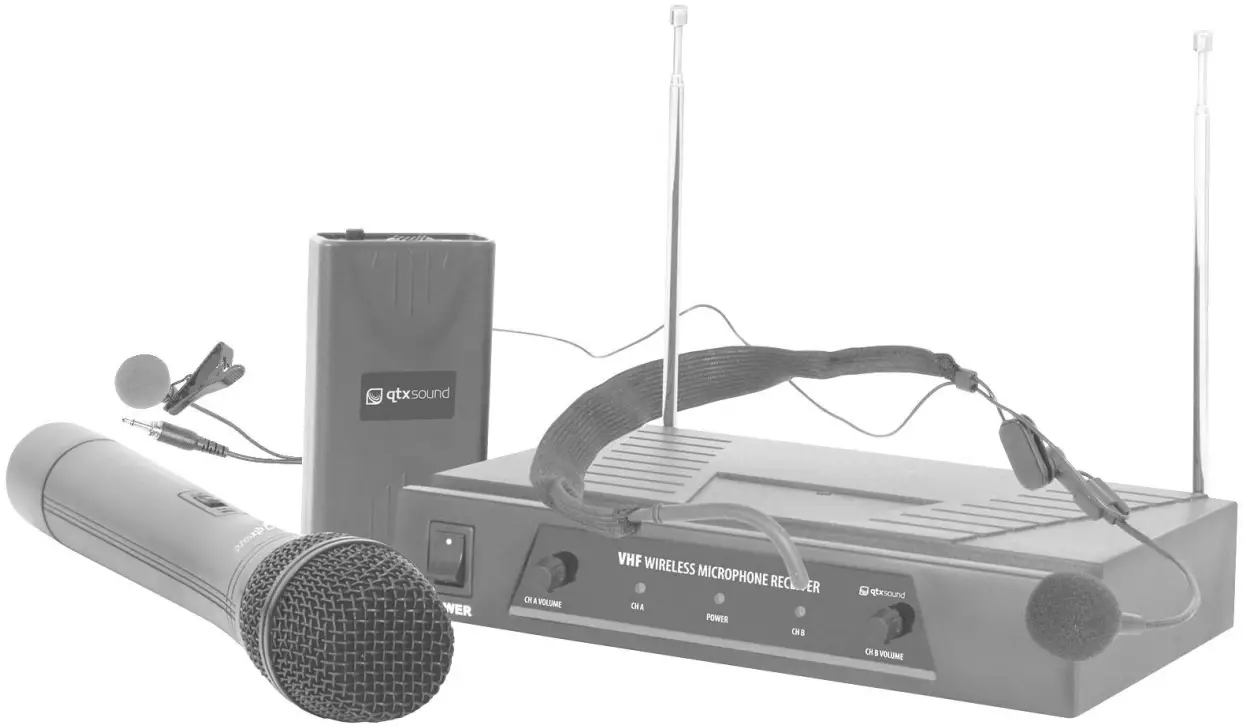

V-SERIES
VHF Wireless Systems
User Manual

Version 3.3

Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing the QTX Sound VHF-series wireless system. This professional wireless set provides a high-quality microphone with a VHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
Contents:
Please take care when unpacking this product. Inspect for any damage and ensure you have the following components…

• VHF wireless receiver
• Mains power adapter
• 6.3mm mono jack lead
• 9V battery, PP3 (2 pieces for VH2, VN2 or VHN2)
• Microphone / transmitter(s) – see table below

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture. If liquids are spilled on any component, stop using immediately, allow nit to dry out, and have checked by qualified personnel before further use. Avoid impact or heavy vibration to any of the components, dropping the microphone can cause capsule failure. No user-serviceable parts inside transmitter or receiver – refer servicing to qualified service personnel.

Safety

• Ensure that the correct adapter is used with an adequate current rating and that the mains voltage is as stated on the adapter.
• Avoid ingress of water or particles into the transmitter(s) or receiver
• Use alkaline or NiMH batteries in the transmitter(s) and remove if unused for long periods.
• Observe the correct polarity when replacing batteries

Placement

• Keep all components out of direct sunlight and away from heat sources.
• Do not place heavy objects on top of the receiver or transmitter(s)
• If rack-mounting, secure the receiver to a 1U rack tray and do not place heavy equipment above the receiver.
• Keep the transmitter(s) and receiver away from damp or dusty environments.

Cleaning

• Use a soft cloth with a neutral detergent to clean the body of the microphone/transmitter and receiver.
• Lightly damp sterile wipes may be used on the microphone grille for hygiene purposes
• To avoid damage, do not use solvents to clean the components

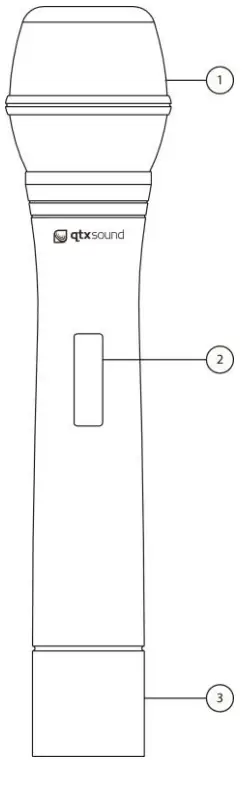

Handheld Transmitter

1. Windshield
2. Slide switch and LED
3. Battery compartment cover

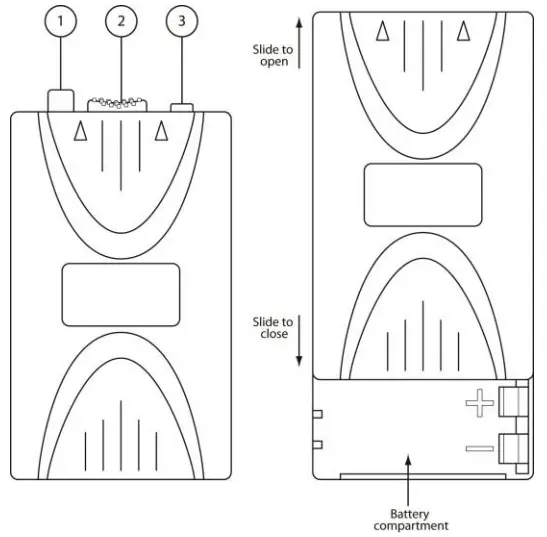

Beltpack Transmitter

1. Volume control
2. Slide switch and LED
3. 3.5mm microphone input jack

Receiver Rear Panel

1. Antennas
2. DC power input
3. 6.3mm jack output
4. XLR output

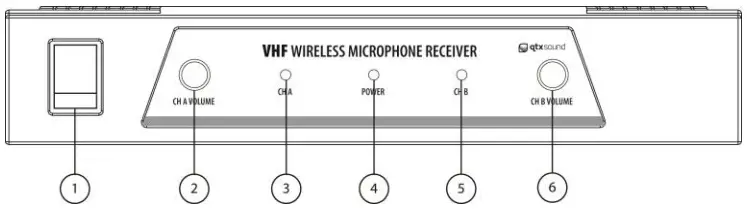

Receiver Front Panel

1. Power ON/OFF switch
2. Channel A volume control
3. Channel A indicator LED
4. Power indicator LED
5. Channel B indicator LED
6. Channel B volume control

Operation

For handheld transmitters, insert the supplied 9V batteries by carefully unscrewing the base to reveal the + and – terminals inside the microphone body, connect the battery (ensure + and – are the correct way around), and carefully screw the base back on. For beltpacks, slide the front half of the belt pack upwards just enough to reveal the battery compartment and position the supplied 9V battery inside (ensure + and – are the correct way around), and then slide the belt pack case together as before. Position the receiver within the best available line of sight to the transmitter(s) and connect the DC jack of the supplied power adapter to the receiver and the plug-top to the main outlet. Extend both antennas fully upwards and outwards slightly and switch the power on. Turn microphone level(s) down on the receiver. Note: for dual sets (with 2 transmitters), both microphones’ outputs will be mixed and fed to both XLR and jack outputs. Connect the jack or XLR (optional) lead to the receiver’s audio output connector, turn down the volume of any equipment (mixer, amplifier, etc.) that the signal will be fed into, and then connect the jack or XLR to the equipment. Warning! – take care not to point microphones towards speakers – this can cause damaging feedback (loud whistle or howling noise) – try to point microphones away from the speaker cabinets. Move the switch on the handheld or belt pack transmitter to the first notch (MUTE) – the LED should light momentarily (continuous dim LED indicates low battery). Move on another notch (ON) and gradually increase the microphone level(s) on the receiver, then increase the volume on the mixer or amplifier until the sound from the microphone can be heard through the equipment. During use, it may be useful for the reception of the microphone to be muted for a short period of time (e.g. to avoid feedback when walking across the front of a speaker or avoid handling noise when placing the microphone down momentarily or adjusting a neckband microphone). In these circumstances, it may be better to move the transmitter switch to the “MUTE” position, which maintains the radio frequency carrier signal but mutes the microphone input. When this switch is moved back to the “ON” position, the sound will be immediately restored without waiting for the radio signal to be reinstated. If the wireless system is not to be used for more than a few seconds, it is preferable to slide the transmitter switch to the “OFF” position, which mutes and deactivates the radio signal and powers down the transmitter. Be sure to turn down the volume of the mixer or amplifier and then switch off the receiver. Unplug signal leads from the receiver and mixer or amplifier when moving or packing away. If the system is not to be used for long periods of time, remove the batteries from the transmitter and unplug the power adapter from the receiver and the main outlet. Retracting the antennas can also help avoid damage when the system is not in use.

Specifications

General

Receiver

Handheld Transmitter (VH1, VH2, VHN2)

Beltpack Transmitter (VN1, VN2, VHN2, VL1)

NECKBAND MICROPHONE (VN1, VN2, VHN2)

LAVALIER MICROPHONE (VL1)

Frequency Chart

Troubleshooting

Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type 171.804UK, 171.810UK, 171.811UK, 171.816UK, 171.817UK, 171.818UK, 171.819UK, 171.834UK, 171.835UK, 171.836UK and 171.837UK are in compliance with Directive 2014/53/EU

The full text of the EU declaration of conformity for 171.804UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171804UK.pdf The full text of the EU declaration of conformity for 171.810UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171810UK.pdf The full text of the EU declaration of conformity for 171.811UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171811UK.pdf The full text of the EU declaration of conformity for 171.816UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171816UK.pdf The full text of the EU declaration of conformity for 171.817UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171817UK.pdf The full text of the EU declaration of conformity for 171.818UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171818UK.pdf The full text of the EU declaration of conformity for 171.819UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171819UK.pdf The full text of the EU declaration of conformity for 171.834UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171834UK.pdf The full text of the EU declaration of conformity for 171.835UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171835UK.pdf The full text of the EU declaration of conformity for 171.836UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171836UK.pdf The full text of the EU declaration of conformity for 171.837UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171837UK.pdf

Errors and omissions excepted. Copyright© 2021. AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland.
