Product Information
The KIT-500 is a versatile audio and video transmission system designed to provide high-quality signal transmission and switching capabilities. It consists of two main components:
- KIT-500T 4K HDMI/USB-C Auto Transmitter
- KIT-500R 4K HDBT/HDMI Receiver/Scaler
The KIT-500T is responsible for transmitting audio and video signals, while the KIT-500R receives and scales the signals for output. The system supports various input sources, including USB-C and HDMI, and features multiple output options.
Key Features:
- Supports 4K resolution
- Automatic signal switching
- USB-C connectivity with DP Alt mode, Ethernet, and USB data transfer
- Audio input options: AUX 3.5mm Mini Jack, MIC 3-pin, Terminal Block
- Audio output options: 5-pin Terminal Block
- RS-232 data extension via Terminal Block Connector
- Control option via Terminal Block Connector
- Programmable firmware upgrade via USB Connector
- LAN connectivity via ETH RJ-45 Connector
Product Usage Instructions
Step 1: Check what’s in the box
The KIT-500 package includes the following items:
- KIT-500T 4K HDMI/USB-C Auto Transmitter
- KIT-500R 4K HDBT/HDMI Receiver/Scaler
- 1 Multi-signal USB-C cable (1m)
- 2 Bracket sets
- 1 Power adapter
- Power cord
- 8 Rubber feet
- 1 Quick start guide
Step 2: Get to know your KIT-500T
The KIT-500T transmitter unit has several buttons and connectors with different functions:
| Feature | Function |
|---|---|
| OUTPUT Select Button | Press to select the output to be switched when a selected input button is pressed. HDMI/HDBT LEDs light green when selected. |
| INPUT Buttons (USB-C and HDMI) | Press to select a USB-C or HDMI input. The corresponding button illuminates when the input is selected. |
| REMOTE Button | Press to select the HDMI (REMOTE) input as the input to KIT-500R. The button illuminates when the input is selected. Note that this button is only operational if HDBT is selected via the OUTPUT button. |
| USB Select Button | Press to select the USB HOST port to connect to the USB HUB devices. The 1/2 LEDs light green when selected. |
| MENU Button | Press to display the KIT-500 OSD menu. The OSD menu can be viewed on the acceptor that is connected to the KIT-500R. |
| Navigation Buttons (ENTER, RESET TO 1080p, PANEL LOCK) | Use these buttons to navigate and make selections in the OSD menu, adjust volume, and lock/unlock the front panel buttons. |
| USB HUB USB 3.0 Type A Ports (3) | Connect USB devices to these ports. The user can select which USB host (USB 1 or USB 2 on the transmitter) is connected to the USB devices. |
| USB 3.0 Host Port (1 and 2) | Connect USB hosts to these ports. |
Additional Features of KIT-500T
| Feature | Function |
|---|---|
| AUDIO IN (AUX 3.5mm Mini Jack, MIC 3-pin, Terminal Block) | Connect audio sources to these input options, such as laptops or microphones. |
| AUDIO OUT (5-pin Terminal Block) | Connect a balanced stereo audio acceptor, such as active speakers, to this output option. |
| RS-232 DATA (3-pin Terminal Block Connector) | Connect a serial data source or acceptor to extend RS-232 communication between the KIT-500T and KIT-500R. |
| CONTROL (3-pin Terminal Block Connector) | Connect a serial controller or PC to control the KIT-500 or for the KIT-500 to control an external device. |
| PROGRAM USB Connector | Connect the KIT-500T to a PC to perform a firmware upgrade. |
| ETH RJ-45 Connector | Connect the KIT-500T to a LAN for Ethernet traffic or PC controller connectivity. |
| USB-C Port (1 and 2) | Connect USB-C sources to these ports. Both USB-C ports support DP Alt mode, Ethernet, and USB data transfer. USB-C 1 supports up to 60W charging. |
For more detailed information on installation, usage, and firmware upgrades, please download the full user manual from the officialwebsite.
KIT-500 Quick Start Guide
This guide helps you install and use your KIT-500 for the first time.
Go to www.kramerav.com/downloads/KIT-500 to download the latest user manual and check if firmware upgrades are available.
Scan for full manual
Check what’s in the box
- KIT-500 including:
- KIT-500T 4K HDMI/USB-C Auto Transmitter
- KIT-500R 4K HDBT/HDMI Receiver/Scaler
- 1 Multi-signal USB-C cable (1m)
- 2 Bracket sets
- 1 Power adapter
- Power cord
- 8 Rubber feet
- 1 Quick start guide
Get to know your KIT-500
KIT-500T
| # | Feature | Function | |

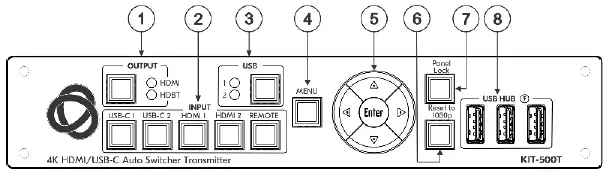

| 1 | OUTPUT | Select Button | Press to select the output to be switched when a selected input button is pressed. |
| HDMI/HDBT LEDs | LED lights green when selected. | ||
| 2 | INPUT Buttons | USB-C (1 and 2) | Press to select a USB-C input. Button illuminates when that input is selected. |
| HDMI (1 and 2) | Press to select an HDMI input. Button illuminates when that input is selected. | ||
| REMOTE | Press to select the HDMI (REMOTE) input as the input to KIT-500R. Button illuminates when that input is selected. Note that this button is only operational if HDBT is selected via the OUTPUT button. | ||
| 3 | USB | Select Button | Press to select the USB HOST port to connect to the USB HUB devices. |
| 1/2 LEDs | Lights green when selected. | ||
| 4 | MENU Button | Press to display the KIT-500 OSD menu. | |
| The OSD menu can be viewed on the acceptor that is connected to the KIT-500R. | |||
| 5 | Navigation Buttons |  | Press to decrease numerical values or select from several definitions. When not in the OSD menu, press to reduce the output volume. |
 | Press to move up the menu list values. | ||
 | Press to increase numerical values or select from several definitions. When not in the OSD menu, press to increase the output volume. | ||
 | Press to move down the menu list. | ||
| ENTER | Press to accept changes and change the SETUP parameters. | ||
| 6 | RESET TO 1080p Button | Press and hold for about 5 seconds to reset the output resolution. The first press resets the resolution to 720p and the next press resets to 1080p. | |
| 7 | PANEL LOCK Button | Press to lock/unlock the front panel buttons. | |
| 8 | USB HUB USB 3.0 Type A Ports (3) | Connect to USB devices. The user can select which USB host (USB 1 or USB 2 on the transmitter) is connected to the USB devices. | |
| 9 | USB 3.0 Host Port (1 and 2) | Connect to USB hosts. | |

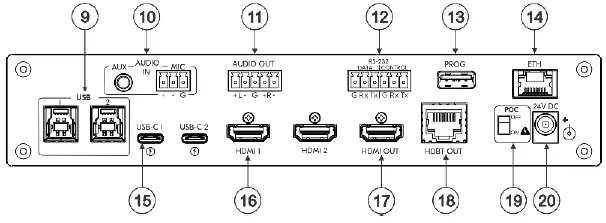

| 10 | AUDIO IN | AUX 3.5mm Mini Jack | Connect to an unbalanced, analog audio source (for example, the audio output of the laptop). | |
| MIC 3-pin Terminal Block | Connect to a dynamic or condenser (with 48V phantom power) microphone. | |||
| 11 | AUDIO OUT 5-pin Terminal Block | Connect to a balanced, stereo audio acceptor (for example, active speakers). | ||
| 12 | RS-232 | DATA 3-pin Terminal Block Connector | Connect to a serial data source or acceptor to extend RS-232 between KIT-500T and KIT-500R. | |
| CONTROL 3-pin Terminal Block Connector | Connect to a serial controller or PC to control KIT-500 or for KIT-500 to control an external device. | |||
| 13 | PROGRAM USB Connector | Connect to a PC to perform a firmware upgrade. | ||
| 14 | ETH RJ-45 Connector | Connect to the LAN (Ethernet traffic or PC controller). | ||
| 15 | USB-C Port (1 and 2) | Connect to USB-C sources. Both USB-C ports support DP Alt mode, Ethernet and USB data transfer. USB-C 1 supports up to 60W charging. | ||
| Power delivery to USB-C 1 is not supported when KIT-500R delivers power to KIT-500T via PoC. | ||||
| 16 | HDMI Connector | Connect to an HDMI source. | ||
| 17 | HDMI OUT Connector | Connect to an HDMI acceptor. | ||
| 18 | HDBT OUT RJ-45 Connector | Connect to KIT-500R. | ||
- Follow powering instructions in Step 5: Connect power.
- Failure to use PoC and power connector correctly may destroy the devices!
| 19 | PoC (Power over Cable) Switch | Set the PoC switch to ON on both KIT-500T and KIT-500R. |
| 20 | 24V DC Connector | Connect to the supplied power adapter, unless the power adapter is connected to KIT-500R. |

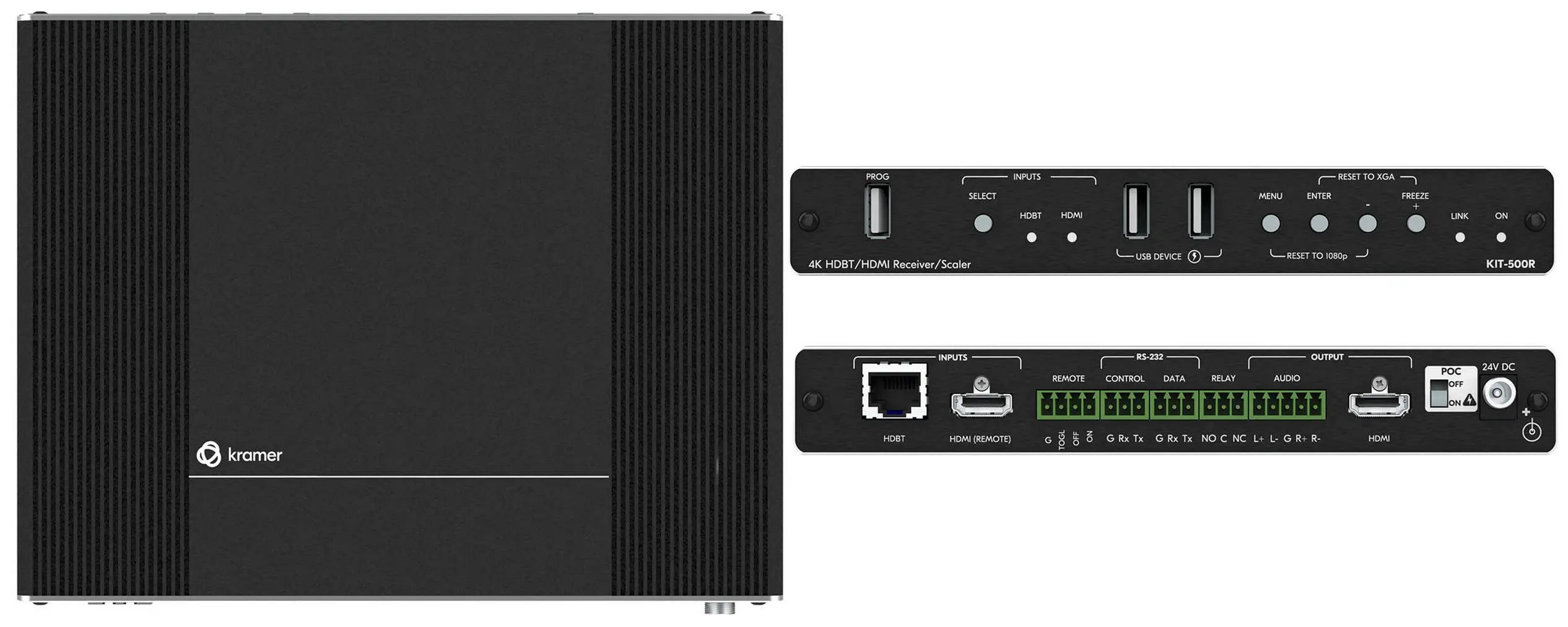

KIT-500R
| # | Feature | Function | |

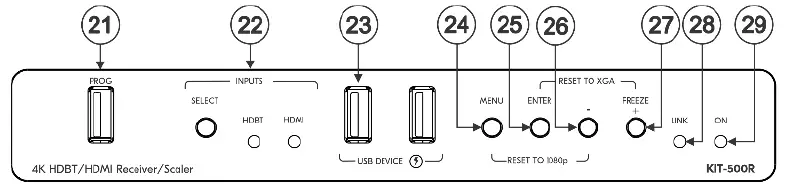

| 21 | PROG USB Connector | Connect to a USB stick to perform firmware upgrades. | |
| 22 | INPUTS | SELECT Button | Press to toggle between the HDBT and HDMI inputs to select the input (HDBT or HDMI). By default, the SELECT button is locked. You can unlock it via the ADVANCED menu in the OSD. |
| HDBT LED | Lights blue when the HDBT input is selected. | ||
| HDMI LED | Lights blue when the HDMI input is selected. | ||
| 23 | USB DEVICE USB 2.0 Type A Ports (2) | Connect to USB devices. The user can select which USB host (USB 1 or USB 2 on the transmitter) is connected to the USB devices. | |
| 24 | MENU Button | Press to enter/exit the on-screen display (OSD) menu. Press together with the – button to reset to 1080p. | |
| 25 | ENTER Button | In OSD, press to choose the highlighted menu item. Press together with the FREEZE/+ button to reset to XGA. | |
| 26 | – | In OSD, PRESS to move back through menus or decrement parameter values. | |
| 27 | FREEZE/+ Button | In OSD, press to move forward through menus or increment parameter values. When not in OSD, press to freeze the display. | |
| 28 | LINK LED | Lights blue when a link is established with the transmitter. | |
| 29 | ON LED | Lights green when device is powered. | |
| 30 | INPUTS | HDBT RJ-45 Connector | Connect to KIT-500T. |
| 31 | HDMI (REMOTE) Connector | Connect to an HDMI source. | |

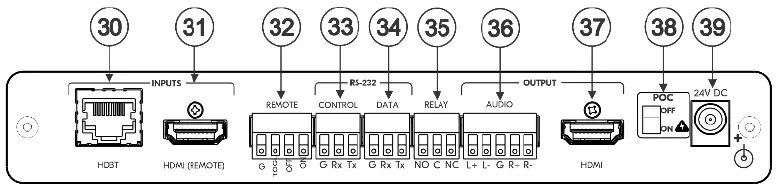

| 32 | REMOTE Contact-Closure 4-pin Terminal Block Connector | Connect to contact closure switches to send CEC commands to the display. The TOGGLE pin may be configured for toggling (edge-triggered), or for ON / OFF (level-triggered). See Step 6: Operate KIT-500. | |
| 33 | RS-232 | CONTROL 3-pin Terminal Block Connector | Connect to a serial controller or PC to control KIT-500 using P3K, or for KIT-500 to control an external device. |
| 34 | DATA 3-pin Terminal Block Connector | Connect to a serial data source or acceptor for extending RS-232 between KIT-500T and KIT-500R via HDBT. | |
| 35 | RELAY SPDT 3-pin Terminal Block Connector | Connections to the internal relay’s contact terminals: Normally open (NO), normally closed (NC), and common (C). Connect to devices to be controlled by relay (for example, a motorized projection screen). | |
| 36 | OUTPUT | AUDIO 5-pin Terminal Block Connector | Connect to a balanced analog stereo audio acceptor. |
| 37 | HDMI Connector | Connect to an HDMI acceptor. | |
- Follow powering instructions in Step 5: Connect power.
- Failure to use PoC and power connector correctly may destroy the devices!
| 38 | PoC (Power Over Cable) Switch | Set the PoC switch to ON on both KIT-500T and KIT-500R. |
| 39 | 24V DC Connector | Connect to the supplied power adapter, unless the power adapter is connected to KIT-500T. |
Mount KIT-500
Install KIT-500 using one of the following methods:
- Attach the rubber feet and place the unit on a flat surface.

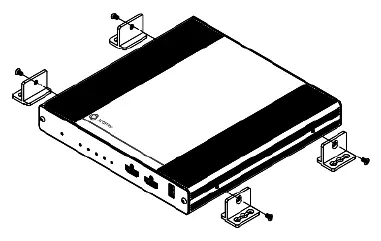

- Fasten a bracket (included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/KIT-500).
- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/KIT-500).
- Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
- Avoid uneven mechanical loading.
- Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
- Reliable earthing of rack-mounted equipment should be maintained.
- Maximum mounting height for the device is 2 meters.

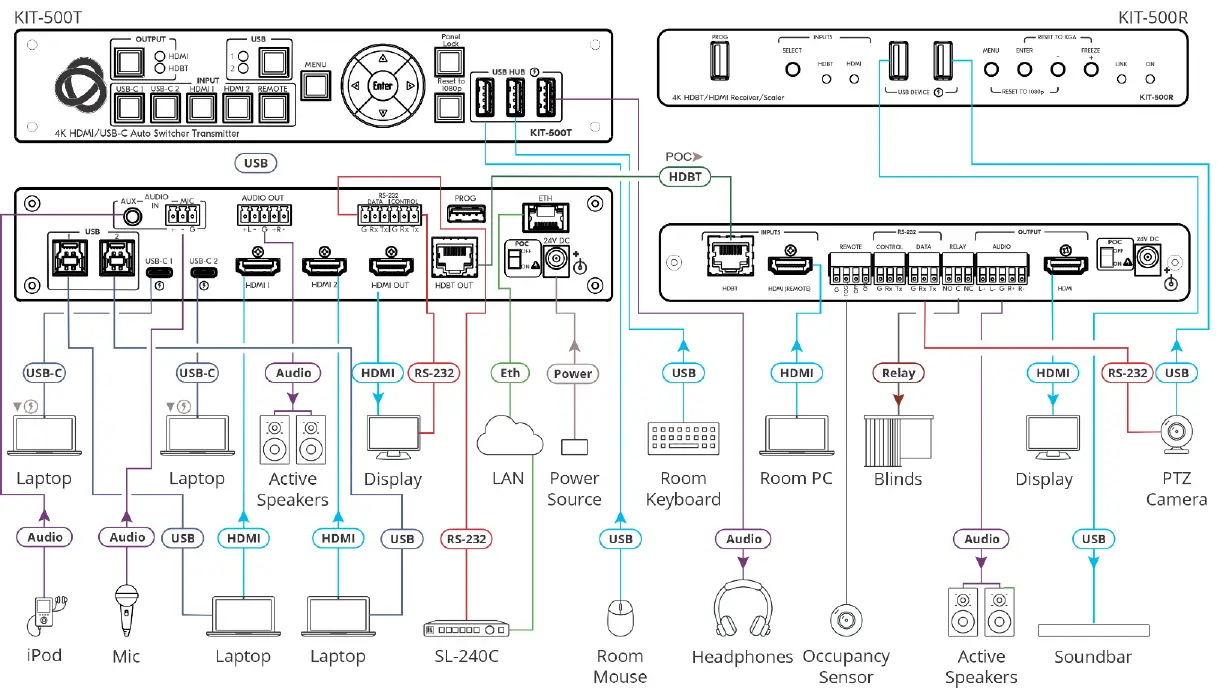

Connect inputs and outputs
Connecting the audio output
To a balanced stereo audio acceptor:
To an unbalanced stereo audio acceptor:
Wiring the RJ-45 connectors

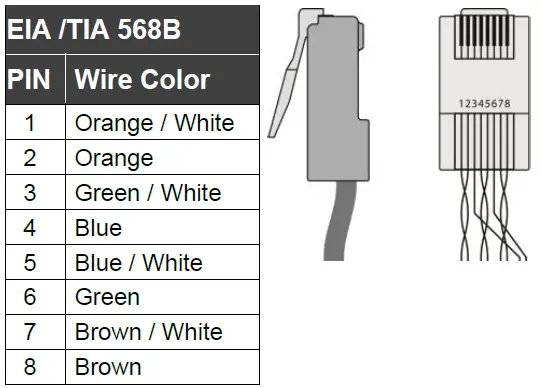

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
For HDBT cables, it is recommended that the cable ground shielding be connected/soldered to the connector shield.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/KIT-400. Using third-party cables may cause damage!
Connect power
To power the devices:
- Set the PoC switches to ON on both devices.
- Connect the power adapter to one of the devices (KIT-500T or KIT-500R).
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
- For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
- There are no operator serviceable parts inside the unit.
Warning:
- Failure to use PoC and power connector correctly may destroy the devices!
- Use only the power cord that is supplied with the unit.
Disconnect the power and unplug the unit from the wall before installing.
Operate KIT-500
Operate KIT-500 via:
- Front panel buttons
- Remotely, by RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller
- Embedded web pages via the Ethernet
- Remote control switches.
- Room Automation Panel.
| RS-232 Control / Protocol 3000 | |||
| Baud Rate: | 115,200 | Parity: | None |
| Data Bits: | 8 | Command Format: | ASCII |
| Stop Bits: | 1 | ||
| Example: (Set the Audio out volume level to 75): #AUD-LVL 1,1,75 | |||
| Default IP Parameters – DHCP ON | |||
| Fallback IP Address: | 192.168.1.39 | UDP Port #: | 50000 |
| Subnet mask: | 255.255.0.0 | TCP Port #: | 5000 |
| Gateway: | 0.0.0.0 | ||
| Default EDID | |||
| Default EDID Native Resolution | 4K@60 4:4:4 In the case that the HDMI display connected to KIT-500T does not support 4K60 4:4:4, copy your current EDID display to KIT-500T’s inputs. | ||
Operating via the remote control switches
Momentarily connect the desired pin to the GND pin to select an input:
| Pin Name | Function |
| KIT-500R | |
| TOGL | One button toggles between display on and display off (instead of using two separate buttons for on and off). Alternatively, using the KIT-500R OSD, configure turning the display on or off according to whether a switch is open or closed (for example, when using an occupancy sensor). |
| OFF | Turn off the display. |
| ON | Turn on the display. |
KIT-500R
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
