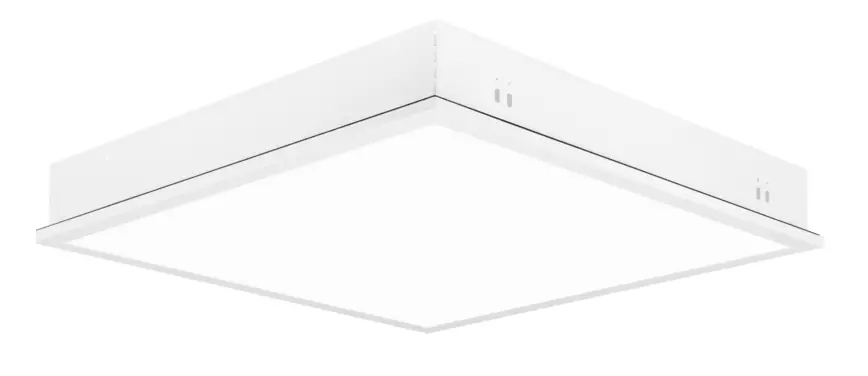

PXF LIGHTING Roma IP54 LED Luminaires Owner’s Manual
Series of luminaires recommended for rooms where increased IP protection degree is required. Luminaire dedicated for installation in 600×600 ceiling with visible grid and with OPAL diffuser.
Materials: Powder painted housing made of galvanized steel sheets (standard color: white), OPAL diffuser made of polycarbonate
Installation: suspended 600×600 ceilings with visible supporting frame
Power: 230 V
ELECTRICAL DATA
Light source: LED
Number of light sources: 1
Type of equipment: AC
Voltage rating: 220 … 240 V
Light source included: Yes
MECHANICAL DATA
Type of installation: For 600×600 ceiling
Housing material: Steel sheet
CERTIFICATES
Degree of protection (IP): IP54
Degree of protection (IP): / top/ IP20
Class of protection: I
CE: Yes
HACCP+: Yes
EAC: Yes
LIGHT DATA
Light colour: White
Color rendering index: 84
Light distribution: Wide beam
Light distribution: DI
Class of luminaire: I
Light output degradation: B10
Lumen maintenance: L80
Lifetime: > 72000 h
MacAdam: SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h): 85 %
OPTICAL DATA
Louver/ shutter: OPAL
Diffuser colour: White
Diffuser material: Opal/mat plastic
AVAILABE VARIANTS
| Product code | Luminaire power [W] | Luminaire luminous flux [lm] | Luminaire’s luminous efficacy [lm/W] | Colour temperature | Info | Weight [kg] |
| CF001.1111.830.A000PX3715350 | 38 | 4120 | 108 | 3000K | 600×600 | 4.60 |
| CF001.1111.840.A000PX3715358 | 38 | 4250 | 112 | 4000K | 600×600 | 4.60 |
| CF002.1111.830.A000PX3715366 | 43 | 4380 | 102 | 3000K | 300×1200 | 5.40 |
| CF002.1111.840.A000PX3715374 | 43 | 4520 | 105 | 4000K | 300×1200 | 5.40 |

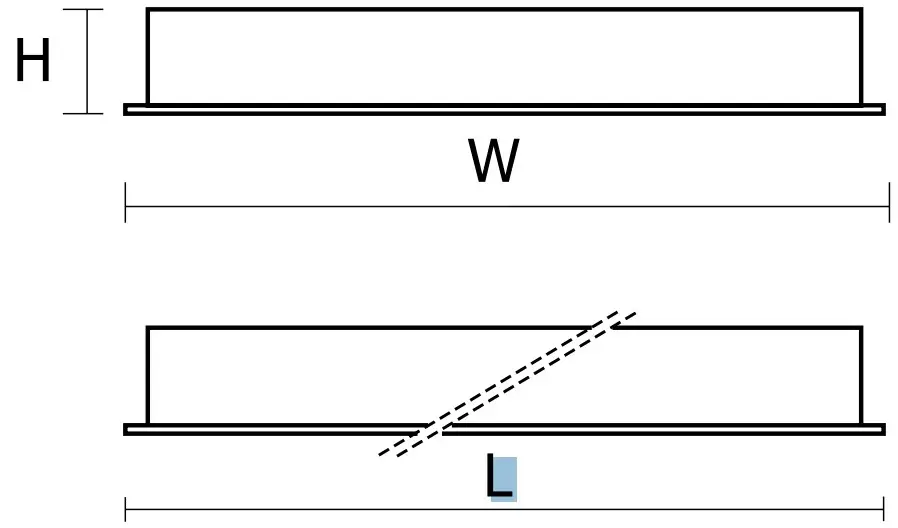

DIMENSIONS
| Product code | L [mm] | W [mm] | H [mm] |
| CF001.1111.830.A000PX3715350 | 595 | 595 | 80 |
| CF001.1111.840.A000PX3715358 | 595 | 595 | 80 |
| CF002.1111.830.A000PX3715366 | 295 | 1195 | 80 |
| CF002.1111.840.A000PX3715374 | 295 | 1195 | 80 |
L = Length | W = Width | H = Height / Depth
