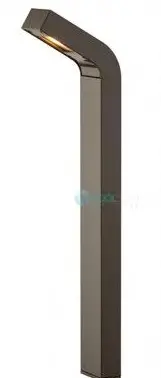

FX Luminaire M-PJ-3LED-BZ 3 LED Designer Plus Path Light
Product Information
The Designer Path Light M-PJ is a high-quality outdoor lighting fixture designed for illuminating pathways and gardens. It features a stylish design and is available in various powder-coat color options. The M-PJ model is compatible with different replacement parts and optional kits for customization.
Replacement Parts
| Item | Description | Catalog # |
|---|---|---|
| 1 | MPJFPXX* – 1LEDULKIT | 250028760000 |
| 2 | MPJFPXX* – 3LEDULKIT | 250028740000 |
| 3 | MPJFPXX* – ZDCKITM (Zoneable and dimmable) | 250028730000 |
| 4 | MPJFPXX* – MPJDMXX* (Color code options available) | 250028770000 |
| 5 | MPJFPXX* – CSKITMPJ | 250028520000 |
| 6 | MPJFPXX* – 762400 | 250024690000 |
| 7 | MPJFPXX* – 1LEDULKIT | 250015320000 |
Note: *XX refers to the powder-coat color code, and ZD should be added to the front of the part number for zoneable and dimmable options.
Product Usage Instructions
Follow the steps below to properly use the Designer Path Light M-PJ:
- Select a suitable location for installation, such as along pathways or in gardens.
- Ensure the power source is turned off before proceeding with installation.
- Assemble the path light by attaching the necessary replacementparts according to your desired configuration.
- Connect the path light to an appropriate power supply, following local electrical codes and regulations.
- Switch on the power supply and test the functionality of the path light.
- Adjust the zoneable and dimmable settings, if applicable, according to your preference using the ZDCKITM.
- Maintain the path light by regularly cleaning it with a soft cloth and avoiding harsh chemicals or abrasive materials.
- If any part of the path light becomes damaged or worn out, refer to the replacement parts catalog for the appropriate part number and order a replacement.
If you have any questions or need further assistance, please contact us at +1-760-591-7383 or visit our website at fxl.com.
Note: The information provided is based on the text extract from the user manual/instructions and may not cover all aspects of product usage. For complete and accurate instructions, always refer to the official user manual provided with the product.

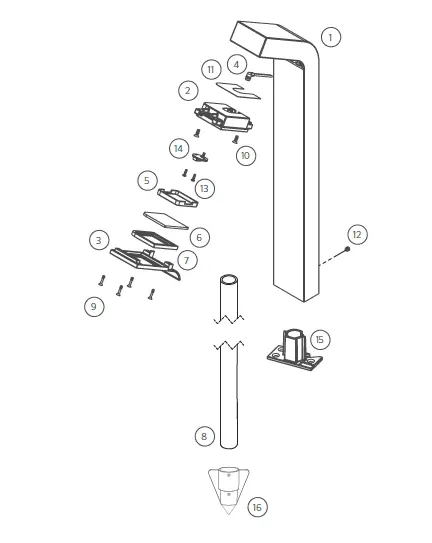

Replacement Parts
| ITEM | DESCRIPTION | CATALOG # |
| 1 | Riser Assembly | – |
| 2 | LED Housing | – |
| 3 | Faceplate, M-PJ | MPJFPXX* |
| 4 | 90° Socket | – |
| 5 | Color Filter | 250028760000 |
| 6 | Lens, Asymmetric | 250028740000 |
| 7 | Gasket | 250028730000 |
| 8 | Conduit Stake, 3/4″ (19 mm) PVC | 250028770000 |
| 9 | Screw, #6-32 x 5/ 8″ | 250028520000 |
| 10 | Screw, #8-32 x 7/ 16″ | 250024690000 |
| 11 | Thermal Pad | – |
| 12 | Setscrew, 1/4″-20 x 1/4″ | 250015320000 |
| 13 | Screw, #4-40 x 3/ 8″ | 762400 |
*XX = Powder-coat color code
†ZD = Zoneable and dimmable (add ZD to front of part number)
