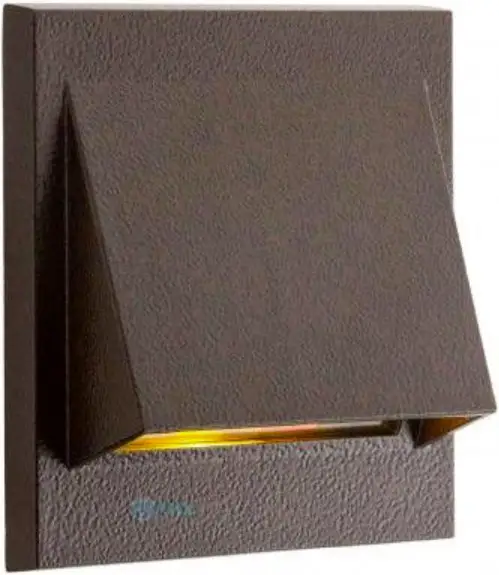

FX Luminaire SL-5-ZDC-FT-SB SL Wall Light User Manual

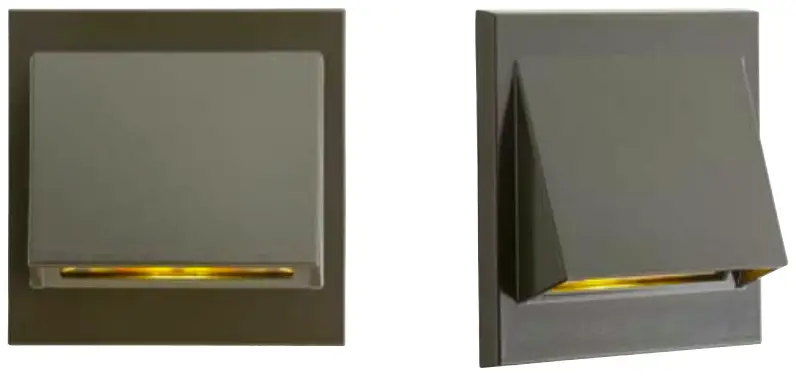

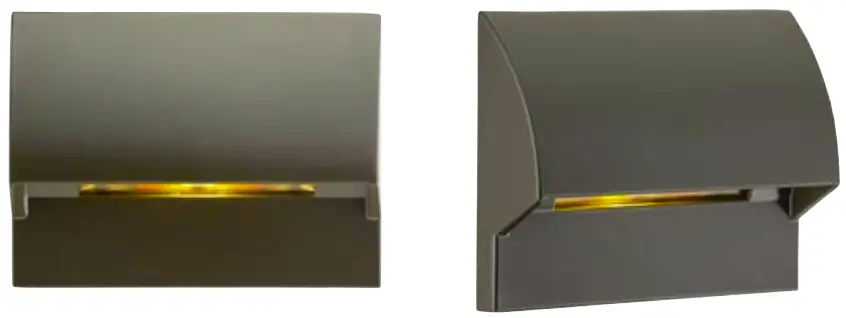

Product Overawe

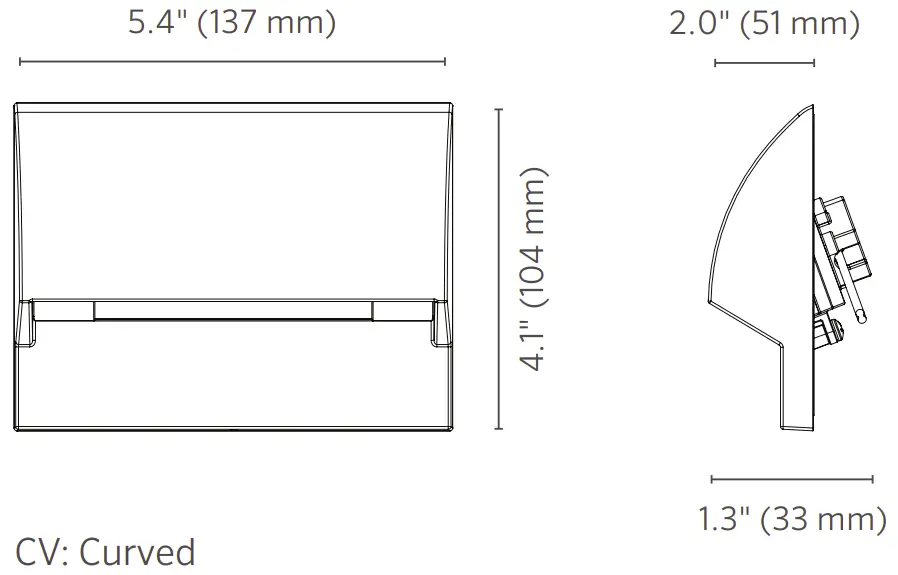

CV: Curved

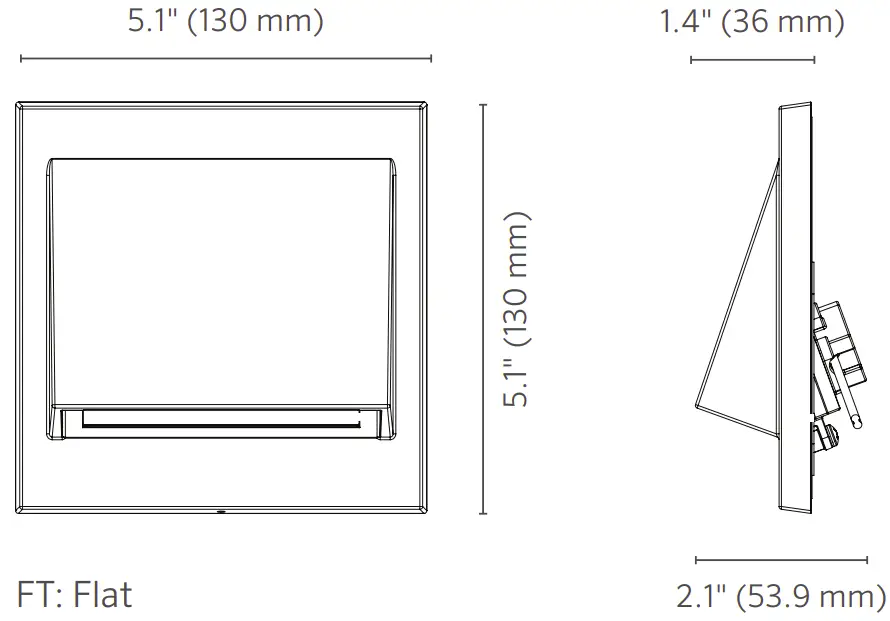

FT: Flat

Wall Light DESIGNER PLUS

This versatile wall light is available with two faceplate options to maximize design flexibility in a range of applications.

Quick Facts

• Die-cast aluminum
• Two-layer, marine-grade anodization and powder-coat finish
• Glare-free shielding
• Tamper-resistant features
• Cree® integrated LEDs
• Compatible with Luxor® Technology
• Phase and PWM dimmable
• Input voltage: 10 to 15 V

SPECIFICATIONS

† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K).
** For optimal performance, use a trailing-edge, (reverse phase-cut) dimmer.

FX Luminaire

FX Luminaire is an industryleading manufacturer of landscape and architectural lighting products with a focus on the advancement of LED technology and digital lighting control with zoning, dimming, and color adjustment capabilities.
We offer a full spectrum of specification-driven lighting fixtures that can be utilizedto create elegant, cuttingedge landscape lighting systems for commercial or residential applications.
Our products are available exclusively via our extensive professional distributor network.

Materials

Die-cast A380 aluminum body with stainless steel setscrews, mounting brackets, and fasteners.

Socket
Socket contains MoistureBlock™ Technology, preventing moisture from wicking up into sealed areas of the fixture.

Lamp
Integrated module with Cree LEDs. Gold-plated connectors and conformal coating for maximum reliability and corrosion resistance. Proprietary onboard intelligent driver uses firmware-controlled temperature regulation, maximizing LED life.
Field upgradable and replaceable, the LEDs are rated to 55,000 hrs.
Maximum drive current: 1 A.

Optics
Polycarbonate color temperature adjustment lenses included with fixture: 2,700K (preinstalled), 3,900K (no lens), 4,500K, and 5,200K. Beam angle is calculated using the LM-79 method for SSL fixtures.

Wiring
18 AWG (1 mm); SPT-1 W; 220°F (105°C); 300 V; 10′ (3 m) length

Faceplate
Die-cast A380 aluminum faceplate with UV-stabilized acrylic lens.

Power
Input 0 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately).

Housing
Die-cast A380 aluminum body with capacity for 1 LED, 3 LED, or ZDC integrated LEDs.

Lens
UV-stabilized acrylic with shock resistance and high tolerance for thermal expansion and stress.

Finish
Two-layer protection of sulfuric acid anodization and polyester TGIC powder-coat layer, providing superior outdoor weathering in all conditions. Tested to ASTM standards.

Ambient Operating Temperature
0°F to 140°F (-18°C to 60°C)

Hardware
Stainless steel machine screws.

Control
ZD or ZDC utilizes Luxor Technology to zone fixtures in up to 250 groups, dim each group in 1% increments between 0 and 100%, or change to one of 30,000 colors with RGBW LEDs.
Select the ZD option for zoning/dimming or ZDC for zoning/dimming/color.
Standard fixture is zoneable with Luxor Controller.

Sustainability
Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide highquality light at optimal energy efficiency, lifespan, and durability.

Weight
1.0 lb (0.5 kg)

Installation Requirements
Designed for recessed installation in a vertical surface. Included mounting bracket fits most singlegang junction boxes.

Manufacturing
ISO 9001:2015
certified facility

Warranty
10-year limited warranty

Listings

ORDERING INFORMATION

Fixture	Luxor Option	Output	Color Temp	Faceplate	Finish
SL-5	[default] Zone	1LED 49 lm	W Warm 2,700K	CV Curved	BZ Bronze Metallic
	ZD Zone/Dim	3LED 132 lm		FT Flat	DG Desert Granite
	ZDC Zone/Dim/Color	[default ZDC] 166 lm	[default ZDC] RGBW		WI Weathered Iron
					SB Sedona Brown
					FB Black
					WG White Gloss
					FW Flat White
					AL Almond
					SV Silver

EXAMPLE FIXTURE CONFIGURATION:
SL-5–ZD-3LED-W-CV-BZ

ACCESSORIES: Specify Separately

PHOTOMETRICS

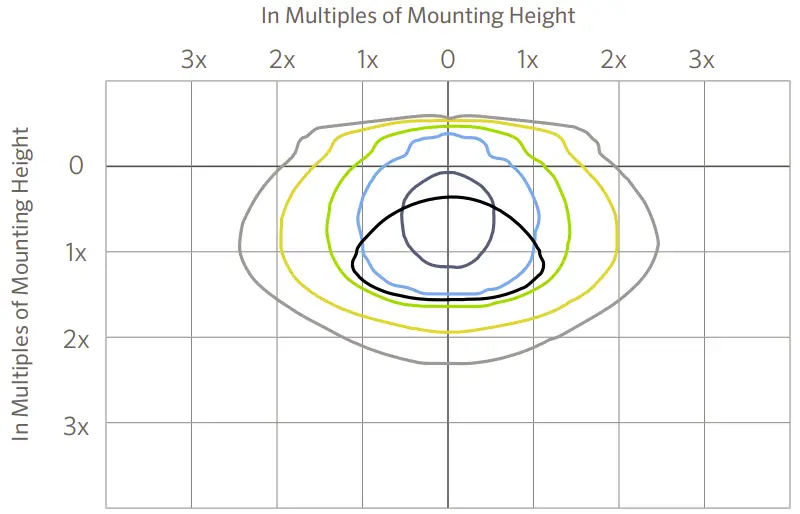

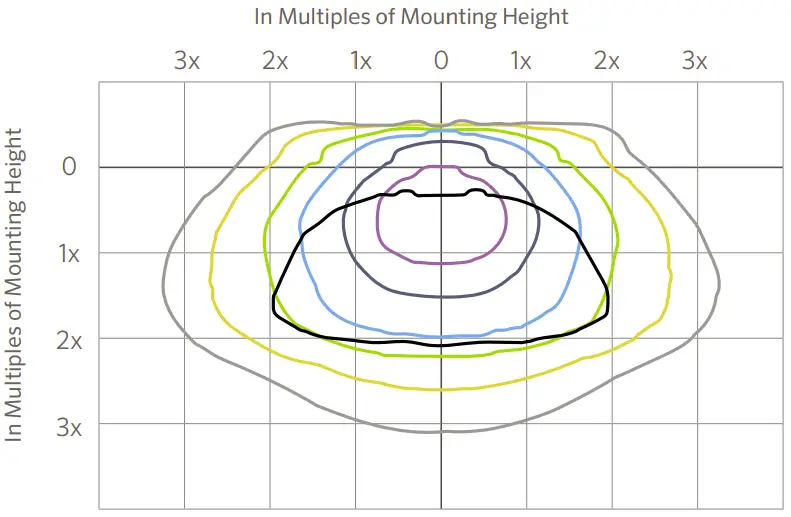

SL-5-CV 1 LED Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 1 fc (11 lx)
• 0.2 fc (2 lx)
• 0.1 fc (1 lx)

Mounting Height: 2′ (0.6 m) Total LLF: 1

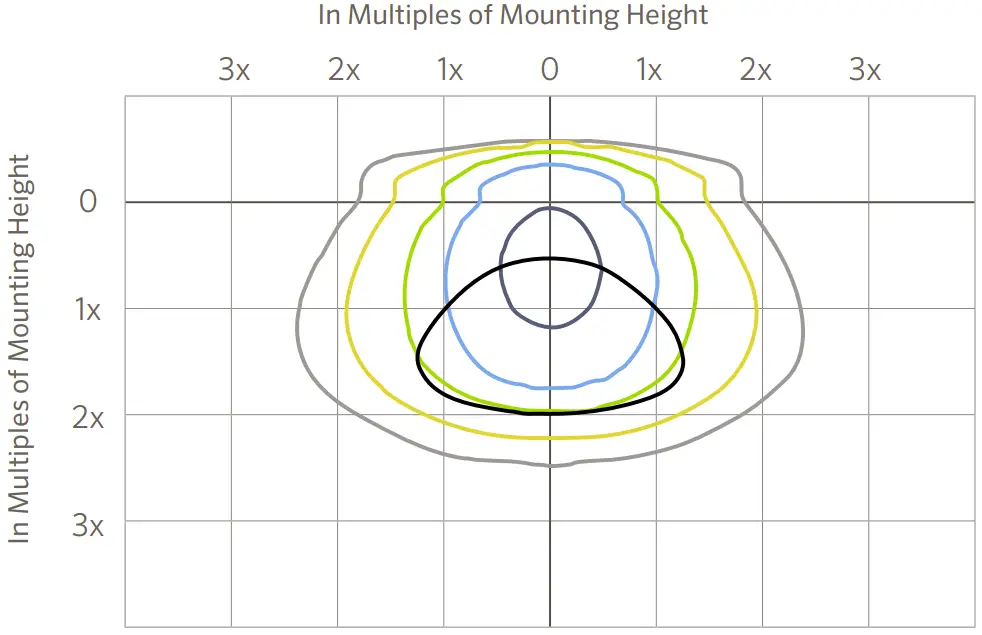

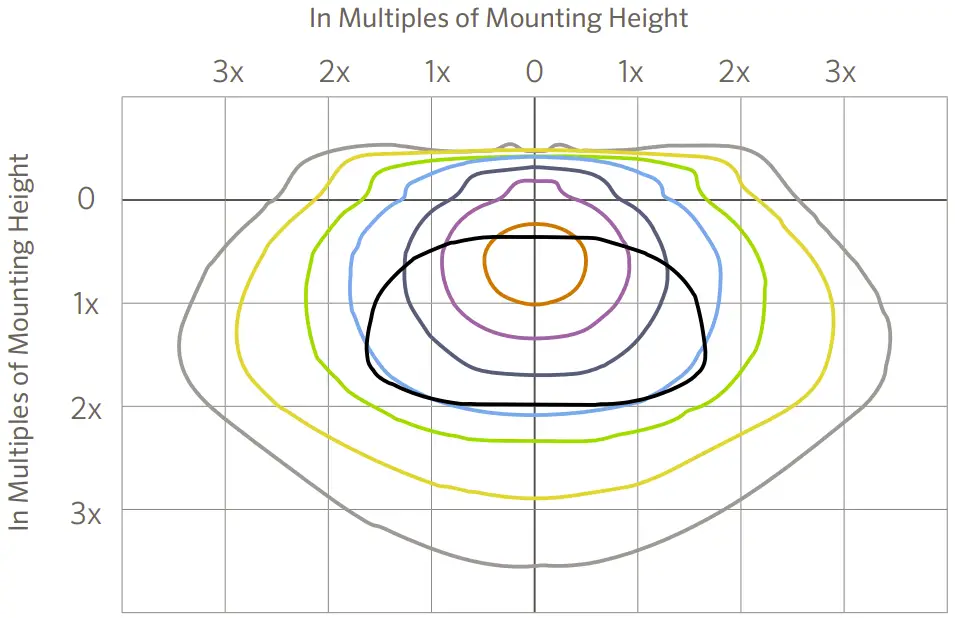

SL-5-CV 3 LED Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 1 fc (11 lx)
• 0.5 fc (5 lx)
• 0.2 fc (2 lx)
• 0.1 fc (1 lx)
• 50% Max Cd

Mounting Height: 2′ (0.6 m) Total LLF: 1

SL-5-CV ZDC Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 1 fc (11 lx)
• 0.5 fc (5 lx)
• 0.2 fc (2 lx)
• 0.1 fc (1 lx)
• 50% Max Cd

Mounting Height: 2′ (0.6 m) Total LLF: 1

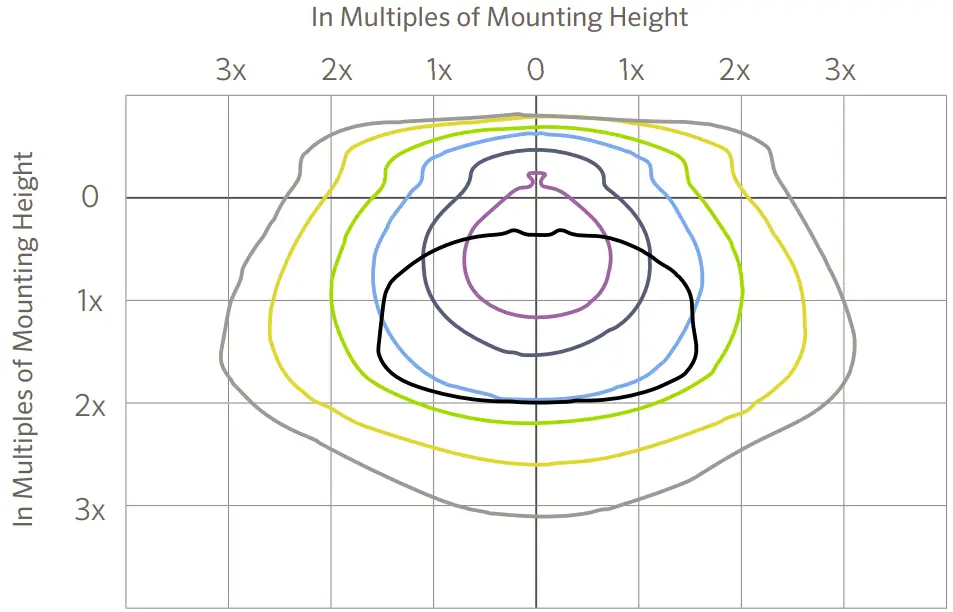

SL-5-FT 1 LED Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 0.2 fc (2 lx)
• 1 fc (11 lx)
• 0.1 fc (1 lx)
• 0.5 fc (5 lx)
• 50% Max Cd

Mounting Height: 2′ (0.6 m) Total LLF: 1

SL-5-FT 3 LED Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 0.2 fc (2 lx)
• 1 fc (11 lx)
• 0.1 fc (1 lx)
• 0.5 fc (5 lx)
• 50% Max Cd

Mounting Height: 2′ (0.6 m) Total LLF: 1

SL-5-FT ZDC Isofootcandle Plot

• 20 fc (215 lx)
• 10 fc (108 lx)
• 5 fc (54 lx)
• 2.5 fc (27 lx)
• 0.2 fc (2 lx)
• 1 fc (11 lx)
• 0.1 fc (1 lx)
• 0.5 fc (5 lx)
• 50% Max Cd

Mounting Height: 2′ (0.6 m) Total LLF: 1

Cree is a registered trademark of Cree Inc. MoistureBlock is a trademark of DSM&T Co. Inc.
© 2021 Hunter Industries™. Hunter, FX Luminaire, and all related logos are trademarks of Hunter Industries  registered in the U.S. and other countries.
