FX Luminaire DESIGNER PLUS RH Recessed Wall and Step Light
RRHH Recessed Wall/Step Light
DDEESSIIGGNNEERR PLUS

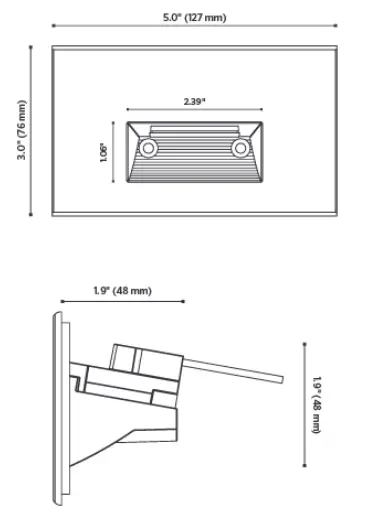

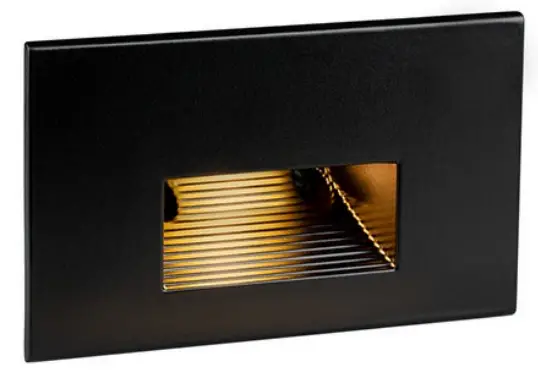

Designed for sleek, seamless installation, the fully recessed RH Step Light is a modern upgrade to lighting walkways and stairs. The fixtures are available with 1LED, 3LED, and ZDC configurations.The recessed integrated LED light sources are diffused for soft illumination on steps and walkways and maximum glare control, critical for applications where grade changes are inevitable and safety is a top priority. Fully potted with robust mechanical sealing and compatible with standardized single-gang junction boxes, the RH fixture is ideal for near-grade installations.
Quick Facts
- Die-cast aluminum ◼
- Lumileds® integrated LEDs
- Two-layer marine-grade anodization and powder coat finish
- Compatible with Luxor® technology
- Compatible with standardized singlegang junction boxes
- Phase dimmable
- Input voltage: 10-15 V
SPECIFICATIONS
| Output | 1LED | 3LED | ZDC |
| Total Lumens† | 36 | 86 | 98 |
| Input Voltage | 10 to 15V | 10 to 15V | 11 to 15V |
| Input Power | 1.9 W | 4.0 W | 6.0 W |
| Power Consumption (VA) | 2.2 W | 4.4 W | 7.2 W |
| Efficacy (Lumens/Watt) | 19 | 23 | 17 |
| Color Rendering Index (CRI) | 84 | 84 | 80+ |
| Max Candela | 21 | 49 | 56 |
| RGBW Available | No | No | Yes |
| Luxor Compatibility | |||
| Default | Zoning | Zoning | –– |
| ZD Option | Zoning/Dimming | Zoning/Dimming | –– |
| ZDC Option | –– | –– | Zoning/Dimming/Color |
| Minimum Rated Life L70 (Hrs) | 72,000 | 72,000 | 55,000 |
** For optimal performance, use a trailing-edge, phase-cut dimmer. † Measured using the 2,700K CCT option.
FX Luminaire
FX Luminaire is an industry-leading manufacturer of landscape and architectural lighting products with a focus on the advancement of LED technology and digital lighting control with zoning, dimming, and color adjustment capabilities. We offer a full spectrum of specification-driven lighting fixtures that can be utilized to create elegant, cutting-edge landscape lighting systems for commercial or residential applications. Our products are available exclusively via our extensive professional distributor network.
Materials
Die-cast A380 aluminum body with stainless steel setscrews, mounting brackets, and fasteners.
Lamp
Integrated module with Cree LEDs. Gold-plated connectors and conformal coated for maximum reliability and corrosion resistance. Proprietary on-board intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. Field upgradeable and replaceable, the LEDs are rated to 50,000 hrs. Maximum drive current: 1 A.
Optics
Color temperature defined by part number. Beam angle is calculated using LM-79 method for SSL luminaires.
Finish
Two-layer protection of sulfuric acid anodization and polyester TGIC powder-coat layer, providing superior outdoor weathering in all conditions. Tested to ASTM Standards.Color temperature defined by part number. Beam angle is calculated using LM-79 method for SSL luminaires.
Hardware
Tamper-resistant stainless steel fasteners included.
Wiring
18 AWG (1 mm); SPT-1W; 200°F (105°C); 300V; 10′ (3 m) length.
Sockets
Socket contains MoistureBlock™ technology, preventing moisture from wicking up into sealed areas of the fixture.
Power
Input 10–15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately).
Housing
Die-cast A380 aluminum body with capacity for 1 LED, 3 LED, or ZDC integrated LEDs.
Weight
1.0 lbs. (0.5 kg)
Lens
Polycarbonate lens with shock resistance and high tolerance for thermal expansion and stress.
Ambient Operating Temperature
0°F to 140°F (-18°C to 60°C)
Sustainability
Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high quality light at optimal energy efficiency, lifespan, and durability.
Installation Requirements
Designed for recessed installation in a vertical wall in the down lighting position only.
Control
ZD or ZDC utilizes Luxor technology to zone fixtures in up to 250 groups, dim each group in 1% increments between 0 and 100%, or change to one of 30,000 colors with RGWB LEDs. Select the ZD option for zoning/dimming or ZDC for zoning/diming/color. Standard fixture is zoneable with Luxor Controller.
Manufacturing
ISO 9001:2015 certified facility
Warranty
10-year limited warranty.
Listings

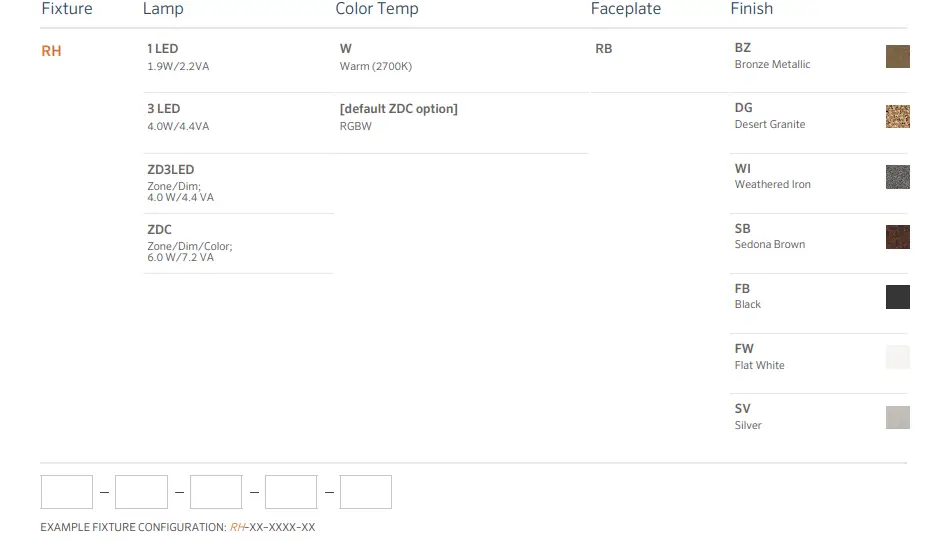

ORDERING INFORMATION

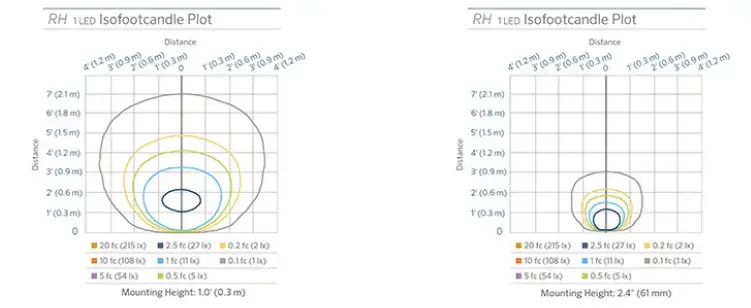

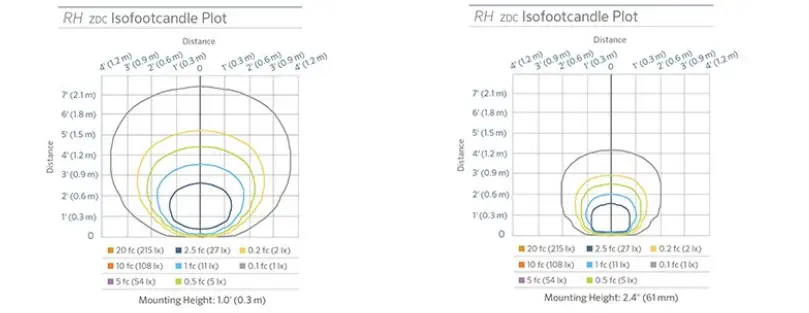

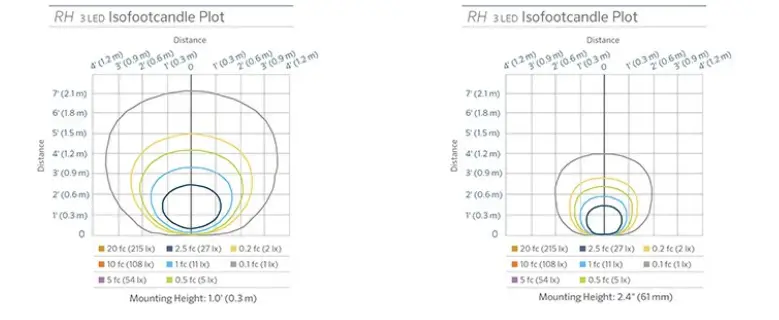

PHOTOMETRICS
| RH Step Light Recommended Spacing | ||||
| 1 LED | 3 LED | |||
| Foot-Candles (Lux) | 2.4″ (60 mm) MH | 1.0 ft (0.3 m) MH | 2.4″ (60 mm) MH | 1.0 ft (0.3 m) MH |
| 0.1 fc (1.1 lx) | 3.6 ft (1.1 m) | 6.4 ft (2.0 m) | 4.6 ft (1.4 m) | 8.2 ft (2.5 m) |
| 0.3 fc (3.2 lx) | 2.4 ft (0.7 m) | 4.6 ft (1.4 m) | 3.2 ft (1.0 m) | 6.0 ft (1.8 m) |
| 0.5 fc (5.4 lx) | 2.2 ft (0.7 m) | 4.0 ft (1.2 m) | 2.5 ft (0.8 m) | 5.0 ft (1.5 m) |
| 1.0 fc (10.7 lx) | 1.6 ft (0.5 m) | 3.0 ft (0.9 m) | 2.2 ft (0.7 m) | 4.0 ft (1.2 m) |
| 2.5 fc (10.7 lx) | 1.4 ft (0.4 m) | 2.0 ft (0.6 m) | 1.6 ft (0.5 m) | 2.8 ft (0.9 m) |
0.1 fc (1.1 lx) minimum spacing recommended for residential projects
0.3 fc (3.2 lx) minimum spacing recommended for commercial projects
POWER OPTIONS: Specify Separately
LANDSCAPE AND ARCHITECTURAL LIGHTING
Learn more. Visit: fxl.com | +1 760.744.5240
JB-1G-NW-NM | FX Luminaire
