PXF Lighting PX4086011 Alto LED
Product Information

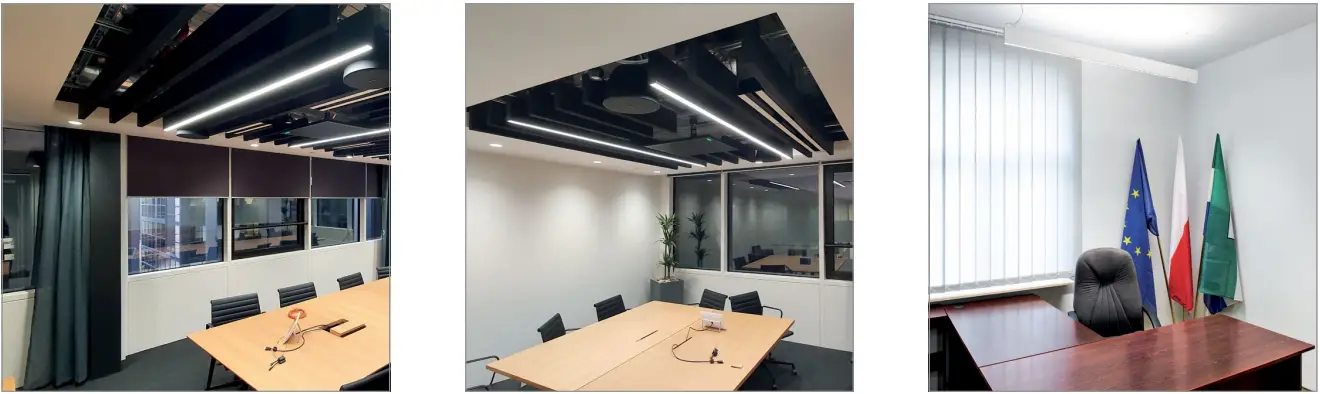

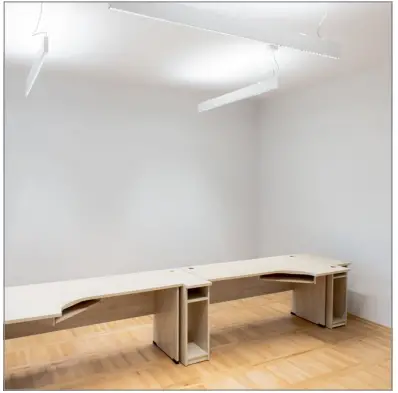

The Alto LED is a new LED lighting system designed for inline installation. It is an elegant and efficient luminaire suitable for lighting offices, conference rooms, receptions, and other working spaces. The housing material is made of electrostatically painted aluminum profile (standard color: grey) with a microprismatic diffuser (MPRM) made of PC or OPAL diffuser made of PC. It comes with a parabolical louver PAR and accessories such as end caps, suspensions (simple, electric), set for in-line installation. The product operates at a power of 230 V and has a degree of protection (IP) of IP20.
Product Usage Instructions
The Alto LED is designed for inline installation and is suitable for lighting offices, conference rooms, receptions, and other working spaces. The product comes with accessories such as end caps, suspensions (simple, electric), set for in-line installation. The product operates at a power of 230 V and has a degree of protection (IP) of IP20.
The luminaire is suspended and can be installed using the provided set for in-line installation. The product comes with a parabolical louver PAR and accessories such as end caps, suspensions (simple, electric), set for in-line installation. The housing material is made of electrostatically painted aluminum profile (standard color: grey) with a microprismatic diffuser (MPRM) made of PC or OPAL diffuser made of PC.
The product operates at a power of 230V and has a degree of protection (IP) of IP20. It is important to note that the Alto LED comes with through-wiring and light source included. The product is designed for light-line installation and has a color temperature range of 3000K to 4000K.
The Alto LED has a lifetime of more than 72000 hours with a lumen maintenance factor of 85% after 60 000 hours. It is available in different variants with a different luminaire power, louver/shutter, luminaire luminous flux, luminaire’s luminous efficacy, light distribution, and color temperature. Please refer to the product manual for more information on the available variants.
- New LED: lighting system designed for inline installation. ALTO LED is an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
- Materials: Electrostatically painted aluminum profile (standard color: grey), microprismatic diffuser (MPRM) made of PC or OPAL diff user made of PC. Parabolical louver PAR
- Installation: suspended
- Accessories: end caps, suspensions (simple, electric), set for in line installation
- Power: 230 V
ELECTRICAL DATA
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 220 … 240 V |
| Through-wiring | Yes |
| Light source included | Yes |
CERTIFICATES
| Degree of protection (IP) | IP20 |
| Degree of protection (IP) /top/ | IP20 |
| Class of protection | I |
| CE | Yes |
| HACCP+ | Yes |
| EAC | Yes |
MECHANICAL DATA | |
| Type of installation | Suspended |
| Housing material | Aluminum |
| Designed for light-line | Yes |
| INFORMATION | |
| Colour | Grey |
| Operating temperature range | -20 … 40 °C |
LIGHT DATA
- Light colour: White
- Color rendering index: 84
- Light distribution: Mid beam
- Light output degradation: B10
- Lumen maintenance: L80
- Lifetime >: 72000 h
- MacAdam: SDCM 3
- Lamp Lumen: Maintenance Factor (after 60 000h) 85%
| AVAILABE VARIANTS | ||||||||
| Product code | Lumi- naire power [W] | Louver/ shutter | Luminaire luminous flux [lm] | Luminaire’s luminous effi- cacy [lm/W] | Light distribu- tion | Colour tempera- ture | Info | Weight [kg] |
| AA001.2211.830.A000 PX4086011 | 14 | OPAL | 1320 | 94 | DI | 3000K | – | 1.30 |
| AA001.2211.840.A000 PX4086018 | 14 | OPAL | 1340 | 96 | DI | 4000K | – | 1.30 |
| AA002.2211.830.A000 PX4086025 | 25 | OPAL | 2630 | 105 | DI | 3000K | – | 2.30 |
| AA002.2211.840.A000 PX4086032 | 25 | OPAL | 2690 | 108 | DI | 4000K | – | 2.30 |
| AA003.2211.830.A000 PX4086039 | 37 | OPAL | 3950 | 107 | DI | 3000K | – | 3.30 |
| AA003.2211.840.A000 PX4086046 | 37 | OPAL | 4030 | 109 | DI | 4000K | – | 3.30 |
| Product code | Lumi- naire power [W] | Louver/ shutter | Luminaire luminous flux [lm] | Luminaire’s luminous effi- cacy [lm/W] | Light distribu- tion | Colour tempera- ture | Info | Weight [kg] |
| AA004.2211.830.A000 PX4086053 | 48 | OPAL | 5260 | 110 | DI | 3000K | – | 4.40 |
| AA004.2211.840.A000 PX4086060 | 48 | OPAL | 5370 | 112 | DI | 4000K | – | 4.40 |
| AA001.2222.830.A000 PX4086067 | 14 | MPRM | 1410 | 101 | DI | 3000K | – | 1.30 |
| AA001.2222.840.A000 PX4086074 | 14 | MPRM | 1440 | 103 | DI | 4000K | – | 1.30 |
| AA002.2222.830.A000 PX4086081 | 25 | MPRM | 2820 | 113 | DI | 3000K | – | 2.30 |
| AA002.2222.840.A000 PX4086088 | 25 | MPRM | 2880 | 115 | DI | 4000K | – | 2.30 |
| AA003.2222.830.A000 PX4086095 | 37 | MPRM | 4230 | 114 | DI | 3000K | – | 3.30 |
| AA003.2222.840.A000 PX4086102 | 37 | MPRM | 4310 | 116 | DI | 4000K | – | 3.30 |
| AA004.2222.830.A000 PX4086109 | 48 | MPRM | 5640 | 118 | DI | 3000K | – | 4.40 |
| AA004.2222.840.A000 PX4086116 | 48 | MPRM | 5750 | 120 | DI | 4000K | – | 4.40 |
| AA001.2244.830.A000 PX4086301 | 12 | miniPAR | 1050 | 88 | DI | 3000K | – | 1.30 |
| AA001.2244.840.A000 PX4086308 | 12 | miniPAR | 1080 | 90 | DI | 4000K | – | 1.30 |
| AA002.2244.830.A000 PX4086315 | 21 | miniPAR | 2110 | 100 | DI | 3000K | – | 2.40 |
| AA002.2244.840.A000 PX4086322 | 21 | miniPAR | 2150 | 102 | DI | 4000K | – | 2.40 |
| AA003.2244.830.A000 PX4086329 | 30 | miniPAR | 3160 | 105 | DI | 3000K | – | 3.40 |
| AA003.2244.840.A000 PX4086336 | 30 | miniPAR | 3230 | 108 | DI | 4000K | – | 3.40 |
| AA004.2244.830.A000 PX4086343 | 40 | miniPAR | 4210 | 105 | DI | 3000K | – | 4.50 |
| AA004.2244.840.A000 PX4086350 | 40 | miniPAR | 4300 | 108 | DI | 4000K | – | 4.50 |
| AA005.2211.830.A000 PX4086123 | 37 | OPAL | 3900 | 105 | DI/IN | 3000K | DI-2630lm / IN-1270lm | 2.40 |
| AA005.2211.840.A000 PX4086130 | 37 | OPAL | 3990 | 108 | DI/IN | 4000K | DI-2690lm / IN-1300lm | 2.40 |
| AA006.2211.830.A000 PX4086137 | 59 | OPAL | 6490 | 110 | DI/IN | 3000K | DI-3940lm / IN-2550lm | 3.40 |
| AA006.2211.840.A000 PX4086144 | 59 | OPAL | 6630 | 112 | DI/IN | 4000K | DI-4030lm / IN-2600lm | 3.40 |
| AA007.2211.830.A000 PX4086151 | 79 | OPAL | 9080 | 115 | DI/IN | 3000K | DI-5260lm / IN-3820lm | 4.50 |
| AA007.2211.840.A000 PX4086158 | 79 | OPAL | 9270 | 117 | DI/IN | 4000K | DI-5370lm / IN-3900lm | 4.50 |
| AA005.2222.830.A000 PX4086165 | 37 | MPRM | 4090 | 111 | DI/IN | 3000K | DI-2820lm / IN-1270lm | 2.40 |
| AA005.2222.840.A000 PX4086172 | 37 | MPRM | 4180 | 113 | DI/IN | 4000K | DI-2880lm / IN-1300lm | 2.40 |
| AA006.2222.830.A000 PX4086179 | 59 | MPRM | 6780 | 115 | DI/IN | 3000K | DI-4230lm / IN-2550lm | 3.40 |
| AA006.2222.840.A000 PX4086186 | 59 | MPRM | 6910 | 117 | DI/IN | 4000K | DI-4310lm / IN-2600lm | 3.40 |
| AA007.2222.830.A000 PX4086193 | 79 | MPRM | 9460 | 120 | DI/IN | 3000K | DI-5640lm / IN-3820lm | 4.50 |
ACCESSORIES
| Electric element | |||
 | FS002.22.1500 PX0922077 | Grey | |
| Electrical suspension Pieces in set: 1 | FS002.11.1500 PX0922083 | White | |
| FS002.33.1500 PX0922090 | Black | ||
| PX4086394 | 5x L=545mm | ||
| Alto LED through wiring Pieces in set: 1 | PX4086395 | 5x L=1085mm | |
| PX4086396 | 5x L=1625mm | ||
| PX4086397 | 5x L=2170mm |
| Structural element | ||||
|
|
Alto End cap Pieces in set: 1 | FE001.22.0002 PX4086206 | Grey | |
| FE001.33.0002 PX4086210 | Black oxidized screws in set | Black | ||
| Connecting element | |
| FJ001.00.0000 PX4086214 | Stal |
| Alto Accessories for in line installation | |
| FL022.00.0000 PX4086221 | Tubular wrench 6x7mm |
| Installation element | ||
 |
Simple suspension Pieces in set: 1 |
FS001.00.1500 PX0922149 |

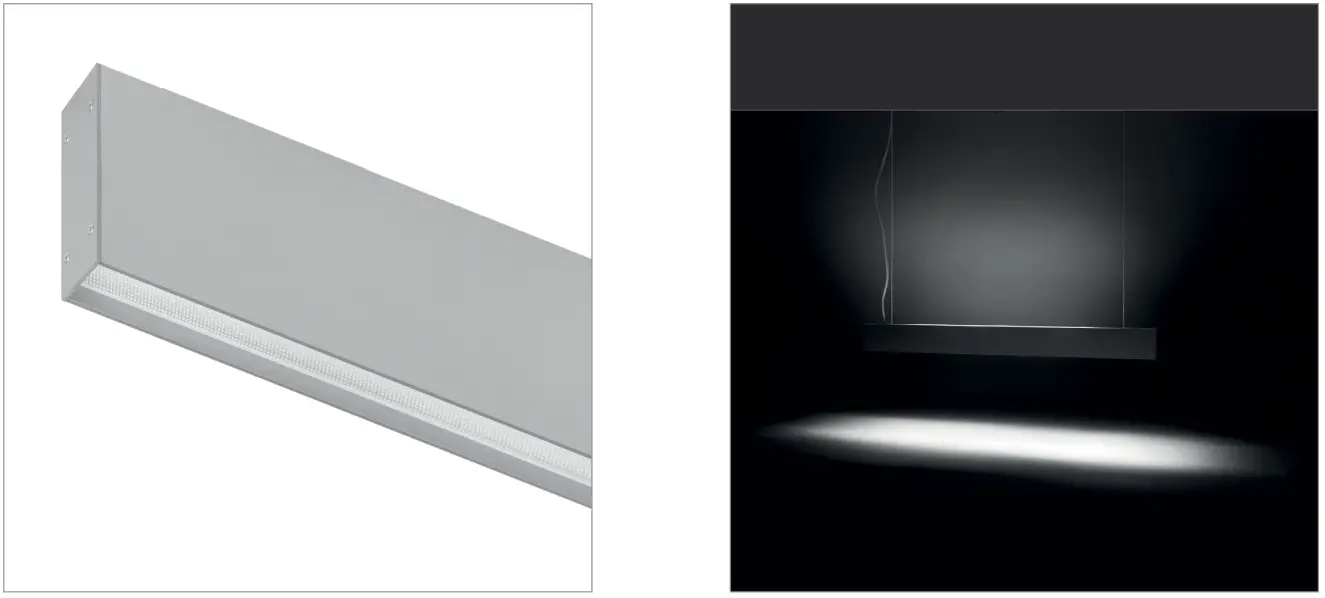

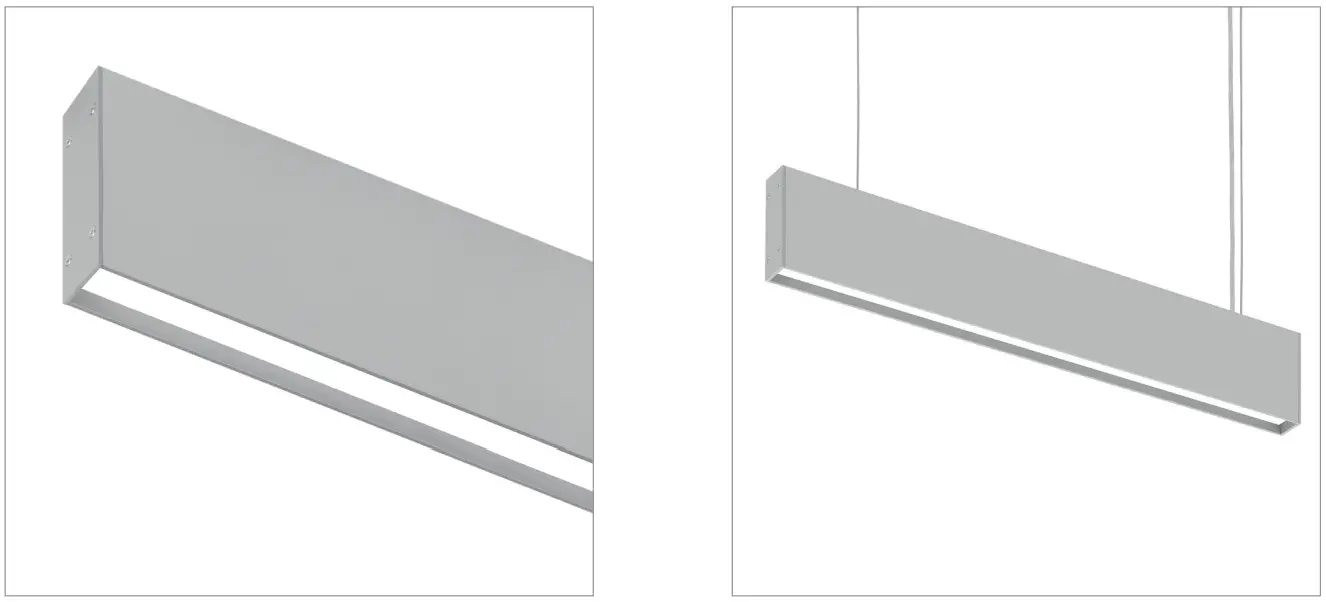

- ALTO LED OPAL

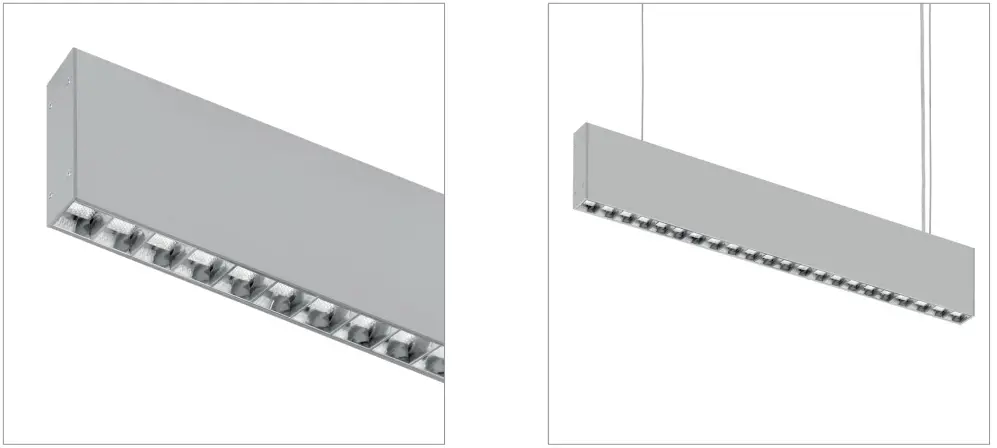

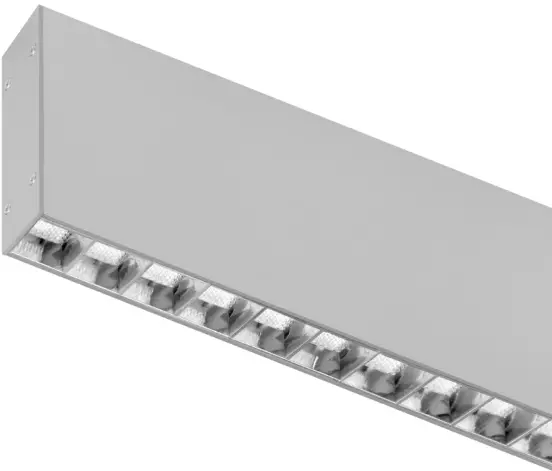

- ALTO LED PAR
- ALTO LED PAR
- ALTO LED MPRM
- ALTO LED DI-IN

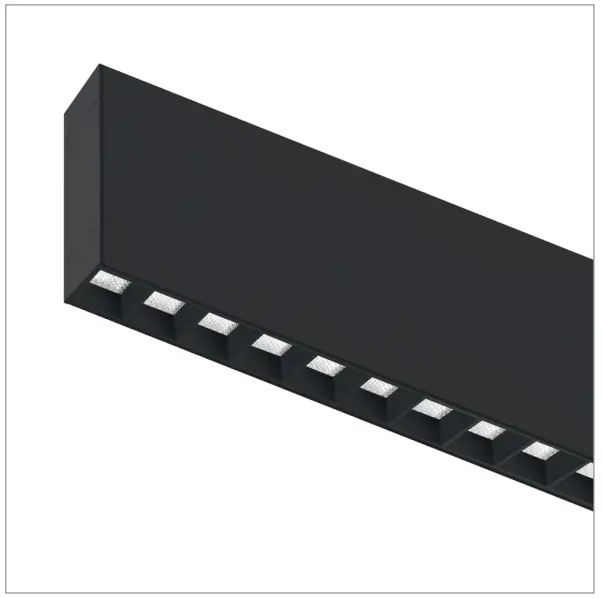

- On request: special black version with black louvers
