Pyle PLHRDVD90KT Universal Car Headrest Mount Monitor

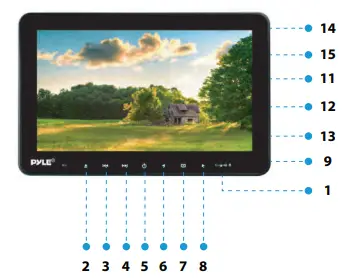

FRONT PANEL
MULTIMEDIA PLAYER
Only on selected unit models — Review product specs & features for detailed info
- LCD Panel
- Open
- Pre/Rewind Forward
- Next/Fast
- Power
- –
- Menu
- +
- DC 12V
- DC Jacket
- HDMI Read Port
- AV2 IN jack
- Earphone jack
- USB Read Port
- SD Read Port
SIDE PANEL
- Power
- Earphone/AV2 jack
- SD
- DC 12V Jacket
- 5.HDMI PORT

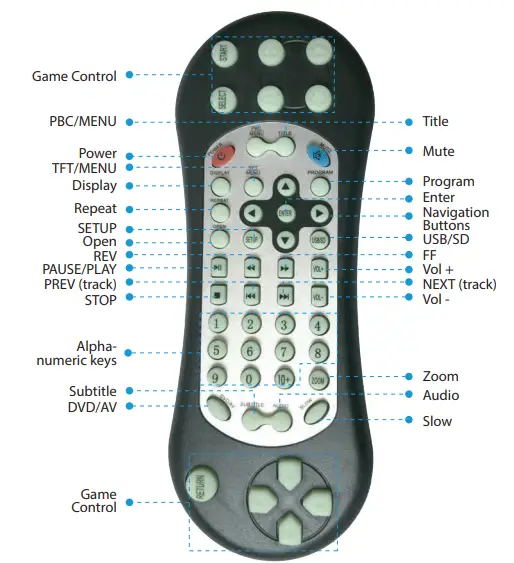

REMOTE CONTROL

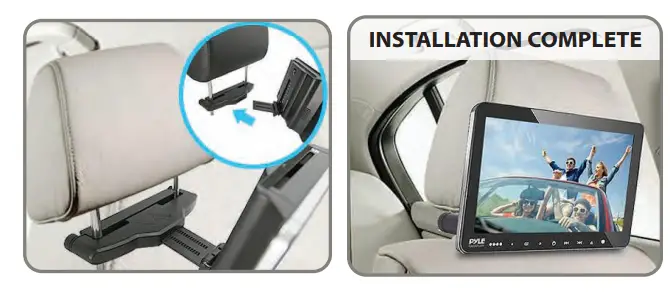

INSTALLATION

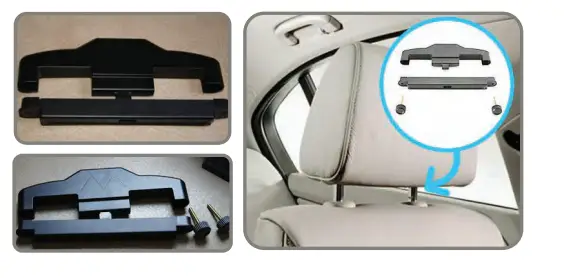

- Remove the screws from bracket like below picture to install the bracket on iron tube.

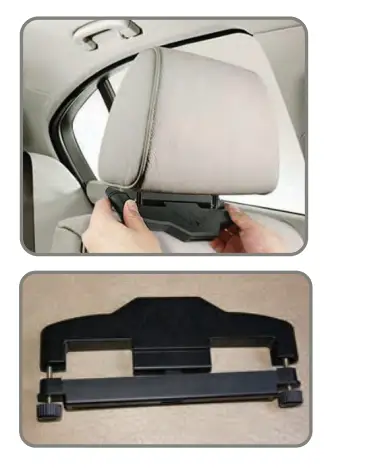

- Put the plastic bracket parts in between two metal poles, at the same time, push 2 screws to fix up bracket.

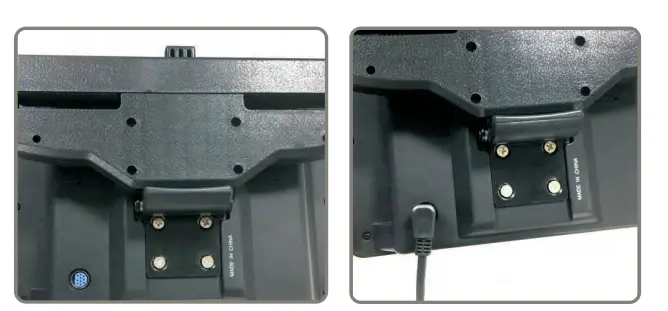

- Hold up unit, insert the metal plate at the back of the unit into plastic bracket parts, then adjust it to the right angle and fix it tightly, at last lower the orignal car headrest to the appropriate position.

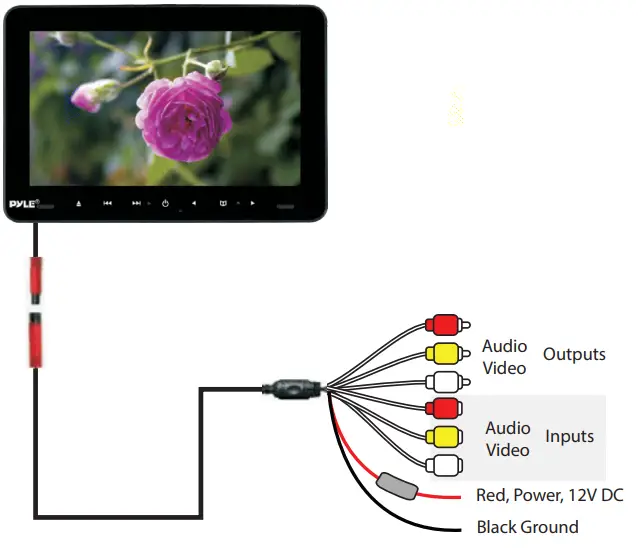

WIRING DIAGRAM
- Mini Din Connector
- Attach power cable to connect
WIRING DIAGRAM
Attention
- Do not put the machine in the rain or damp environment lest outbreak offire or any damage to machine.
- Do not repair the machine by youself. Please turn off the machine and inform us if any problem found, the factory or the agent will arrange specialized personnel to disassemble and repair the machine for you .
- Please keep the machine away from dampness, dust, oil and straight sunlight.
- Do not use diluents or other chemical cleaner when cleaning the machine. Please clean the machine by soft cloth with special cleaner.
- Please keep the machine in a good environment. The storage temperature for this machine is from -4°F to 140°F.
- This machine only supports DIVX/MPEG4/DVD/DVDR+/SVCD/VCD/DVCD/CD/MP3/WMA/CD-R/RW/HDCD+-R/JPEG or CD-ROM7.
- Please prevent the machine from the influence of other equipment.
- For your safety, please do not turn or operate this machine when driving as it may be illegal in some countries and regions.
- Safe power supply: DC12V (voltage range:10V-14V)
Attention
There may be some small and bright spots on the screen. This is a common technical matter and does not indicate any quality problem of this machine.

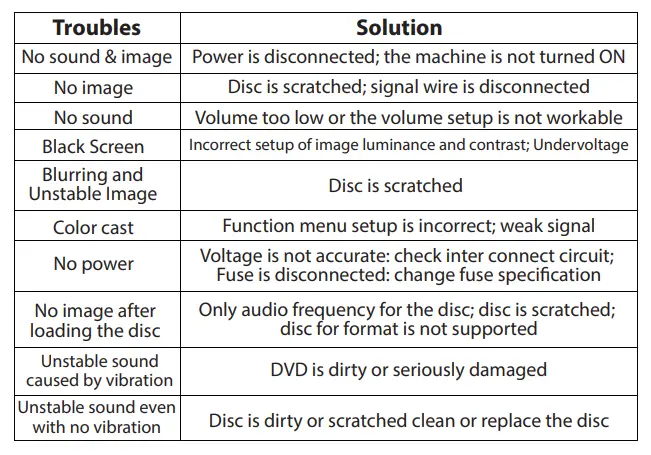

TROUBLESHOOTING

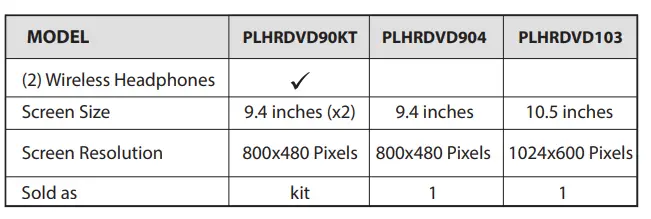

FEATURES AND FUNCTIONS

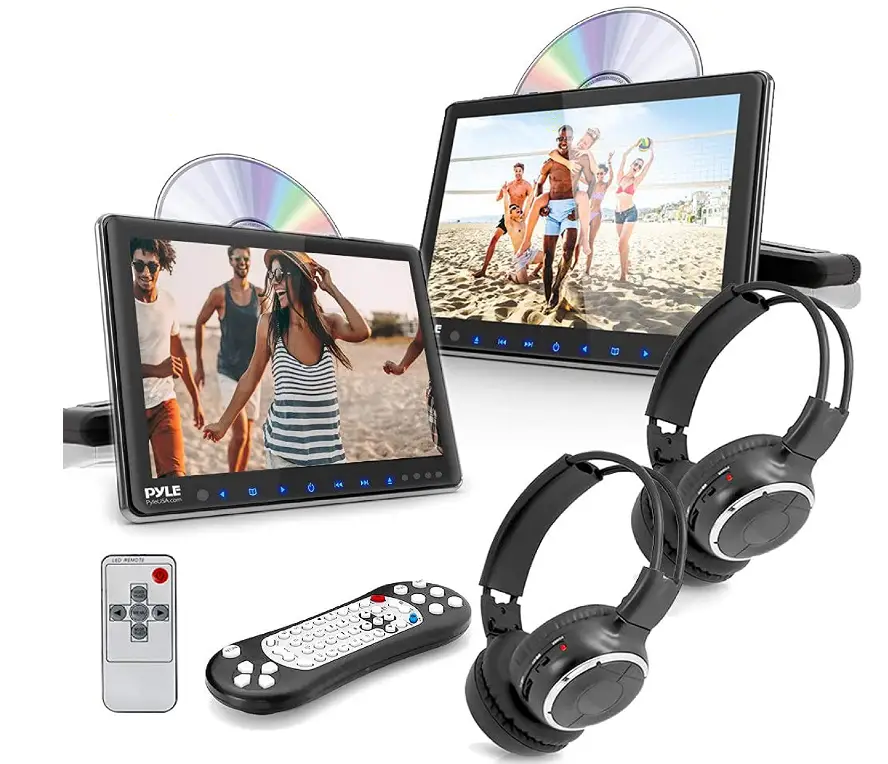

PLHRDVD90KT
Dual Vehicle Headrest Mount Multimedia Disc Player System – Car Video Entertainment Display Monitors with Wireless Headphones (9.4’’ -inch)
PLHRDVD904
Single Vehicle Headrest Mount Multimedia Disc Player Car Video Entertainment Display Monitor (9.4’’ -inch)
PLHRDVD103
Single Vehicle Headrest Mount Multimedia Disc Player Car Video Entertainment Display Monitor (10.5’’ -inch)
Features
- Universal Vehicle Headrest Mount Displays
- Top-Loading CD/DVD Player
- Audio & Video Entertainment System
- Hi-Res Digital LCD Wide-Screen Video
- Built-in Stereo Speakers
- Headphone Jack, 3.5mm
- USB Flash & SD Memory Card Readers
- Convenient Removable Leather Screen Cover
- Easily Attaches to Front-Seat & Back-Seat Headrests
- HDMI Input Port & AV Connector
- Connect Additional Device via RCA (Audio/Video) Wiring Harness
- Built-in IR Transmitter for Wireless IR Headphone Use
- Front Panel Button Controls
- Integrated FM Transmitter
- Includes All Necessary Hardware & Cables for Installation
- Can be Hard-Wired or Powered via Included Plug-in
- Cigarette Lighter Power Cable
What’s in the Box?
- Headrest Mounting Brackets
- Remote Control
- Power Wiring Harness Cable
- Cigarette Lighter Power Cable
Technical Specifications
- Video System: PAL / NTSC Compatible Auto Switching
- Aspect Ratio: 16:9
- Contrast Ratio: 300:1
- Brightness: 350 cd/m2
- English OSD Menu
- Maximum USB/SD Card Size: 32GB
- CD/DVD Player Support: DVD/VCD/MP3/JPG/MP4/CD-R/CD-RW
- Digital File Compatibility: MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
- Power Supply: DC 12V
Frequently Asked Questions
It comes with two DVD players, mounts, headphones, and remotes. Additionally, it includes everything needed to hardwire it if desired. I believe mine also included an HDMI cable so I could connect two if I desired.
I’m not sure. But I regret having purchased this. 50% of the time it works.
There is a good chance that utilizing HDMI to connect a smartphone won’t work. You could, however, attach a chrome cast or a fire stick to this device.
This device has an HDMI port that can accept any additional HDMI interface. Nintendo should be consulted regarding device configuration.
Avoided hardwiring. Purchased backseat liners and covered the wires.
Yes, you can easily modify it thanks to the headrest mount bracket.
Yes, you are permitted to utilize the other monitor for a different car.
The best course of action is to call customer support so they can help you from there, but if you can return it, do so. This device is terrible, and I had problems with it right away.
The bracket would fit because the posts are centred and it is adjustable.
Yes
Only standard non-Android games can be played on this device.
This gadget performs both. You have the option of playing the same movie on both screens or a different movie.
Sincerely, I don’t know. It has only ever been used to play DVDs.
These aren’t tablets at all. However, if you have internet access, you can use a fire stick.
Yes, you can connect this device to three IR headphones.
I purchased the dual 12v and connected both to it.
Because there are errors in the listing. The first item I bought and reviewed was an incredibly thin HDMI cable.
