OTHR-HAX05 HDMI ARC Audio Extractor Adapter
User Guide

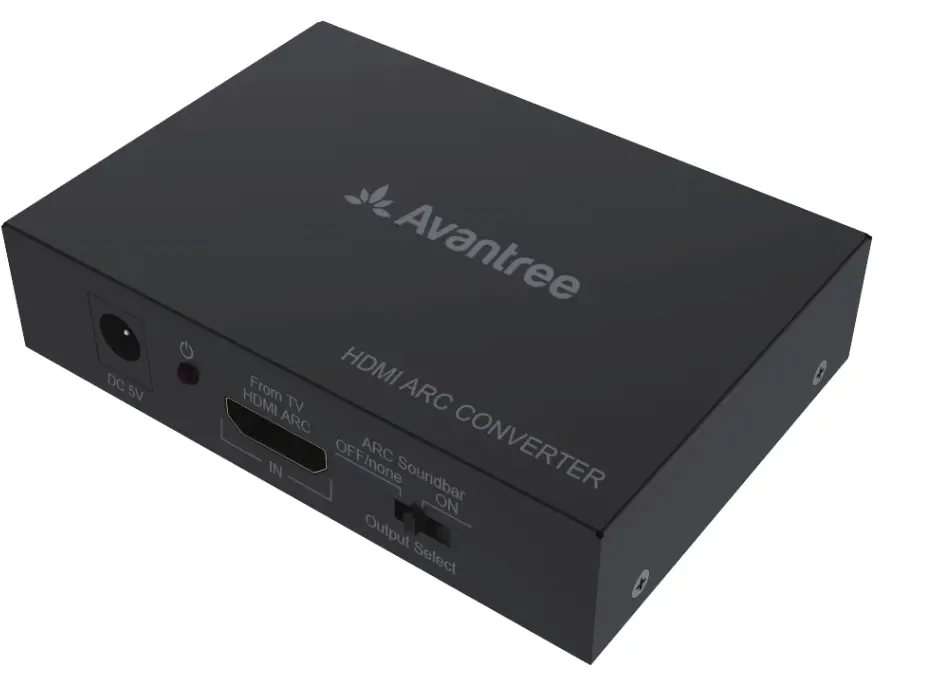

Audio Extractor Adapter
Complementos

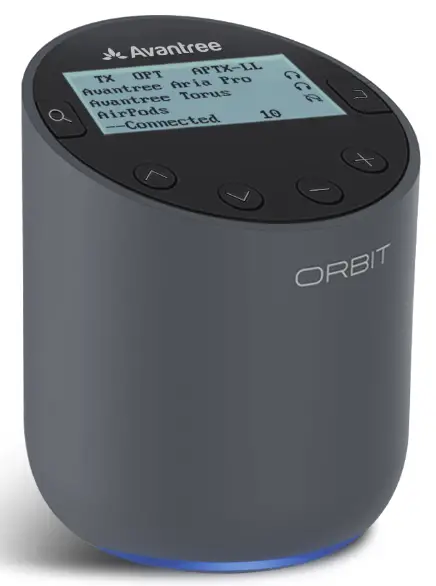

Orbit 5.1CH Bluetooth Transmitter.

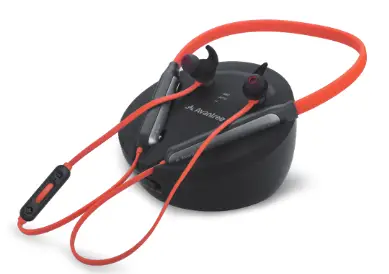

Opera Bluetooth Transmitter Headphones.

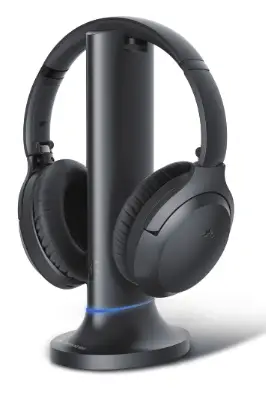

Medley Clear Bluetooth Transmitter Headphones.
Extract Audio from HDMI ARC port
Audio vom HDMI ARC-Anschluss extrahieren .

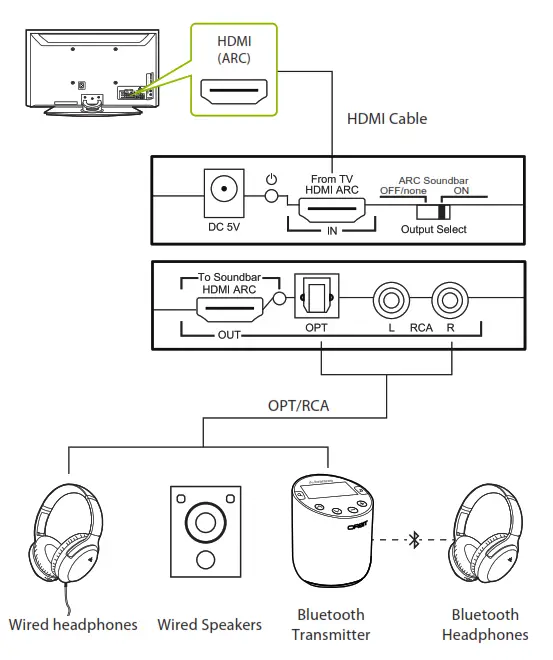

1.1 Connect devices
1.2 Set up devices

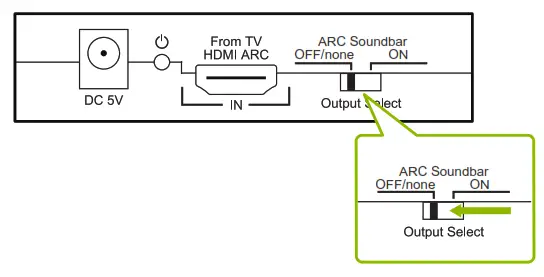

- Slide the output select to “ARC Soundbar OFF/none”
- LED is OFF
1.3 TV set up
- If no sound, please set to PCM audio.
REMOTE CONTROL
Go to SETTINGS > AUDIO > HDMI ARC > PCM
REMOTE CONTROL
Go to SETTINGS > Sound > Sound output > HDMI ARC > PCM
REMOTE CONTROL
AUDIO SETTING GUIDE
 |  |  |
| https://avantree.com/product-support/OTHR-HAX05#general-lg-tv | https://avantree.com/product-support/OTHR-HAX05#general-sony-tv | https://avantree.com/product-support/OTHR-HAX05#general-samsung-tv |
Important Notice
We recommend the Avantree Orbit Bluetooth Transmitter for wireless streaming. There is no need to switch your TV audio to PCM and you can receive 5.1CH audio from our ARC soundbar (with HAX05 in passthrough mode) and 2.0CH when streaming to Bluetooth headphones.
Extract Audio from occupied HDMI ARC port

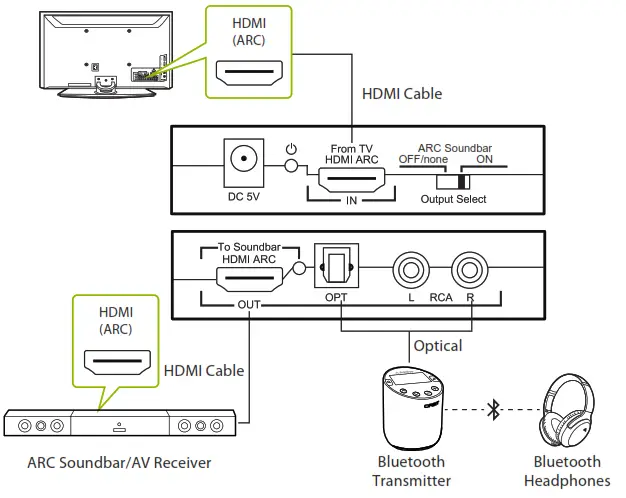

2.1 Connect devices
2.2 Set up devices
- Turn on your ARC soundbar.

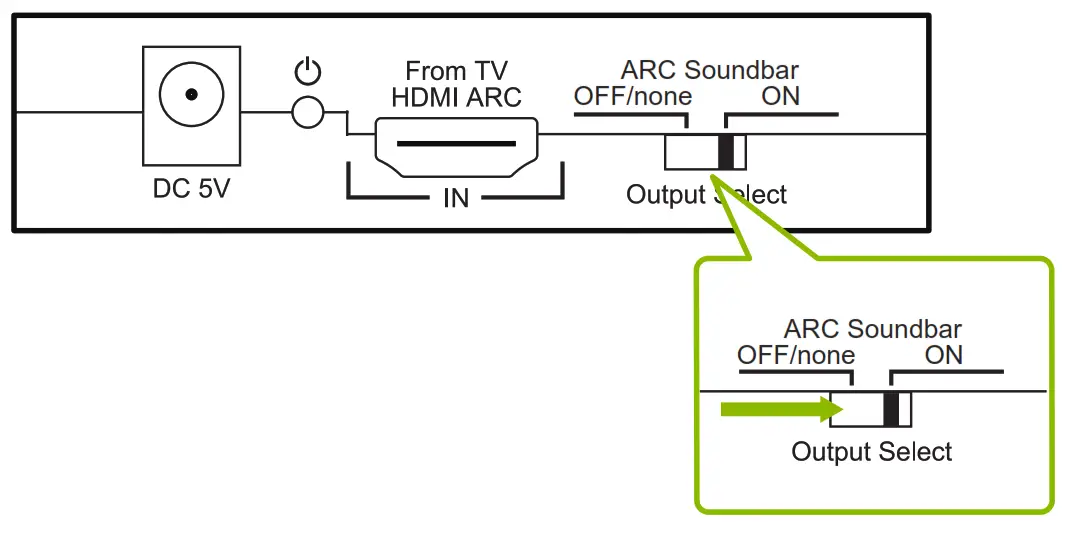

- Slide the output select switch to “ON”

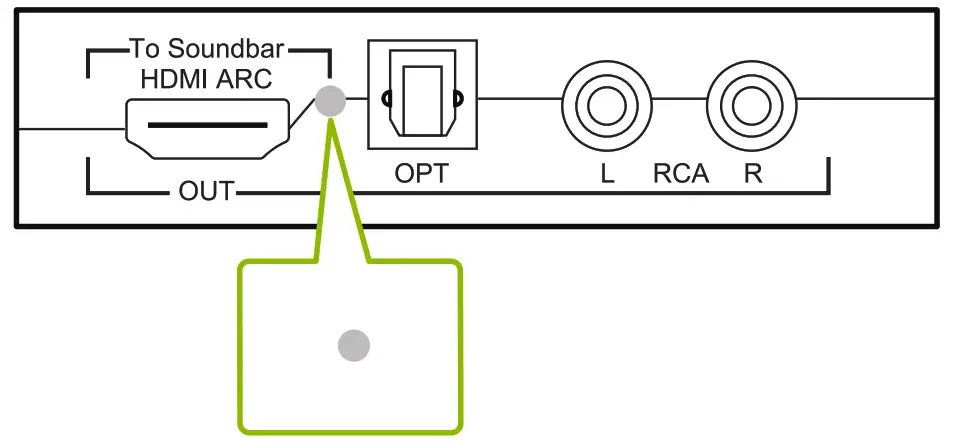

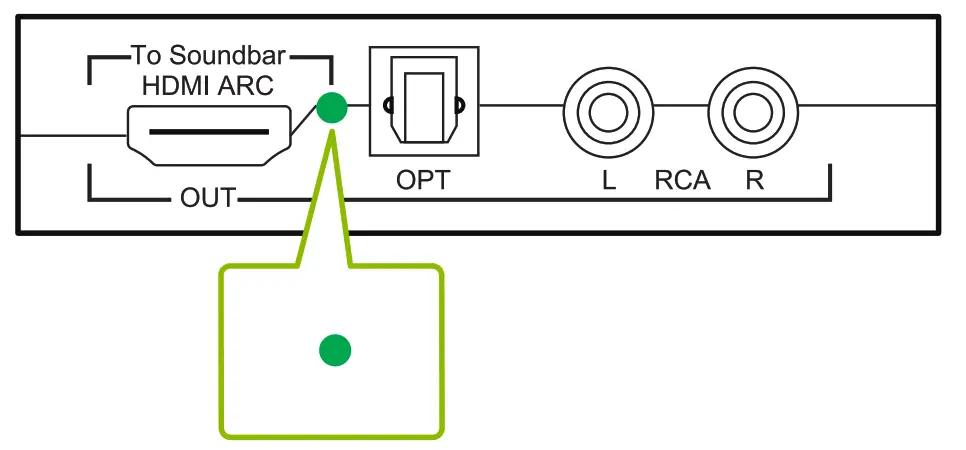

- Green LED should light up
2.3 TV Set up Go to Step 1.3
Online Support
Online-Hilfe
http://avantree.com/hax05/video
Watch step-by-step video tutorial from avantree.com/hax05/video before installation.
Troubleshooting & Advanced Functions
- How to use with PS4/PS5, cable box, Blu-Ray Player
- How to use my AV receiver
- How to keep 5.1 surround sound with my HDMI sound bar?
Contact Us
 | Ticket Support avantree.com/submit-a-ticket |
 | Support Email [email protected] |
 | USA / Canada +1800 232 2078 (US Toll Free, 9am-6pm PST, Mon-Fri ) |
| avantree.com/hax05/video |
 | Faqs avantree.com/support/hax05 |
 | Register product at avantree.com/product-registration |
Model No: OTHR-HAX05
