Certech Utp Keystone Jack 180˚ Installation Guide

CERTECH UTP Keystone Jack 180˚ Installation Guide

YOU WILL NEED

• CTSTRIP
  UTP/STP Cable Cutter & Stripper

• JKRAPID
  Rapid Termination Tool for 180˚ Keystone Jacks


Installation instruction

1. Strip the outer jacket 38mm

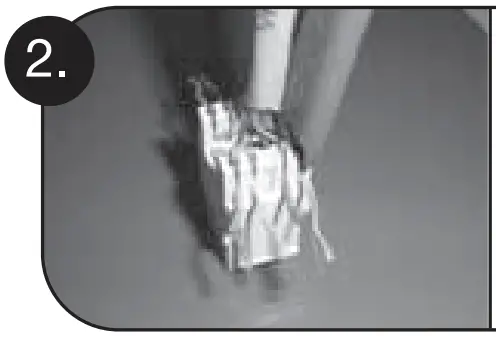

2. Seat the color coded wire pairs in the corresponding colors on the IDC’s as per wiring configuration T568A or T568B

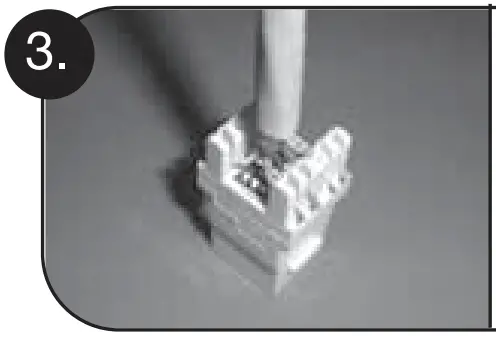

3. Punch down the wire pairs with the Rapid Termination Tool.

4. Carefully snip the excess wires. Clip the cable retention cap/dust cover into place.


http://www.certech.com.au/
