Legrand, Home Office & Theater, Keystone Jack
Specifications
- ITEM WEIGHT: 0.16 ounces
- PRODUCT DIMENSIONS: 1.18 x 0.67 x 0.87 inches
- SIZE: Pack of 1
- COLOR: Red
- STYLE: Cat 5e
- MEASUREMENT SYSTEM: Imperial
- USAGE: Residential
- BRAND: On-Q Store
Introduction

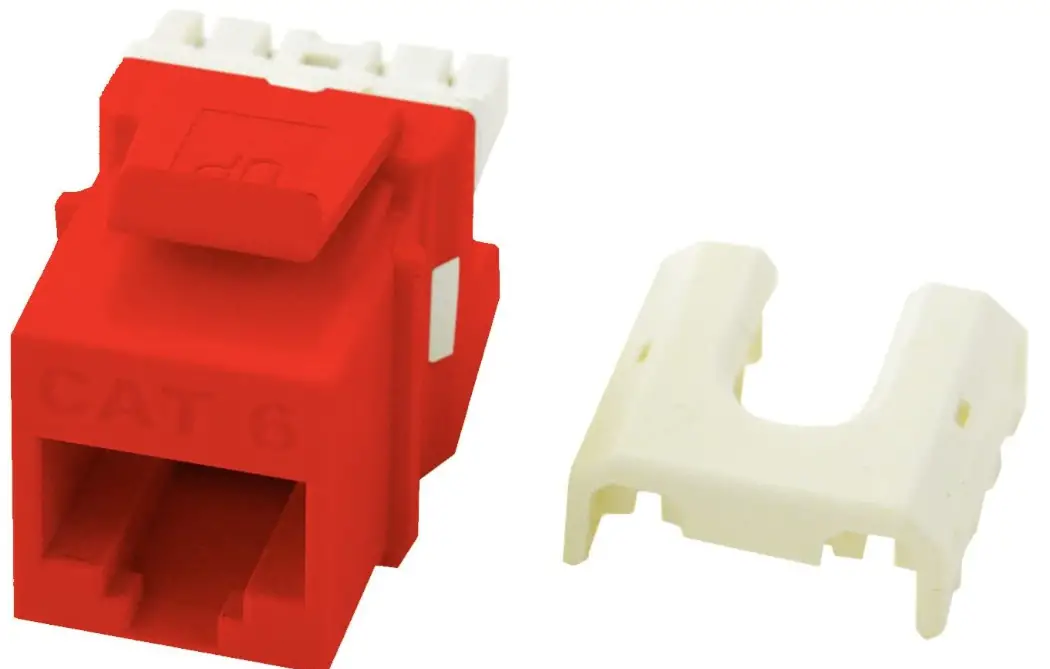

Using the Quick Connect CAT 6 RJ45 and the Legrand Punch & Go tool (Part Number AC3400), which terminates and trims all four pairs in a single press, you can save up to 40% on installation time (See attached video). Quick Connect is ended in the 110 styles, which means it can be terminated with any existing 110 punch-down tool. It meets or exceeds the performance requirements of TIA 568 Cat 6. Contractor packs of 10, 50, or 100 are also available. WP3476BKxx (xx=10, 50, or 100) is the part number to order.
WALLPLATES & INSERTS
our line of Keystone wall plates and cat 5e, cat6, cat6a, F-connectors, speaker binding posts and RCA inserts provide flexible setup options at any location.
FOR DECORATOR STRAPS WE OFFER A SERIES OF PRE-
configured outlet straps for data, phone, video, and home theater applications. Add a home theater strap to enable hD audio and video with a few simple connections, or quickly wire a home office using our pre-configured outlet straps that combine phone, data, and video into a single decorator opening.

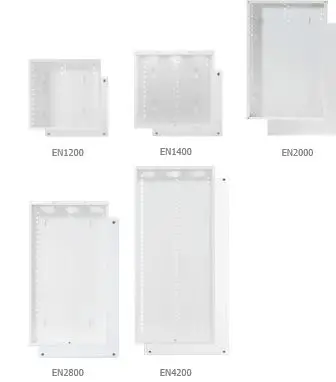

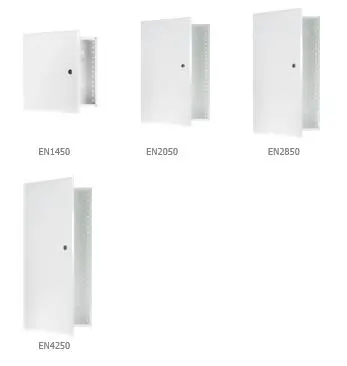

ENCLOSURES
our durable enclosures range in size from 12 to 42 inches to suit any installation. Every enclosure is made in the USA and is compatible with all major module mounting schemes. they offer three 2.5” top openings for high capacity projects, side lances, and side tabs for more flexible installation options. Available with hinged or screw-on doors, an on-q enclosure is the easy choice for professional projects.
WALLPLATES

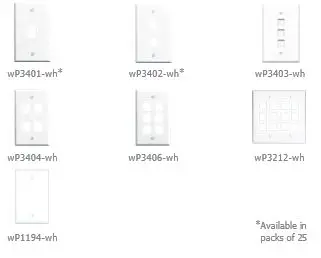

KEYSTONE WALL PLATES
| PART NO. | DESCRIPTION |
| WP3401-XX (KTPD1xx) | 1-Gang, 1-Port Wall Plate |
| 25 Count Bulk Pack in WH (W) or LA (WP3401-XX-25) | |
| WP3402-XX (KTPD2xx) | 1-Gang, 2-Port Wall Plate |
| 25 Count Bulk Pack in WH (W) or LA (WP3402-XX-25) | |
| WP3403-XX (KTPD3xx) | 1-Gang, 3-Port Wall Plate |
| WP3404-XX (KTPD4xx) | 1-Gang, 4-Port Wall Plate |
| WP3406-XX (KTPD6xx) | 1-Gang, 6-Port Wall Plate |
| WP3212-XX | 2-Gang, 12-Port Wall Plate |
| Colors: IV, LA and WH | |
| WP1194-XX | 1-Gang, Blank Wall Plate |
COLORS
BK, Br, IV (I), LA, WH (W)
DIMENSIONS
1-GAnG: 2.9375” x 4.6875” 2-GAnG: 4.75” x 4.6875”
KEYSTONE LABELED
WALL PLATES
| Part No. | Description |
| KTPDL1xx | 1-Port Keystone Labeled Wall Plate |
| KTPDL2xx | 2-Port Keystone Labeled Wall Plate |
| KTPDL3xx | 3-Port Keystone Labeled Wall Plate |
| KTPDL4xx | 4-Port Keystone Labeled Wall Plate |
| KTPDL6xx | 6-Port Keystone Labeled Wall Plate |
COLORS
i, LA, w
DIMENSIONS
1-GAnG: 2.9375” x 4.6875”
2-GANG
4.75” x 4.6875” oversized wall plates

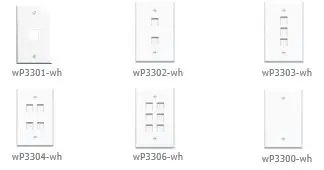

| Part No. | Description |
| WP3301-XX | 1-Gang, 1-Port Oversized Wall Plate |
| WP3302-XX | 1-Gang, 2-Port Oversized Wall Plate |
| WP3303-XX | 1-Gang, 3-Port Oversized Wall Plate |
| WP3304-XX | 1-Gang, 4-Port Oversized Wall Plate |
| WP3306-XX | 1-Gang, 6-Port Oversized Wall Plate |
| WP3300-XX | 1-Gang, Blank Oversized Wall Plate |
COLORS
wh, LA
DIMENSIONS
1-GANG: 3.3125” x 5.0625”2-GANG: 5.125” x 5.0625”
3-GANG: 6.9375” x 5.0625”4-GANG: 8.75” x 5.0625”
WALLPLATES & LOW VOLTAGE BRACKETS
DECORATOR WALL PLATES
| PART NO. | DESCRIPTION |
| TP13xx† (WP1194-XX) | 1-Gang Blank Wall Plate |
| TP26xx† (WP1205-XX) | 1-Gang Decorator Wall Plate |
| TP262xx† (WP1207-XX) | 2-Gang Decorator Wall Plate |
| TP263xx† (WP1208-XX) | 3-Gang Decorator Wall Plate |
| TP264xx† | 4-Gang Decorator Wall Plate |
COLORS
BK, Br, IV (I), LA, WH (W)
DIMENSIONS
1-GAnG: 2.9375” x 4.6875”
2-GAnG: 4.75” x 4.6875”
JUMBO DECORATOR
WALLPLATES
| Part No. | Description |
| TPJ13xx | Jumbo 1-Gang Blank Wall Plate |
| TPJ26xx | Jumbo 1-Gang Wall Plate |
| TPJ262xx | Jumbo 2-Gang Wall Plate |
| TPJ263xx | Jumbo 3-Gang Wall Plate |
COLORS
BK, I, LA, W
DIMENSIONS
1-GAnG: 3.3125” X 5.0625”, 2-GAnG: 5.125” X 5.0625”, 3-GAnG: 6.9375” X 5.0625” low voltage brackets

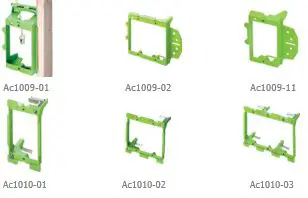

| PART NO. | DESCRIPTION |
| AC1009-01 | 1-Gang, LV Bracket w/nail, new Construction |
| AC1009-02 | 2-Gang, LV Bracket, Face mount, new |
| AC1009-11 | 1-Gang, LV Bracket, Face mount, new |
| AC1010-01 | 1-Gang, LV Bracket, retrofit |
| AC1010-02 | 2-Gang, LV Bracket, retrofit |
| AC1010-03 | 3-Gang, LV Bracket, retrofit |
| Crafted with Durable heavy-duty Plastic, ON-Q lv brackets feature AN OPEN back AND AN Integrated Cable management System for Clean CONNECTIONS AND Easy Installation |
COLOR OPTIONS

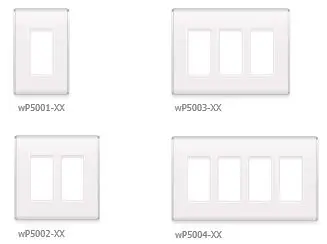

STUDIO WALL PLATES
one, two, three & Four-gang
| PART NO. | DESCRIPTION |
| WP5001-XX | 1-Gang studio Wall Plate |
| WP5002-XX | 2-Gang studio Wall Plate |
| WP5003-XX | 3-Gang studio Wall Plate |
| WP5004-XX | 4-Gang studio Wall Plate |
| Screwless Studio wall Plates ARE Compatible with Any DECORATOR- Style STRAP, Outlet OR Switch |
COLOR OPTIONS

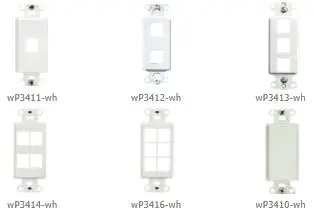

PRE-CONFIGURED DECORATOR STRAPS
DECORATOR STRAPS
| PART NO. | DESCRIPTION |
| WP3411-XX | 1-Port Decorator Outlet strap |
| WP3412-XX (Ks226xx) † | 2-Port Decorator Outlet strap |
| WP3413-XX (Ks326xx) † | 3-Port Decorator Outlet strap |
| WP3414-XX (Ks426xx) † | 4-Port Decorator Outlet strap |
| WP3416-XX | 6-Port Decorator Outlet strap |
| WP3410-XX | Blank Decorator Outlet strap |
COLORS: BK, Br, IV (I), LA, WH (W)

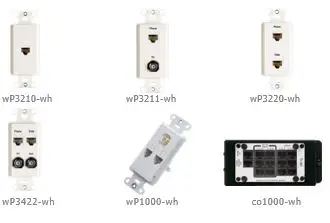

PRE-CONFIGURED
WALLPLATES
| PART NO. | DESCRIPTION |
| WP3210-XX | 1-Port strap, 1rJ45 |
| Colors: BK, LA, WH | |
| WP3211-XX | 2-Port strap Phone/TV |
| Colors: BK, LA, WH | |
| WP3220-XX | 2-Port strap Phone/Data |
| Colors: BK, LA, WH | |
| WP3422-XX | 4-Port strap Phone/Data, TV/AUX |
| with This PRE-Configured 4-PORT STRAP you CAN Offer Phone, DATA, Tv AND AN Auxiliary line IN ONE DECORATOR Opening. Perfect for home Office’s, mud AND Entertainment CENTERS. PRE-labeled for Easy Organization. | |
| Colors: BK, LA, WH | |
| WP1000-WH | PDP Phone/Data/Power standard strap (3 P w/Data) |
| Colors: IV, LA, WH | |
| CO1000-WH | Phone/Data module |
COLOR OPTIONS

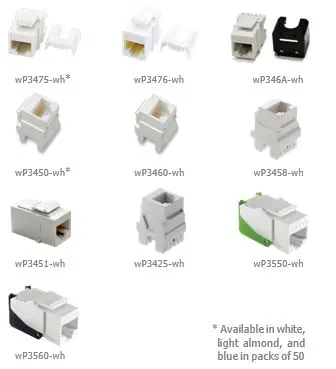

KEYSTONE INSERTS
TELEPHONE AND DATA
KEYSTONE INSERTS
| PART NO. | DESCRIPTION |
| WP3475-XX | Cat 5e Quick Connect rJ45 Keystone Connector |
| Colors: Be, BK, Br, GY, Gnu, IV, LA, Or, re, WH, Ye | |
| CAN be used with the labor Saving Punch & go Tool. | |
| WP3476-XX | Cat 6 Quick Connect rJ45 Keystone Connector |
| Colors: Be, BK, Br, GY, IV, LA, Or, re, WH | |
| WP346A-XX | Cat 6a Quick Connect rJ45 Keystone Insert |
| Colors: Be, BK, Br, GY, Gnu, IV, LA, Or, re, WH, Ye | |
| WP3450-XX (Ks58ABxx) † | Cat 5e rJ45 Keystone Connector |
| Colors: Be (BL), BK, Br, GY (Gray), IV (I), LA, Or, re (red), WH (WH) | |
| WP3460-XX (Ks68ABxx) † | Cat 6 rJ45 Keystone Connector |
| Colors: Be (BL), BK, Br, GY (Gray), IV (I), LA, Or, re (red), WH (WH) | |
| WP3458-XX | Cat 5e Keyed rJ45 Keystone Connector |
| Colors: BK, Br, IV, LA, WH | |
| WP3451-XX (Ks888xx) | Cat 5e rJ45 Keystone Coupler |
| Colors: BK, WH (W) | |
| WP3425-XX (Ks6Uxx) † | rJ25 6P6C Keystone Connector |
| Colors: BK, Br, IV (I), LA, WH (W) | |
| WP3550-XX | snap & Go Cat 5e Keystone Connector |
| Colors: Be, BK, Br, GY, IV, LA, Or, re, WH | |
| WP3560-XX | snap & Go Cat 6 Keystone Connector |
| Colors: Be, BK, Br, GY, IV, LA, Or, re, WH |

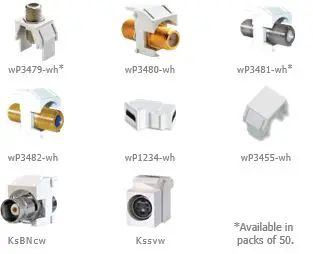

VIDEO INSERTS
| PART NO. | DESCRIPTION |
| WP3479-XX | non-recessed Coax Keystone F-Connector (1 GHz) |
| 50 Count Bulk Pack in WH or LA (WP3479-XX-50) | |
| WP3480-XX | recessed Gold F-Connector (3GHz) |
| WP3481-XX (Kofax) | recessed nickel F-Connector (3GHz) |
| 50 Count Bulk Pack in WH (WP3481-WH-50) | |
| WP3482-XX (Skiffs) | recessed self-Terminating Keystone F-Connector (1 GHz) |
| WP1234-XX | HDMI Keystone Insert/Coupler |
| WP3455-XX (KsBL10xx) † | Blank Keystone Insert |
COLORS
BK, Br, IV (I), LA, WH (W)
| KsBnCxx | Keystone BnC-to-BnC Connector |
| KssVxx | Keystone s-Video-to-110 Termination |
KEYSTONE INSERTS
RCA-TO-F INSERTS

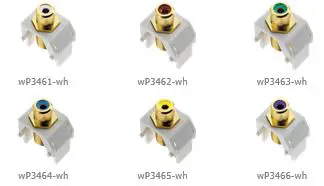

| PART NO. | DESCRIPTION |
| WP3461-XX | White Keystone rCA-to-F Connector |
| WP3462-XX (KsrCAFxx)† | red Keystone rCA-to-F Connector |
| WP3463-XX | Green Keystone rCA-to-F Connector |
| WP3464-XX | Blue Keystone rCA-to-F Connector |
| WP3465-XX | Yellow Keystone rCA-to-F Connector |
| WP3466-XX | Purple Keystone rCA-to-F Connector |
COLORS
BK, Br, IV (I), LA, WH (W)
FIBER OPTIC INSERTS
| PART NO. | DESCRIPTION |
| KssCxx | Keystone sC multimode, Phosphor Bronze sleeve |
| KssTxx | Keystone sT multimode, Phosphor Bronze sleeve |
COLORS: I, LA, W

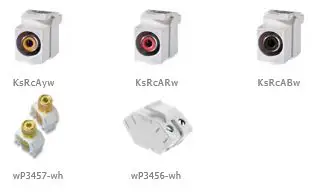

MULTIMEDIA INSERTS
| PART NO. | DESCRIPTION |
| KsrCAYxx | Keystone rCA-to-rCA (Yellow Insulator) |
| Colors: I, LA, W | |
| KsrCArxx | Keystone rCA-to-rCA (red Insulator) |
| Colors: I, LA, W | |
| KsrCABxx | Keystone rCA-to-rCA (Black Insulator) |
| Colors: I, LA, W | |
| WP3457-XX (Ks2BPxx)† | Audio Keystone Binding Post – Pair |
| Colors: BK, Br, IV (I), LA, WH (W) | |
| WP3456-XX | speaker Pair Insert |
| Colors: BK, Br, IV, LA, WH |
COLOR OPTIONS
COMMUNICATION DEVICES
PRE-MOLDED WALLPLATES
| PART NO. | DESCRIPTION |
| TPTe1xx† | 2-Line Telephone Jack Wall Plate (4 Conductor Configuration) |
| Colors: BK, Br, I, LA, W, GrY | |
| TPTe2xx† | Dual 2-LineTelephone Jack Wall Plate (4 Conductor Configuration) |
| Colors: BK, Br, I, LA, W | |
| 26Te14xx | Decorator 2-Line Telephone Jack (4 Conductor Configuration) |
| Colors: I, LA, W | |
| 26Te16xx | Decorator 3-Line Telephone Jack (6 Conductor Configuration) |
| Colors: I, W | |
| WmTe14xx | 2-Line Wall mount Telephone Jack for Hanging Phones (4 Conductor Configuration) |
| Colors: I, LA, W | |
| smTe14I | surface mount modular 2-Line Telephone Jack (4 Conductor Configuration) |
| Colors: I | |
| TPCATVxx† | 1 GHz Coaxial Connector & Wall Plate |
| Colors: I, LA, W, Br, BK | |
| TPCATV2xx† | Dual 1GHz Coaxial Connector Wall Plate |
| Colors: I, LA, W, Br, BK | |
| 26CATVxx | Decorator 1 GHz Coaxial Connector |
| Colors: I, LA, W | |
| TPTeLTVxx† | 1 GHz Coaxial Connector & 2-Line Phone Jack Wall Plate |
| Colors: I, LA, W, Br, BK | |
| 26TeLTVxx | 1 GHz Coaxial Connector & 2-Line Phone Jack with One-Piece molded Decorator Plate |
| Colors: I, LA, W | |
| WP3409-WH | single Gang surface mount Box |
| Colors: WH | |
| WP3501-WH | surface mount Box 1-Port |
| Colors: WH | |
| WP3502-WH | surface mount Box 2-Port |
| Colors: WH | |
| WP3467-XX | Keystone Wall Phone Plate |
| Colors: WH, ss (stainless steel) | |
| WP2001-WH-10 | Pre-Configured 1-Gang Gold F-Connector (10 Pack in WH) |
| WP2002-WH | 1-Gang 6P6C rJ25 Terminating Wall Phone Plate |
| Colors: WH |
COLOR OPTIONS

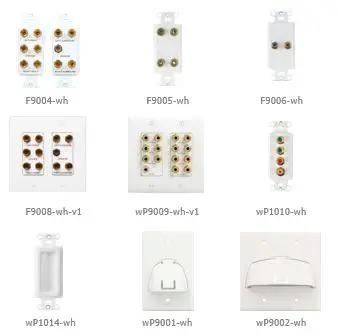

HOME THEATER
STRAPS AND WALLPLATES
| PART NO. | DESCRIPTION |
| F9004-XX | 5.1 Home Theater strap tOp seller! |
| Colors: BK, Br, IV, LA, WH | |
| F9005-XX | 2 speaker Connection strap |
| Colors: BK, Br, IV, LA, WH | |
| F9006-XX | single speaker Connection strap |
| Colors: BK, Br, IV, LA, WH | |
| F9008-XX-V1 | 5.1 Home Theater strap with Wall Plate |
| Colors: Dm, LA, WH | |
| WP9009-XX-V1 | 7.1 Home Theater strap with Wall Plate |
| Colors: BK, Br, IV, LA, WH | |
| WP1010-XX | Component Video/Digital Audio Balun |
| Colors: BK, LA, WH | |
| WP1014-WH | Cable Access strap tOp seller! |
| WP9001-XX | single Gang Bullnose Wall Plate |
| Colors: BK, WH | |
| WP9002-XX | Double Gang Bullnose Wall Plate |
| Colors BK, WH |

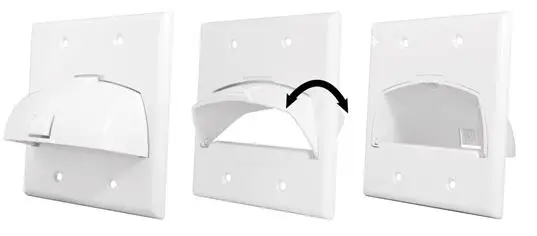

the bullnose wall plate is a unique cable management solution. Its hinged design provides four distinct configurations for flexible routing of low voltage cables inside the wall— just turn and snap the scoop for your preferred setup. (Patent Pending)

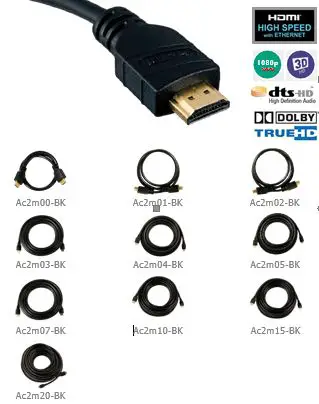

HDMI CABLES
| PART NO. | DESCRIPTION |
| AC2m00-BK | 0.7 meter HDmI Cable w/ethernet |
| AC2m01-BK | 1 meter HDmI Cable w/ethernet |
| AC2m02-BK | 2 meter HDmI Cable w/ethernet |
| AC2m03-BK | 3 meter HDmI Cable w/ethernet |
| AC2m04-BK | 4 meter HDmI Cable w/ethernet |
| AC2m05-BK | 5 meter HDmI Cable w/ethernet |
| AC2m07-BK | 7.5 meter HDmI Cable w/ethernet |
| AC2m10-BK | 10 meter HDmI Cable w/ethernet |
| AC2m15-BK | 15 meter HDmI Cable w/ethernet |
| AC2m20-BK | 20 meter HDmI Cable w/ethernet |
HOME THEATER
CONNECTION KITS
| PART NO. | DESCRIPTION |
| HT2102-WH-V1 | Flat Panel TV Connection Kit |
| HT2103-WH-V1 | Home Theater Connection Kit |
| HT2000-WH-V1 | HDmI In-Wall Connection Kit Contents: • 1 9-Foot High speed HDmI Cable w/ethernet • 2 Cable Access straps with Wall Plates |
| HT2001-WH-V1 | HDmI Premium In-Wall Connection Kit Contents: • 1 9-Foot High speed HDmI Cable w/ethernet • 1 Cable Access strap w/Wall Plate • 1 3-Port HDmI strap w/ Wall Plate |
| ThIS PRO-gRADE kit Provides Clean Cable management AND unparalleled Audio/video TO Deliver a Superior home Entertainment Experience. |
HDBASET
HDMI EXTENDER
| PART NO. | DESCRIPTION |
| AC1030 | HBase HDmI extender |
| The AC1030 kit Extends HDMI AND INTERNET Signals up TO 328 feet using CAT 5 OR CAT 6 wiring. IT Supports 3D video AND 1080P Resolution, while Dual IR Targets Allow The Source Device TO Recognize Remote Commands AT A Secondary location. |

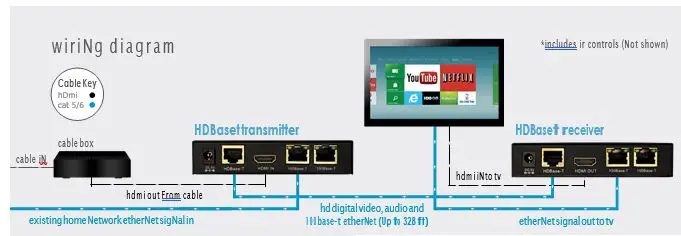

WIRING DIAGRAM
HDMI

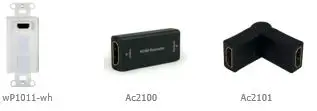

ACCESSORIES
| PART NO. | DESCRIPTION |
| WP1011-XX | HDmI 3-Port strap |
| Colors: BK, LA, WH | |
| AC2100 | HDmI repeater |
| CONNECTS Two HDMI high-speed with Ethernet Cables & Extends Ethernet Signal up TO 20 feet | |
| AC2101 | HDmI Hinged Coupler |
| Reduces Cable bending for Superior Organization |
CABLES
CAT 5E PATCH CABLES
| PART NO. | DESCRIPTION |
| 363201-25-V1 | 1 Foot Cat5e Patch Cable (red) |
| 363201-26-V1 | 2 Foot Cat5e Patch Cable (red) |
| AC3503-WH-V1 | 3 Foot Cat5e Patch Cable |
| AC3507-WH-V1 | 7 Foot Cat 5e Patch Cable |
| AC3514-WH-V1 | 14 Foot Cat 5e Patch Cable |
| AC3525-WH-V1 | 25 Foot Cat 5e Patch Cable |
| AC3550-WH-V1 | 50 Foot Cat 5e Patch Cable |
| • 100mhz Patch Cable Supports 10 gigabit Ethernet SPEEDS • up verified TO Support the CAT 5e Performance Patch Cable Specification • Snag less Over mold Prevents INSERTION Tab from Catching ON Other Cables • 24 Wag STRANDED Patch Cable |
PATCH PANELS
CAT 5E & CAT 6
RACK MOUNT PATCH PANELS
| PART NO. | DESCRIPTION |
| 24845C5e | Category 5e 24-Port T568A/B Universal Wiring |
| 48845C5e | Category 5e 48-Port T568A/B Universal Wiring |
| 24845CC6 | Category 6 24-Port T568A/B Universal Wiring |
| 48845CC6 | Category 6 48-Port T568A/B Universal Wiring |
| • 24 PORT Patch Panel uses 1 Rack mount SPACE • 48 PORT Patch Panel uses 2 Rack mount SPACES • 110 Punch Down REAR Termination |
CAT 5E FRONT TERMINATE
WALL-MOUNT JACK PANELS WITH STAND-OFF LEGS
| PART NO. | DESCRIPTION |
| JP12845C5e | 12-Port T568A Wiring |
| JP24845C5e | 24-Port T568A Wiring |
| JP36845C5e | 36-Port T568A Wiring |
CAT 5E
WALL-MOUNT PATCH PANEL WITH 89D BRACKET
| PART NO. | DESCRIPTION |
| 12845C5e89 | 12-Port T568A/B Universal Wiring |
ACCESSORIES & TOOLS
ACCESSORIES
| PART NO. | DESCRIPTION |
| 364554-01 | eZ-rJ45 modular Cat 5e Plug labor saver! |
| PATENTED Design Provides a Quick AND hassle- free CONNECTION for CAT 5E Cable. Allows Easy INSPECTION Of wire ORDER before Termination. Designed for use with The Ez-RJ45 modular Plug hand Tool (364555-01). | |
| AC2006 | eZ-rJ45 modular Cat 6 Plug labor saver! |
| The CAT 6 Ez-RJ45 CONNECTOR makes IT Easy TO Quickly AND Efficiently Terminate wires Of Any length. large Cable Openings Reduce the DISTANCE between the wires AND CONTACTS, Creating Optimal Performance AND Reliable CONNECTIONS Every Time. | |
| AC3460-V0 | High Performance Cat 6 rJ45 modular Plug |
| 10 pack | |
| WP3483-01 | Banana Plugs |
| 364405-01 | High Performance rJ45 modular Plugs |
| 25 pack | |
| 364774-01 | F-to-Twin-Lead Adapter |
| used TO Quickly CONNECT lyre volume Controls TO Subwoofer via Coax | |
| 364597-01 | mini Coax Jumper Assembly, 12” |
| 364246-01 | 360 Conical Coax F Plug |
TOOLS
| PART NO. | DESCRIPTION | |
| 362721-02 | rG-6 Coax stripper | labor saver! |
| 364555-01 | fez rJ-45 modular Plug Hand Tool | labor saver! |
| 363292-01 | Cat 5e strip and Fit Tool | labor saver! |
| AC3400 | Punch & Go Tool | labor saver! |
| Improves Termination SPEEDS, Reduces Compromised CONNECTIONS AND INCREASES Productivity Of Any Quick CONNECT DATA INSERT | ||
| AC3401 | Punch & Go Tool replacement Blade | |
| AC1018 | radial Taper Compression Tool (use with 364246-01 Coax F Plug) | |
| 363293-01 | 110 Punch Down Tool, Impact | |
| 364346-01 | Coax Flaring and Insertion Tool | |
| 364347-01 | extended Coax Connector Wrench | |
| 364406-01 | High Performance rJ45 modular Plug Hand Tool | |
| 363291-01 | Coax Hex Crimp Tool (Use with 363140-03 Coax F Plug) | |
ENCLOSURES
SCREW-ON COVER
ENCLOSURES
| PART NO. | DESCRIPTION |
| en1200 | 12” enclosure with screw-On Cover 12.13” H x 12” W x 3.7” D |
| en1400 | 14” enclosure with screw-On Cover 14” H x 14.25” W x 3.6” D |
| en2000 | 20” enclosure with screw-On Cover 20” H x 14.25” W x 3.6” D |
| en2800 | 28” enclosure with screw-On Cover 28” H x 14.25” W x 3.6” D |
| en4200 | 42” enclosure with screw-On Cover 42” H x 14.25” W x 3.6” D |
| Our American made Enclosures ARE Compatible with All major module mounting Schemes AND Offer Three 2.5” Openings for high Capacity wiring, SIDE lances, A grounding Screw AND SIDE Tabs for more flexible Installation OPTIONS. up Certified for fire AND burglary. |
ENCLOSURE EXTENDERS
| PART NO. | DESCRIPTION |
| 364450-03 | 28” enclosure extender 29.0” L x 15.4” W x 2.5” H |
| 364450-04 | 42” enclosure extender 43.0” L x 15.4” W x 2.5” H |
| ADDS 2.5 Inches of Additional Depth TO The Enclosure TO Accommodate Routers, Switches AND Power Supplies |
ENCLOSURES
HINGED DOOR
| PART NO. | DESCRIPTION |
| en1450 | 14” enclosure with Hinged Cover 14” H x 14.25” W x 3.6” D |
| en2050 | 20” enclosure with Hinged Cover 20” H x 14.25” W x 3.6” D |
| en2850 | 28” enclosure with Hinged Cover 28” H x 14.25” W x 3.6” D |
| en4250 | 42” enclosure with Hinged Cover 42” H x 14.25” W x 3.6” D |
| hinged Covers keep modules Secure AND PROTECT Products from wear AND TEAR. Ships STANDARD with Sturdy full length PIANO hinges Along with lock Chambers AND keys for Quick AND Easy ACCESS. |
ENCLOSURE INSERTS
CLEAR & SMOKE
| Part no | Description |
| 364482-01 | enclosure extender Wire manager |
| 364593-11 | 28” Brushed Aluminum Frame, Clear Insert |
| 364594-11 | 42” Brushed Aluminum Frame, Clear Insert |
| 364593-14 364594-14 | 28” Brushed Aluminum Frame, smoke Insert |
| 42” Brushed Aluminum Frame, smoke Insert |
Frequently Asked Questions
- Is it possible to rewire keystone jacks?
Yes, the jacks and cabling can usually be reused. - Is it true that all keystone jacks are the same?
Keystone jacks are available in a variety of styles. Each one has a unique application. These jacks have an advantage becaus - of their flexibility. You can even use the same patch panel to mount several varieties of these jacks.
- Where does the keystone jack go?
A keystone jack is a female connector used in data communications, especially for local area networks (LANs), that is typically installed in a wall plate or patch panel. - Is it possible to re-use a punchdown Jack?
You only need to pull the wires a little harder to get them out. Punchdown blocks are made to be reused, but only a few times at a time. Naturally, you’ll need to snip off the twisted ends of the wires before punching them down again. - A RJ45 keystone jack is a type of jack that connects two wires together.
It’s All About the Cable With typical keystone blanks, RJ45 Keystone Jacks can be utilized with 23 or 24 AWG solid cable into patch panels, wall plates, or surface mount boxes. A secure connection is ensured by a simple snap-in retaining clip. With both T568A and T568B wiring schemes, the 110-type terminations are color-coded. - What is the significance of the name “keystone jack”?
The connector is termed a keystone jack because it resembles an architectural keystone and looks similar to the normal RJ-11 wall jack that connects telephones, fax machines, and dial-up systems. They have the advantage of being adaptable. - What is the difference between a cat5e keystone jack and a cat6 keystone jack?
There is a difference, even if it isn’t evident in terms of performance. Cat6 cable features thicker copper wire and insulation than Cat5 cable. The cat6 jacks are designed to accommodate this. Your cat6 jacks’ words are also staggered, but the cat5e jacks’ terms are straight. - Is the size of all keystones the same?
Keystone modules have a 14.5 mm wide by 16.0 mm high rectangular face and are held in place by flexible tabs. - What is the difference between a CAT6 keystone jack and a CAT5 keystone jack?
100 MHZ CAT6 Keystone Jack IDEAL keystone jacks are high-performance modular jack connectors that meet or exceed ANSI/TIA-568-C CAT6 specifications. - Is it possible to connect a Cat5 cable to a Cat6 jack?
They can both be connected to the same ports. As a result, Cat6 cable can be used on a Cat5 network. Cat5 cable, on the other hand, cannot be utilized on a Cat6 network because Cat6 has higher requirements for cabling performance and capabilities, which Cat5 cable cannot meet.
https://assets.usesi.com/product-media/catalogs/USESI_107756_catalog.pdf
