Generac 10-22kW Guardian Generators User Manual
CHOOSE THE #1 SELLING HOME STANDBY GENERATOR BRAND, NOW FEATURING FREE MOBILE LINK ™WIRELESS MONITORING
Generac’s Guardian Series generators provide the automatic backup power you need to protect your home and family during a power outage. Connected to your existing LP or natural gas fuel supply, it kicks in within seconds of sensing power loss— automatically—and runs for as long as necessary until utility power returns. Choose from Generac’s industry-leading lineup to power just the essentials or Generac’s 22 kW, the largest air-cooled generator in the market for whole-house coverage.
Now coming with FREE Mobile Link Wireless Monitoring, allowing you to monitor the status of your generator on a phone, tablet or computer from anywhere in the world. Giving you the ability to connect your account to your authorized service dealer for fast, friendly and convenient assistance. *Total harmonic distortion (THD) less than 5.0%—lower than both IEEE standards for utility power and published numbers for competitive air-cooled home standby generators.

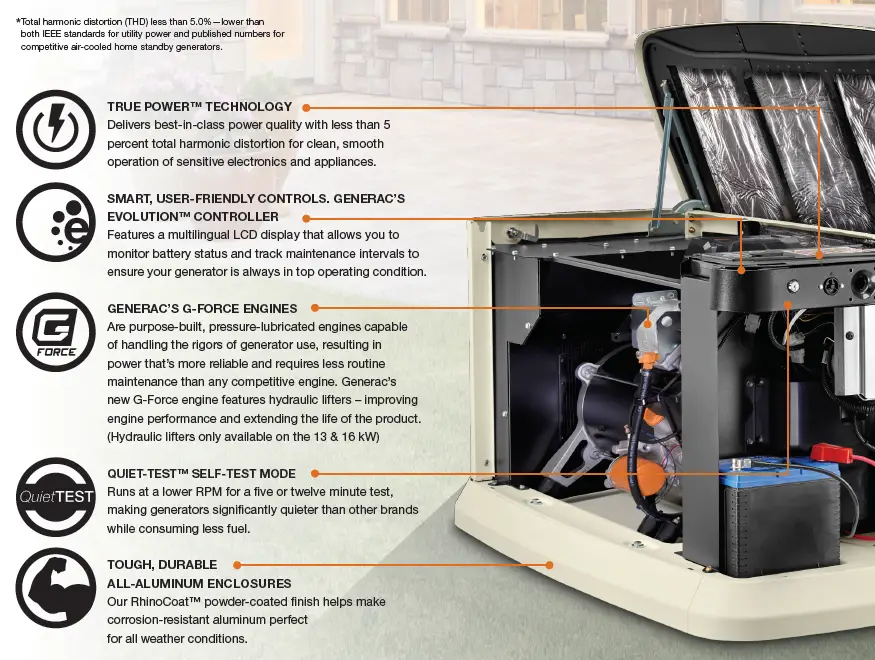

DESIGNED SPECIFICALLY TO MEET CUSTOMER NEEDS

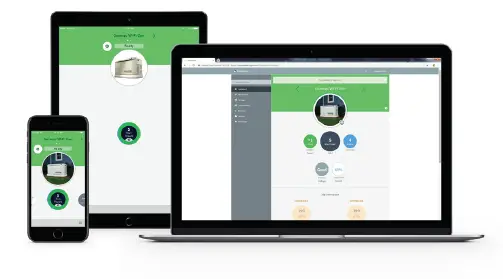

MOBILE LINKTM REMOTE WIRELESS MONITORING
FREE with every Guardian Series home standby generator. Mobile Link allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. Connect your account to your authorized service dealer for fast, friendly and proactive service. With Mobile Link, you are taken care of before the next power outage.
ALSO FEATURES
5-Year Limited Warranty for automatic standby generators. 24/7 365 Customer Support Team standing by all day, every day from our headquarters in Wisconsin to answer any questions you might have.- Generac generators and engines are Engineered and Built in the USA*
- Assembled in the USA using domestic and foreign part
| SPECIFICATIONS (LP/NG) | 10/9 kW | 13/13 kW | 16/16 kW | 20/18 kW | 22/19.5 kW |
| Generator Only Model | 7171 | 7173 | 7176 | 7038 | 7042 |
| Generator / Select Circuit Switch Model | 7172 100 Amp Switch | 7174 100 Amp Switch | 7177 100 Amp Switch | n/a | n/a |
| Generator / 200 Amp Service Rated Load Shedding Smart Switch Package Model # | n/a | 7175 | 7178 | 7039 | 7043 |
| Voltage (Single Phase) | 120/240V | ||||
| Amps @ 240V LPG | 41.7 | 54.2 | 66.6 | 83.3 | 91.6 |
| Amps @ 240V NG | 37.5 | 54.2 | 66.6 | 75 | 81.3 |
| Engine/Alternator RPM | 3600/3600 | ||||
| Engine | Generac G-Force | ||||
| Engine Displacement | 460cc | 816cc | 999cc | ||
| Fuel Consumption @ 1/2 Load NG cu. ft/hr | 101 | 154 | 182 | 204 | 228 |
| Fuel Consumption @ Full Load NG cu. ft/hr | 127 | 225 | 245 | 301 | 327 |
| Fuel Consumption @ 1/2 Load LPG cu. ft/hr (gal/hr) | 36 (0.97) | 56 (1.54) | 62 (1.70) | 86 (2.37) | 92 (2.53) |
| Fuel Consumption @ Full Load LPG cu. ft/hr (gal/hr) | 54 (1.48) | 90 (2.45) | 109 (2.99) | 129.6 (3.56) | 142.1 (3.90) |
| Quiet-Test Mode | Yes | ||||
| db(A) at Exercise | 57 | 55 | 55 | 55 | 57 |
| db(A) at Normal Operating Load | 61 | 65 | 65 | 67 | 67 |
| Enclosure | Aluminum | ||||
| Enclosure Color | Bisque | ||||
| Warranty | 5-Year Limited | ||||
| Dimensions (L” x W” x H”) | 48 x 25 x 29 | ||||
| Weight (lbs.) | 338 | 385 | 420 | 448 | 466 |
| Standard with Mobile Link | Yes | ||||
Nationwide Dealer Service Network
Generac’s commitment to service includes scheduled maintenance programs, warranty assistance, and emergency service to ensure that Generac
customers are never left powerless. The largest nationwide dealer network has factory-trained technicians on staff and maintains large inventories of
Generac parts, components, and accessories. Find a dealer near you at Generac.com.
0203010 Rev. 08/2019
©2019 Generac Power Systems, Inc. All Rights Reserved. Specifications are subject to change without notice
Generac Power Systems, Inc.
S45 W29290 Hwy. 59, Waukesha, WI 53189 generac.com 1-888-GENERAC (1-888-436-3722)
