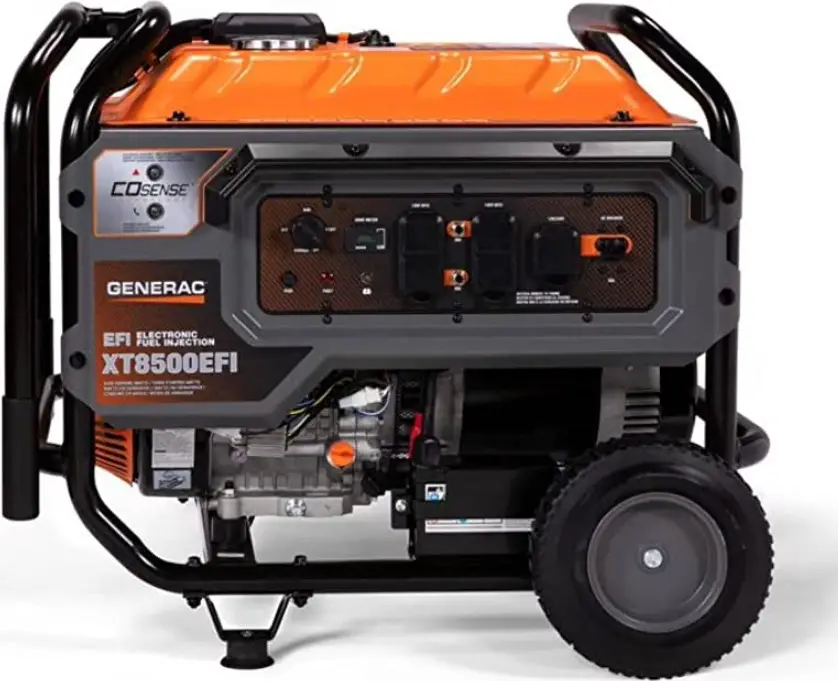

GENERAC G0072471 XT8500EFI Portable Generator User Manual

Contents hide

Overview

QUICK REFERENCE GUIDE
Engine Size	Fuel	Engine Part No.
459CC	GASOLINE	A0000310667
QUICK REFERENCE PARTS
Description	Part No.	Special Notes
Air Filter Element	A0000921093
Spark Plug	0K20670117

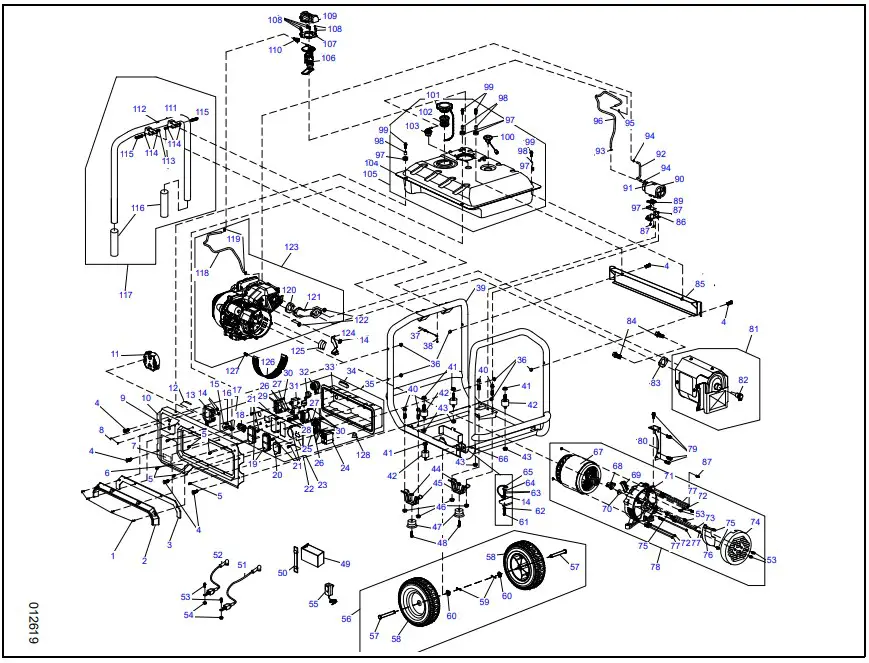

ITEM	PART NO.	DESCRIPTION	QTY
1	10000028165	SCREW (M6X25MM)	4
2	10000028184	PLASTIC VISOR	1
3	10000028166	VISOR GASKET	1
4	0H1780	BOLT, CURVED HEAD (M8- 1.25X41MM)	6
5	10000007704	SCREW, PAN HEAD (M4.8X160MM)	6
6	N/A	DECAL, MODEL	1
7	N/A	DECAL, NAMEPLATE	1
8	10000031512	SCREW, TORX (M5.5-1.59X15MM)	2
9	N/A	DECAL, CAUTION	1
10	A0000317783	SIDE PANEL, CONTROL PANEL SIDE	1
11	A0000914330	KIT-CO SENSE V2.5 EFI MODULE SERVICE	1
12	0J35250337	CLAMP, CABLE	1
13	10000028169	RECTIFIER	1
14	0G84420196	NUT. FLANGED (M6)	4
15	10000028118	FUSE HOLDER	1
16	0D7178Z	FUSE-5A	1
17	10000028167	LAMP, RED	1
18	0G8321	METER, HOUR W/ ALERTS	1
19	0G9392	COVER, 20A 120V GFCI/DUPLEX	2
20	0G9391	COVER, 30A 120/ 240V	1
21	0H91980159	SCREW, PAN M4X16MM	6
22	ORDER #35	FACEPLATE	1
23	ORDER #35	DECAL, FACEPLATE	1
24	0G9023C	CIRCUIT BREAKER, 30A 2P 240V	1
25	0G8758	OUTLET, 30A 120/ 250V SPCGR	1
26	G043180	WASHER, FLAT M4	6
27	G078437	WASHER, LOCK SPRING (M4)	6
28	0J4959	CHARGER, ASSY 12VDC INPUT	1
29	0D4966	OUTLET, 20A 120V GFCI GF20BK	2
30	G051715	NUT, HEX M4	6
31	0H1782	BREAKER, CIRCUIT 20A 1P CUL/CSA	2
32	A0000181523	SWITCH, ENGINE	1
33	N/A	COVER, BACK PANEL	1
34	A0000698520	FUSE-3A	1
35	A0000656677	ASSY, CONTROL PANEL W/CO	1
36	0H1782	CAP NUT, LOCKING M8-1.25	6
37	0K3399	PIN, QUICK RELEASE XT	1
38	N/A	RIVET	1
39	A0000747884	FRAME, ELECTRIC START XT	1
40	G073144	SCREW HHFC (M8- 1.25X45) G8.8	4
41	0J4029	NUT, HEX FL (M10- 1.25)	4
42	0K09150110	MOUNT, RUBBER VIBRATION	4
43	0K22930127	NUT, FLANGED (M8)	4
44	0K0105	NUT, HEX FL (M6)	2
45	0K00970ST03	BRACKET, FOOT	2
46	0K0098	NUT, FLANGED (M8)	4
47	0J8836	ISOLATOR, FOOT	2
48	0K0100	SCREW HHFC (M6- 1.0X28) G8.8	2
49	0G9449	BATTERY 12VDC	1

50	0H7945	ASSEMBLY, BATTERY STRAP	1
51	0J4157A	WIRE ASSY, BATT NEG, GREEN	1
52	0J4157B	WIRE ASSY, BATT POS, RED	1
53	0J4967	SCREW HHFC (M5- 0.8X12)	8
54	0H3535	NUT, FLANGED (M5)	2
55	10000020426	CHARGER, AC ADAPTOR 14VDC	1
56	A0000698522	KIT, WHEEL	1
57	0H0204	PIN, AXLE	2
58	ORDER #56	WHEEL, 9.5 DIA	2
59	10000007707	PIN, COTTER	2
60	10000035961	WASHER, FLAT	2
61	0J35220156	BOLT (M6X20MM)	1
62	0K0093	WASHER, LOCK ID- 6MM OD-12MM	1
63	0J47870118	WASHER, (6X13x1)	1
64	0K0094	NUT, BUTTERFLY (M6)	1
65	0K20670114	ASSEMBLY, GROUND WIRE	1
66	N/A	DECAL, GROUND	1
67	ORDER #78	ALTERNATOR	1
68	0H0919	BRUSH, ALTERNATOR	1
69	0J83630111	TERMINAL BLOCK	1
70	0J86620102	WASHER, FLAT (M10X4MM)	1
71	0H91980171	CARRIER, REAR BEARING	1
72	0H9838C112	BOLT (M5X232MM)	2
73	0H92090104	BOLT, ROTOR (M10X285MM)	1
74	10000028206	COVER, GENERATOR END	1
75	0J4968	SCREW HHFC (M5- 0.8X16)	3
76	0H91980178	REGULATOR, AVR	1
77	0H92090105	BOLT, STATOR (M6X193MM)	4
78	0L0566	ALTERNATOR ASSEMBLY	1
79	0J35240145	BOLT (M8X20MM)	4
80	0J97760112	BRACKET, MUFFLER	1
81	10000028260	MUFFLER	1
82	A0000181524	ARRESTOR, SPARK	1
83	10000028234	GASKET, MUFFLER EXHAUST	1
84	0E9507B	SCREW HHFC (M8X25MM)	2
85	0H9749AST19	PANEL RAIL BACK	1
86	0J1962	BRKT, FRAME TO CARBON CANISTER	1
87	0G84420194	BOLT (M6X12MM)	5
88	0J19610ST03	BRKT, CARBON CANISTER STOP	1
89	0J47650ST03	BRKT, CARBON CANISTER MOUNT	1
90	0H0957	CANISTER, CARBON	1
91	N/A	DECAL, CAUTION	1
92	A0001769765	HOSE-FORMED CARBON CANISTER	1
93	0J35220174	CLAMP, LOOP TUBE	1
94	0K97920112	CLAMP, HOSE	2
95	0J88870130	CLAMP/COLLAR	1
96	10000028207	FORMED HOSE	1
97	0H1411B	RUBBER MOUNT,10.3 ID X 11 HGT	4
98	10000028208	ANTI-CRUSH INSERTS	4

99	0E9507C	SCREW HHFC (8X20MM)	4
100	0K09150113	GAUGE, FUEL	1
101	0H0958	CAP, FUEL	1
102	10000035980	FILTER, FUEL	1
103	10000028261	VALVE, ROLL OVER	1
104	ORDER #105	TANK, FUEL	1
105	A0000698525	ASSEMBLY, FUEL TANK W/DECALS	1
106	10000028257	PUMP, FUEL	1
107	10000028256	CLAMP	1
108	0J79090111	SCREW,PAN (M5X10MM)	6
109	10000028255	COVER, FUEL PUMP	1
110	10000028743	CONNECTOR, QUICK CHANGE	1
111	ORDER #117	TUBE, HANDLE	1
112	N/A	DECAL, CAUTION	1
113	10000028262	NUT (M8)	2
114	10000028280	WASHER, FLAT	4
115	10000028242	BOLT(M8X55MM)	2
116	10000031500	GRIP, HANDLE	2
117	A0000698529	HANDLE ASSEMBLY	1
118	10000028237	HOSE, FORMED FUEL	1
119	A0000181527	CLAMP	2
120	0G9028	GASKET, EXHAUST CYLINDER	1
121	10000026982	MANIFOLD, EXHAUST	1
122	0J35220161	NUT, HEX (M8)	2
123	A0000310667	ENGINE, 459CC EFI- OL ES	1
124	10000007686	BRACKET, AIR CLEANER	1
125	0J86620104	BAFFLE	1
126	10000028273	COVER, DUST	1
127	0J00620100	BOLT (M5X10MM)	1
128	A0000698532	TRANSFORMER, CURRENT	1

NOTE: See manual A0000318956 for replacement engine parts.
N/A = Parts Not Available

Part No. A0000766776 Rev. A 08/13/2021 ©2021 Generac Power Systems, Inc. All rights reserved. Specifications are subject to change without notice. No reproduction allowed in any form without prior written consent from Generac Power Systems, Inc.
