Generac Gp7500edf Dual Fuel Portable Generator User Manual

GP7500EDF Dual Fuel Portable Generator

Generac GP7500E Dual Fuel Portable Generator

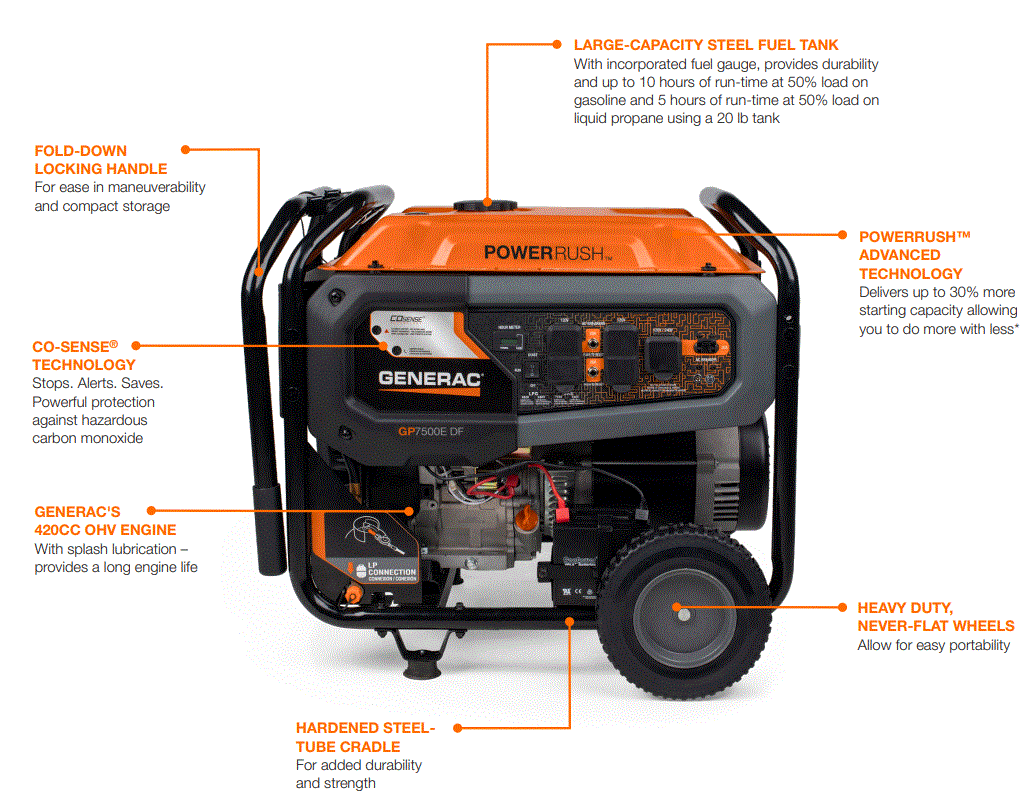

The Generac GP7500E Dual Fuel Portable Generator is ideal for use at outdoor events, DIY projects or as emergency backup power. This generator can run on gasoline or liquid propane, providing power and versatility when and where you need it. The Fold-Down Locking Handle makes it easy to maneuver and store, while the Hardened Steel Tube Cradle adds durability and strength. The  Large-Capacity Steel Fuel Tank with incorporated fuel gauge provides up to 10 hours of run-time at 50% load on gasoline and 5 hours of run-time at 50% load on liquid propane using a 20 lb tank. The PowerRushTM Advanced Technology delivers up to 30% more starting capacity, allowing you to do more with less. The Heavy Duty, Never-Flat Wheels allow for easy portability.

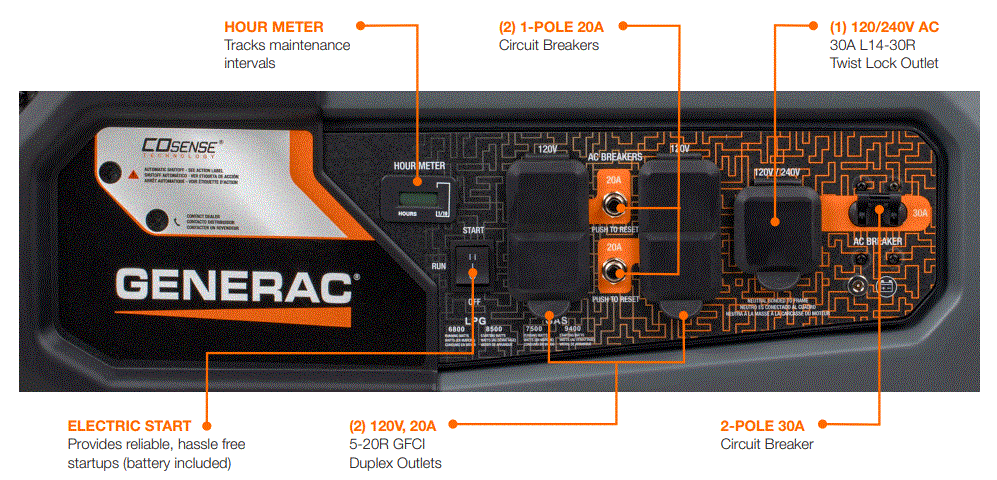

Control Panel

• Hour Meter – Tracks maintenance intervals
• (2) 1-POLE 20A Circuit Breakers
• (1) 120/240V AC 30A L14-30R Twist Lock Outlet
• Electric Start – Provides reliable, hassle-free startups (battery included)
• (2) 120V, 20A 5-20R GFCI Duplex Outlets

Generator Sizing Guide

Sizing a portable generator is easy. Follow these steps:

1. Choose which devices you want to power at the same time.
2. Record and add the running watts listed for each device that you need to power.
3. Record the starting watts listed for each device.
4. Select the one device with the highest starting watts. Add that number to the total running watts to determine the total wattage requirement.

Specifications

• Model: GP7500E DF
• Starting Watts: 8011 (Gas) / 6800 (LP)
• Running Watts: 9400 (Gas) / 8500 (LP)
• Voltage: 120 / 240 VAC 60 Hz
• Amperage: 62.5 / 31.25
• Engine Displacement: 420cc OHV
• Engine Speed: 3600
• Oil Type: 10W-30 / SAE 30
• Oil Capacity: 1.06 (1.0)
• Lubrication Method: Splash Lube
• Electric Start / Pull Start: Yes / Yes
• Fuel Tank Capacity (gal.): Built-In Tank 7.9 (29.9)
• Run Time (hrs.) at 50% Load: 10 (Gas) / 5 (LP)*
• Handle Style: Dual Grip, Single Folding with Lock Pin
• Wheel Type: 9.5 Never Flat
• Warranty: 3 Year Limited (Residential) / 2 Year Limited (Commercial)
• Weight – lbs (kg): 204 (92.5)
• Dimensions – L x W x H (in.): 27.18 x 27 x 27.09
• Dimensions – L x W x H (cm): 69 x 68.4 x 68.8

Product Usage

Before using the Generac GP7500E Dual Fuel Portable Generator, ensure you have read and understood the user manual thoroughly. Follow these steps to use the generator:

1. Fill the fuel tank with gasoline or liquid propane, depending on your preference.
2. Turn the dial to select your fuel source.
3. Turn the Off/Run/Start Switch to the “On” position.
4. Press the Electric Start button to start the generator. If the battery is dead or not charged, use the Pull Start to start the generator.
5. Allow the generator to run for a few minutes before connecting any devices to it.
6. Follow the sizing guide to determine which devices you can connect to the generator.
7. Connect your devices to the appropriate outlets on the Control Panel.
8. Turn off all connected devices before shutting down the generator.
9. Turn the Off/Run/Start Switch to the “Off” position.

Ideal for use at outdoor events, the next DIY project or emergency backup power in the case of an outage, the Generac GP7500E Dual Fuel provides power and versatility when and where you need it. Featuring Dual Fuel functionality, the GP7500E DF is capable of running on either gasoline or an LP gas fuel source with the simple turn of a dial.

Product Overview

*Increases electrical current upon demand above rated output when starting electric motors. POWERRUSH™ percentage varies by model.

CONTROL PANEL

HOW MUCH POWER DO YOU NEED?

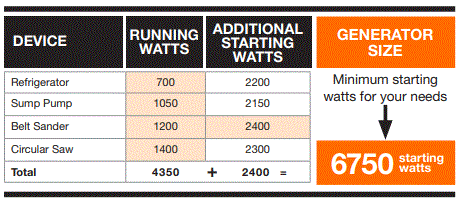

Sizing a portable generator is easy. Check out this sample:

1. Choose which devices you want to power at the same time.
2. Record and add the running watts listed for each device that you need to power.
3. Record the starting watts listed for each device.
4. Select the one device with the highest starting watts. Add that number to the total running watts to determine the total wattage requirement.

*Watts listed are approximate. Check your appliance for actual requirements. Total wattage requirements assumes intermittent starting of devices.

*When using a 20 lb. LP tank

201908444 3/2023 ©2023 Generac Power Systems, Inc. All Rights Reserved. Specifications are subject to change without notice.

Generac Power Systems, Inc. S45 W29290 Hwy. 59, Waukesha, WI 53189 generac.com | 1-888-GENERAC (1-888-436-3722)
