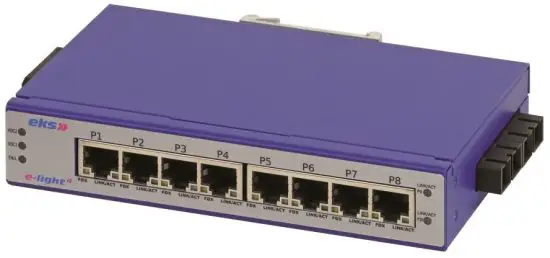

EL-100-4 8 Port Unmatched Ethernet Switch
User Manual
Legal Notice
This manual contains important notes and warnings. Their ignoration can cause serious injuries or damage to the system. Please read the manual carefully before using the equipment EL-100-4. Correct transport, proper storage, and installation as well as careful operation and maintenance of EL-100-4 are critical for safe operation.
System description
The EL-100-4 series are 5-Port, 6-Port, 8-Port, and 10-Port Unmanaged Industrial Ethernet Layer 2 Switches with auto-negotiation and auto MDI/MDIX.
The rugged and compact housing allows a flexible FX-Port configuration. Up to 4 FX-Ports are available, each having an ST, SC, or an E-2000 fiber optic connector. All systems can communicate via two as well as one fiber with the help of the BIDI technology with an SC port.
Important performance features of the transfer with POF, HCS, multimode, or single-mode fiber optic are the electromagnetic ruggedness, the potential separation of transmitter and receiver, as well as ranges up to 40 km between two fiber optic systems. LEDs and potential-free contacts (optional) of a fault detector relay are able to signal defective states.
Hardware Installation
Attention: During the operation of electrical equipment and systems, parts carry dangerous voltages. Work on the electrical systems or equipment is only allowed by a skilled electrician himself or by specially instructed persons under the control and instructions of a qualified electrician and the compliance of the electrotechnical regulations.
Power off the devices, which will be connected.
Snap the system onto the DIN EN rail or use the wall mount. Check the correct holding!
Attention: Only use the correct optical connectors for the fiber optic system. Using incorrect connectors can cause damage to the fiber optic system. Take care that connectors with a latch can only be mounted in a defined position.
Attention: Don’t stare into the optical cable or the transmitter of the fiber optic system. Visible and nonvisible light (depending on its wavelength) of the optical transmitter can cause eye damage!
Connect the fiber optic system by using the correct fiber optic cable. Take care that you always have to connect an optical transmitter and an optical receiver.
Use the plugs to save the unused optical receiver and transmitter against impurity.
Attention: Don’t bend the fiber optic cable! Please refer to the manufacturer’s specifications. Otherwise, the fiber optic cable can be damaged and/or the communication will be disturbed.
Attention: The ETHERNET connections are only intended for connection to computer networks (LANs) and must not be connected to telephone networks or telecommunication lines.
Attention: This device was designed for operation with NEC Class 2 compliant power supplies.
Power on the devices. Please use a power supply of 5TX: 12-48 VDC or 18-30 VAC
All others: 12-60 VDC connected to the terminals marked with V1+/V1- and/or V2+/V2-.
Note, that the system has reverse voltage protection.
Attention: BIDI Switches must always be connected from transceiver type A to a transceiver type B.
Status-LEDs:
- PWR1 / PWR2: operating voltage connected to V1 / V2
- Fail (red): one of the operating voltages is not connected
- FDX (green): lights when the port is connected
- Link/Act (yellow): flashes during data transfer on the port
- LWL (yellow) : lights if connected, flashes during data transfer
- LINK/ACT (Port n):
Failure relay:
There is a potential free failure relay contact at K1 and K2. The relay switches if there is no supply voltage at the VDC inputs.
Function of K1 – K2: Failure relay contact, closed in case of failure.
All switches feature autonegotiation und auto MDI/MDIX.

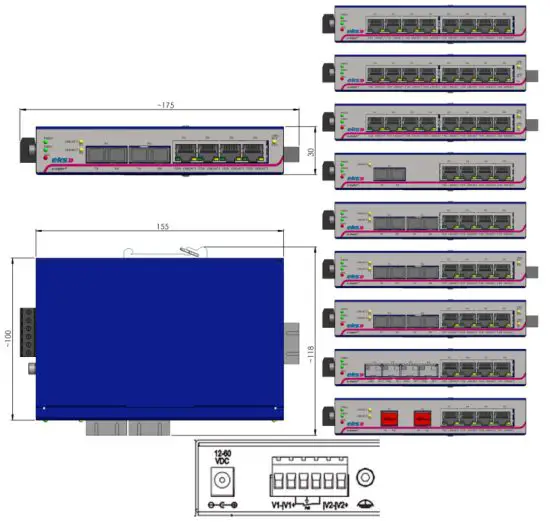

Views
Disposal notes
The units must not be disposed with normal household waste but can be returned to eks Engel FOS GmbH & Co. KG for disposal.
Technical Data *
| 10/100Base T/TX Port | RJ45 / Autonegotiation / Auto MDX/MDIX / untershitzt Langen bis 100 m / supports cable till 100 m (Cat5e) |
| Status LEDs | System fault (red) / Port LEDs (green/yellow) / Power supply (green) |
| Operating voltage | 5TX 12-48 VDC and 18-30 VAC redundant power supply All others : 12-60 VDC redundant power supply, other voltages on request |
| Power consumption | 5TX : 3 W, 120 mA @ 24 VDC All others : 7 W, 300 mA @ 24 VDC |
| Potential separation | 500 V |
| Operating Temperature | -40 °C – +70 °C (5TX, 8TX, Multimode and Singlemode with SC or ST) -20 °C — +55 °C (all others) |
| Storage Temperature | -40 °C — +85 °C |
| Failure Relay (optional) | 24 VDC (1A) / 60 VDC (0.3 A) |
| Weight | TX 400 g All others 510 g |
| Dimensions WxHxD | 5TX : 25 x 130 x 105 mm All others : 30 x 155 x 118 mm |
| Housing | Rostfreler Stahl, puiverbeschichtet / rust-free steel, powder coated |
| Humidity | Feuchtigkeit 5-95% RHD nicht kondenslerend / Humidity 5-95% RHD non-condensing |
| Electromagnetic Compatibility | EN61000-6-2 / EN55032 Class A |
Ordering information
| TX | EL-100-4-5TX | EL-100-4-8TX | |
| Order-No. | 0 5005 01 00 00 00EV00-00 | 0 5008 01 00 00 00EV00-00 | |
| 100 TX Ports | 5 x RJ45 | 8 x RJ45 | |
| SFP | EL-100-4-4TX / 4 SFP | ||
| Order-No. | 0 5004 01 99 99 99 99EV00-00 | ||
| 100 TX Ports | 4 x RJ45 | ||
| 100 FX Ports | 4 x SFP (100 mBit) |
| POF 4TX/2FX | EL-100-4-4TX-2FX-PO | ||
| Order-No. | 0 5004 01 00 08 08EV00-00 | ||
| 100 FX Ports | 2 x Optolock | ||
| 100 TX Ports | 4 x RJ45 | ||
| Fiber Type | POF 980 / 1000 µm | ||
| Attenuation | 180 dB/km | ||
| Wavelength | 650 nm |
| Multimode 4TX/3FX | EL-100-4-4TX-3FX-MM-ST | EL-100-4-4TX-3FX-MM-SC | EL-100-4-4TX-3FX-MM-E2 |
| Order-No. | 0 5004 01 31 31 31EV00-00 | 0 5004 01 33 33 33EV00-00 | 0 5004 01 35 35 35EV00-00 |
| 100 FX Ports | 3 x ST | 3 x SC | 3 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Multimode 4TX/4FX | EL-100-4-4TX-4FX-MM-ST | EL-100-4-4TX-4FX-MM-SC | EL-100-4-4TX-4FX-MM-E2 |
| Order-No. | 0 5004 01 31 31 31 31EV00-00 | 0 5004 01 33 33 33 33EV00-00 | 0 5004 01 35 35 35 35EV00-00 |
| 100 FX Ports | 4 x ST | 4 x SC | 4 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Multimode 8TX/1FX | EL-100-4-8TX-1FX-MM-ST | EL-100-4-8TX-1FX-MM-SC | EL-100-4-8TX-1FX-MM-E2 |
| Order-No. | 0 5008 01 00 00 31EV00-00 | 0 5008 01 00 00 33EV00-00 | 0 5008 01 00 00 35EV00-00 |
| 100 FX Ports | 1 x ST | 1 x SC | 1 x E2000 |
| 100 TX Ports | 8 x RJ45 | 8 x RJ45 | 8 x RJ45 |
| Multimode 8TX/2FX | EL-100-4-8TX-2FX-MM-ST | EL-100-4-8TX-2FX-MM-SC | EL-100-4-8TX-2FX-MM-E2 |
| Order-No. | 0 5008 01 00 31 31EV00-00 | 0 5008 01 00 33 33EV00-00 | 0 5008 01 00 35 35EV00-00 |
| 100 FX Ports | 2 x ST | 2 x SC | 2 x E2000 |
| 100 TX Ports | 8 x RJ45 | 8 x RJ45 | 8 x RJ45 |
| Fiber | Multimode | ||
| Fiber Type | 50(62,5)/125 µm | ||
| Bandwidth | 800 (500) MHz*km | ||
| Wavelength | 1300 nm | ||
| Budget | 12 dB (15 dB) | ||
| Distance | 5 km (4 km) (1 dB/km) | ||
| Singlemode 4TX/1FX | EL-100-4-4TX-1FX-SM-ST | EL-100-4-4TX-1FX-SM-SC | EL-100-4-4TX-1FX-SM-E2 |
| Order-No. | 0 5004 01 00 00 51EV00-00 | 0 5004 01 00 00 53EV00-00 | 0 5004 01 00 00 55EV00-00 |
| 100 FX Ports | 1 x ST | 1 x SC | 1 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Singlemode 4TX/2FX | EL-100-4-4TX-2FX-SM-ST | EL-100-4-4TX-2FX-SM-SC | EL-100-4-4TX-2FX-SM-E2 |
| Order-No. | 0 5004 01 00 51 51EV00-00 | 0 5004 01 00 53 53EV00-00 | 0 5004 01 00 55 55EV00-00 |
| 100 FX Ports | 2 x ST | 2 x SC | 2 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Singlemode 4TX/2FX | EL-100-4-4TX-3FX-SM-ST | EL-100-4-4TX-3FX-SM-SC | EL-100-4-4TX-3FX-SM-E2 |
| Order-No. | 0 5004 01 51 51 51EV00-00 | 0 5004 01 53 53 53EV00-00 | 0 5004 01 55 55 55EV00-00 |
| 100 FX Ports | 3 x ST | 3 x SC | 3 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Singlemode 4TX/2FX | EL-100-4-4TX-4FX-SM-ST | EL-100-4-4TX-4FX-SM-SC | EL-100-4-4TX-4FX-SM-E2 |
| Order-No. | 0 5004 01 51 51 51 51EV00-00 | 0 5004 01 53 53 53 53EV00-00 | 0 5004 01 55 55 55 55EV00-00 |
| 100 FX Ports | 4 x ST | 4 x SC | 4 x E2000 |
| 100 TX Ports | 4 x RJ45 | 4 x RJ45 | 4 x RJ45 |
| Singlemode 8TX/1FX | EL-100-4-8TX-1FX-SM-ST | EL-100-4-8TX-1FX-SM-SC | EL-100-4-8TX-1FX-SM-E2 |
| Order-No. | 0 5008 01 00 00 51EV00-00 | 0 5008 01 00 00 53EV00-00 | 0 5008 01 00 00 55EV00-00 |
| 100 FX Ports | 1 x ST | 1 x SC | 1 x E2000 |
| 100 TX Ports | 8 x RJ45 | 8 x RJ45 | 8 x RJ45 |
| Singlemode 8TX/2FX | EL-100-4-8TX-2FX-SM-ST | EL-100-4-8TX-2FX-SM-SC | EL-100-4-8TX-2FX-SM-E2 |
| Order-No. | 0 5008 01 00 51 51EV00-00 | 0 5008 01 00 53 53EV00-00 | 0 5008 01 00 55 55EV00-00 |
| 100 FX Ports | 2 x ST | 2 x SC | 2 x E2000 |
| 100 TX Ports | 8 x RJ45 | 8 x RJ45 | 8 x RJ45 |
| Fiber | Singlemode | ||
| Fiber Type | 9/125µm | ||
| Bandwidth | 3,5 ps/nm*km | ||
| Wavelength | 1310 nm | ||
| Budget | 16 dB | ||
| Distance | 30km (andere Reichweiten auf Anfrage / please request for other distances) (0,3 dB/km) | ||
* Weitere Typen auf Anfrage / * Please request for other types
Technische Änderungen vorbehalten. Für Irrtümer und Druckfehler keine Haftung. © eks Engel FOS GmbH & Co. KG
Reserve technical changes. No liability is accepted for errors and printing errors. © eks Engel FOS GmbH & Co. KG
