COMMSCOPE FGS-ACC137 FiberGuide Vertical Straight Section Instructions
Inductions

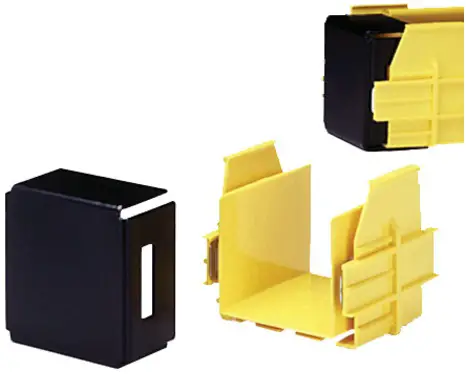

FiberGuide® Vertical Straight Section with 1.5in Slot Spacing, with Cover, End Cap and Mounting Brackets, 2x2in, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection.
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size.
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications.
- Engineers and installers can benefit from the large suite of available FiberGuide design tools.
Product Classification
- Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio: CommScope®
- Product Type: Fiber raceway straight section
- Product Brand: FiberGuide®
- Product Series: FGS
General Specifications
- Product Feature: Snap-together design
- Color: Yellow
- Orientation: Vertical
- Section Type: Straight Section
Dimensions
- Height: 50.8 mm | 2 in
- Width: 50.8 mm | 2 in
- Length: 1829 mm | 72.008 in
- System Dimensions: 51 mm x 51 mm (2 in x 2 in)
Material Specifications
- Material Type: Engineering Thermoplastic
Environmental Specifications
- Flammability Rating: CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics: Blue Angel | TCO ’99 | WEEE
- Safety Standard: CSA | UL
Regulatory Compliance/Certifications
- Agency: Classification
- CHINA-ROHS: Below maximum concentration value
- REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS: Compliant
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 14, 2022
