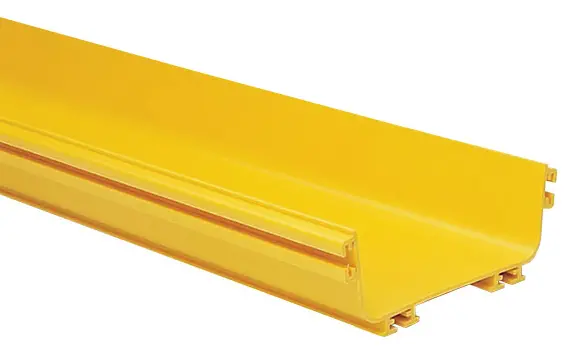

COMMSCOPE FGS-MSHS-G FiberGuide Horizontal Straight Section
FiberGuide® Horizontal Straight Section, 2x6in, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
- Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio CommScope®
- Product Type Fiber raceway straight section
- Product Brand FiberGuide®
- Product Series FGS
General Specifications
- Product Feature Snap-together design
- Color Yellow
- Orientation Horizontal
- Section Type Straight Section
Dimensions
- Length 1829 mm | 72.008 in
- System Dimensions 51 mm x 152 mm (2 in x 6 in)

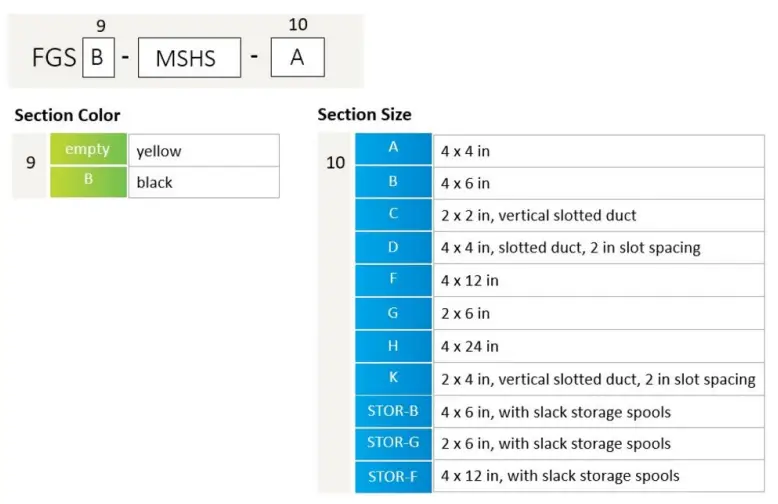

Ordering Tree
Material Specifications
- Material Type Engineering Thermoplastic
Environmental Specifications
- Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics Blue Angel | TCO ’99 | WEEE
- Safety Standard CSA | UL
Packaging and Weights
- Weight, net 3.36 kg | 7.408 lb
Regulatory Compliance/Certifications
- Agency Classification
- CHINA-ROHS Below maximum concentration value
- REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS Compliant
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 14, 2022
