FGS-MSHS-F100MM FiberGuide Horizontal Straight Section
User Manual

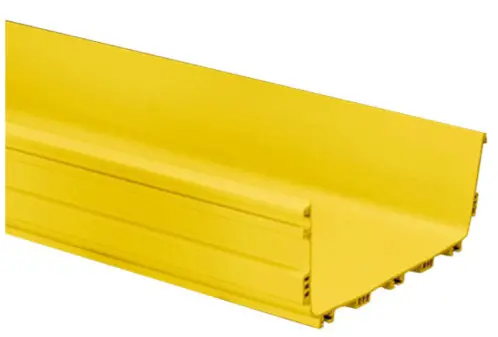

FiberGuide® Horizontal Straight Section, 4x12in, 100mm Length, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection.
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless of the system size.
- FiberGuide is an optical raceway system for central offices, mobile switching centers, and data center applications.
- Engineers and installers can benefit from the large suite of available FiberGuide design tools.
Product Classification
Regional Availability Asia | Australia/New Zealand|EMEA|Latin America| North America
Portfolio CommScope®
Product Type Fiber raceway straight section
Product Brand FiberGuide®
Product Series FGS
General Specifications
| Product Feature | Snap-together design |
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Straight Section |
Dimensions
| Height | 102 mm | 4.016 in |
| Width | 347 mm | 13.661 in |
| Length | 100 mm | 3.937 in |
| System Dimensions | 102 mm x 305 mm (4 in x 12 in) |
Ordering Tree
Material Specifications
| Material Type | Engineering Thermoplastic |
Environmental Specifications
| Flammability Rating | CSA S143 | UL 2024|UL 94 V-0 |
| Halogen Characteristics | Blue Angel| TCO ’99| WEEE |
| Safety Standard | CSA| UL |
Packaging and Weights
| Weight, net | 0.324 kg | 0.714 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 14, 2022
