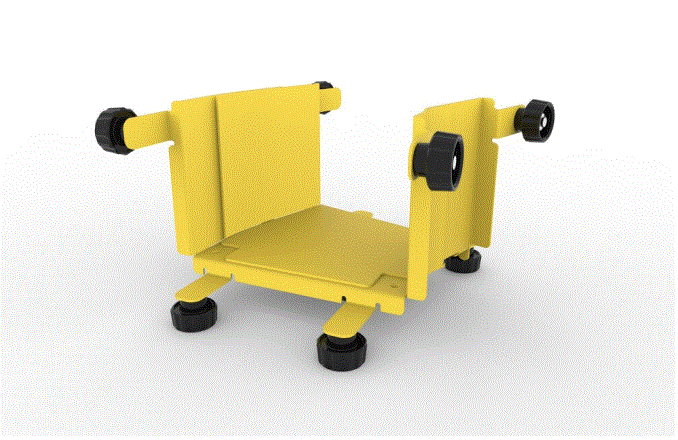

COMMSCOPE FGS-HHVE-A FiberGuide 17-35 Degree Left Right Horizontal Elbow
FiberGuide® 17-35° Left/Right Horizontal Elbow, 4x4in, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless of the system size
- FiberGuide is an optical raceway system for central office, mobile switching center, and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
- Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio: CommScope®
- Product Type: Fiber raceway elbow section
- Product Brand: FiberGuide®
- Product Series: FGS
General Specifications
- Color: Yellow
- Orientation: Horizontal
- Section Type: Elbow section
Dimensions
- Height: 101.6 mm | 4 in
- Width: 101.6 mm | 4 in
- System Dimensions: 102 mm x 102 mm (4 in x 4 in
Material Specifications
- Material Type: Engineering Thermoplastic
Environmental Specifications
- Flammability Rating: CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics: Blue Angel | TCO ’99 | WEEE
- Safety Standard: CSA | UL
Packaging and Weights
- Weight, net: 3.712 kg | 8.184 lb
Regulatory Compliance/Certifications
Agency Classification
- CHINA-ROHS Below maximum concentration value
- REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS Compliant
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 14, 2022.
