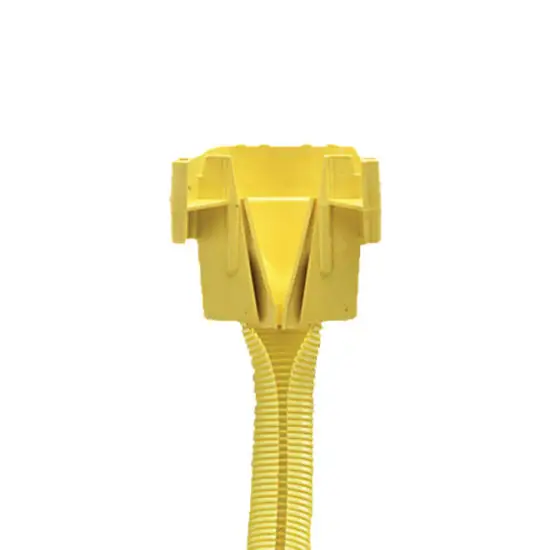

COMMSCOPE FGS-ASRI-15F FiberGuide Adapter Kit User Manual
FiberGuide® Adapter Kit, Square to 2″ Round, 4x4in, 15ft Slotted, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable
protection - FiberGuide maintains a minimum bend radius throughout the entire system, regardless the
system size - FiberGuide is an optical raceway system for central office, mobile switching center and data
center applications - Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
- Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio: CommScope®
- Product Type: Fiber raceway convoluted tube
- Product Brand: FiberGuide®
- Product Series: FGS
General Specifications
- Product Feature: Slotted | Transition
- Color: Yellow
- Orientation: Vertical
- Section Type: Adapter
Dimensions
- Height: 4,663.719 mm | 183.611 in
- Width: 65.049 mm | 2.561 in
- Length: 107.569 mm | 4.235 in
- Tube Outer Diameter: 50.8 mm | 2 in
- System Dimensions: 102 mm x 102 mm (4 in x 4 in)
Environmental Specifications
- Flammability Rating: CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics: Blue Angel | TCO ’99 | WEEE
- Safety Standard: CSA | UL
Packaging and Weights
- Included: Hardware
- Packaging quantity: 1
- Weight, net: 1.625 kg | 3.583 lb
Regulatory Compliance/Certifications
- Agency: Classification
- CHINA-ROHS: Below maximum concentration value
- REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS: Compliant
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 14, 2022
