FGS-ACC538

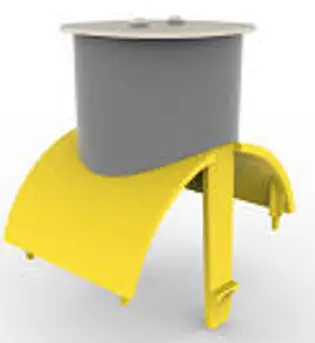

FiberGuide® Express Exit Spool Kit, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central offices, mobile switching center,s and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber raceway accessory |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Product Feature | Round |
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Accessory |
Dimensions
| Height | 108.204 mm | 4.26 in |
| Width | 68.58 mm | 2.7 in |
| Length | 98.044 mm | 3.86 in |
| System Dimensions | 102 mm x 152 mm (4 in x 6 in) |

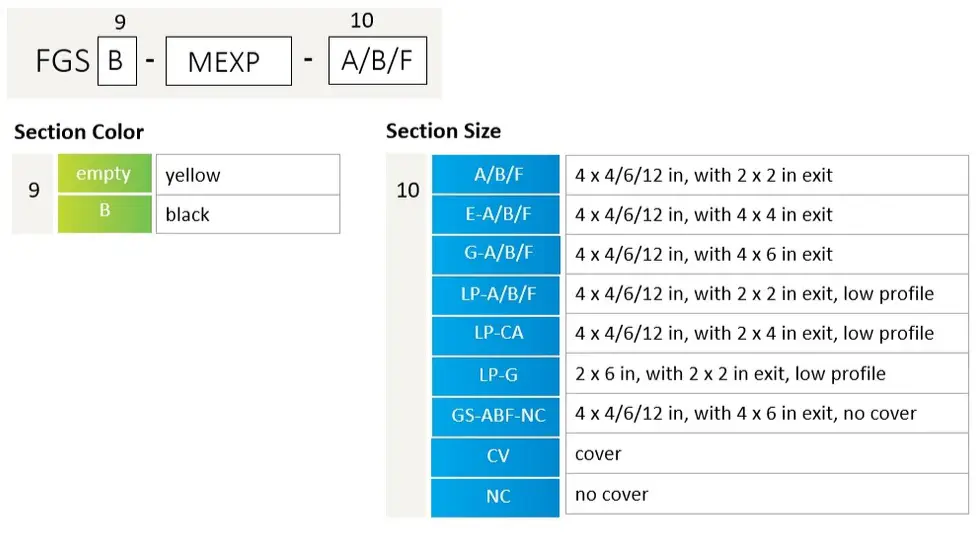

Ordering Tree
Material Specifications
| Material Type | Engineering Thermoplastic |
Environmental Specifications
| Flammability Rating | CSA S143 | UL 2024 | UL 94 V-0 |
| Halogen Characteristics | Blue Angel | TCO ’99 | WEEE |
| Safety Standard | CSA | UL |
Packaging and Weights
| Included | Hardware |
| Packaging quantity | 1 |
| Weight, net | 0.113 kg | 0.249 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
