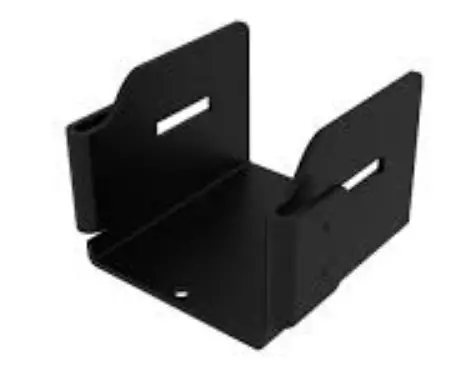

COMMSCOPE FGS-ACC142 FiberGuide Retainer Bracket Kit
FiberGuide® Retainer Bracket Kit, 2x2in
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
- Regional Availability
- Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio
- CommScope®
- Product Type
- Fiber raceway accessory
- Product Brand
- FiberGuide®
- Product Series
- FGS
General Specifications
- Color
- Black
- Orientation
- Vertical
- Section Type
- Bracket
Dimensions
- System Dimensions
- 51 mm x 51 mm (2 in x 2 in)
Environmental Specifications
- Flammability Rating
- CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics
- Blue Angel | TCO ’99 | WEEE
- Safety Standard
- CSA | UL
Regulatory Compliance/Certifications
Agency & Classification
- CHINA-ROHS
- Below maximum concentration value
- REACH-SVHC
- Compliant as per SVHC revision on www.commscope.com/ProductCompliance
- ROHS
- Compliant
