FGS-CLIP-C

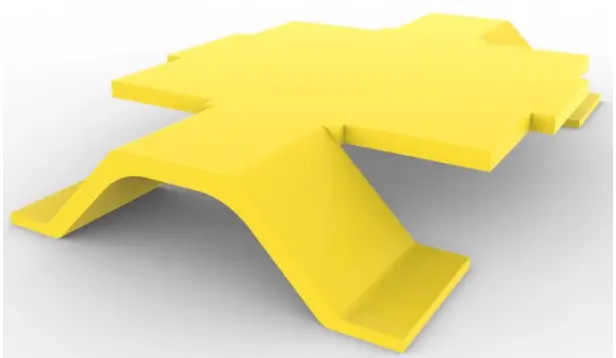

FiberGuide® Vertical Cover Retainer Clip, Yellow
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless of the system size
- FiberGuide is an optical raceway system for central offices, mobile switching centers,s, and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Product Classification
| Regional Availability | Asia|Australia/New Zealand |EMEA|Latin America|North America |
| Portfolio | CommScope® |
| Product Type | Fiber raceway hardware |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Color | Yellow |
| Orientation | Vertical |
| Section Type | Accessory |
Dimensions
| Height | 76.2 mm |3 in |
| Width | 11.43 mm | 0.45 in |
| Length | 52.07 mm | 2.05 in |
| System Dimensions | 102 mm x 102 mm (4 in x 4 in)|102 mm x 152 mm (4 in x 6 in) |
Material Specifications
| Material Type | Engineering Thermoplastic |
Environmental Specifications
| Flammability Rating | CSA S143|UL 2024 |UL 94 V-0 |
| Halogen Characteristics | Blue Angel |TCO ’99 |WEEE |
| Safety Standard | CSA | UL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.008 kg | 0.018 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: February 18, 2022
