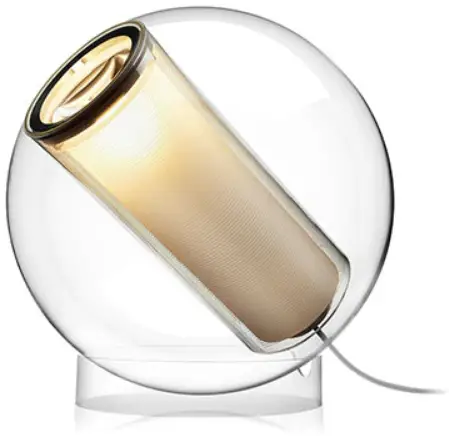

Pablo BEL OCCHIO Table Lamp
ASSEMBLY INSTRUCTIONS

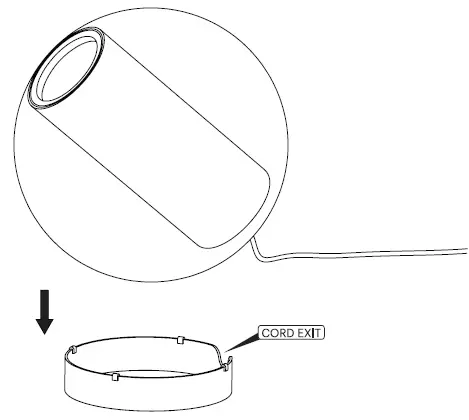

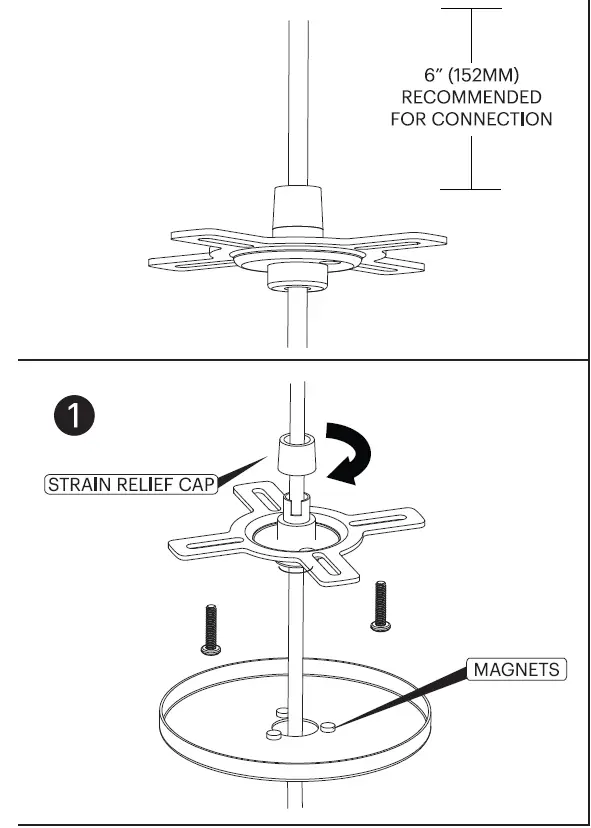

- LOOSEN STRAIN RELIEF CAP AND FEED CORD THROUGH

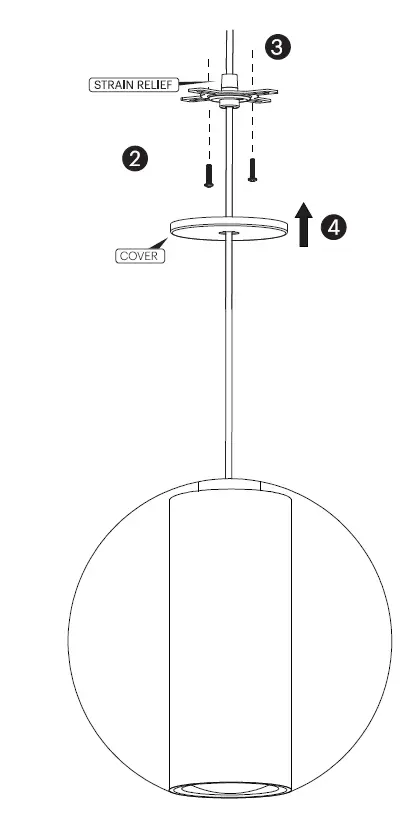

- TIGHTEN STRAIN RELIEF AT DESIRED HEIGHT AND ATTACH MOUNTING PLATE TO JUNCTION BOX
- CUT CORD AND CONNECT LAMP WIRING TO BUILDING WIRING
- SLIDE COVER UP TO CIELING AND SECURE WITH NUT
CARE INSTRUCTIONS
WIPE CLEAN WITHA SOFT DAMP CLOTH. AVOID AMMONIA-BASED CLEANERS.

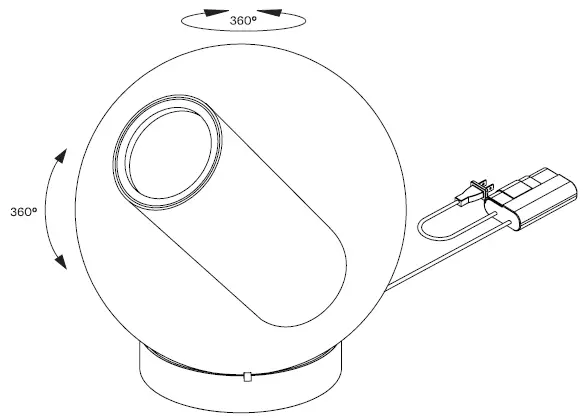

ADJUSTMENT
BULB TYPE
1X 75W WHITE BT 15 MEDIUM BASE HALOGEN

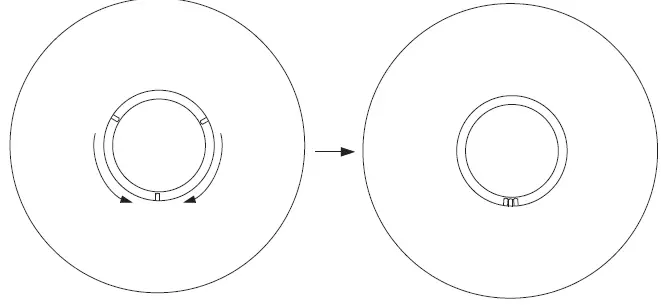

- FOR SUSPENSION MODEL ONLY, SLIDE METAL TABS TOGETHER AS SHOWN

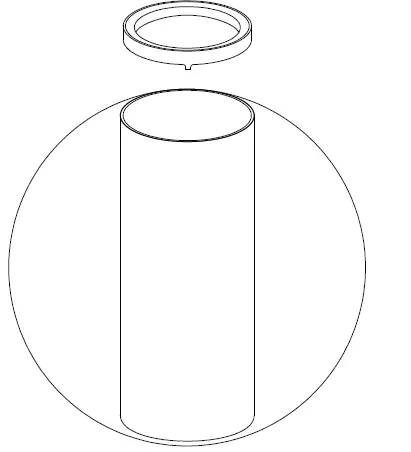

- REMOVE ALUMINUM RING AND REPLACE BULB
888 MARIN STREET SAN FRANCISCO, CA 94124
