BEGA 67478.2 Table Lamp
Product Information
| Product Description | Stainless Steel Luminaire |
|---|---|
| Weight | 1.6 kg |
| Lamp Base | E27 Screw Base |
| Maximum Lamp Output | 75 W |
| Luminaire Efficiency | 78% |
| Energy Efficiency Class | E |
Product Usage Instructions
Installation
- Insert the lamp into the lampholder.
- Insert the glass into the luminaire housing.
- Screw the glass in by turning it clockwise.
- Make sure that the gasket is seated correctly.
- Connect the luminaire to the main supply (230 V).
On/Off Switch
To turn the luminaire on or off, use the toggle switch located in the lamp base.
Maintenance
- Clean the luminaire and glass using solvent-free cleaning products.
Replacement Parts
| Spare Glass | 11 002 908 41R G |
|---|---|
| LED Lamp 2700 K | 13 548 13 586 |
| LED Lamp 3000 K | 63 000 339 63 000 421 |
| Lampholder | 63 000 339 63 000 421 |
| Push Button | 63 000 339 63 000 421 |

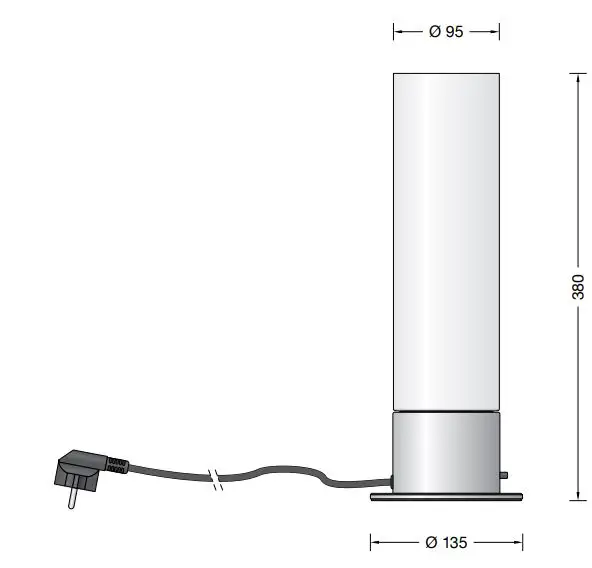

Dimension
Instructions for use
Application
- Table lamp · indoor luminaire made of metal base and hand-blown opal glass for free radiating and glare-free light.
Lamp
- Luminaire with screw base E 27
- Lamp output max. 75 W
- This product contains light sources of energy efficiency class E
Supplied lamp
- BEGA LED lamp 13548
- LED 7 W · 805 lm · 2700 K dimmable
Supplied lamp
- BEGA LED lamp 13586
- LED 7 W · 805 lm · 3000 K dimmable
- Luminaire efficiency: 78%
- Detailed technical and lighting data for the lamps can be found in the data sheets on our website.
Product Description
- Stainless steel housing
- Hand-blown opal glass, with screw neck
- Black cable · 2m, with safety plug
- Built-in toggle switch
- Lampholder E 27
- Safety class I
- Conformity mark
- Weight: 1.6 kg
Safety
- The installation and operation of this luminaire are subject to national safety regulations.
- The manufacturer accepts no liability for damage caused by improper use or installation.
- If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer
Installation
- Insert the lamp into lampholder.
- Insert glass into the luminaire housing and screw it in by turning it clockwise.
- Make sure that the gasket is seated correctly.
- Connect luminaire to mains supply (230 V).
- To turn the luminaire on or off use the toggle switch in the lamp base.
Relamping · Maintenance
- Disconnect the electrical installation.
- Unscrew glass from luminaire housing.
- Clean luminaire and glass.
- Use only solvent-free cleansers.
- Change the lamp.
- Screw glass into luminaire housing.
Spares
- Spare glass 11 002 908 41RG
- LED lamp 2700 K 13 548
- LED lamp 3000 K 13 586
- Lampholder 63 000 339
- Push button 63 000 421
- BEGA Gantenbrink-Leuchten KG
- Postfach 3160
- 58689 Menden
- [email protected]
- www.bega.com
BEGA · Das gute Licht.
