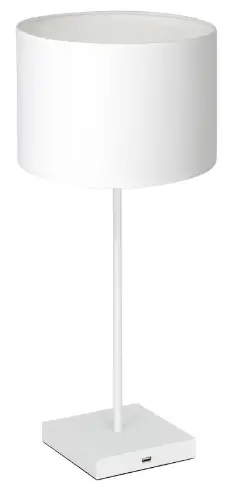

BEGA 67538.2 Table Lamp
Product Information
| Product Name | Luminaire |
|---|---|
| Material | Stainless steel |
| Lamp Type | Screw base E27 |
| Lamp Output | Maximum 25 W |
| Luminaire Efficiency | 80% |
| Dimmer Compatibility | Dimmable LED lamp with maximum power of 25 W |
Product Usage Instructions
- Clean the luminaire and glass using suitable cleaning products.
- Insert the lamp into the lampholder.
- Place the glass over the metal housing and fix it with the glass holding bolts.
- Connect the luminaire to a mains supply (230 V) using a protective contact socket.
- To turn the luminaire on or off, gently press the sensing device.
- To adjust the light intensity, hold the sensing device and adjust it infinitely.
Please note that the cable dimmer of the luminaire is only suitable for the operation of a dimmable LED lamp with a maximum power of 25 W. If an incandescent lamp is used, the maximum power of the lamp is 60 W.
Detailed technical and lighting data for the lamps can be found in the data sheets on our website.
The installation and operation of this luminaire are subject to national safety regulations. The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for
these modifications shall be considered the manufacturer.
Instructions for use
Application
Table lamp · indoor luminaire made of metal base and hand-blown opal glass, satin matt for free radiating and glare-free light.

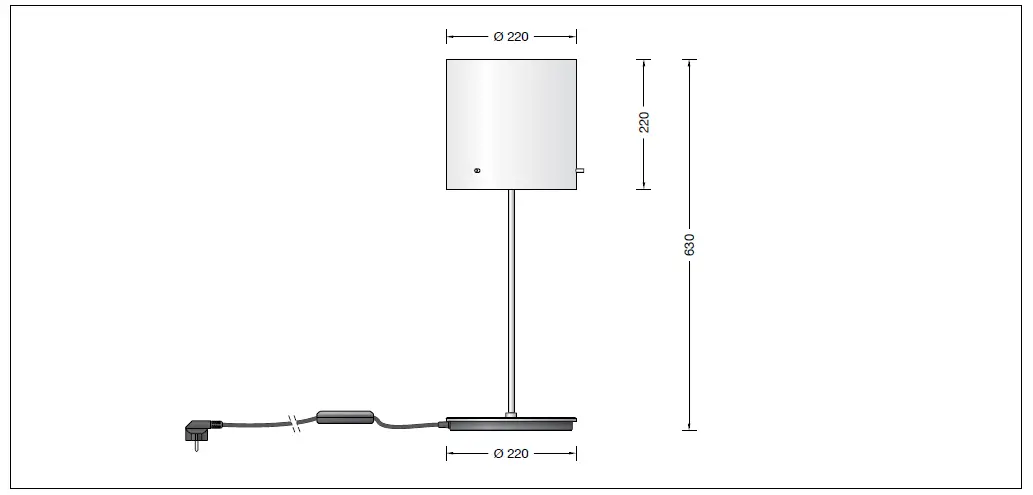

DIMENSION
Lamp
- Luminaire with screw base E 27
- Lamp output max. 25 W
- This product contains light sources of energy efficiency class E
Supplied lamp
- BEGA LED lamp 13548
- LED 7 W · 805 lm · 2700 K dimmable
Supplied lamp
- BEGA LED lamp 13586
- LED 7 W · 805 lm · 3000 K dimmable
- Luminaire efficiency: 80%
Detailed technical and lighting data for the lamps can be found in the data sheets on our website.
Please note:
The cable dimmer of the luminaire is only suitable for the operation of a dimmable LED lamp with a max. power of 25 W. If an incandescent lamp is used, the max. power of the lamp is 60 W.
Product Description
- Luminaire made of stainless steel
- Hand-blown opal glass, satin matt
- Black cable · 2 m, with safety plug
- Cable dimmer for infinite light adjustment
- Dimmer module 230 V y 50 Hz
- Lampholder E 27
- Safety class I
- Conformity mark
- Weight: 3.9 kg
Safety
- The installation and operation of this luminaire are subject to national safety regulations.
- The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Installation
- Insert lamp into lampholder.
- Place glass over metal housing and fix it with the glass holding bolts.
- Connect luminaire to mains supply (230 V). Press sensing device gently to turn the luminaire on or off.
- Holding the sensing device enables to adjust the light intensity infinitely.
Relamping Maintenance
- Disconnect the electrical installation.
- Remove the lamp.
- Remove glass by unscrewing threaded bolts. Clean luminaire and glass.
- Use only solvent-free cleansers.
- Mount glass to the metal housing usingthreaded bolts.
- Insert the lamp.
Spares
- Spare glass 11 003 405 .0R G
- LED lamp 2700 K 13 548
- LED lamp 3000 K 13 586
- Glass holding bolt 51 003 376
- Cable dimmer 62 001 159
- Lampholder 63 000 339
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · [email protected]
www.bega.com
BEGA · Das gute Licht.
