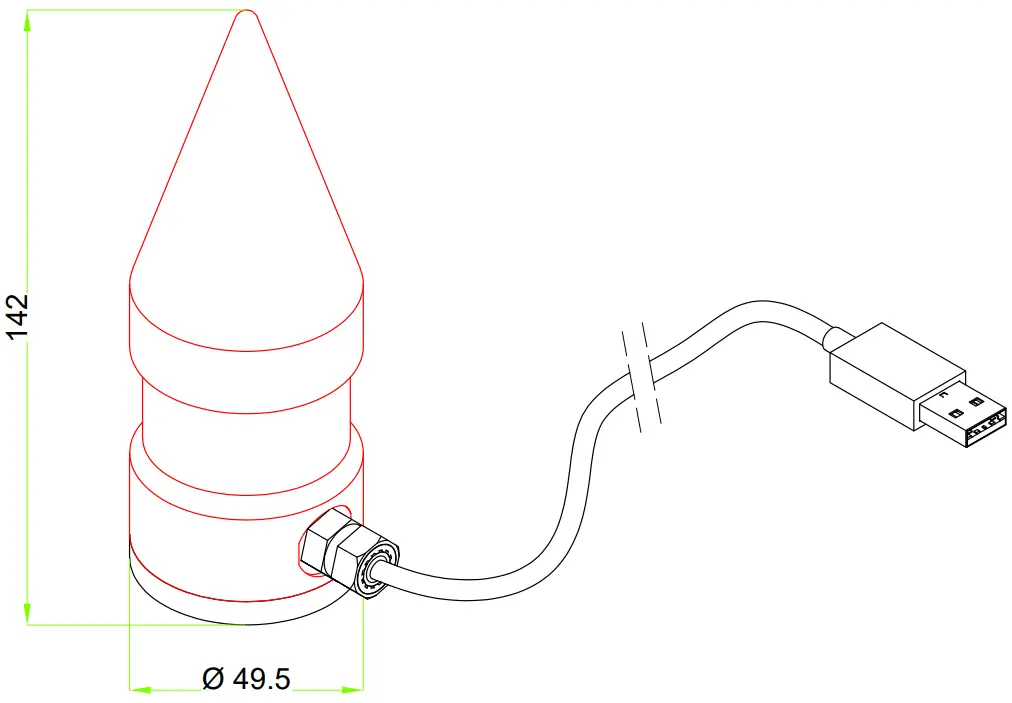

| CONNECTOR CABLE CONNECTIONS (1) |
| USB type A |
Cable
L=10 m
| Revision index | Data | Change made |
| a | 23/05/19 | First revision |
| b | 09/11/21 | adj. title block and drawing layout |
| c | — | — |
| d | — | — |
| e | — | — |
| f | — | — |
| A4 | EDITED: | CHECKED: | VERIFIED: | APPROVED: |
| UT | R&S | RA | RT | |
| ORIGINAL DATE: | 22/05/19 | 22/05/19 | 22/05/19 | 22/05/19 |
| This communication contains confidential information intended only for its addressee(s). Please don’t print if not necessary | ||||
| LINEAR DIMENSIONS WITHOUT INDICATION OF TOLERANCE ALLOWED LIMIT DEVIATIONS | |
| Size groups: | Tolerances mm |
| 1…18 | ±0.1 |
| >18…80 | ±0.15 |
| >80…250 | ±0.25 |
| >250 | ±0.35 |
| ProFab: | —- |
| ProCal: | —- |
| ProCol: | —- |
 | |
 | Description: Sensor/Front distance/USB/5V | Material: — | SCALE FACTOR
|
| n° dis.: Rev.: DISACC210155 – | Product code: DQA601.2 |
