Floor sensor
FS300
User Manual
FS300 Floor Sensor
The floor sensor FS300 is designed to measure the temperature. Working with temperature controllers.
Devices with external floor sensor (optional):
- Series EXPERT HTR: HTRP230
- Series EXPERT NSB: VS30W, VS30B, VS35W, VS35B
- Series iT600RF: VS10WRF, VS10BRF, VS20WRF, VS20BRF, HTRS-RF(30), HTRP-RF(50), TS600
- Series iT600 COMBUS: VS05, VS10W, VS10B
- FC600 Fan Coil thermostat

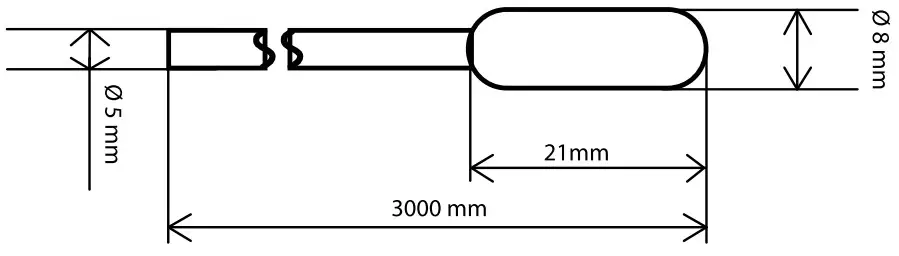

Technical data:
| Operation temperature | -10°C – 100°C |
| Sensor type | NTC 10kΩ |
| Length | 3 m |
| Cross-section of wire | 2 x 0,5 mm² |
IMPORTER: QL CONTROLS Sp. z o.o. Sp. k.
ul. Rolna 4, 43-262 Kobielice
PRODUCER:
Wenzhou Youdo trade CO., LTD.
20F Vuilding6, Headquarters
Economy Garden, Yueqin
325600 Zhejiang, China
