JULA 014432 Sensor for Weather Station Instruction Manual

SAFETY INSTRUCTIONS

Carefully read the instructions before using the product. Save them for future reference.

SYMBOLS

• Read the instructions.

• Approved in accordance with the relevant directives.

• Recycle discarded product in accordance with local regulations.


TECHNICAL DATA

Temperature ¹ -40 to 70 °C
Humidity ² 20 to 70 %
Range ≤ 100 m
Battery 2 pcs. AA
¹ Tolerance ± 1,2 °C
² Accuracy ± 8 %

DESCRIPTION

Extra sensor for weather station (014331).
Maximises your measurements and check in several places. Can be installed both indoors and outdoors. Weather station and batteries are sold separately in Jula’s department store and at www.jula.com.

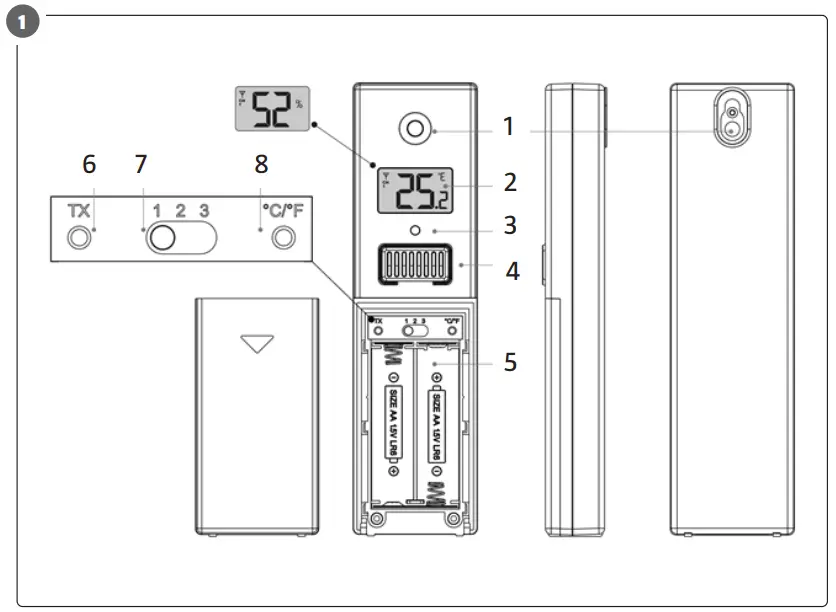

1. Hanging hol
2. LCD display
3. LED indicator
4. Temperature | Humidity sensing louver
5. Battery compartment
6. Manual transmit signal button “TX”
7. “CHANNEL 1 or 2 or 3” switch
8. Reset button

FIG. 1

Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.

DECLARATION OF CONFORMITY

Item number

014332

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

This declaration of conformity is issued under the sole responsibility of the manufacturer.

SENSOR FOR WEATHER STATION

Conforms to the following directives, regulations and standards.

This product was CE marked in year:

Skara 2020-11-13

Christian Blank
BUSINESS AREA MANAGER
