Hama 00186345 Ts34a Outdoor Sensor Instruction Manual

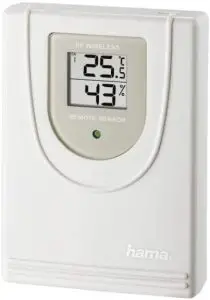

hama 00186345 TS34A Outdoor Sensor

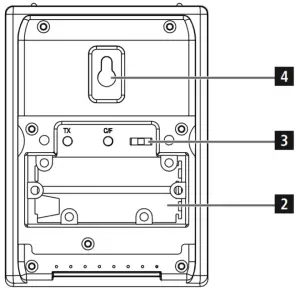

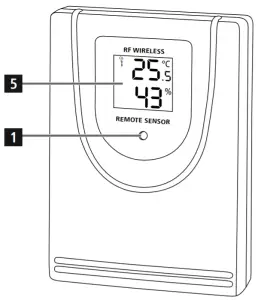

Controls and Displays A Measuring station

1. LED indicator
2. Battery compartment
3. CHANNEL slide switch = selects channel
4. Recess for wall mounting
5. LCD display



Explanation of Warning Symbols and Notes

	Warning This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
	Note This symbol is used to indicate additional information or important notes

Package Contents

• TS34A Outdoor Sensor
• These operating instructions

Safety Notes

• The product is intended for private, non-commercial use only.
• Do not operate the product outside the power limits given in the specifications.
• Do not use the product in moist environments and avoid splashes.
• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
• Do not use the product in areas where the use of electronic devices is not permitted.
• Do not put the product near interference fields, metal frames, computers, TVs, etc. Electronic devices and window frames can negatively affect the product’s functionality
• Do not drop the product and do not expose it to any major shocks.
• Do not open the device or continue to operate it if it becomes damaged. Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the product in any way. Doing so voids the warranty.
• Use the product for its intended purpose only.
• Keep this product, as all electrical products, out of the reach of children!
• Use the item only in moderate climatic conditions.

Warning – Batteries When inserting batteries, note the correct polarity (+ and – markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding. Only use batteriest (or rechargeable batteries) that match the specified type. Before you insert the batteries, clean the battery contacts and the polar contacts. Do not allow children to change batteries without supervision. Do not mix old and new batteries or batteries of a different type or make. Remove the batteries from products that are not being used for an extended period (unless these are being kept ready for an emergency). Do not short-circuit batteries. Do not charge batteries. Do not throw batteries in a fire. Keep batteries out of the reach of children. Never open, damage or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals. Immediately remove and dispose of dead batteries from the product. Avoid storing, charging or using the device in extreme temperatures and extremely low atmospheric pressure (for example, at high altitudes).

Getting started

• Unscrew the screws on the battery compartment (2) on the back of the measuring station and open it.
• Move the CH slide switch (4) to the left or right to select the channel on which the measuring station transmits.
• Insert two AAA batteries with the correct polarity.
• Then close the battery compartment cover.

Replacing the batteries

• Open the battery compartment (2), remove and properly dispose of the dead batteries and insert two new AAA batteries with the correct polarity. Then close the battery compartment cover.

Before use, make sure that you insert the batteries in the measuring station first and then in the base station.

Installation

	Note – Installation We recommend initially placing the base and measuring stations in the intended locations without installing them and making all the settings described in 6. Operation. Only install the stations once the appropriate settings have been made and a stable wireless connection is established.
	Note – Installation  We recommend initially placing the base and measuring stations in the intended locations without installing them and making all the settings described in 6. Operation. Only install the stations once the appropriate settings have been made and a stable wireless connection is established.
	Note The wireless transmission range between the measuring and base stations is up to 30 metres in open spaces. Before installation, ensure that wireless transmission will not be disrupted by interference or obstacles like buildings, trees, vehicles, high-voltage lines, etc. Before the final installation, ensure that there is sufficient reception between the intended installation locations. When installing the measuring station, ensure that it is protected from direct sunlight and rain. The international standard height for measuring air temperature is 1.25 m (4 ft) above ground.

Warning Buy special or suitable installation material from a specialised dealer for wall-mounting. Ensure that no faulty or damaged parts are installed. Never apply force during installation. This could damage the product. Before installation, ensure that the chosen wall is suitable for the weight to be installation, and make sure that there are no electrical wires, water, gas or other lines in the wall at the installation site. Do not mount the product above locations where persons might linger

• You can position the measuring station on a level outdoor surface using the base.
• We recommend installing the measuring station securely on an outdoor wall.
• Install an anchor, screw, nail, etc. in the wall of your choice. · Hang the measuring station using the opening intended for this purpose (4).

Operation

Connection to the measuring station

• To connect the base station and the measuring station, place the two devices as close together as possible.
• After you insert the batteries, the base station automatically searches for a connection to the measuring station and performs initial setup. If the device does not connect automatically, the manual search program on the base station must be started.

Note Initial setup takes approximately 3 minutes. During the connection attempt, the radio symbol and the LED indicator (1) on the measuring station will flash. Do not press any buttons during setup. Otherwise, values may not be transmitted correctly and there isarisk of value errors and inaccuracies. The setup process is completed when the indoor and outdoor measurement data is displayed on the base station. The measured value is automatically updated by the base device about every 57 seconds.

Selecting the channel/Other measuring stations

Note Ensure that the base station and measuring station are set to the same channel. Suitable base stations can be found at www.hama.com The transmission channel on the supplied measuring station can be changed/set (CH1, CH2, CH3). The measuring station is suitable for the following base stations: 76045, 113964, 123126, 123127,123128, 123129, 136256, 136257, 136258, 136259, 186306, 186307, 186308; 186353, 186354, 186417, 186418

Low battery charge

Note – Replacing the batteries Note that the stations have to be resynchronised each time after you change the batteries in the measuring or base station. To do this, remove the batteries from the other station and then reinsert them, or change them as required.

Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• Make sure that water does not get into the product.

Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/ or safety notes.

Technical Data

Measuring station
Power supply	1,5 V 2xAAA batteries
Measuring range Thermometer Hygrometer Barometer	-20°C – +60°C/ -4°F – 140°F 20% – 95%
Measurement increments Temperature Humidity	0,1°C / 0,2°F 1%
Measuring cycle thermometer/hygrometer Barometer	~ 57s –
Hygrometer	Yes
Thermometer	Yes
Barometer	Yes
Moon phases	–
Frequency	433 MHz
Radio-frequency	0.13 µW
Range	≤ 30 m

Declaration of Conformity

Hereby, Hama GmbH & Co KG declares that the radio equipment type [00186345, 00176931] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.hama.com -> 00186345, 00176931 -> Downloads.

Hama GmbH & Co KG
86652 Monheim/ Germany

Service & Support

 www.hama.com
 +49 9091 502-0
