Ultra Slim 70m (100m HD) 4K60
4:4:4, HDR HDBaseT Extender
ac-ex70-444-TNE
User Guide

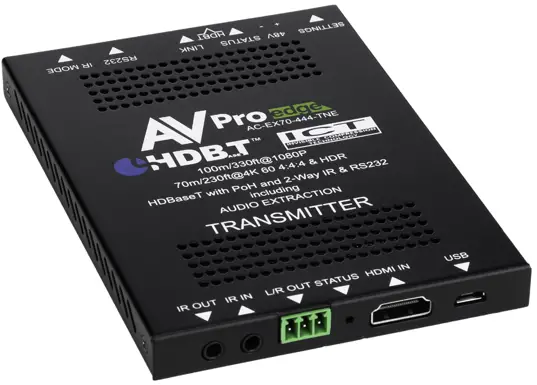

AC-EX70-444-TNE Ultra Slim 70m 4K60 HDR HBase Extender
AVPro Edge’s 70-meter 4K transmitter can support long-distance runs of high bandwidth data signals over standard category cable. Professional AV installers will use this device anytime they need to send HDMI signals long distances. This device will convert the HDMI signal into an HDBaseT type that distributes uncompressed video data through walls and underground to areas that are not easily reached.
This device works perfectly with any HBase TV, projector, or AVR, but even more so works with Avapro Edges scaling HBase Receiver (AC-EX70-SC2-R). When paired together you are in full control of the video signals that are passing through, you can input a full 4K60 signal, but scale it to a standard 720p for legacy TVs and projectors.
This transmitter uses ICT Technology to fit the full 4K60 (4:4:4) signal over a single piece of category cable, we do this by lightly compressing any signal over 10.2Gbps to fit through the category pipeline. Because this compression is engineered to not affect the picture quality, you have a near-lossless image on the screen.

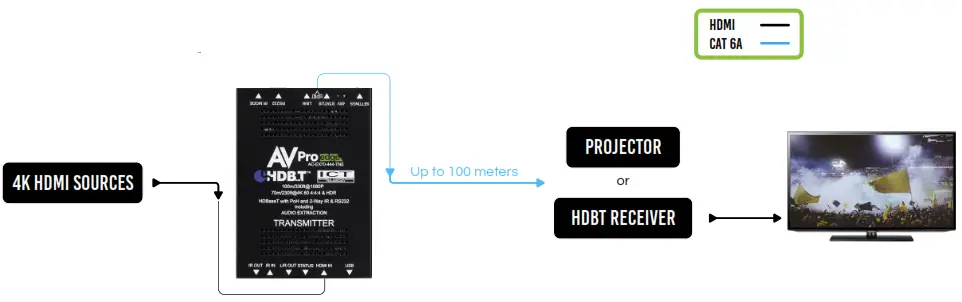

CONNECTION DIAGRAM
product specifications
| VIDEO : | |
| VIDEO Resolute Talons | UP TO 4K 60HZ 4:4:4 |
| VESA Resolute loans | UP TO DCI 4K (4096X2160) |
| HDR FORMATs/Resolution’s | “420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, HLG” |
| COLOR SPACE | “YUV (COMPONENT), RGB (CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500)” |
| CHROMA Subsampling | 4:4:4, 4:2:2, 4:2:0 SUPPORTED |
| DEEP COLOR | UP TO 16 BIT (1080), UP TO 12 BIT (4K) |
| Audley: | |
| Audley FORMATs SUPPORTED HDMI | PCM 2.0 CH, LPCM 5.1 & 7.1, DOLBY DlglTAL, DTS 5.1, DOLBY DlglTAL PLUs, DOLBY TRUEHD, DTS-HD Masters Audley, DTS-X, DOLBY ATMOs |
| Audley FORMATs SUPPORTED EXTRACTED | PCM 2 CH (NO Downmix) |
| Distanced: | |
| HBase (CAT) Transmits Distanced (4K) | 70M (230 FEET) |
| HBase (CAT) Transmits Distanced (FULL HD) | 100M (330 FEET) |
| HDMI LEAD IN (UP TO 4K60 4:4:4) | UP TO 50 FEET (Using BULLET TRAIN HDMI) |
| HDMI LEAD IN (W/ AOC CABLE) (UP TO 4K60 4:4:4) | UP TO 130 FEET (Sung BULLET Tran AOC) |
| OTHER: | |
| Bandwidths | 18 GBPs (W/ ICT) |
| HDCP | HDCP 2.2 AND Earle |
| PORTS: | |
| HDMI (inputs) | TYPE A |
| Audley (EXTRACTED Analog) (OUTPUT) | 3 PIN Terminal BLOCK (UNBALANCED) |
| IR RX (inputs/OUTPUT) | 3.5MM STEREO (3 CONDUCTOR) |
| RS232 | 3 PIN Terminal BLOCK |
| Environmental: | |
| Operating TEMPRATURE | 23 TO 125°F (-5 TO 51°C) |
| Storage TEMPERATURE | -4 TO 140°F (-20 TO 60°C) |
| Humidly Ranged | 5-90% RH (NO Condensation) |
| POWER: | |
| POWER Consumption (TOTAL) | 9 WATTs MAX Pal |
| POWER SUPPLY | “INPUT: AC 100-240V ~ 50/60HZ OUTPUT: DC 48V .5A (WALL Version) “ |
| Dimension’s: | |
| Dimension’s | “MM: 132 X 100 X 18 NCH: 5.19 X 3.94 X .69” |
| Dimension’s (Packaged Length/Width/Hight) (KIT) | “MM: 137 X 194 X 45 NCH: 5.38 X 7.62 X 1.75” |
| Wight (UNIT) | .5LBs (.23Kg) |
| Wight (Packaged) | 1LBs (.45Kg) |
| *Specification’s subject TO Change WlTHOUT Noticed. MAs & Dimension’s ARE Approximated | |

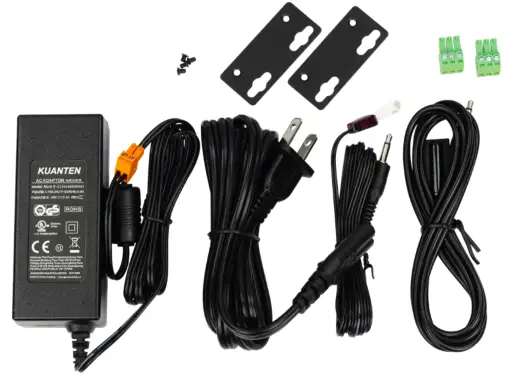

Full Feature Set
- HDMI 2.0(a/b)
- 18Gbps Bandwidth Support (Using ICT)
- 4K60 (4:4:4)
- 12-bit Support
- Full HDR (HDR, HDR10+, and HLG) and Dolby Vision Support
- HDCP 2.2 & Earlier Supported
- EDID Management and EDID emulate
- L/R Audio Extraction on Tx
- CEC Pass Through
- 3D Support
- Ultra Slim (.47 inch/12mm)
- Bidirectional RS232 Transport
- LED Status, Link, Power indication lights
- 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
- Bi-Directional POE (ire)
- Rugged, long-life chassis
- RS232 Control form local or remote
- Single UTP/STP LAN cable (CAT-5E/6A) for all signals (Shielded Cat6 recommended)
- ESD protection circuitry (Inputs / Outputs) till 7KV.
- Transfer IR & RS-232 signals from Tx to Rx
- I-Pass Feature for control system “pass-through IR”
- 3-20v protection circuit built-in for safe IR transport
- Compatible with HBase displays, projectors, AVR’s
- Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby Trued, DTS HDMaster Audio, Atmos.
