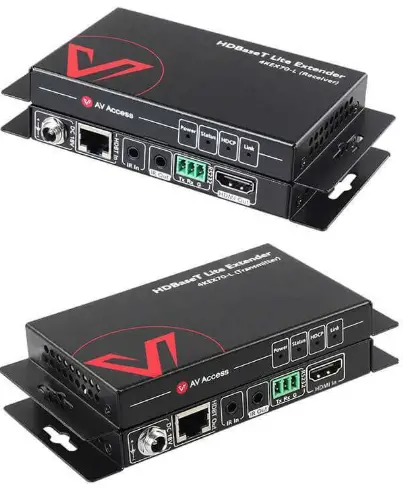

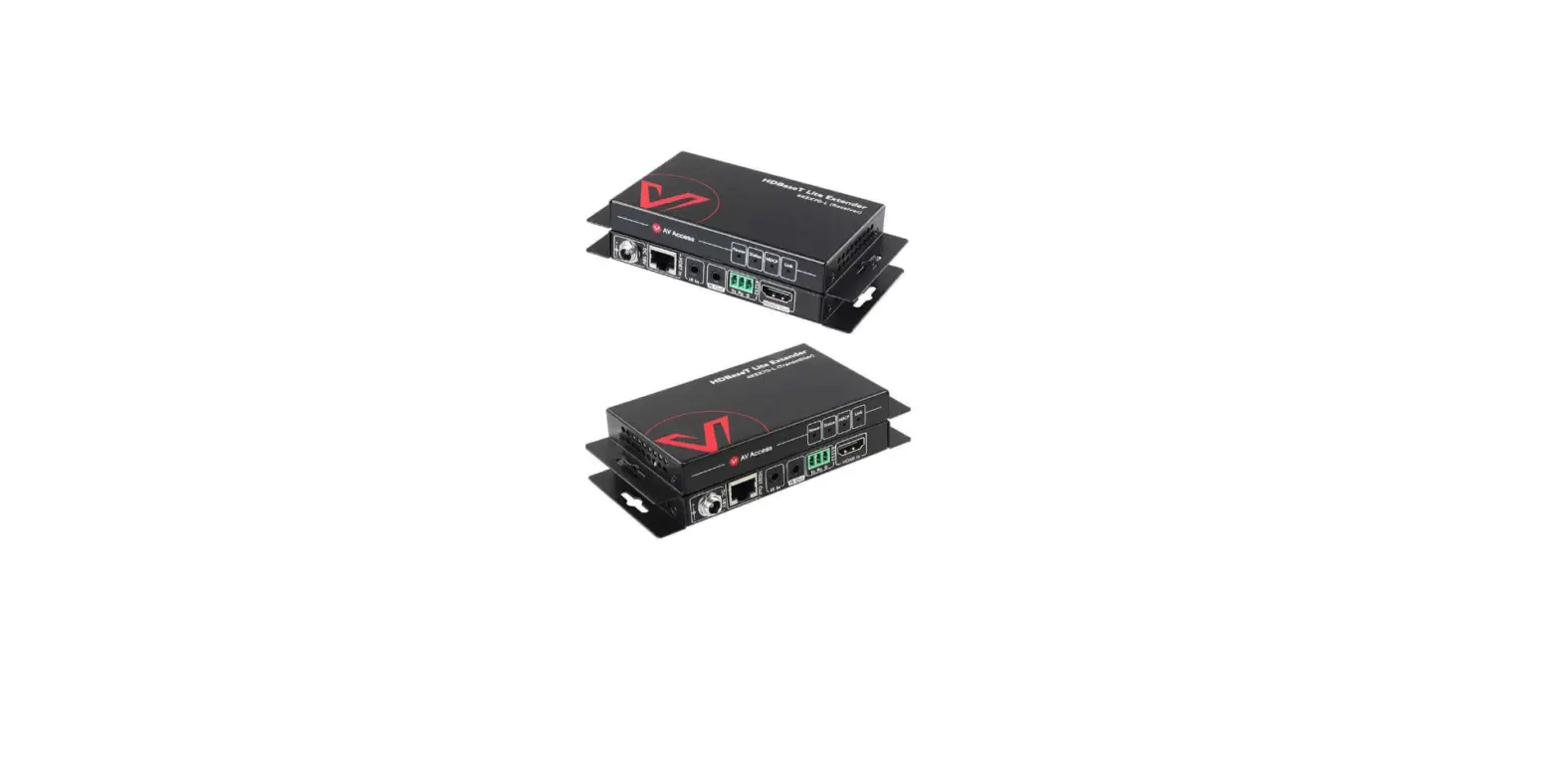

AV Access 4KEX70-L HDBase-T Lite Extender
Product Information
The HDBase-T Lite Extender 4KEX70-L is a device that allows you to extend HDMI signals up to 40m/131ft at 4Kx2K@60Hz (4:2:0) and up to 70m/230ft at 1080P@60Hz via Cat 6a/7 cables. When using Cat 5e cables, it can extend HDMI signals up to 35m/115ft at 4Kx2K@60Hz (4:2:0) and up to 60m/197ft at 1080P@60Hz. It also supports bi-directional RS232 pass-through and transfers bi-directional infrared control signal together with the HDMI signal. The device is slim in appearance, space-saving, HDMI 1.4 with 4K, and HDCP 2.2 compliant.
Specifications
- Video Signal Type: HDMI
- Audio Format: PCM2, 5.1, 7.1, Dolby Digital, DTS, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Input/Output Resolution Support: up to 4Kx2K@60Hz (4:2:0)
- Maximum Data Rate: 8.88 Gbps
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 90% RH (no condensation)
- ESD Protection: ±8kV (air-gap discharge) ±4kV (contact discharge)
- Surge Protection: ±2kV (common mode) ±1kV (differential mode)
- Power Consumption (Maximum): 8.88 W (Pair)
- Transmission Distance: up to 40m/131ft at 4Kx2K@60Hz (4:2:0) via Cat6a/7 cables, up to 35m/115ft at 4Kx2K@60Hz (4:2:0) via Cat5e cables

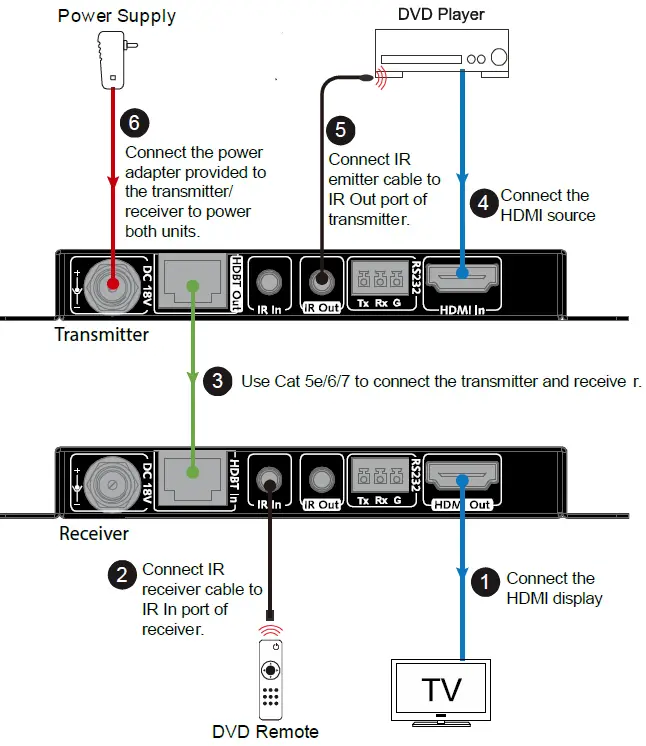

Product Usage Instructions
- Connect the power adapter provided to the transmitter/receiver to power both units.
- Connect the HDMI source (e.g. DVD) to the transmitter via an HDMI cable.
- Use Cat 5e/6/7 to connect the transmitter and receiver.
- Connect the IR receiver cable to the IR In port of the receiver.
- Connect the IR emitter cable to the IR Out port of the transmitter.
- Connect the HDMI display to the receiver via an HDMI cable.
- Secure the IR receiver with adhesive and place it near the display device.
- Secure the IR emitter on the IR receiving sensor of the source device with adhesive.
Note: We recommend the use of T568B straight-through Category cables.
Introduction
Overview
This product is a slim transmitter receiver pair which is designed to extend HDMI 1080P@60Hz signals up to 70m/230ft and 4K@60Hz signals up to 40m/131ft via a single Cat 6a/7 cable. The transmitter and receiver can supply power to each other reciprocally. When either side is plugged in the power, both sides are powered on. You can control the source from the display’s location or control the display from source’s location via IR pass-through function. The transmitter and receiver are easy to install. They are space saving and offer solutions for home, office, digital entertainment centers, control centers, conference rooms, school and corporate training environments.
Features
- Slim appearance and space saving.
- Bi-directional POE, when either side (transmitter or receiver) is plugged in the power, both sides are powered on.
- Transfers bi-directional infrared control signal together with the HDMI signal.
- Via Cat 6a/7 cables, 4Kx2K@60Hz (4:2:0) output up to 40m/131ft, 1080P@60Hz up to 70m/230ft.
- Via Cat 5e cable, 4Kx2K@60Hz (4:2:0) output up to 35m/115ft, 1080P@60Hz up to 60m/197ft.
- HDMI 1.4 with 4K and HDCP 2.2 compliant.
- Supports Bi-directional RS232 pass through.
Package Contents
Before you start the installation of the product, please check the package contents:
- Transmitter x 1
- Receiver x1
- Power Adapter (DC 18V 1A) x1
- IR Emitter x1
- IR Receiver (30 KHz ~ 50 KHz) x1
- Phoenix Connectors (3.5mm, 3 Pins) x 2
- User Manual x 1
Panel
Front Panel
| No. | Name | Description |
| 1 | Power | On: The device is powered on. Off: The device is powered off. |
| 2 | Status | Blinking: The device is working properly. Off: The device is not working properly. |
| 3 | HDCP | On: HDCP protected content is being transmitted. Blinking: Non-HDCP protected content is being transmitted. Off: No content is being transmitted. |
| 4 | Link | On: Link between transmitter and receiver has been established. Off/Blinking: Connection exceptions exist between transmitter and receiver. |

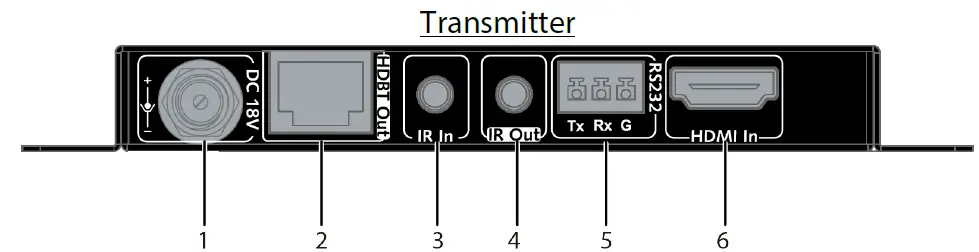

Rear Panel

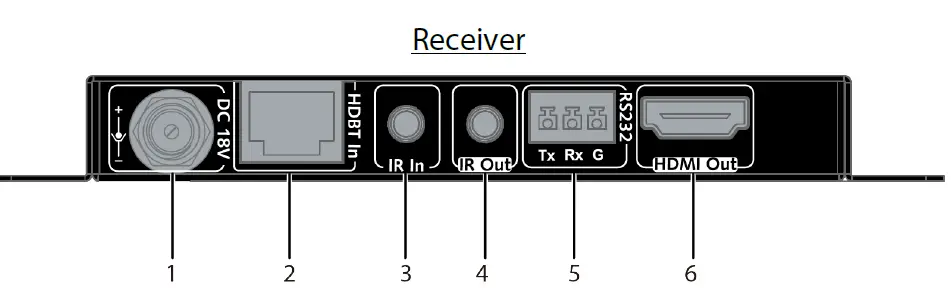

| No. | Name | Description |
| 1 | DC 18V | Connect to a DC 18V 1A power adapter. Note: If transmitter is connected to a power supply, the receiver is adapter free. |
| 2 | HDBT Out | Connect to the receiver via a Cat5e/6 cable. |
| 3 | IR In | Connect to an IR receiver cable. Secure the IR receiver with adhesive. |
| 4 | IR Out | Connect to an IR emitter cable. Secure the IR emitter on the IR receiving sensor of source device with adhesive. |
| 5 | RS232 | RS232 pass-through |
| 6 | HDMI In | Connect to a source device via an HDMI cable. |
| No. | Name | Description |
| 1 | DC 18V | Connect to a DC 18V 1A power adapter. Note: If receiver is connected to a power supply, transmitter is adapter free. |
| 2 | HDBT In | Connect to the transmitter via a Cat5e/6 cable. |
| 3 | IR In | Connect to an IR receiver cable. Secure the IR receiver with adhesive. |
| 4 | IR Out | Connect to an IR emitter cable. Secure the IR emitter on the IR receiving sensor of display device with adhesive. |
| 5 | RS232 | RS232 pass-through. |
| 6 | HDMI Out | Connect to a display via an HDMI cable. |
Application
Specifications
| Technical | ||
| Video Signal Type | HDMI 1.4, HDCP2.2 | |
| Audio Format | Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through | |
| SMPTE: | ||
| 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, | ||
| 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, | ||
| 4096×21602,3,5,6,8 | ||
| VESA: | ||
| 800×6008, 1024×7688, 1280×7688, 1280×8008, | ||
| Input/Output Resolution Support | 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008 | |
| 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at | ||
| 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 | ||
| Hz, 8 = at 60 Hz; | ||
| NOTE: | ||
| 4096×2160/3840×2160@50Hz/60Hz is based on | ||
| chroma sub-sampling 4:2:0 8-bit only | ||
| Maximum Data Rate | 10.2Gbps | |
| General | ||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| Humidity | 10% to 90%, non-condensing | |
| ESD Protection | ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) | |
| Surge Protection | Voltage: ±1 kV | |
| Power Consumption (Maximum) | ≤8.88 W (Pair) | |
| Device Dimensions (W x H x D) | 108.8 mm ×15 mm ×64.2 mm/ 4.29” x 0.59” x 2.52” | |
| Product Weight | TX/RX: 0.18kg/0.40lb
| |
Transmission Distance
Note: We recommend the use of T568B straight-through Category cables.
| Cable Type | Range | Supported Video |
| HDMI | Up to 15m/50ft | 1080P@60 Hz |
| HDMI In: Up to 10m/33ft HDMI Out: Up to 15m/50ft | 4K@30Hz 4:4:4 4K@60 Hz 4:2:0 | |
| CAT5e/CAT6 | 60 m/197ft | 1080P@60 Hz 36 bpp |
| 35 m/115ft | 1080P@60 Hz 48 bpp 1080P@60 Hz 3D 3840 x 2160@60 Hz 4:2:0 | |
| CAT6a/CAT7 | 70 m/230ft | 1080P@60 Hz 36 bpp |
| 40 m/131ft | 1080P@60 Hz 48 bpp 1080P@60 Hz 3D 3840 x 2160@60 Hz 4:2:0 |
Warranty
Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
- The original serial number (specified by AV Access Technology Limited) labeled on the product has been removed, erased, replaced, defaced or is illegible.
- The warranty has expired.
- The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
- The defects are caused by any force majeure including but not limited to accidents, fire, earthquake, lightning, tsunami and war.
- The service, configuration and gifts promised by salesman only but not covered by normal contract.
- AV Access Technology Limited preserves the right for interpretation of these cases above and to make changes to them at any time without notice.
Thank you for choosing products from AV Access.
If you have any question, please contact us via the following emails: General Enquiry: [email protected]
Customer/Technical Support: [email protected]
