NETVIO EX-HT2-701-10 HD BaseT Extender Supporting 4K-60 HDR
Thank you for purchasing this Netvio product. The quick-start-guide is designed to provide all required information to install your product successfully, ensuring correct installation standards, therefore guaranteeing performance in accordance with published features and specifications. Netvio therefore greatly appreciates your time in reviewing the provided information and following our recommended guidelines. The full benefit of HDBaseT with 5-Play. Audio, Video, Control, Ethernet and Power over single Cat5e/6/7 cable. This 70m 4K/60 HDR extender has everything covered for the most demanding applications.
BOX CONTENTS
- Netvio HDBaseT TX & RX Device.
- 2x Wall mount brackets
- 2x Infrared receiver (capture) cables
- 2x Infrared emitter (sender) cables
- 2x 3-way screw termination connectors
- 1x Compatible plug-in PSU
WARRANTY INFORMATION
- 2-Year standard parts & labour warranty
- FREE 3-Year warranty subject to product registration.
- 5-Year & 10-Year extended warranty options available.
- Full warranty details including coverage, registration & warranty extensions available at www.netvio.co.uk
PRODUCT SUPPORT
Please contact your authorised Netvio reseller.
- UK/EMEA Support | +44 (0) 870 488 7001
- US Support | +833 720 0637
- Email | [email protected]
- Live Chat | www.netvio.co.uk
CABLE AND CONNECTOR
- Advertised cable distances are there for a guidance. Many factors can effect transmission distances including cable construction, quality, install standards, patch panels, faceplates and external factors such as electrical magnetic interference (EMI).
- This product is designed to run over unshielded twisted pair Cat5e/6/7 cable. Some consideration is required when installing shielded (STP) category cable ensuring all drain wires and shielding are correctly grounded.
- All RJ45 terminations should follow EIA/TIA-568-B terminations and not simply wired Pin 1-1, Pin 2-2.The 568-B standard involves the splitting of the green pair to pins 3 & 6.
- Maintain twists within the Cat5e/Cat6/Cat7 cores up to the point of termination.
- Maintain gradual bends when installing category cable, ensuring a minimum radius of 25mm where possible. Avoid sharp bends or twists in the cable avoiding taught or stretched cable at all times.
- When dressing the cable use moderate to low pressure, avoiding pinching of the cable jacket.
- Do not splice, join or bridge the cable at anytime, as this will undoubtedly cause transmission issues.
- Use moderate to low pressure when pulling category cable avoiding pressures in excess of 25 lbs (of force).
- Keep category cable away from sources of EMI (electrical cables, transformers, light fixtures) ensuring a minimum parallel distance of 300mm, crossing at right angles if absolutely necessary.
- Ensure cable is correctly tested, understanding that a basic continuity check may not be sufficient to identify issues or to certify cable performance.
- Always check local regulations relating to building and fire codes.

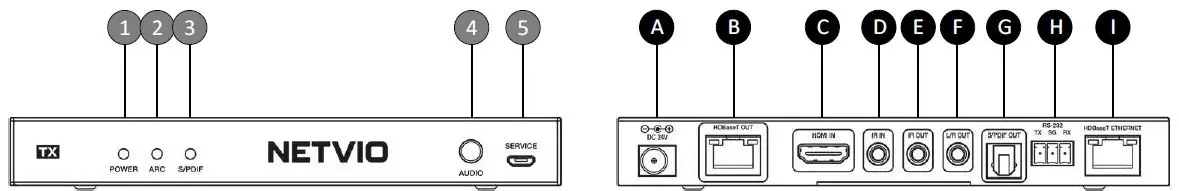

TRANSMITTER OVERVIEW
| 1 | Power Status LED |
| 2 | ARC Status LED (Active when on) |
| 3 | S/PDIF Status LED (Active when on) |
| 4 | Audio Toggle Selector switch (press & hold) |
| 5 | Firmware update port |
| A | DC 24V Power Input |
| B | HDBaseT Output (from source) |
| C | HDMI (Source) Input |
| D | IR Capture Port |
| E | IR Sender Port |
| F | Stereo Audio Output |
| G | S/PDIF Output |
| H | RS-232 Pass Through |
| I | HDBaseT Ethernet Connection |

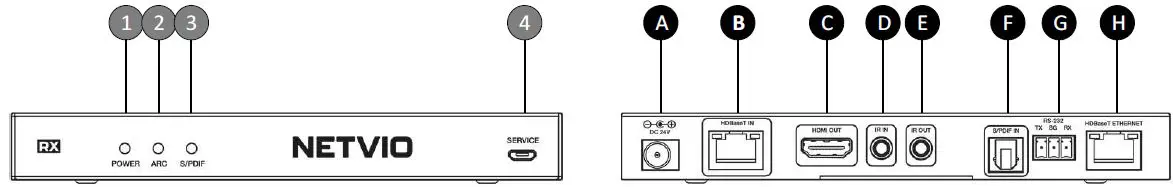

RECEIVER OVERVIEW
| 1 | Power Status LED |
| 2 | ARC Status LED (Active when on) |
| 3 | S/PDIF Status LED (Active when on) |
| 4 | Firmware update port |
| A | DC 24V Power Input |
| B | HDBaseT Input (to display) |
| C | HDMI (Display) Output – ARC Compatible Port |
| D | IR Capture Port |
| E | IR Sender Port |
| F | S/PDIF Input (from Display) |
| G | RS-232 Pass Through |
| H | HDBaseT Ethernet Connection |

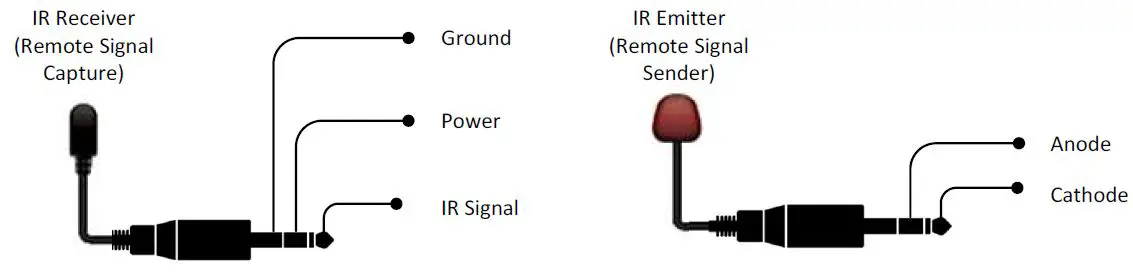

Each Netvio extender kit comes complete with all required accessories to fully maximise product features and functionality. We recommend the use of Netvio approved IR accessories to ensure guaranteed performance and compatibility. In perfect conditions, IR performance is rated at 8m from display to remote control, but understanding this will vary in differing light conditions. It may be necessary to adjust both the capture, sender device positions to achieve best performance, ensuring that remote batteries are in good condition. Should IR ports require connections to a 3rd party device, the following wiring diagrams are provided to ensure successful signal transfer.

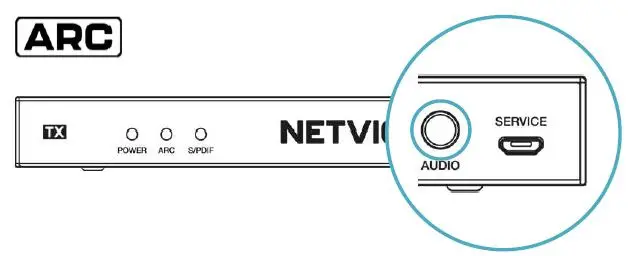

ARC
Press and hold AUDIO button for 2-3 seconds to unlock function, then toggle to select the require audio source from transmitter device.
| ARC LED | S/PDIF LED | MODE |
| On | Off | Audio from Display HDMI ARC |
| Off | On | Audio from Display S/PDIF |
| Off | Off | Audio de-embedded from TX |

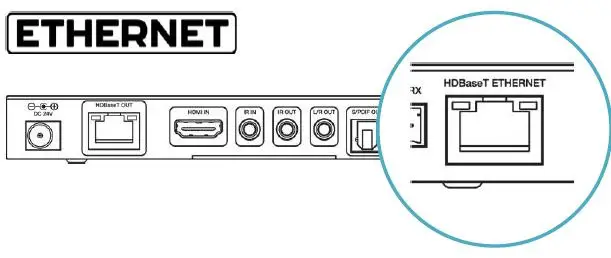

ETHERNET
Use your single category cable AV network for simultaneous Ethernet extension. Ideal for stable hardwired smart TV LAN connection or adding a wireless access point.

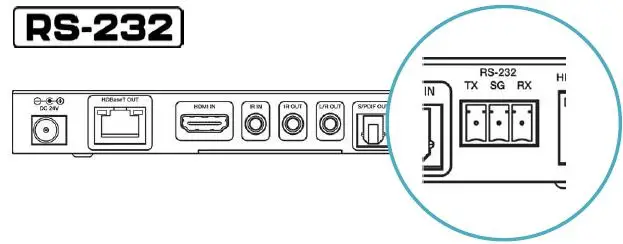

RS 232
Connect TX to RX, RX to TX and SG to ground when connecting to 3rd party devices.
POC24
Ability to connect a single PSU to either transmitter or receiver adding extra convenience to your install. 24V PoC is standardised accross all Netvio HDBaseT products.

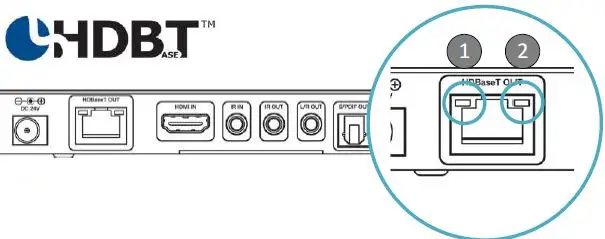

| 1 |
| Solid | Good Connection |
| Flashing | Poor Connection |
| Dark | No Connection |
| 2 |
| Solid | HDMI with HDCP |
| Flashing | HDMI no HDCP |
| Dark | No Connection |
BASIC SPECIFICATIONS
| Encoding Data Rates |
| Video Resolutions (Max) |
| Max Pixel Clock |
| HDR |
| HDCP |
| EDID |
| Audio Formats |
| CEC |
| Storage |
| Operating |
| Power |
| Weight | Dimensions |
| Regulations |
| Warranty |
| HDMI 17.82 Gbp | HDBaseT 10.2Gbs | Visually lossless compression > 10.Gbs |

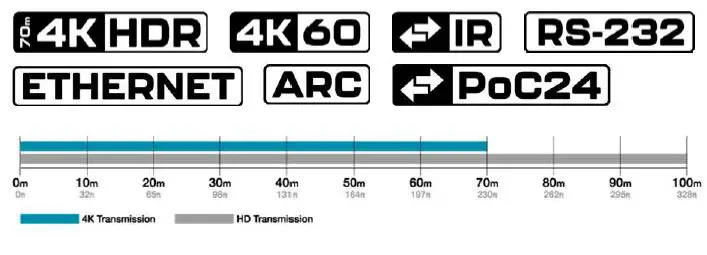

| 3840×2160 60fps HDR over 70m Cat5e/6/7 cable (1080p @ 100m) |
| 600MHz |
| HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision |
| Inclusive up to 2.2 |
| Automatic | HDMI sink from RX to TX |
| LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, |
| DTS Master, Dolby Atmos, DTS:X. |
| Pass-thru subject to source and display compatibility |
| -20°C / +60°C | 20% – 90% RH |
| 0°C / +40°C | 20% – 90% RH |
| 2-Way, Bi-Directional 24v PoC power over HDBaseT. 1x PSU at either TX or RX |
| 170g| H: 20mm | W: 165mm | D: 89mm |
| CE | UKCA | FCC | RoHS |
| 2-Yr Standard, 3-Yr with registration, 5-Yr & 10-Yr extended warranty available. |
Cost effective 5-yr (for 5%) and 10-yr (for 10%) extended warranties available at www.netvio.co.uk/safeguard
Attempts to remove product casings could result in electrical shock. Please do not attempt to repair the device. In the event of product service requirements, please contact Netvio Ltd or an authorised reseller for service procedures. Any unauthorised attempt to repair the product or attempts to replace components with non-approved parts will invalidate the product warranty. For full warranty conditions, please visit www.netvio.co.uk
