VLEX-HT2070R-TR 18Gbps HDBaseT Extender 70m with ARC
User Manual
VLEX-HT2070R-TR 18Gbps HDBaseT Extender 70m with ARC
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A Surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
This 18Gbps HDBaseT Extender can extend the HDMI signal, bi-directional IR control signal, ARC signal, and RS-232 control signal to a distance up to 70m / 230ft via a single CAT5e/6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source devices or display devices from the remote end through a bi-directional IR signal pass-through function. Video resolution up to 4K2K @60Hz. It supports ARC and PoC functions.
The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.
Features
- HDMI2.0b and HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4
- The transmission distance can be extended up to 70m / 230ft via a single CAT5e/6 cable
- Supports bi-directional IR and RS-232 control signal pass-through
- Supports ARC function, audio formats support Dolby 5.1, DTS 5.1, PCM2.0, etc.
- Advanced EDID management
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
Package Contents
- 1 x 18Gbps HDBaseT Extender (Transmitter)
- 1 x 18Gbps HDBaseT Extender (Receiver)
- 1 x IR Blaster cable (1.5 meters)
- 1 x IR Wideband Receiver cable (1.5 meters)
- 2 x 3pin-3.81mm Phoenix Connectors (male)
- 4 x Mounting Ears
- 8 x Machine Screws
- 1 x 24V/1A Locking Power Adapter
- 1x User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz RGB/YCbCr 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 70m via a single CAT5e/6 cable |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24130) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| Connection | |
| Transmitter | Input: 1xHDMI IN [TypeA, 19-pin female] Output: lxHIDBT OUT [RJ45] 1xSPDIF OUT Control: 1 xRS-232 [3pin-3.81 mm Phoenix connector] 1 xSERVICE [Micro-USB jack] 1xIR IN [3.5mm Stereo Mini-jack] 1 xIR OUT [3.5mm Stereo Mini-jack] |
| Receiver | Input: 1xHDBT IN [RJ45] 1xSPDIF IN Output: 1xHDMI OUT [TypeA, 19-pin female] Control: 1 xRS-232 [3pin-3.81 mm Phoenix connector] 1 xSERVICE [Micro-USB jack] 1 xIR IN [3.5mm Stereo Mini-jack] lxIR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)x65mm (D)x 18mm (H) |
| Weight | Transmitter: 235 g, Receiver: 239 g |
| Power Supply | DC 24V/1A; Support bi-directional PoC function |
| Power Consumption | 9.6 W (max) |
| Operating Temperature | 0°C — 40°C / 32°F — 104°F |
| Storage Temperature | -20°C — 60°C / -4°F — 140°F |
| Relative Humidity | 20-90% RH (non-condensing) |
Operation Controls and Functions
5.1 Transmitter Panel

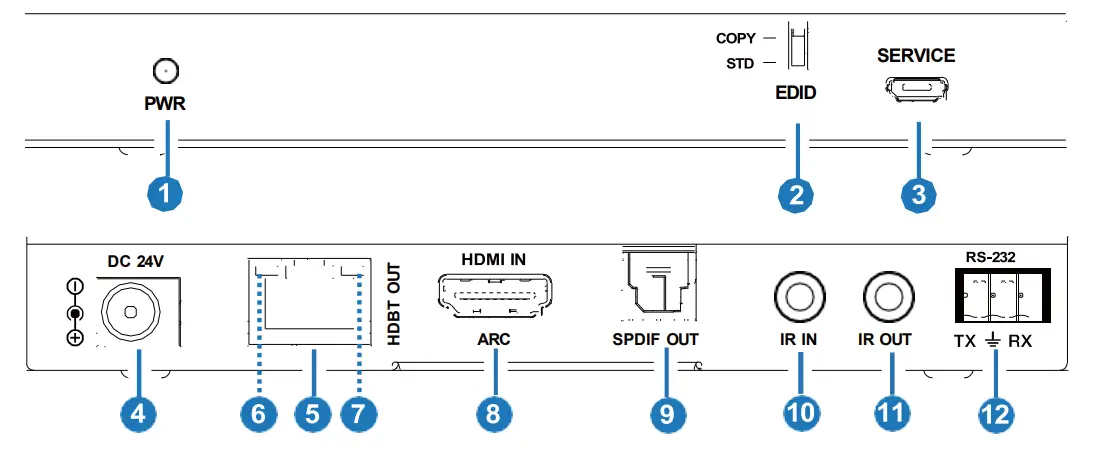

| No. | Name | Function Description |
| 1 | Power LED | The red LED is on when the Transmitter is powered on. |
| 2 | EDID DIP switch | Used for audio EDID setting (dial to COPY by default). COPY: Copy the EDID of the HDMI OUT port of the Receiver. STD: Default 1080P 2CH |
| 3 | SERVICE | Firmware update port. |
| 4 | DC 24V | DC 24V/1A power input port. Note that the extender supports the PoC function. which means that either Transmitter or Receiver is connected to a 24V/lA power supply the other doesn’t need a power supply. |
| 5 | HDBT OUT | RJ45 connector for connecting the HDBT IN port of the Receiver with CAT5e/6 cable. |
| 6 | Link Signal Indicator (Green) | •Illuminating: Transmitter and Receiver are in good connection status. •Flashing: Transmitter and Receiver are in poor connection status. •Dark: The transmitter and Receiver are not connected. |
| 7 | Data Signal Indicator (Orange) | •Illuminating: HDMI signal with HDCP. •Flashing: HDMI signal without HDCP. •Dark: No HDMI signal. |
| 8 | HDMI IN | HDMI signal input port. Connect to HDMI source device with HDMI cable. |
| No. | Name | Function Description |
| 9 | SPDIF OUT | Optical fiber audio signal output port. |
| 10 | IR IN | Connecting to the IR receiver cable, the IR receive signal will emit to the IR OUT port of the Receiver. |
| 11 | IR OUT | Connect to IR blaster cable: the IR emit signal is from the IR IN port of the Receiver. |
| 12 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass through between the Transmitter and Receiver. |

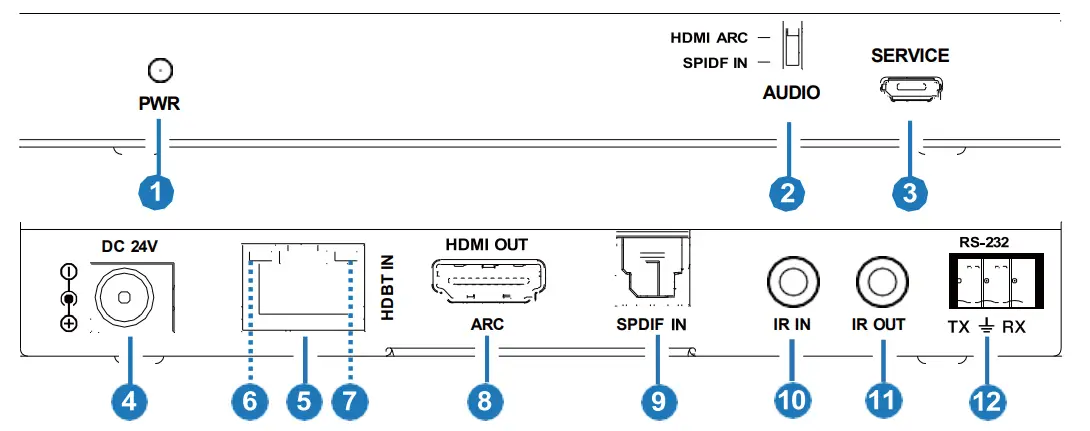

5.2 Receiver Panel
| No. | Name | Function Description |
| 1 | Power LED | The red LED is on when the Transmitter is powered on. |
| 2 | AUDIO DIP switch | a When the HDMI IN port is connected to a signal source device with ARC function (e.g., Amplifier or Soundbar), the ARC function of the Extender is enabled: Switch to “HDMI ARC”: the audio returned from the HDMI OUT port of the Receiver will be output through the HDMI IN port and SPDIF OUT port of the Transmitter. Switch to “SPDIF IN”: the audio returned from the SPDIF IN port of the Receiver will be output through the HDMI IN port and SPDIF OUT port of the Transmitter. • When the HDMI IN port is connected to a standard signal source device, the ARC function of the Extender is disabled, a n d the audio from the SPDIF IN port of the Receiver will be output through the SPDIF OUT port of the Transmitter. |
| No. | Name | Function Description |
| 3 | SERVICE | Firmware update port. |
| 4 | DC 24V | DC 24V/1A power input port. Note that the extender supports the PoC function, which means that either Transmitter or Receiver is connected to a 24V/1A power supply; the other doesn’t need a power supply. |
| 5 | HDBT IN | RJ45 connector for connecting the HDBT OUT port of Transmitter with CAT6/6a cable. |
| 6 | Link Signal Indicator (Green) | •Illuminating: Transmitter and Receiver are in good connection status. •Flashing: Transmitter and Receiver are in poor connection status. •Dark: The transmitter and Receiver are not connected. |
| 7 | Data Signal Indicator (Orange) | •Illuminate HDMI signal with HDCP. •Flash: HDMI signal without HDCP. •Dark: No HDMI signal. |
| 8 | HDMI OUT | HDMI signal output port. Connect to HDMI display devices with HDMI cable. |
| 9 | SPDIF IN | Optical fiber audio signal input port. |
| 10 | IR IN | Connect to the IR receiver cable. The IR signal will send to the IR OUT port of the Transmitter. |
| 11 | IR OUT | Connect to the IR blaster cable; the IR signal is from the IR IN port of the Transmitter. |
| 12 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass through between the Transmitter and Receiver. |

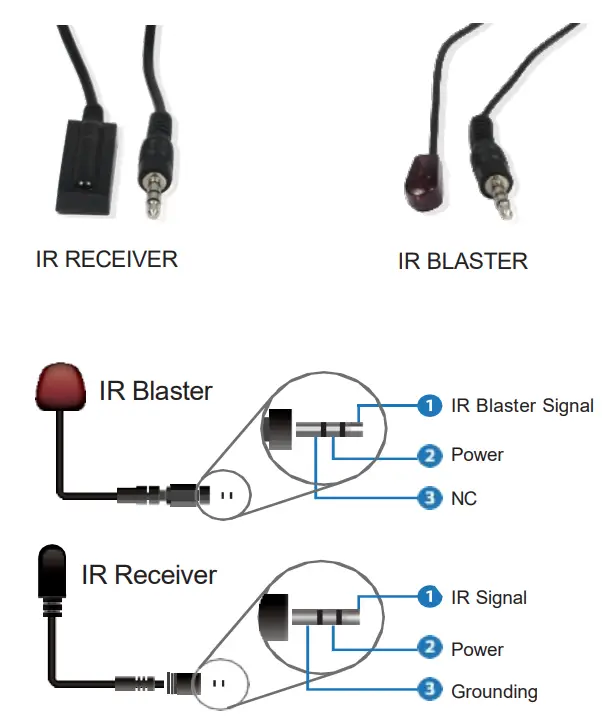

5.3 IR Pin Definition
IR Receiver and Blaster pin’s definition is as below:
Note:
When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters;
When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.

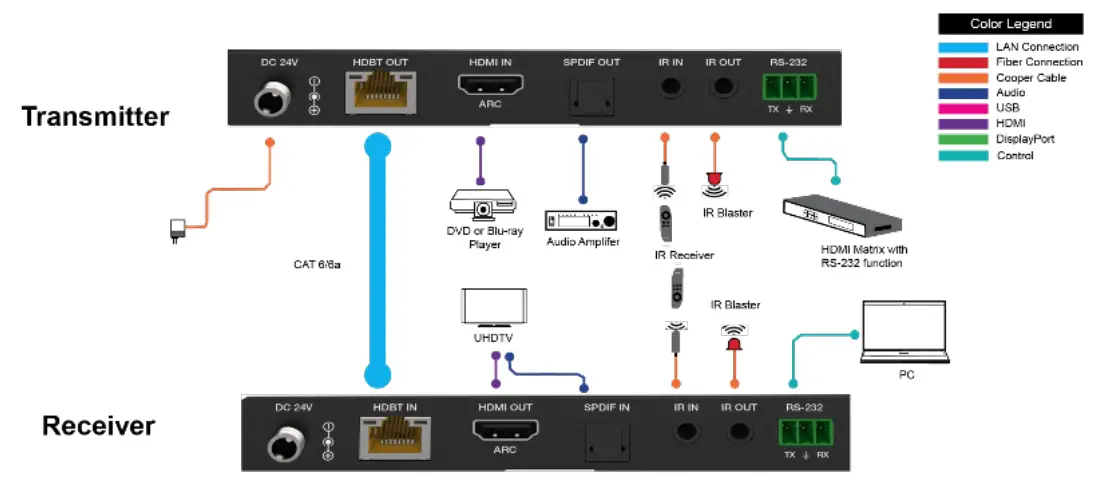

Application Example
