PRODUCT MODEL NUMBER: TL- 4KBR
ANDROID TV 4K HD SET TOP BOX
User Manual


TL-4KBR Android TV 4K HD Set Top Box
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright owner.
The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the product that it is relevant to. It cannot be copied, modified, or translated in another language without prior written authorization from TRANSLITE GLOBAL LLC.

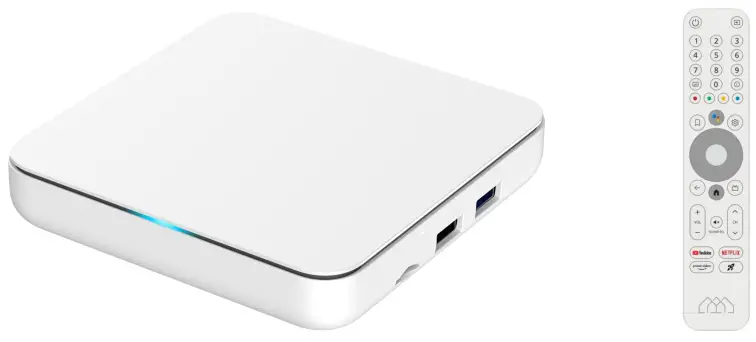

PRODUCT OVERVIEW
TL- 4KBR: – 4K Ultra HD Android TV STB is a Google authorized and Netflix certified turnkey OTT solution for operators. It is a hybrid box that allows users to enjoy both linear TV and streaming apps.
Upgrade traditional set-top boxes and turn any TV or monitor into a smart Android TV – just plug it in to the TV or monitor’s HDMI port. Powered by Android 11 OS and Amlogic S905x4 Chipset, consumers can now access enhanced content through this smart device.

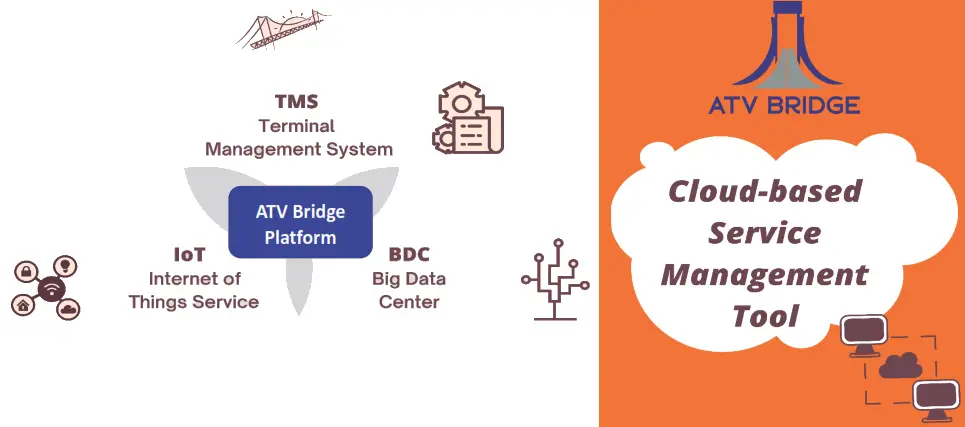

ATV Bridge is a cloud-based service management tool that helps operators to configure and manage all devices from a single pane of glass. Remote management helps to streamline customer support, thereby reducing truck rolls.
![]()
KEY FEATURES
➢ Android TV Box with a Modern User Interface
Take TV viewing experience to the next level. Users can now access both linear TV channels and stream live or on-demand content on the apps through a modern user interface, without having to switch between sources.
➢ Android 11 OS
Powered by Android 11 OS, this superior functionality raises the bar of performance and usability with a lag-free interface. Perfect for home entertainment, home theaters, businesses, hotels, etc. 8GB storage, expandable via USB flash/Hard drive, 2GB RAM.
➢ Operator Friendly Android TV
Provides operators the capability to centralize device management, thereby reducing truck rolls. Operators can also increase user engagement and streamline customer support by delivering both linear and streaming content, thereby maximizing the value of existing capital.
➢ Chromecast built-in
Cast all your favorite entertainment shows, apps, quickly stream photos, videos, music and all the content you want from your phone, tablet, or laptop directly to your Android TV.
➢ Google Assistant Built-in
With “Hey Google” voice commands via the remote control, ask your TV to play music, check for weather updates, listen to the latest news, check your calendar, manage tasks, etc. Also, ask your TV to dim the lights, control the air conditioner temperature and much more, by connecting to smart home devices.
➢ High Clarity 4K HDR
Supports 4K Ultra HD resolution and High Dynamic Range (HDR) delivering a more realistic image with finer details and superior color accuracy.
➢ Access Tons of Content
Access 3000+ applications, enjoy movies and favorite TV shows, download apps and games via the Google Play Store. Netflix, Amazon Prime Video, YouTube pre-installed with mapped buttons on the remote for easy access.
| Combine delivery of Linear & Streaming content | |
| Optimal Performance in line with Industry Standards | |
| Stream Content through a Modern User Interface | |
| Reduce CSR time spent on support calls | |
| Reduce Truck Rolls with proactive problem solution |
- Device Certification
- Device Detection
- Grouping
![]()
- Device Control Service
- Device Report Service
- Remote Diagnostics Basic Service
- Push Message Service
- Device Status
- CPU Utilization & Temperature
- Wi-Fi & Bluetooth Signal Strength
- Logs
SPECIFICATIONS
| Hardware Platform | |
| CPU Chipset | Am logic S905x4 |
| DMIPS | 24K DMIPS |
| GPU | ARM Mali-G31 MP2 |
| RAM | 2GB LPDDR4 |
| Flash | eMMC 8GB |
| Network | |
| Wi-Fi | 802.11 b/g/n/ac 2.4G/5G Wi-Fi 5 |
| Ethernet | 100Mbps |
| Bluetooth | Bluetooth 5.0 |
| DRM | |
| Wide vine Level | Supported, Level 1 |
| PlayReady | Supported, SL3000 |
| Video | |
| Video Decoding | AV1 [email protected] up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC [email protected] up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) Real Video 8/9/10 up to 1080P@60fps |
| Video File Format | Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm *.jpg, *.bmp, *.gif, etc. |
| Video Resolution | 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K |
| Video Output | HDMI 2.1, HDCP2.2 |
| Audio | |
| Audio Decoding | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing |
| Audio Mode | Mono/Stereo/Left/Right |
| Dolby Digital Plus | Supported |
| Interface | |
| LED indicator light | Supported |
| IR Control | Supported |
| Micro SD | Supported |
| USB Port | Supported, 1*USB 2.0, 1*USB 3.0 |
| HDMI Output | Supported |
| SPDIF | Supported |
| AV Output | Supported |
| Reset Button | Supported |
| Power Supply | |
| DC Input | 12V / 1A |
| Power Consumption | Maximum 12W |
| Lightning Level | 4KV |
| RCU | |
| IR Support | Supported |
| Protocol | BLE 5.0 |
| Battery Type | 2*AAA 1.5V |
| Dimension | |
| Weight | < 2 lbs |
| Dimension (W*D*H mm) | 114 * 114 * 22 mm |
| Operating Environment | |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 70°C |
| Humidity | <95% |

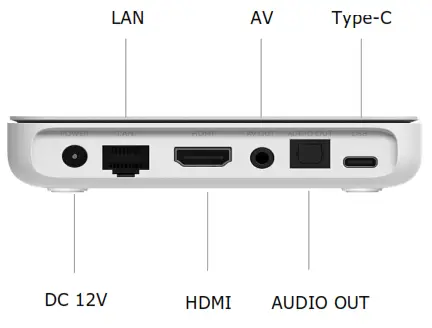

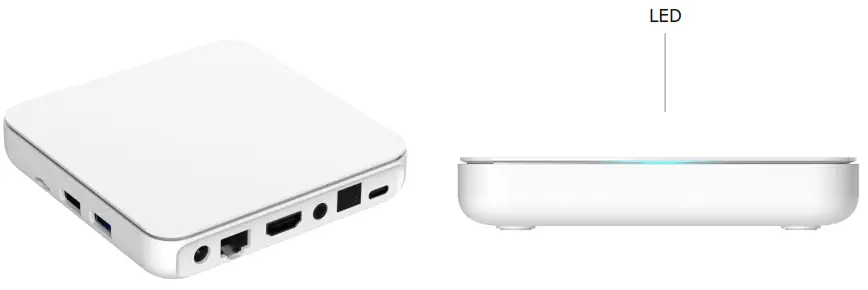

MECHANICAL DESIGN

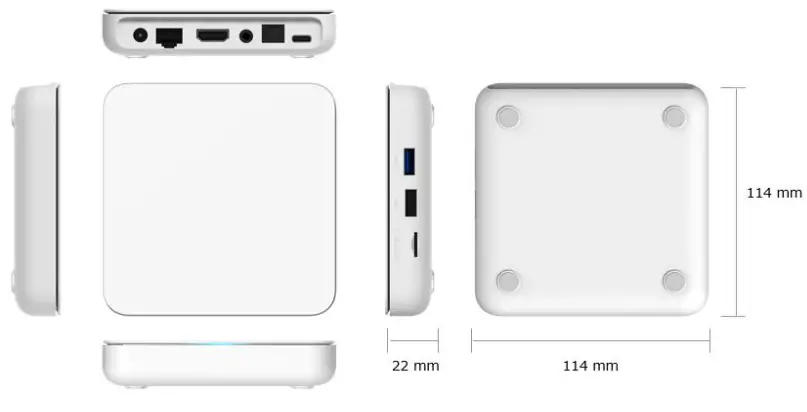

DIMENSIONS
