RISCO Digi 412PT DigiSense PET Digital Detector
Instruction

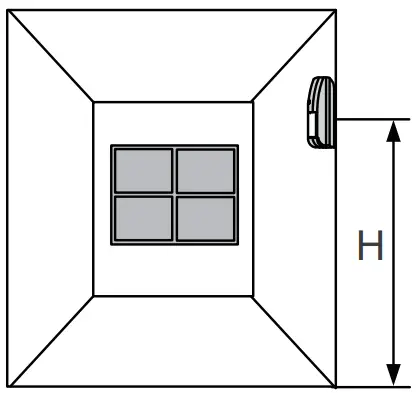

- Model / Lens – Wide angle (H)
Digi 412PT Wide Angle Lens Top View

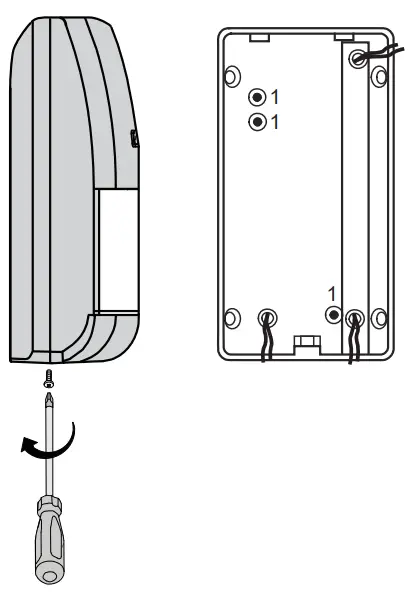

Mounting

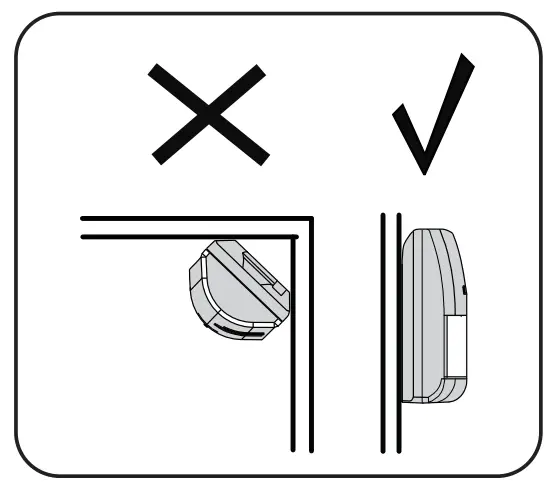

Wall mounting

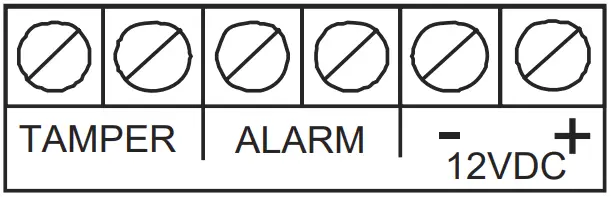

Terminal Wiring
Terminal WiringTerminal Connection
- 12VDC: Power supply inputs
- ALARM: NC Dry Contact switch
- TAMPER: NC Dry Contact switch

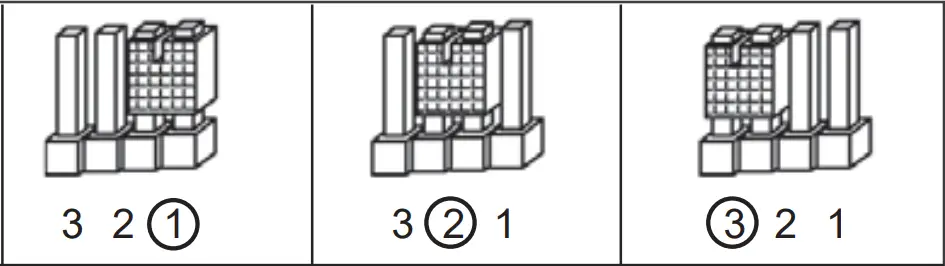

Jumper Settings
- 1 pulse
- 2 pulses
- 3 pulses

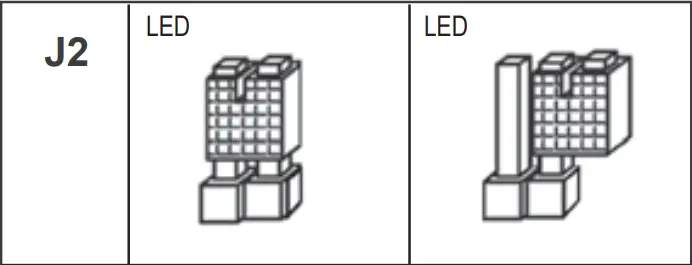

- LED Enable
- LED Disable
LEDs Display
- LED – RED
- Description – Indicates ALARM
Technical Specifications
| Digi 412PT | |
| Coverage | 12m x 12m |
| Installation height | 2.4-2.7m |
| Pet Immunity | 30Kg |
| Operating voltage | 9 to 16 VDC |
| Current consumptio | 9mA at 12V, max13.5 mA at 16V |
| Alarm and Tamper contacts | 0.1A, 24V, NC |
| Optical nlterin | White li ht protection, pi mented lens |
| Operating temperature | -20° to +55°C |
| Storage temperature | -20° to + 60°C |
| Dimensions | 106 x 60 x 47mm |
| Ordering part numbers | |
| Part / Model number | Description |
| Digi 412PT | DigiSense PIR Pet 12m |
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates (“Seller”) warrant its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller cannot guarantee the performance of the security system which uses this product. Seller’s obligation and liability under this warranty are expressly limited to repairing and replacing, at Seller’s option, within a reasonable time after the date of delivery, any product not meeting the specifications. Seller makes no other warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any particular purpose. In no case shall the seller be liable for any consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever. The seller’s obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay. Seller does not represent that its product may not be compromised or circumvented; that the product will prevent any personal injury or property loss by burglary, robbery, fire, or otherwise; or that the product will in all cases provide adequate warning or protection. The buyer understands that a properly installed and maintained alarm may only reduce the risk of burglary, robbery, or fire without warning, but is not insurance or a guarantee that such event will not occur or that there will be no personal injury or property loss as a result thereof. Consequently, the seller shall have no liability for any personal injury, property damage, or loss based on a claim that the product fails to give a warning. However, if seller is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, the seller’s maximum liability shall not exceed the purchase price of the product, which shall be the complete and exclusive remedy against the seller. No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.
WARNING:
This product should be tested at least once a week.
