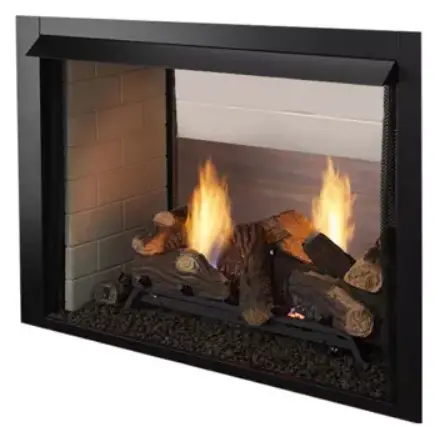

LUM-VF-NM Lumonessen Vent Free Hearth Kit
Product Information
The Lumonessen Vent Free Hearth Kit is a versatile heating solution for your home. It is available in different models and configurations to suit your needs:
| Model | Description |
|---|---|
| LUM-VF-NM | Lumonessen Vent Free Hearth Kit – Natural Gas Manual Control |
| LUM-VF-NV | Lumonessen Vent Free Hearth Kit – Natural Gas Millivolt Control |
| LUM-VF-PM | Lumonessen Vent Free Hearth Kit – Propane Manual Control |
| LUM-VF-PV | Lumonessen Vent Free Hearth Kit – Propane Millivolt Control |
Product Usage Instructions
To use the Lumonessen Vent Free Hearth Kit, please follow these steps:
- Ensure that the product is connected to a suitable gas supply.
- Check that all service parts are properly assembled and in good condition.
- Turn on the gas supply using the On/Off Switch.
- Adjust the desired heat output by turning the Knob Control.
- If necessary, use the Knob Extension for additional control options.
- Place the Grate in the designated area for optimal heat distribution.
- For manual control models, regulate the gas flow using the Regulator and Control Valve.
- For millivolt control models, adjust the gas flow using the Control Valve.
- Ensure that the ODS Pilot Assembly and Pilot Tube are properly functioning.
- If needed, use the Piezo Ignitor and Piezo Wire for ignition.
- For specific gas types, refer to the COMMENTS section in the part number list for compatibility.
Service Parts
The following service parts are available for the Lumonessen Vent Free Hearth Kit:

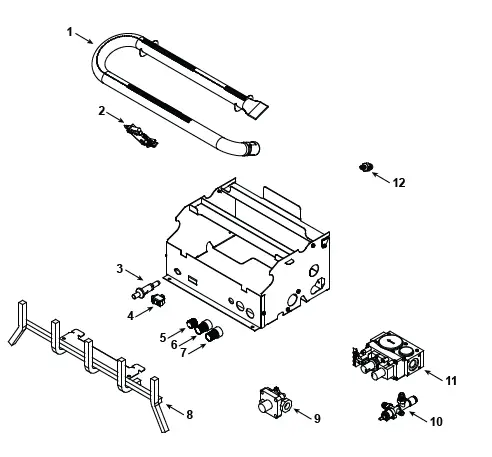

| Item | Description | Part Number | Stocked at Depot |
|---|---|---|---|
| 1 | Burner | SRV4625-300 | Yes |
| 2 | ODS Pilot Assembly (Manual Control) | SRV4625-302 | Yes |
| 2 | ODS Pilot Assembly (Millivolt Control) | SRV26D2529 | Yes |
| 3 | Pilot Tube | SRV14D0476 | Yes |
| 4 | Piezo Ignitor | SRV14D0473 | Yes |
| 4 | Piezo Wire | SRV14D0477 | Yes |
| 5 | On/Off Switch | 20308254K | Yes |
| 6 | Knob Control | SRV4018-118 | Yes |
| 7 | Knob Extension, On/Off | SRV14D0503 | Yes |
| 8 | Knob Extension, Hi/Lo | SRV00K0632 | Yes |
| 9 | Grate | SRV32D0232 | Yes |
| 10 | Regulator (Manual Control) | SRV18D0603 | Yes |
| 11 | Control Valve (Manual Control) | SRV37D0010 | Yes |
| 11 | Control Valve (Millivolt Control) | SRV37D0011 | Yes |
| 12 | Orifice, Flare | SRV4625-312 | Yes |
| 12 | Flex Gas Line (Manual Control) | SRV65D2039 | Yes |
| 12 | Flex Gas Line (Millivolt Control) | SRV24D0306 | Yes |
| 12 | Pilot Regulator (Millivolt Control) | SRV4018-154 | Yes |
| Please note: The part number list continues on the following page of the manual. | |||
