Instruction Manual

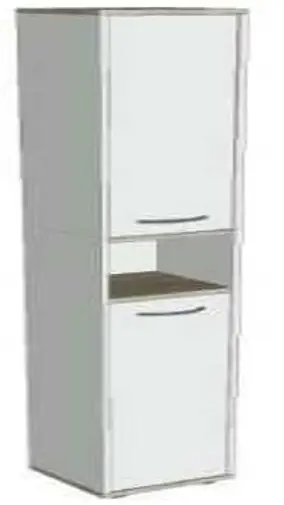

7912833 Tall Cabinet
Nicht enthalten
7912833 – Hochschrank CHI
Instructions for mounting and use:
Dear customer,
Congratulations on purchasing our bathroom furniture, which will provide you with long-lasting pleasure, if you will follow our instructions for cleaning and maintenance:
- Keep the packaging material and small parts out of the reach of children.
Please polish the furniture and the mirror with a moist cloth, only use mild detergents.
Please mind the instructions for microfibre cloths. Unsuitable microfibre cloths can do severe damage to the fronts. - No alcoholic, scratching, or aggressive cleansing agents (glass detergents).
Please wipe the furniture always with a dry cloth to avoid any damage to the material (swelling) or to the mirror surface (blind stains) because of the remaining water.
Do not use a steam cleaner. The use of steam cleaners leads to the swelling of the wood and ruins the furniture.
All fittings of the basin plate in contact with other cupboards and walls or to the base itself have to be sealed with silicone or other appropriate sealing materials.
Protect your furniture — if in contact with the shower or tub –by a shower severance.
please note that we cannot accept any complaints regarding damages of extraordinary effects by water or humidity. Our bathroom furniture is meant for use in regular bathroom conditions, including short-time air humidity of 90 % (no sauna). - The included hooks and dowels are only suitable for walls of masonry, bricks MZ20 hole bricks HLZ20, or concrete B25.
ATTENTION! Before mounting please check the product to see if any damage has been caused during transportation. Please keep the packaging in case of complaint. Please note that we cannot accept any complaints regarding damage after the product has been mounted.
Information for furniture with electrical connection and lighting: The electrical device must be connected by a qualified electrician in compliance with IEC 60364-7-701!
To increase security an RCCB (Rated leakage current – 30mA- EN 61008) has to be provided on-site/by the customer.
Avoid unattended operation of the device.
Disconnect control gear during thunderstorms or when not used for a longer period. By this means damages caused by lightning or voltage surges can be avoided.
An outer cable must be replaced only by a specialist.
The trafo-box cannot be repaired and must be replaced.
When changing bulbs, make sure that the maximum wattage (W) and the voltage (V) of the replacement bulb conform to the transformer or lamp.
 | Disconnect the power supply before changing the bulbs. In case of a fixed installation, the electrical connection has to be equipped with a separating appliance (f.ex. switch). |
 | Protected isolation, protection class I, an appliance with protected connection (yellow/green). |
 | Protected isolation, protection class 11, appliance without protected connection. |
 | Protected isolation against low voltage (< 50V), protection class 111, appliance without protected connection. |
 | For direct installation on heavy or normal infallible materials. |
 | Suitable for installation in furniture, but not on normally inflammable surfaces. |
 | The average lifetime of our LEDs is 15,000 hours. The optical power is around 70% of the exit optical power after the mentioned lifetime. |
 | Avoid longer direct visual contact with the LED light source since otherwise, damage to the eye could arise. |
 | Protect the lamp from moisture or wetness. |
 | Minimum distance to the illuminated surface f.ex. 10 cm. |
 | This lamp is not suitable for cool beam lamps. |
 | For halogen lamps: the bulb becomes extremely hot (up to 350.° C), before changing the build or adjustment of the lamp allow it to cool down the bulb! |
 | Halogen bulb with protection against bursting. |
 | For halogen lamps: Always use a cloth when handling the bulb or inserting it into the socket! |
 | For halogen lamps with protective glass: A broken protective glass must be replaced immediately! |
 | Electronic products are not allowed to dispose to household rubbish. Supply these products to suitable recycling companies. Please inform your commune or a disposal company about suitable recycling options. |
STOP ATTENTION HIGH RISK OF BREAKING:
If the article is to be shipped, please pack it in exactly the same fashion as how you received it. Use the original packing with filling and padding material. As otherwise, we would have to charge You for any damage occurring in transit!
