Duke RFHU-32-4 ReadyFlex 4 Inch Deep Hot Holding Cabinet
OPTIONS
- Front and Back 4.3″Touchscreen
- Front 4.3″Touchscreen w/ Front Timer Bars
- Front 4.3″Touchscreen w/ Front and Back Timer Bars
- Dedicated Lid Options for High Volume Proteins
Electrical
- 120V – 60Hz
- 208/240V – 60Hz
- 220/240V – 50/60Hz
BODY
- Stainless Steel Exterior construction for durability and ease of cleaning.
- Robust stainless steel pan cover.
- Multipan configuration flexibility for 1 /3, 1 /2 and Full Size Pans*
HEATER CONFIGURATIONS
- Independent Top and Bottom Zoned Heat for maximum recipe flexibility. S’
- Easy configured for shelf heat, if desired. o
- Quick heat up approximately 20 minutes.
CONTROLS
- Full Color 4.3″Touchscreen Control
- Easy to Use, Easy to Learn
- Timer Bar functionality without timer bars.
- Start and Stop Timers
- Displays product being held, countdown timer, cook more alerts, and FIFO for each pan.
- Simplified, Intuitive Local Programming, Recipe Storage, & Menu Switch
- Multipan configuration
- Network Support
Built In Conectivity
- Wi-Fi (Dual Band 802.11 A/B/G/N 2.4Ghz/5Ghz)
- Ethernet (10/1 OOMbps)
USB Support
- Firmware Update
- Recipe Import/Export
Duke Connected Equipment Platform (DCEP} Support
- Asset Management
- Firmware Update
- Recipe Management
- Diagnostics
ELECTRICA L SPECIFICATION/CORD RATING (TO P AND BOTTOM HEAT)
| Model | 120V-60Hz | 208/240 V – 60Hz | 220/240V – 50/60Hz | |||
| Amps NEMA | Amps | NEMA | Amps Schuko | |||
| RFHU-22 | 10 | 5-1SP | 5.8/6.7 | 6-1SP | 6.7 | CEE7VII |
| RFHU-23 | 12.5 | 5-20P | 8.7/10 | 6-1SP | 10.0 | CEE7VII |
| RFHU-24 | 15 | 5-20P | 8.7/10 | 6-1SP | 10.0 | CEE7VII |
| RFHU-32 | 12.5 | 5-20P | 8.7/10 | 6-1SP | 10.0 | CEE7VII |
| RFHU-42 | 15 | 5-20P | 8.7/10 | 6-1SP | 10.0 | CEE7VII |

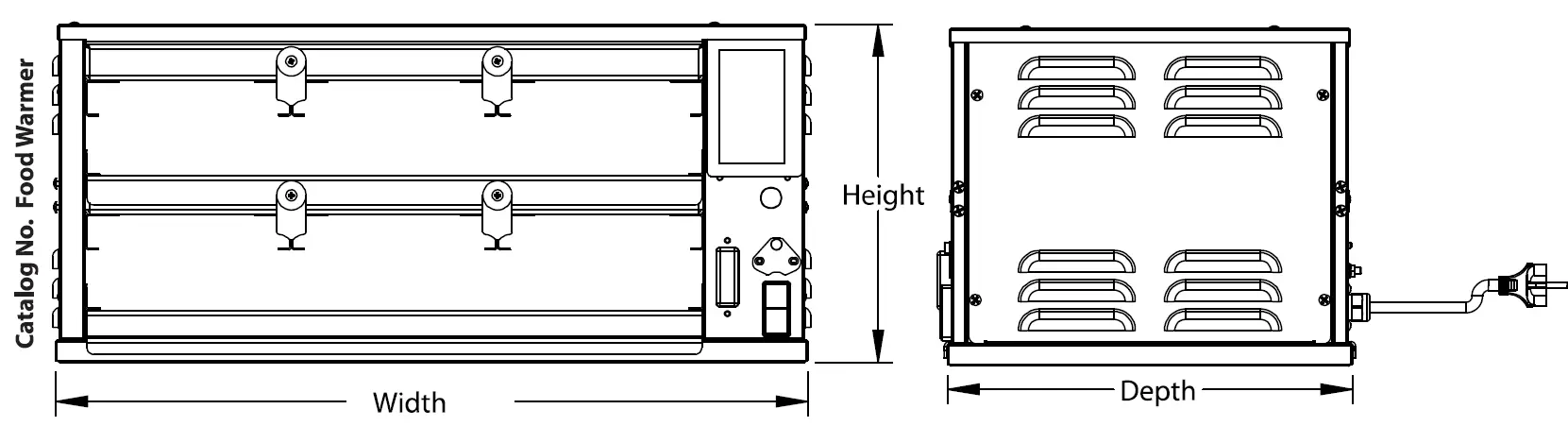

DIMENSONS
| Model | Height | 2.5″ Deep Pan Config Width | I Depth (body only) | Cubic Ft. Crated | Weight | ||||||||
| in. | cm | in. | cm | in. | cm | lbs | kgs | ||||||
| RFHU-22 | 11.8 | 30.0 | 19.0 | 48.3 | 14.1 | 35.7 | 6.8 | 85 | 38.6 | ||||
| RFHU-23 | 11.8 | 30.0 | 26.0 | 66.0 | 14.1 | 35.7 | 8.8 | 100 | 45.4 | ||||
| RFHU-24 | 11.8 | 30.0 | 33.0 | 83.8 | 14.1 | 35.7 | 10.9 | 120 | 54.4 | ||||
| RFHU-32 | 16.6 | 42.2 | 19.0 | 48.3 | 14.1 | 35.7 | 8.3 | 100 | 45.4 | ||||
| RFHU-42 | 21.5 | 54.6 | 19.0 | 48.3 | 14.1 | 35.7 | 9.8 | 125 | 56.7 | ||||
Duke Manufacturing Co.
2305 N. Broadway St. Louis, MO 63102
Phone: 314-231-1130
Toll Free: 1-800-735-3853
Fax: 314-231-5074
www.dukemfg.com
