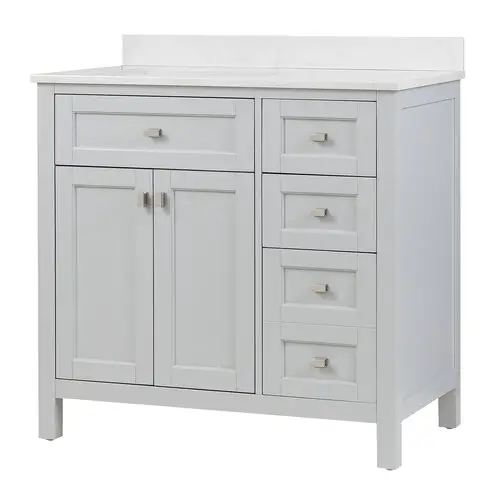

Welltime LKZ 41164 Bathroom Cabinet
ASSEMBLY INSTRUCTION
| N | LxBxH (mm) | Qty | N | LxBxH (mm) | Qty | ||
| 1 | 866x400x16 | 1 | 11 | 930x60x22 | 2 | ||
| 2 | 866x400x16 | 1 | 12 | 948x224x16 | 3 | ||
| 3 | 350x100x16 | 2 | 13 | 948x167x16 | 1 | ||
| 4 | 350x100x16 | 2 | 14 | 1116x454x22 | 1 | ||
| 5 | 410x100x16 | 2 | 15 | 952x385x16 | 1 | ||
| 6 | 350x140x16 | 3 | 16 | 386x171x16 | 1 | ||
| 7 | 350x140x16 | 3 | 17 | 871x480x3 | 1 | ||
| 8 | 894x140x16 | 3 | 18 | 871x480x3 | 1 | ||
| 9 | 930x60x22 | 1 | 19 | 420x343x3 | 2 | ||
| 10 | 930x60x22 | 1 | 20 | 904x343x3 | 3 | ||
| 21 | 850 | 1 |

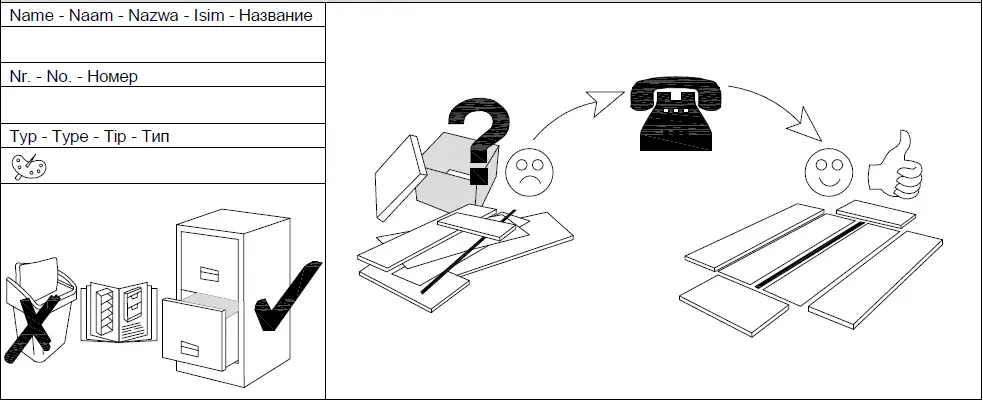

SERVICE

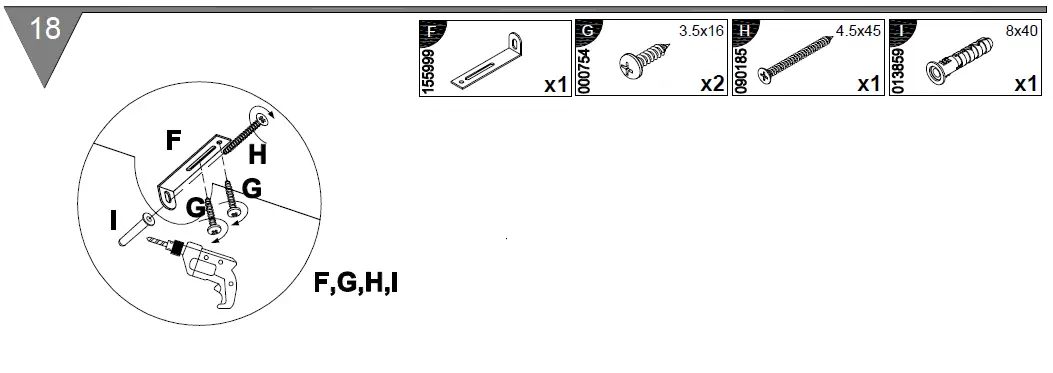

Attention: The wall fastening serves to prevent tipping be absolutely sure to GB mount it! For certain wall types, a special wall plug may be necessary!
