Seneca Z-key, Z-key-p Profinet Io Gateways Installation Guide

Z-KEY, Z-KEY-P Profinet IO Gateways
Installation GuideINSTALLATION MANUAL
Z-KEY
Z-KEY-P

PRELIMINARY WARNINGS

The word WARNING preceded by the symbol indicates conditions or actions that put the user’s safety at risk.
The word ATTENTION preceded by the symbol indicates conditions or actions that might damage the instrument or the connected equipment. The warranty shall become null and void in the event of improper use or tampering with the module or devices supplied by the manufacturer as necessary for its correct operation, and if the instructions contained in this manual are not followed.

	WARNING: The full content of this manual must be read before any operation. The module must only be used by qualified electricians. Specific documentation is available via QR-CODE shown on page 1.
	The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to electrostatic discharges. Take appropriate measures during any operation.
	Electrical and electronic waste disposal (applicable in the European Union and other countries with recycling). The symbol on the product or its packaging shows the product must be surrendered to a collection centre authorized to recycle electrical and electronic waste.

CONTACT INFORMATION

Technical support
[email protected]
Product information
[email protected]

This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised.
The content of this document corresponds to the described products and technologies.
Stated data may be modified or supplemented for technical and/or sales purposes.

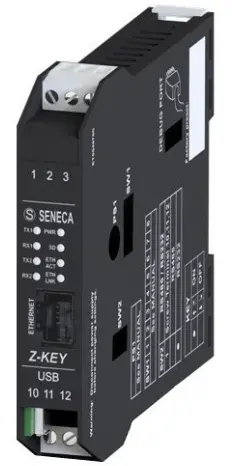

MODULE LAYOUT

Dimensions: 17.5 x 102.5 x 111 mm
Weight: 100 g;
Enclosure: PA6, black

SIGNALS VIA LED ON FRONT PANEL

TECHNICAL SPECIFICATIONS

CERTIFICATIONS	https://www.seneca.it/products/z-key/doc/CE_declaration

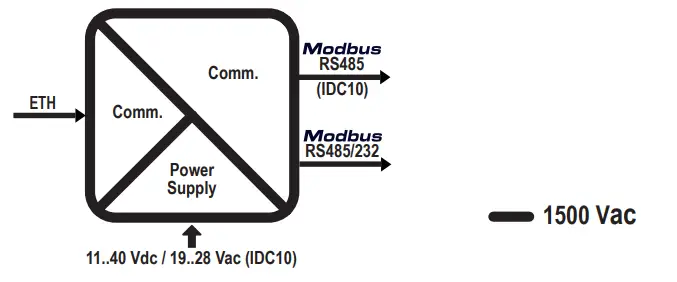

INSULATION
ENVIRONMENTAL CONDITIONS	Temperature: -25 °C – + 65 °C; Humidity:;30%– 90% non condensing. Altitude: Up to 2000 m above sea level; Storage temperature: -30 °C – + 85 °C Protection rating: IP20 (Not evaluated by UL)
ASSEMBLY	IEC EN60715, 35mm DIN rail in vertical position.
POWER SUPPLY	Voltage: 11 – 40 Vdc; 19 – 28 Vac 50 – 60 Hz; Absorption: Max. 1,5W

ATTENTION
The device may only be powered by a power supply unit with a limited energy electric circuit max.
40Vdc / 28Vac Max output in accordance with CAN/CSA-C22.2 No. 61010-1-12 / UL Std. No. 61010-1 (3rd Edition) chapter 6.3.1/6.3.2 and 9.4 or class 2 according to
CSA 223/UL 1310.

FACTORY IP ADDRESS

The default module IP address is static: 192.168.90.101

SETTING THE DIP-SWITCHES

WARNING
The DIP-switch settings are read only at boot time. At each change, perform a restart.
SW2 DIP-SWITCH:
Through DIP-SWITCH-SW1 it is possible to set the IP configuration of the device:

DESCRIPTION	DIP 1	DIP 2	DIP 3	DIP 4
To obtain the configuration from the Flash memory, both SW1 DIP switch selectors must be set to OFF			RESERVED	RESERVED
To reset the device to factory settings both SW1 DIP switches must be set to ON			RESERVED	RESERVED
To force the device’s IP address to the standard value of SENECA Ethernet products: 192.168.90.101			RESERVED	RESERVED
Reserved			RESERVED	RESERVED

ATTENTION
DIP3 and DIP4, on models where they are present, must remain OFF. If set otherwise, the instrument will not operate correctly.

KEY
1	ON
0	OFF

RS232/RS485 SETTING:
RS232 or RS485 configuration on terminals 10-11-12 (serial port 2)

SW2
1	ON	RS232 ACTIVATION
0	OFF	RS485 ACTIVATION

WEB SERVER

To access the maintenance Web Server with 192.168.90.101 factory IP address:
Default user: admin, Default password: admin, http://192.168.90.101
N.B.: For the Z-KEY-P version it is first necessary to activate webserver mode
CAUTION
DO NOT USE DEVICES WITH THE SAME IP ADDRESS IN THE SAME ETHERNET NETWORK.

WEB SERVER AND PROFINET MODE (Z-KEY-P)

The device is normally in Profinet mode; in Profinet mode the device can be configured only through the Easy Setup 2 software. In order to access the internal webserver it is necessary to put the device in Webserver mode using the Easy Setup 2 or Seneca Device Discovery software. It is also possible to change the operating mode by pressing the side button following the procedure:
To force webserver mode:

• Keep the “PS1” button pressed until all LEDs are switched off
• Release the button
• The device restarts and the PWR and COM LEDs flash slowly to indicate webserver mode

To force Profinet mode:

• Keep the “PS1” button pressed until all LEDs are switched off
• Release the button
• The device restarts and the PWR and COM LEDs stop flashing slowly to indicate Profinet mode

INSTALLATION REGULATIONS

The module has been designed for vertical installation on a DIN 46277 rail. For optimal operation and long life, adequate ventilation must be provided. Avoid positioning ducting or other objects that obstruct the ventilation slots. Avoid mounting modules over heat-generating equipment. Installation in the bottom part of the electrical panel is
recommended.
ATTENTION
These are open-type devices and intended for installation in an end enclosure / panel offering mechanical protection and protection against spread of fire.

ELECTRICAL CONNECTIONS

CAUTION
To meet the electromagnetic immunity requirements:
– use shielded signal cables;
– connect the shield to a preferential instrumentation earth system;
– separate shielded cables from other cables used for power installations (transformers, inverters, motors, etc…).

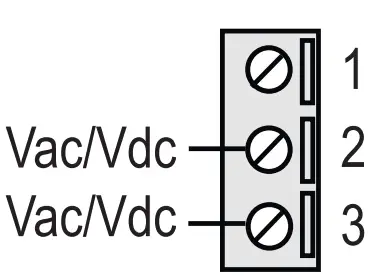

POWER SUPPLY

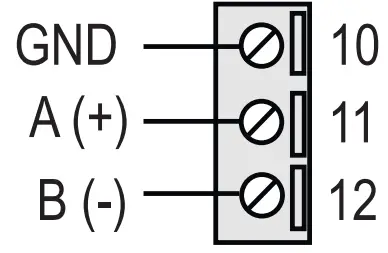

SERIAL PORT 2: RS485 SW2 = OFF

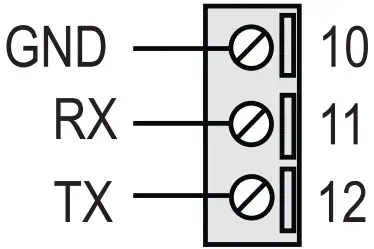

SERIAL PORT 2: RS232 SW2 = ON

ATTENTION
Use only copper or copper-clad aluminium or AL-CU or CU-AL conductors

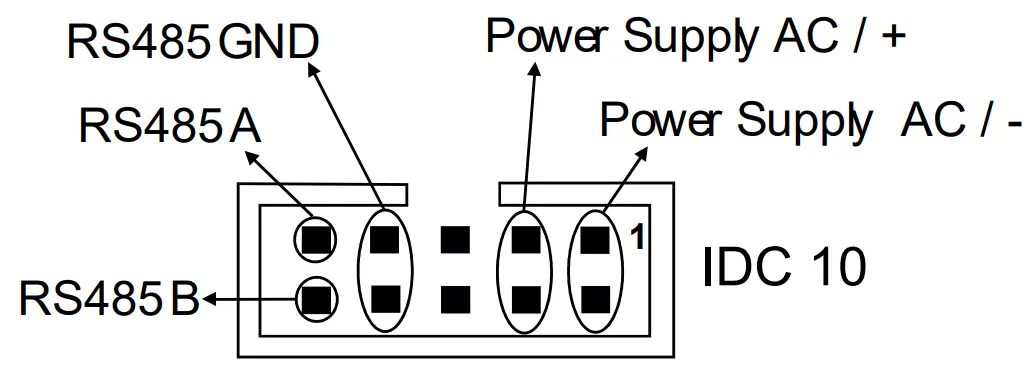

IDC10 CONNECTOR

The illustration shows the meanings of the various IDC10 connector pins if signals are to be sent via them directly.

http://www.seneca.it/products/z-key
http://www.seneca.it/products/z-key-p        SENECA s.r.l.; Via Austria
26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705359
– Fax +39.049.8706287
