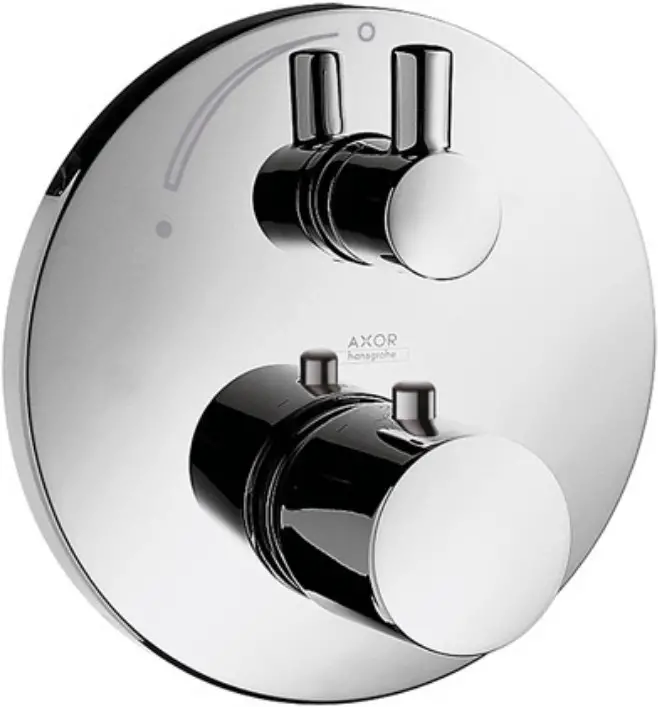

hansgrohe AXOR UNO2 Concealed Thermostat with Shut Off Valve Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Children as well as adults with physical, mental and/ or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
The hot and cold supplies must be of equal pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms!
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5MPa
- Test pressure: 1,6MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
- Rate of flow by 0,3 MPa: approx. 26 l/min anti-pollution function
Symbol description
Do not use silicone containing acetic acid!

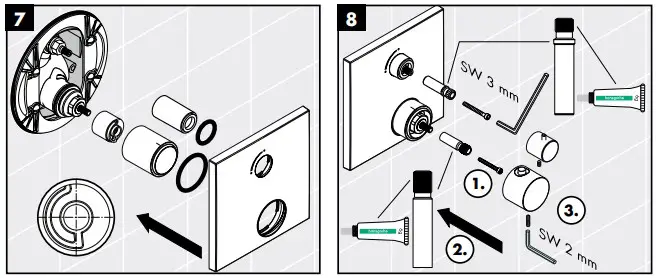

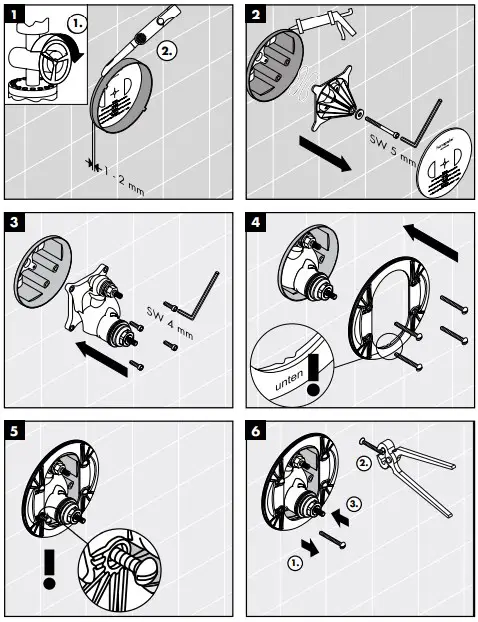

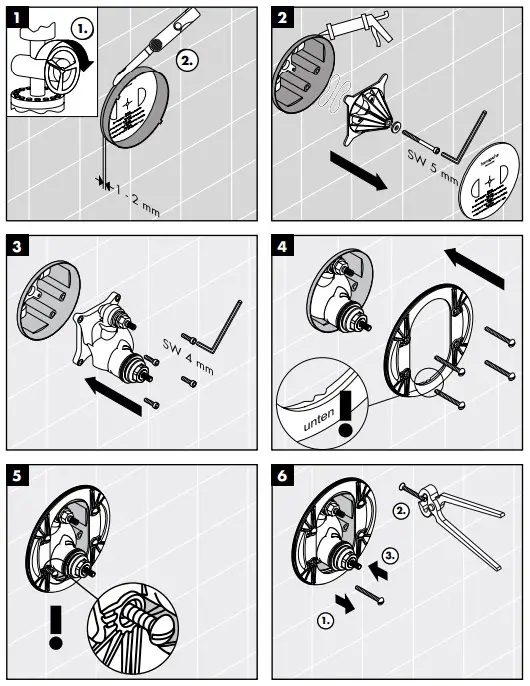

Assembly

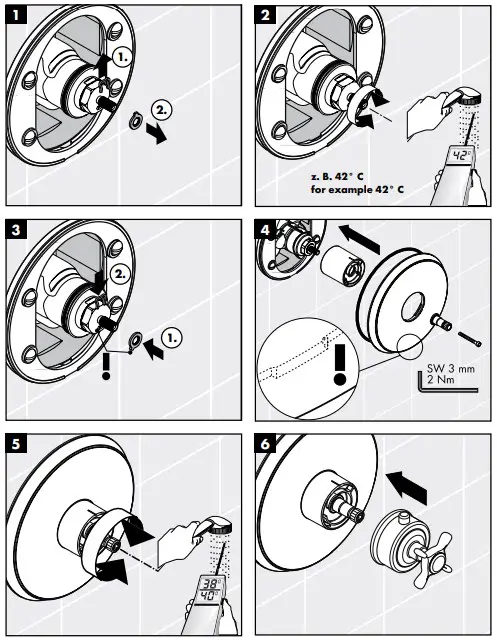

Safety Function
The desired maximum temperature for example max. 42º C can be pre-set thanks to the safety function.

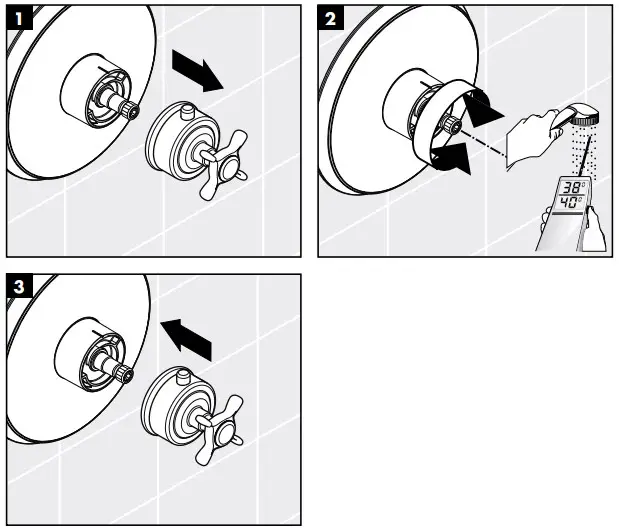

Adjustment
After the installation, the output temperature of the thermostat must be checked. A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat.
Maintenance
- To guarantee the smooth running of the thermostat, it is necessary from time to time to turn the thermostat from total hot to total cold.

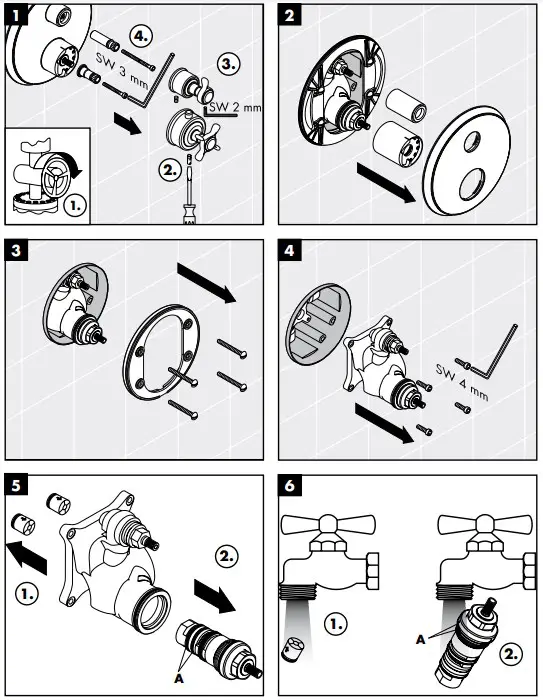

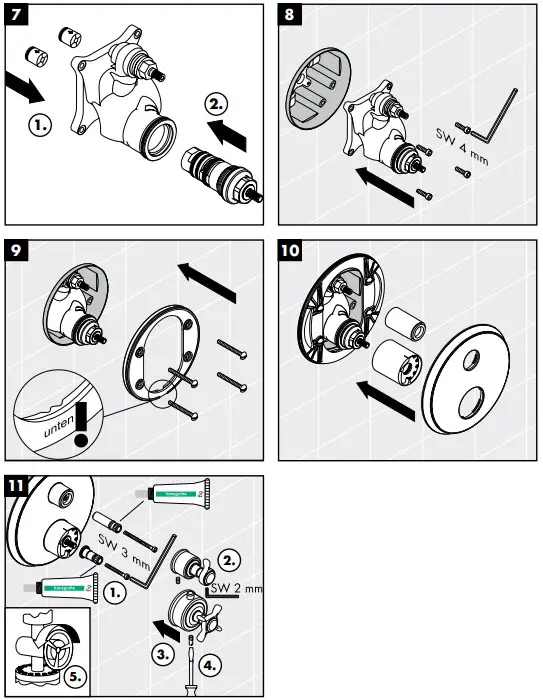

- The mixer is equipped with non return valves. The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). At this time, please also check the filter (A) situated on the MTC-thermoelement (94282000). After assembling the MTC-thermoelement, it is necessary to check the water temperature at the take off point as described under the headline „adjustment“. Before the adjustment, please check, if the warm water supply is activated and the maximum temperature of the warm water is available at the take off point.

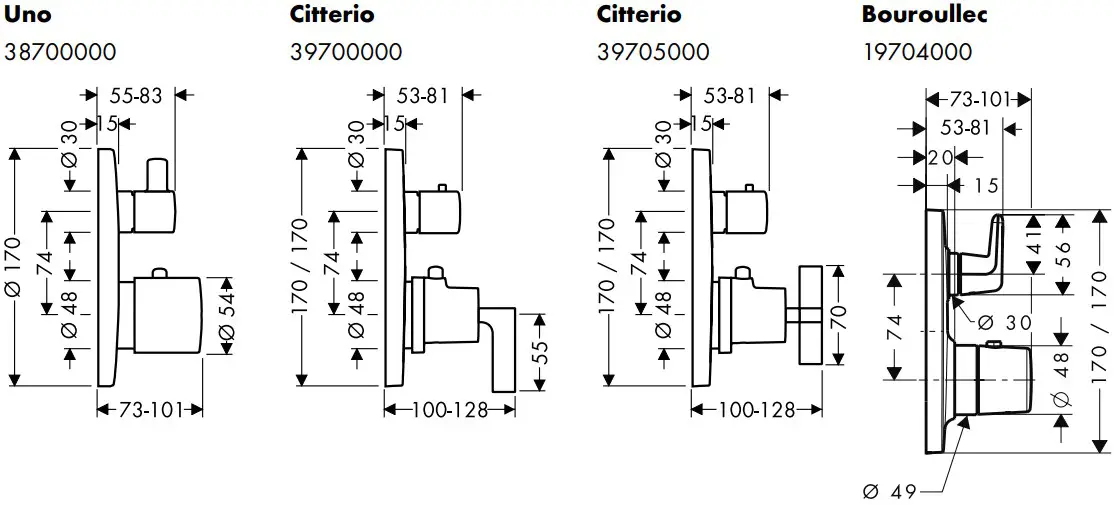

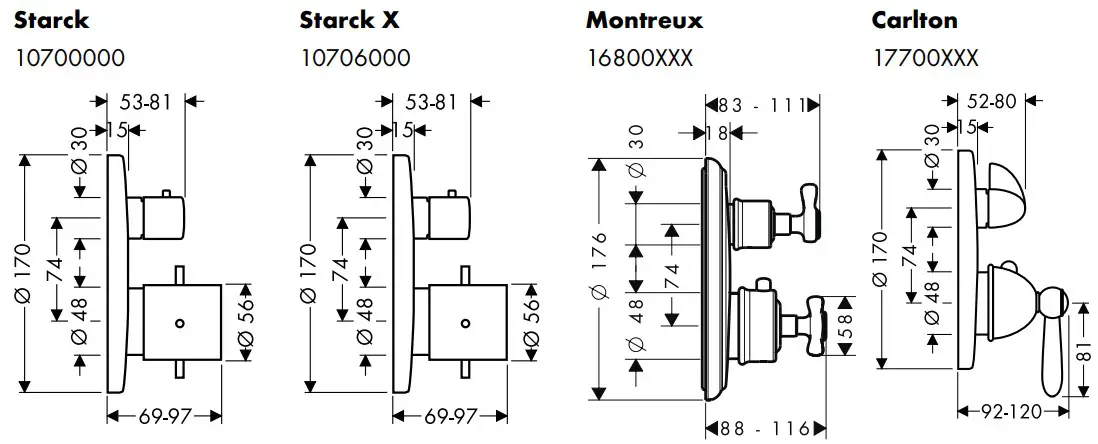

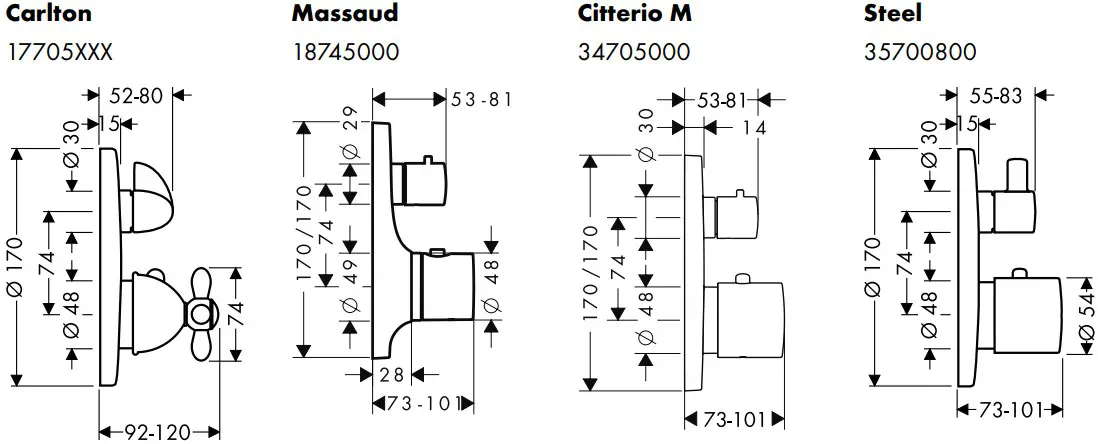

Dimensions

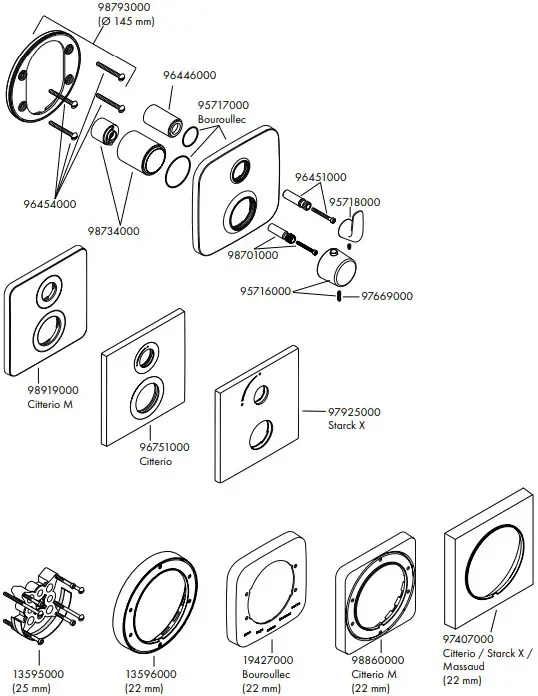

Spare parts
- XXX = Colors
- 000 chrome plated
- 090 chrome plated/gold plated
- 800 stainless steel optic
- 820 brushed nickel
- 830 polished nicke

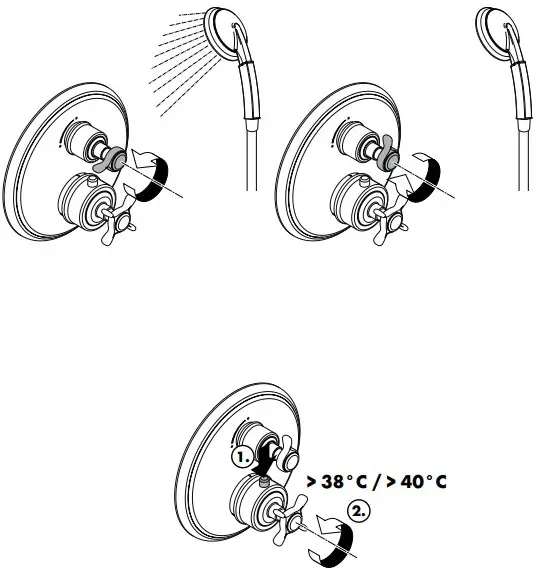

Operation
Cleaning
Test certificate
| PA-IX | DVGW | SVGW | ACS | WRAS | MCA | KIWA | |
| 10700000 | 9711/ID | X | X | X | X | X | |
| 10706000 | 9711/ID | X | X | X | |||
| 16800XXX | 9711/ID | X | X | X | |||
| 17700XXX | 9711/ID | X | X | X | X | X | |
| 17705XXX | 9711/ID | X | X | X | X | X | |
| 18745000 | 9711/ID | X | X | X | |||
| 34705000 | 9711/ID | X | |||||
| 35700800 | 9711/ID | X | X | X | X | X | |
| 37700000 | 9711/ID | X | X | X | X | X | |
| 37705000 | 9711/ID | X | X | X | X | X | |
| 38700000 | 9711/ID | X | X | X | X | X | |
| 39700000 | 9711/ID | X | X | X | X | X | |
| 39705000 | 9711/ID | X | X | X | X | X | |
| 19704000 | X |
| Fault | Cause | Remedy |
| Insufficient water |
|
|
|
| |
|
| |
| Crossflow, hot water being forced into cold water pipe, or vice versa, when mixer is closed |
|
|
| Spout temperature does not correspond with temperature set |
|
|
|
| |
| Temperature regulation not possible |
|
|
|
| |
| Safety stop button not operating |
|
|
| Valve stif |
|
|
| Shower or spout dripping |
|
|
