10930000 AXOR Shut-Off and Diverter Valves
Instruction Manual
10930000 AXOR Shut-Off and Diverter Valves
 |  |
 |  |
 | |
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Symbol description
 | Do not use silicone containing acetic acid! |

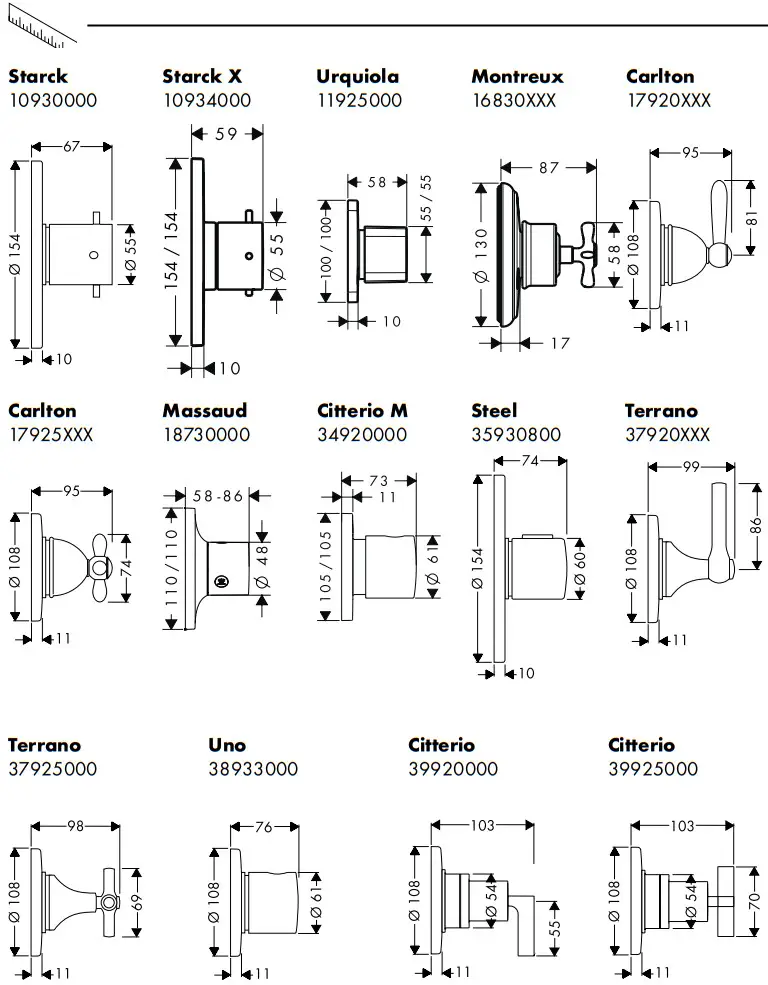

 | Dimensions (see page 20) |

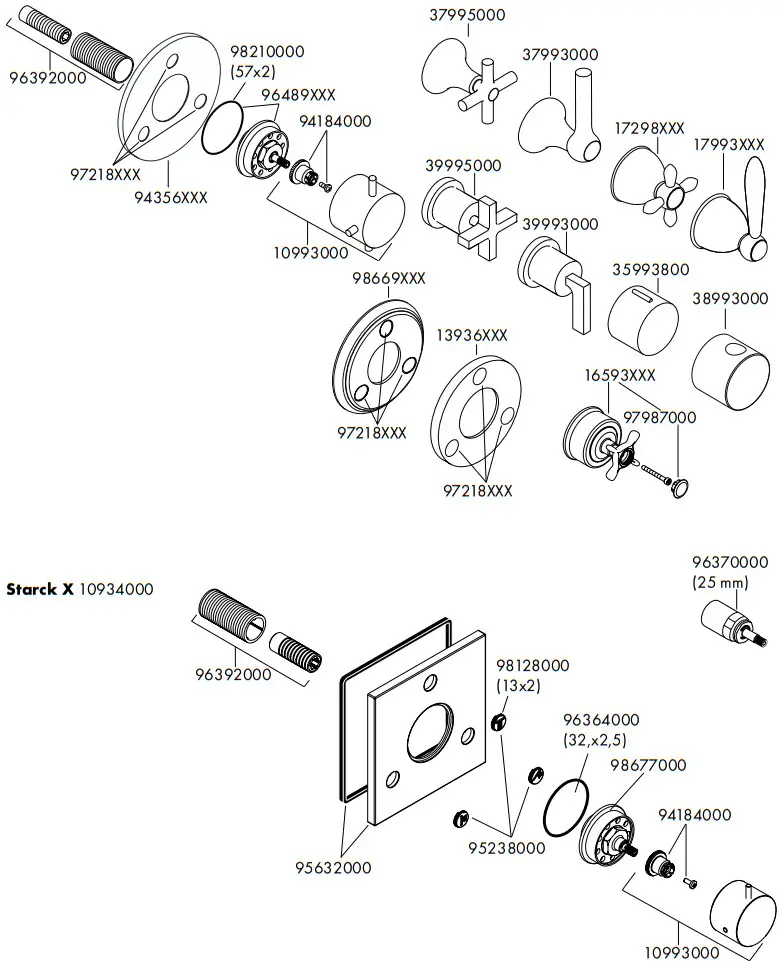

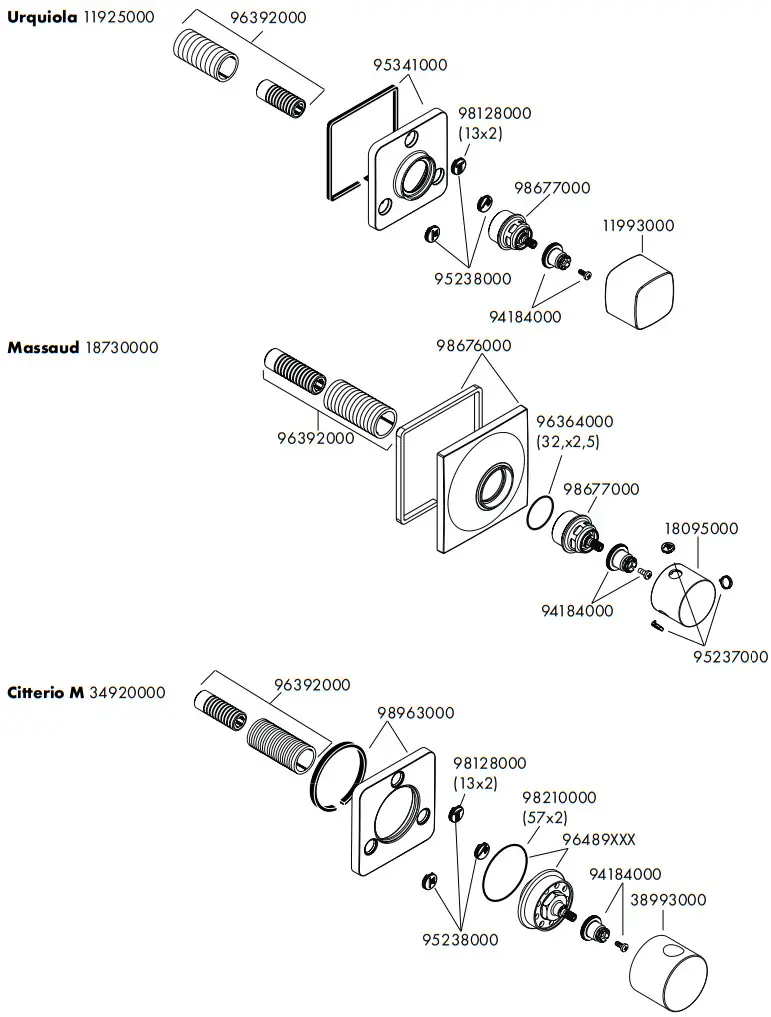

 | Spare parts (see page 22) XXX = Colors 000 = chrome plated 090 = chrome plated/gold plated 800 = stainless steel optic 820 = brushed nickel 830 = polished nickel |
 | Cleaning Cleaning recommendations, see enclosed brochure. |
 | Test certificate (see page 21) |

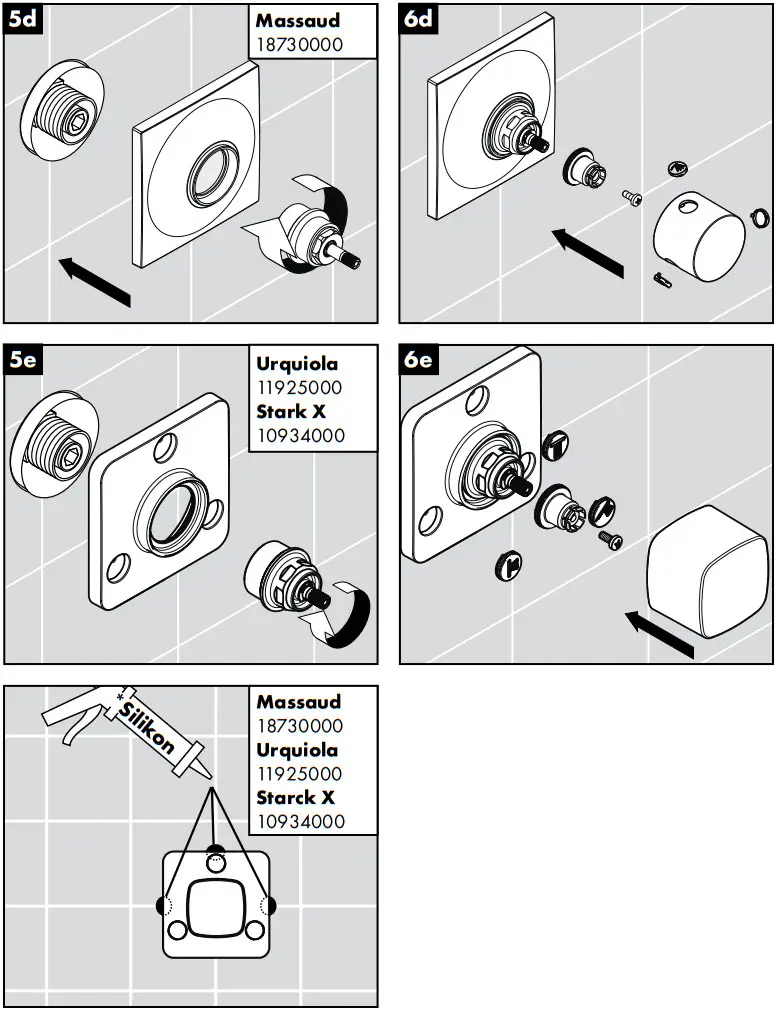

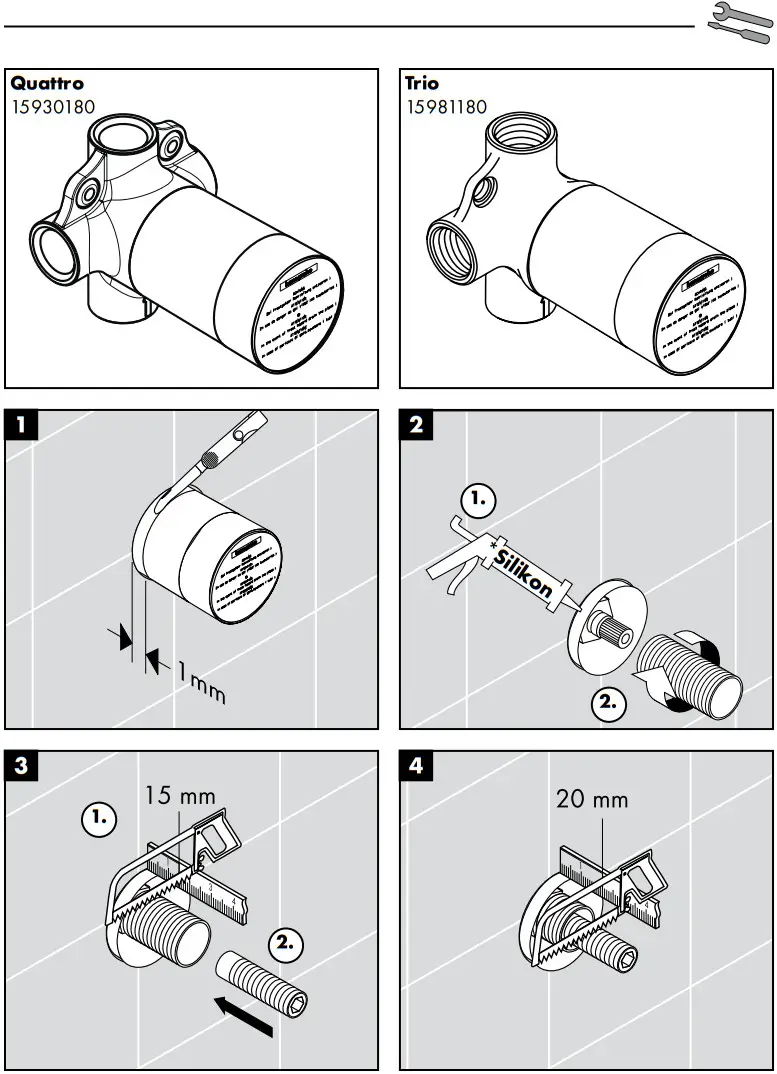

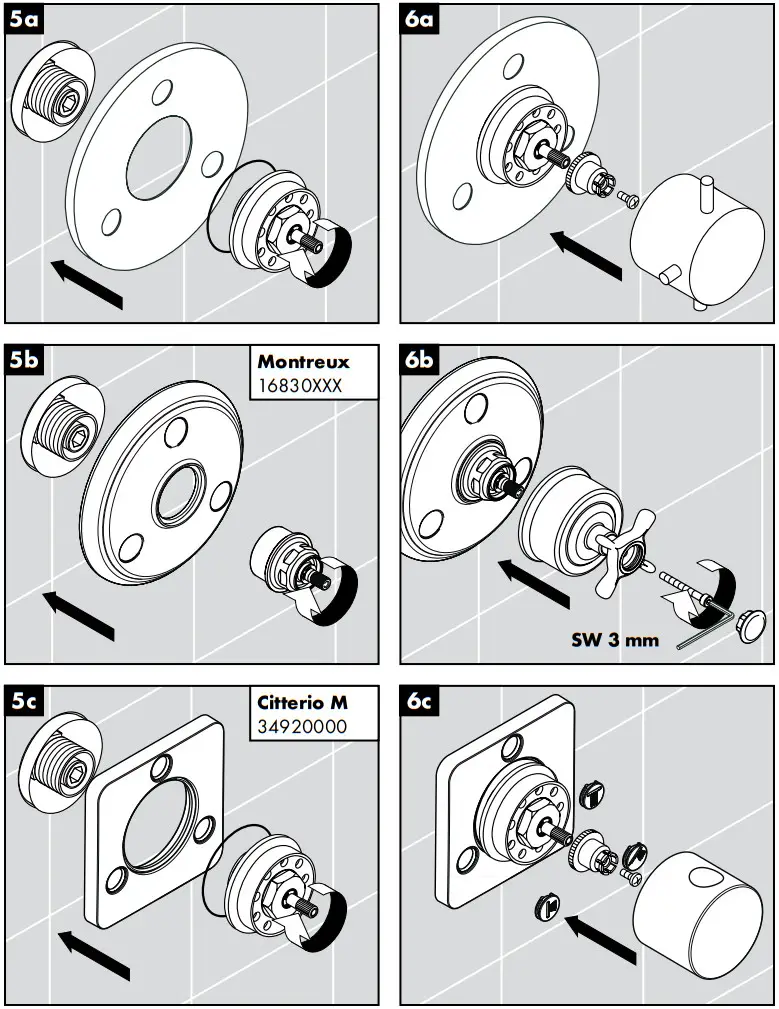

 | Assembly see page 17 |
| PA-IX | DVGW | SVGW | ACS | WRAS | MCA | KIWA | NF | |
| 10930000 | X | X | X | |||||
| 10934000 | ||||||||
| 11925000 | ||||||||
| 16920XXX | X | X | X | |||||
| 17920XXX | X | X | X | |||||
| 17925XXX | X | X | X | |||||
| 18730000 | X | X | X | |||||
| 34920000 | X | |||||||
| 35930000 | X | X | X | |||||
| 37920000 | X | X | X | |||||
| 37925000 | X | X | X | |||||
| 38933000 | X | X | X | |||||
| 39920000 | X | X | X | |||||
| 39925000 | X | X | X |

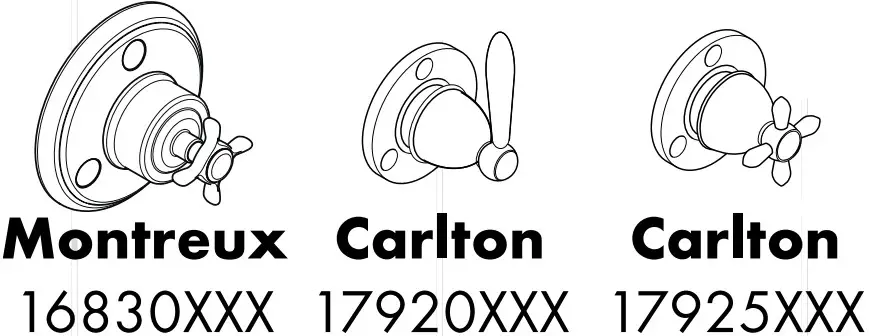

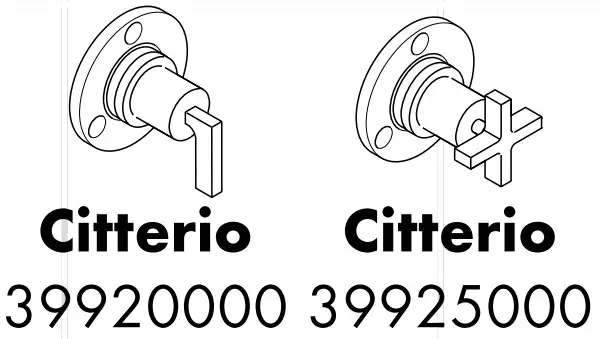

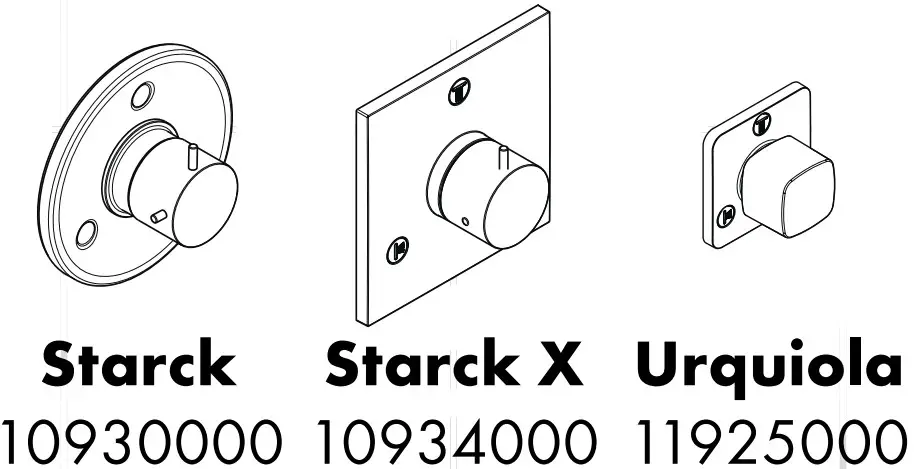

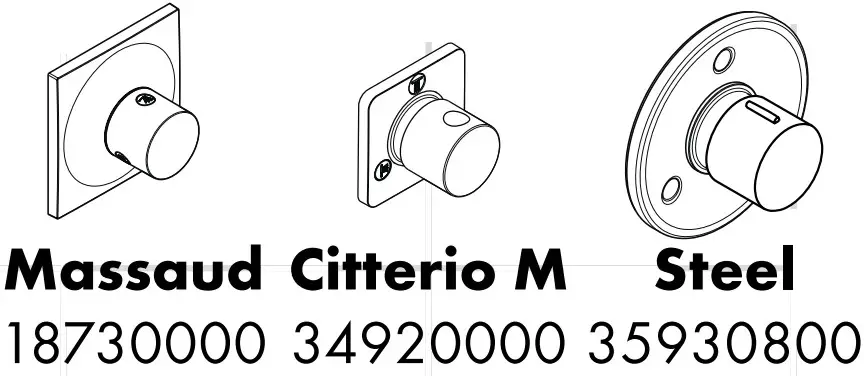

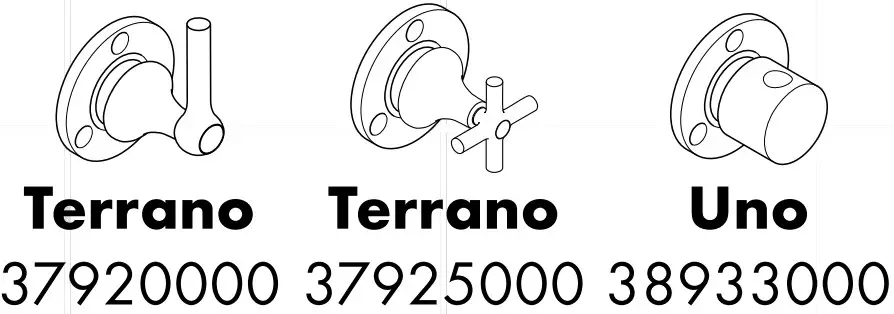

Starck 10930000 / Montreux 16830XXX / Carlton 17920XXX / Carlton 17925XXX / Steel 35930800 / Terrano 37920000 / Terrano 37925000 / Uno 38933000 / Citterio 39920000 / Citterio 39925000
Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
9.09130.09
